Panasonic SCBT228 - BLU-RAY HOME THEATER-EASY Easy Setting Manual

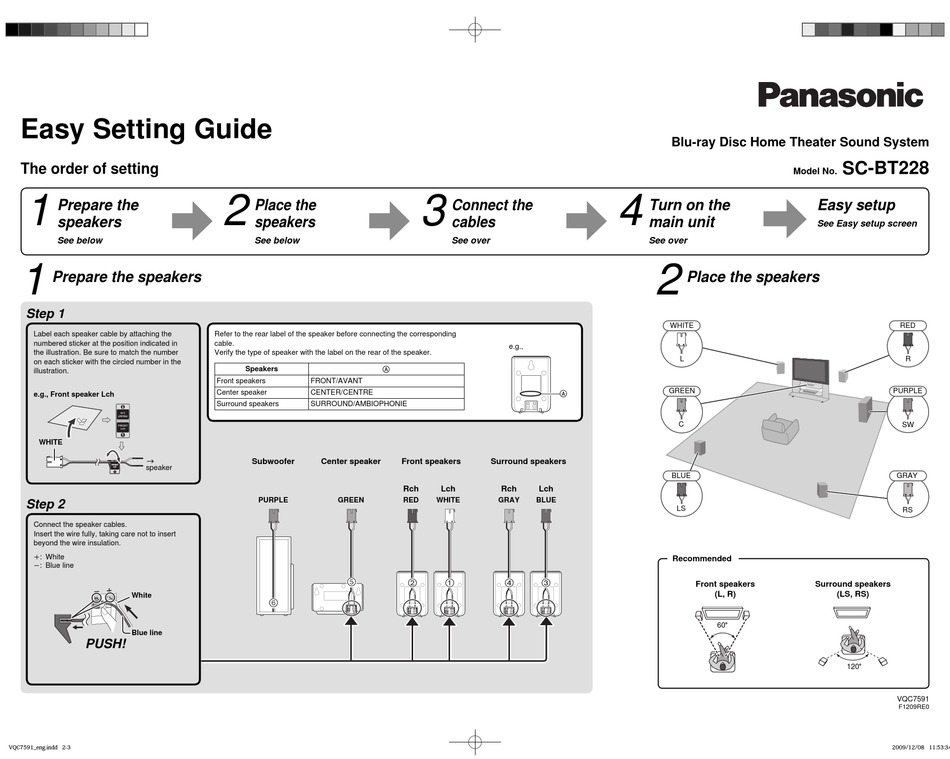

Easy Setting Guide
The order of setting
1
Prepare the
speakers
See below
1

Prepare the speakers

Step 1
Label each speaker cable by attaching the
numbered sticker at the position indicated in
the illustration. Be sure to match the number
on each sticker with the circled number in the
illustration.
e.g., Front speaker Lch
WHITE
→
FRONT
speaker
Lch
1
Step 2
Connect the speaker cables.
Insert the wire fully, taking care not to insert
beyond the wire insulation.
: White
: Blue line
White
Blue line
PUSH!
2
Place the
speakers
See below
Refer to the rear label of the speaker before connecting the corresponding
cable.
Verify the type of speaker with the label on the rear of the speaker.
Speakers 
Front speakers FRONT/AVANT
Center speaker CENTER/CENTRE
Surround speakers SURROUND/AMBIOPHONIE
Subwoofer Center speaker
PURPLE GREEN


3
Connect the
cables
See over
e.g.,
Front speakers Surround speakers
Rch Lch Rch Lch
RED WHITE GRAY BLUE
   
Blu-ray Disc Home Theater Sound System
4
Turn on the

main unit

See over
2

Place the speakers

WHITE
L
GREEN
C
BLUE
LS
Recommended
Front speakers
(L, R)
60
SC-BT228
Model No.

Easy setup

See Easy setup screen
RED
R
PURPLE
SW
GRAY
RS
Surround speakers
(LS, RS)
120
VQC7591
F1209RE0
