OPERATOR'S MANUAL
60V Lithium-Ion Cordless Commercial Series

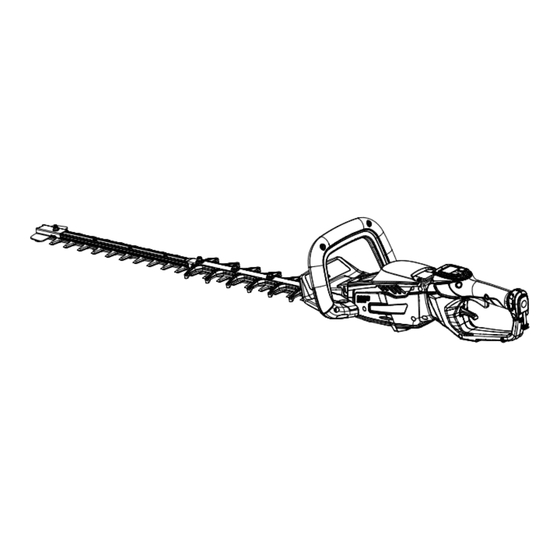

Hedge Trimmer
Model Number:
CHT7612
Battery and Charger Sold Separately
WARNING: To reduce the risk of injury, the user must
read and understand the Operator's Manual before using this
product. Save these instructions for future reference.
Advertisement
Table of Contents
Related Manuals for SUNSEEKER CHT7612
Summary of Contents for SUNSEEKER CHT7612
- Page 1 OPERATOR'S MANUAL 60V Lithium-Ion Cordless Commercial Series Hedge Trimmer Model Number: CHT7612 Battery and Charger Sold Separately WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
-
Page 2: Safety Symbols
READ ALL INSTRUCTIONS! READ & UNDERSTAND OPERATOR'S MANUAL WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are below: Lead from lead-based paints ... -
Page 3: Safety Instructions
WARNING： The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full-face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. - Page 4 To reduce the risk of injury, user must read and understand Read& the operator’s manual before using this product. Failure to Understand do so can result in serious injury to the operator and/or Operator’s bystander. Manual Always wear safety goggles or safety glasses with side Wear Eye shields when operating this product that comply with ANSI Protection...
-
Page 5: Work Area Safety
GENERAL BATTERY-OPERATED POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.Save all warnings and instructions for future reference. WORK AREA SAFETY Keep work area clean and well lit. - Page 6 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a moving part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better ...
- Page 7 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories, tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Page 8 contact accidentally occurs, flush with water. If liquid contact eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified ...
-
Page 9: Important Safety Instructions
power tool “live” and could give the operator an electric shock. Keep cable away from cutting area. During operating the cable may be hidden in shrubs and can be accidentally cut by the blade. Use both hands when operating the hedge trimmer. Using one hand could cause loss of ... -
Page 10: Specifications
SPECIFICATIONS Voltage 60 V 1200W Power Brushless Motor Type 3 levels, 3200/3600/4000 spm No-Load Speed 30in / 750mm Blade Length 1.18in / 30mm Cutting Capacity -4°F~ 122 °F ( -20°C~50°C ) Operating Temperature DESCRIPTION KNOW YOUR HEDGE TRIMMER (Fig. 1) The safe use of this product requires an understanding of the information on the tool and in this operator’s manual, as well as knowledge of the project you are attempting. - Page 11 1. Tip Protector 7.Rear Switch Lever 2. Blade 8. Rear Handle Rotating Knob 3. Blade Guard 9. Rear Handle 4. Hand Guard 10. Electric Socket 5. Front Handle 11. Blade protection guard 6. Front Switch Lever HAND GUARD Helps to protect the operator’s hands; deflects chips or other debris away from the operator. FRONT HANDLE For easy control of the tool.
- Page 12 ASSEMBLY WARNING If any part is damaged or missing, do not operate this product until the part is replaced. Use of this product with damaged or missing parts could result in serious personal injury. WARNING: Do not attempt to modify this product or create accessories not recommended for use with this grass trimmer/ brush cutter.
-
Page 13: Operation
OPERATION WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING: Always wear eye protection that is marked to comply with ANSI Z87.1. or EN 166. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries. -
Page 14: Holding The Hedge Trimmer
Align the battery plug with the hedge trimmer 's electric socket, then insert the plug into the hedge trimmer. (Fig. 2) Fig .2 To Disconnect from the Battery Press the lock on the battery plug, pull the power cord from the electric socket. HOLDING THE HEDGE TRIMMER The switch lever in the front handle can be activated while grasping it on any of the three sides, giving you many choices for a comfortable grip when performing cutting operations. - Page 15 Remove the blade protection guard Make sure the cutting blade is not touching the ground or any other objects. Hold the unit with both hands: one hand on the rear handle and one hand on the front handle. STARTING/STOPPING THE HEDGE TRIMMER To Start Press the power button “...
-
Page 16: Using The Hedge Trimmer
USING THE HEDGE TRIMMER DANGER: If the blade jams on any electrical cord or line, DO NOT TOUCH THE BLADE! IT CAN BECOME ELECTRICALLY LIVE AND VERY DANGEROUS. Continue to hold the hedge trimmer by the insulated rear handle and lay it down and away from you in a safe manner. Disconnect the electrical service from the damaged line or cord before attempting to free the blade from the line or cord. -
Page 17: Top Cutting
and slow down. If the blades slow down, reduce the pace of your work. When trimming new growth, use a wide, sweeping action, so that the stems are fed directly into the cutting blade. Older growth will have thicker stems and will be trimmed most easily by using a sawing movement. -
Page 18: Maintenance
MAINTENANCE WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by authorized dealer/distributor. WARNING: To prevent accidental starting that could cause serious personal injury, always remove the power cord from the product when cleaning or performing any maintenance. -
Page 19: Lubricating The Blade
LUBRICATING THE BLADE For best operation and longer blade life, lubricate the hedge trimmer blade with anti-rusting oil after each use. Remove the power cord away from the hedge trimmer. Lay the hedge trimmer on a flat surface. Spray the anti-rusting oil along the edges of the blades. - Page 20 Always place the blade protection guard on the blade before storing or transporting. Use caution to avoid the sharp teeth of the blade. Store the hedge trimmer indoors, in a dry place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and deicing salts. ...
-
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION The power cord from the battery is Reinsert the power cord plug, ensuring not attached to the hedge trimmer that the lock on the plug clicks. correctly. No electrical contact between the Check all the contacts and reconnect hedge trimmer and power cord. - Page 22 Replace with a new blade. Contact Bend or damaged blade teeth. authorized dealer/distributor for replacement service. Lubricate the drive gear, following the instructions in the "LUBRICATING THE Insufficient drive gear lubrication. DRIVE GEAR" section in this manual. ERROR ALARM CAUSE SOLUTION INDICATOR Contact the service point for a...
- Page 23 Contact the service point for a Phase loss fault professional consultant or repairing. Stop the machine and restart the Other fault machine. If still not workable, contact with the service point. Use the right battery which compatible Battery fault the machine. Contact the service point for a MOS fault professional consultant or repairing.
