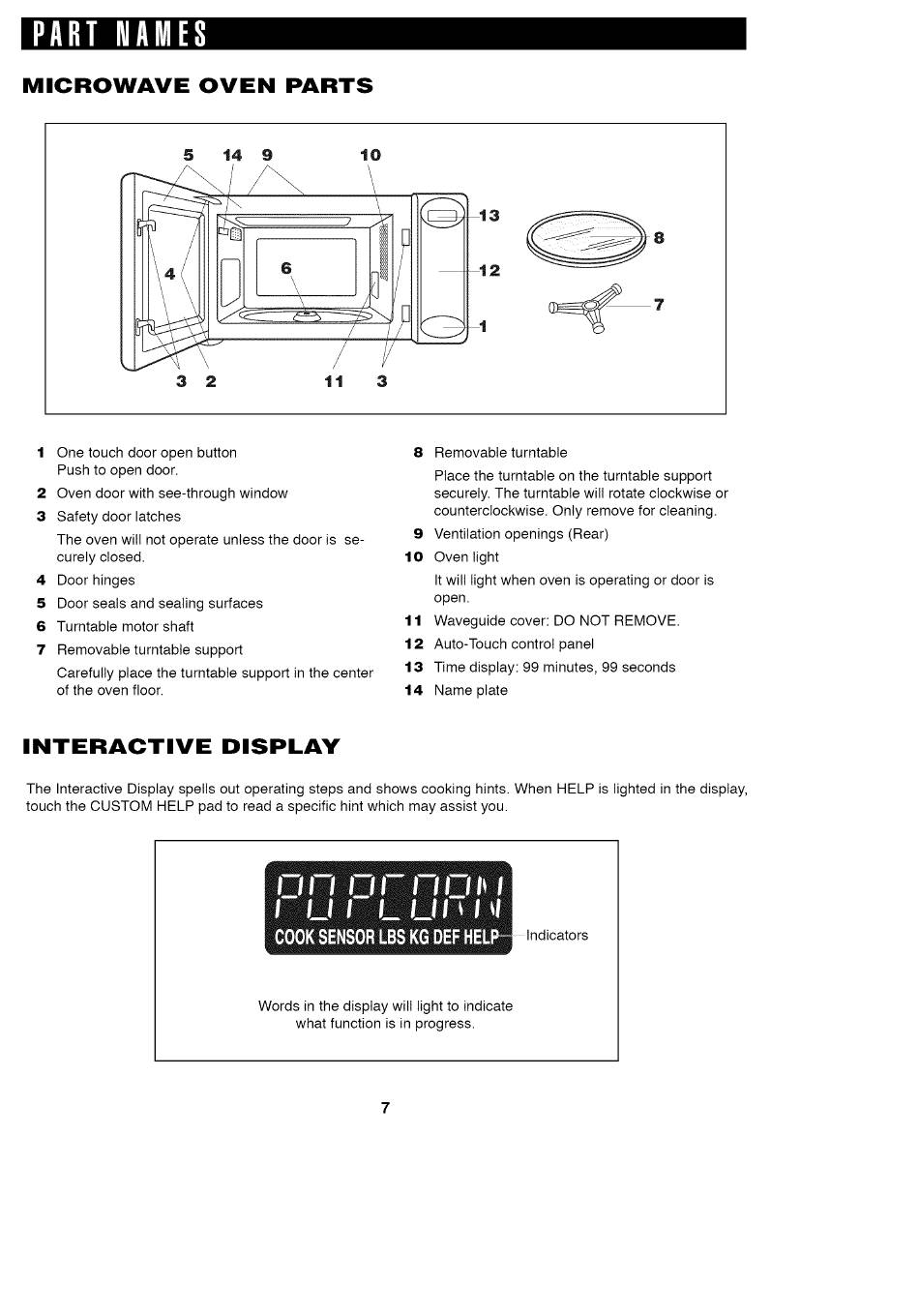

MICROWAVE OVEN PARTS
5 t4 9 1()
_3
t2
8
1 One touch door open button
Push to open door.
2 Oven door with see-through window
3 Safety door latches
The oven wilt not operate unless the door is se-
curely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in the center
of the oven floor.
8 Removable turntable
Place the turntable on the turntable support
securely. The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
9 Ventilation openings (Rear)
10 Oven light
It will light when oven is operating or door is
open.
11 Waveguide cover: DO NOT REMOVE.
12 Auto-Touch control panel
13 Time display: 99 minutes, 99 seconds
14 Name plate
INTERACTIVE DISPLAY
The Interactive Display spells out operating steps and shows cooking hints. When HELP is lighted in the display,
touch the CUSTOM HELP pad to read a specific hint which may assist you.
Indicators
Words in the display will light to indicate
what function is in progress.
