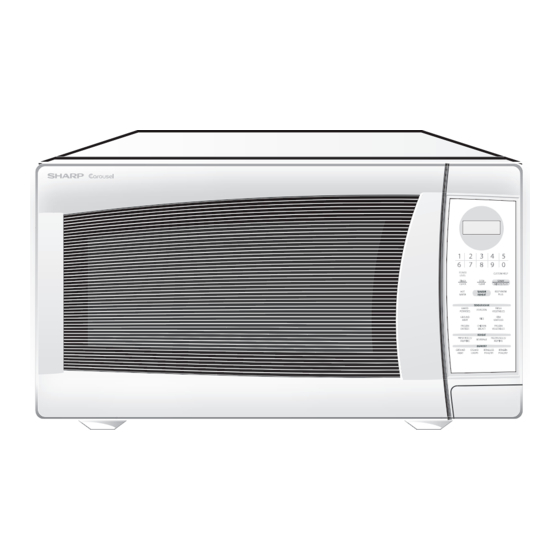

Sharp R-520LK Service Manual
  1. Manuals
  2. Brands
  3. Sharp Manuals
  4. Microwave Oven
  5. R-520LK
  6. Service manual
Sharp R-520LK Service Manual

Sharp R-520LK Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R-520LW
In the interest of user-safety the oven should be restored to its original condition and only parts identical to those specifi ed should
be used.
WARNING TO SERVICE PERSONNEL: Microwave ovens contain circuitry capable of producing very high voltage and
current, contact with following parts may result in a severe, possibly fatal, electrical shock. (High Voltage Capacitor,
High Voltage Power Transformer, Magnetron, High Voltage Rectifi er Assembly, High Voltage Harness etc..)
BEFORE SERVICING ....................................................................................................... INSIDE FRONT COVER
WARNING TO SERVICE PERSONNEL . ................................................................................................................ 3
MICROWAVE MEASUREMENT PROCEDURE . .................................................................................................... 4
FOREWORD AND WARNING ............................................................................................................................... 5
PRODUCT SPECIFICATIONS ............................................................................................................................... 6
GENERAL INFORMATION.................................................................................................................................... 6
OPERATION . .......................................................................................................................................................... 8
TROUBLESHOOTING GUIDE ............................................................................................................................. 1
TEST PROCEDURE ............................................................................................................................................ 13
TOUCH CONTROL PANEL .................................................................................................................................. 3
COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE................................................................. 9
PICTORIAL DIAGRAM ......................................................................................................................................... 36
CONTROL UNIT CIRCUIT ................................................................................................................................... 37
PRINTED WIRING BOARD . ................................................................................................................................. 38
PARTS LIST ........................................................................................................................................................ 39
PACKING AND ACCESSORIES .......................................................................................................................... 43
SHARP ELECTRONCS CORPORATION
Service Headquarters: Sharp Plaza, Mahwah, New Jersey, 07430-135
SERVICE MANUAL
MODELS

TABLE OF CONTENTS

1
MICROWAVE OVEN
R-520LK
R-520LW
This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
R - 5 2 0 L K
R - 5 2 0 LW
S46M260R520LE
Page

Advertisement

Table of Contents
loading

Related Manuals for Sharp R-520LK

Summary of Contents for Sharp R-520LK

  • Page 1: Table Of Contents

    MICROWAVE MEASUREMENT PROCEDURE ..................... 4 FOREWORD AND WARNING ..........................5 PRODUCT SPECIFICATIONS ..........................6 GENERAL INFORMATION............................ 6 OPERATION ................................8 TROUBLESHOOTING GUIDE ..........................1 TEST PROCEDURE ............................13 TOUCH CONTROL PANEL ..........................3 COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE..............9 PICTORIAL DIAGRAM ............................36 CONTROL UNIT CIRCUIT ........................... 37 PRINTED WIRING BOARD ..........................38 PARTS LIST ................................ 39 PACKING AND ACCESSORIES .......................... 43 SHARP ELECTRONCS CORPORATION This document has been published to be used for after sales service only. The contents are subject to change without notice. Service Headquarters: Sharp Plaza, Mahwah, New Jersey, 07430-135...

  • Page 2: Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive Microwave Energy

    (e) A microwave leakage check to verify compliance with the Federal Performance Standard should be performed on each oven prior to release to the owner. BEFORE SERVICING Before servicing an operative unit, perform a microwave emission check as per the Microwave Measurement Procedure outlined in this service manual. If microwave emissions level is in excess of the specified limit, contact SHARP ELECTRONICS CORPORATION immediately @1-800-37-477. If the unit operates with the door open, service person should 1) tell the user not to operate the oven and ) contact SHARP ELECTRONICS CORPORATION and Food and Drug Administration's Center for Devices and Radiological Health immediately. Service personnel should inform SHARP ELECTRONICS CORPORATION of any certified unit found with emissions in excess of 4mW/cm . The owner of the unit should be instructed not to use the unit until the oven has been brought into compliance.

  • Page 3: Warning To Service Personnel

    R - 5 2 0 L K R - 5 2 0 LW WARNING TO SERVICE PERSONNEL Microwave ovens contain circuitry capable of pro- ducing very high voltage and current, contact with following parts may result in a severe, possibly fatal, electrical shock. (Example) High Voltage Capacitor, High Voltage Power Transformer, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness etc..

  • Page 4: Microwave Measurement Procedure

    R - 5 2 0 L K R - 5 2 0 LW MICROWAVE MEASUREMENT PROCEDURE A. Requirements: 1) Microwave leakage limit (Power density limit): The power density of microwave radiation emitted by a microwave oven should not exceed 1mW/cm at any point 5cm or more from the external surface of the oven, measured prior to acquisition by a purchaser, and thereafter (through the useful life of the oven), 5 mW/cm at any point 5cm or more from the external surface of the oven. ) Safety interlock switches: Primary interlock relay switch shall prevent microwave radiation emission in excess of the requirement as above mentioned. Secondary interlock relay and door sensing switch shall prevent microwave radiation emission in excess...

  • Page 5: Foreword And Warning

    R - 5 2 0 LW SERVICE MANUAL PRODUCT DESCRIPTION MICROWAVE OVENS R-520LK/R-520LW GENERAL INFORMATION FOREWORD This Manual has been prepared to provide Sharp Electronics Corp. Service Personnel with Operation and Service Information for the SHARP MICROWAVE OVENS R-50LK and R-50LW. OPERATION It is recommended that service personnel carefully study the entire text of this manual so that they will be qualified to render satisfactory customer service.

  • Page 6: Product Specifications

    SPECIFICATION R - 5 2 0 L K R - 5 2 0 LW ITEM DESCRIPTION Power Requirements 10 Volts 14.3 Amperes, 1700 watts 60 Hertz Single phase, 3 wire grounded Power Output 100 watts (IEC TEST PROCEDURE) Operating frequency of 450MHz Case Dimensions Width 4" Height 13-3/8" Depth 19-1/8" Cooking Cavity Dimensions Width 17-3/8" Height 10-1/" .0 Cubic Feet Depth 18-5/8" Control Complement Touch Control System Clock ( 1:00 - 1:59 ) Timer (0 - 99 min. 99 seconds) Microwave Power for Variable Cooking...
  • Page 7 R - 5 2 0 L K R - 5 2 0 LW 15 or 0 amp. fused electrical supply. It is recommended that a separate circuit serving only this appliance be provided. When installing this ap- pliance, observe all applicable codes and ordinances. Grounded A short power-supply cord is provided to reduce risks of becoming Receptacle Box entangled in or tripping over a longer cord. Where a two-pronged wall-receptacle is encountered, it is the personal responsibility and obligation of the customer to contact a qualified electri- cian and have it replaced with a properly grounded three-pronged wall 3-Pronged receptacle or have a grounding adapter properly grounded and polar- Plug ized. If the extension cord must be used, it should be a 3-wire, 15 amp. or higher rated cord. Do not drape over a countertop or table where it Grounding Pin can be pulled on by children or tripped over accidentally.

  • Page 8: Operation

    R - 5 2 0 L K R - 5 2 0 LW OPERATION DESCRIPTION OF OPERATING SEQUENCE The following is a description of component functions dur- relay and is mechanically associated with the door so ing oven operation. that it will function in the following sequence. (1) When the door opens from the closed position, the OFF CONDITION secondary interlock relay (RY) and primary interlock switch open their contacts. And contacts of the relay Closing the door activates the door sensing switch and pri- (RY1) remains closed. Then the monitor switch contacts mary interlock switch. (In this condition, the monitor switch...
  • Page 9 R - 5 2 0 L K R - 5 2 0 LW SENSOR COOKING CONDITION Using the SENSOR function, food is cooked without figur- . The coil of shut-off relay (RY-1) is energized, the turntable ing time, power level or quantity. When the oven senses motor are turned on, but the power transformer is not enough steam from the food, it relays the information to its turned on. 3. After about 16 seconds, the cook relay (RY-) is microprocessor which will calculate the remaining cooking energized. The power transformer is turned on, time and power level needed for best results. When the food microwave energy is produced and first stage is started.
  • Page 10 R - 5 2 0 L K R - 5 2 0 LW Note:* Indicates component SCHEMATIC NOTE: CONDITION OF OVEN 1. Door Closed . CLOCK APPEARS ON DISPLAY N.O. COM. DOOR SENSING POWER SWITCH TRANSFORMER HUMIDITY SENSOR (RY2) SECONDARY INTERLOCK RELAY CONTROL UNIT (RY1) COM. N.O. 120VAC HIGH 60Hz VOLTAGE OVEN LAMP CAPACITOR...
  • Page 11 R - 5 2 0 L K R - 5 2 0 LW DESCRIPTION AND FUNCTION OF COMPONENTS DOOR OPEN MECHANISM The door is opened by pushing the open button on the con- 3. If the door is opened, and the secondary interlock relay trol panel, refer to the Figure D-1. When the open button is (RY) and primary interlock switch contacts fail to open, pushed, the open button pushes up the switch lever, and the monitor fuse blows simultaneously with closing of the then the switch lever pushes up the latch head. The latch monitor switch contacts. heads are moved upward and released from latch hook. CAUTION: BEFORE REPLACING A BLOWN MONITOR Now the door will open.

  • Page 12: Troubleshooting Guide

    R - 5 2 0 L K R - 5 2 0 LW TROUBLESHOOTING GUIDE Never touch any part in the circuit with your hand or an uninsulated tool while the power supply is con- nected. When troubleshooting the microwave oven, it is helpful to follow the Sequence of Operation in performing the checks. Many of the possible causes of trouble will require that a specific test be performed. These tests are given a procedure letter which will be found in the "Test Procedure "section. IMPORTANT: If the oven becomes inoperative because of a blown monitor fuse, check the monitor switch, relay (RY1) secondary interlock relay (RY), door sensing switch and primary interlock switch before replacing the moni- tor fuse. If the monitor fuse is replaced, the monitor switch must also be replaced. Use part FFS-BA016/KIT as an assembly.

  • Page 13: Test Procedure

    R - 5 2 0 L K R - 5 2 0 LW CK = Check / RE = Replace RE RE A B C D E E F F G H RE RE CK I CK CK CK J K L M N TEST PROCEDURE PROBLEM CONDITION Home fuse or circuit breaker blows when power cord is plugged into wall receptacle C/T fuse blows when power cord is plugged into wall receptacle.
  • Page 14 R - 5 2 0 L K R - 5 2 0 LW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER 4. To test for an open filament, isolate the magnetron from the high voltage circuit. A continuity check across the magnetron filament leads should indicate less than 1 ohm. 5. To test for a shorted magnetron, connect the ohmmeter leads between the magnetron filament leads and chassis ground. This test should indicate an infinite resistance. If there is little or no resistance the magnetron is grounded and must be replaced. 6. Reconnect all leads removed from components during testing. 7. Reinstall the outer case (cabinet). 8. Reconnect the power supply cord after the outer case is installed. 9. Run the oven and check all functions. MICROWAVE OUTPUT POWER The following test procedure should be carried out with the microwave oven in a fully assembled condi- tion (outer case fitted). HIGH VOLTAGES ARE PRESENT DURING THE COOK CYCLE, SO EXTREME CAUTION SHOULD BE OBSERVED.
  • Page 15 R - 5 2 0 L K R - 5 2 0 LW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER HIGH VOLTAGE RECTIFIER TEST 1. Disconnect the power supply cord, and then remove outer case. . Open the door and block it open. 3. Discharge high voltage capacitor. 4. Isolate the rectifier from the circuit. Using the highest ohm scale of the meter, read the resistance across the terminals and observe, reverse the leads to the rectifier terminals and observe meter reading. If a short is indicated in both directions, or if an infinite resistance is read in both directions, the rectifier is probably defective and should be replaced. 5. Reconnect all leads removed from components during testing. 6. Reinstall the outer case (cabinet). 7. Reconnect the power supply cord after the outer case is installed. 8. Run the oven and check all functions.
  • Page 16 R - 5 2 0 L K R - 5 2 0 LW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER 8. Run the oven and check all functions. CAUTION: IF T HE T EMPERATURE FUSE INDICATES AN OPEN CIRCUIT AT ROOM T EMPERATURE, REPLACE TEMPERATURE FUSE. PRIMARY INTERLOCK SWITCH TEST 1. Disconnect the power supply cord, and then remove outer case. . Open the door and block it open. 3. Discharge high voltage capacitor. 4. Isolate the switch and connect the ohmmeter to the common (COM.) and normally open (NO) terminal of the switch. The meter should indicate an open circuit with the door open and a closed circuit with the door closed. If improper operation is indicated, replace the primary interlock switch.
  • Page 17 R - 5 2 0 L K R - 5 2 0 LW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER MONITOR SWITCH TEST 1. Disconnect the power supply cord, and then remove outer case. . Open the door and block it open. 3. Discharge high voltage capacitor. 4. Before performing this test, make sure that the primary interlock switch and the secondary interlock relay are operating properly, according to the above Switch Test Procedure. Disconnect the wire lead from the monitor switch (COM) terminal. Check the monitor switch operation by using the ohmmeter as follows. When the door is open, the meter should indicate a closed circuit. When the monitor switch actuator is pushed by a screw driver through the lower latch hole on the front plate of the oven cavity with the door opened (in this condition the plunger of the monitor switch is pushed...
  • Page 18 R - 5 2 0 L K R - 5 2 0 LW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER . Control Unit The following symptoms indicate a defective control unit. -1 In connection with pads. a) When touching the pads, a certain group of pads do not produce a signal. b) When touching the pads, no pads produce a signal. - In connection with indicators a) At a certain digit, all or some segments do not light up. b) At a certain digit, brightness is low. c) Only one indicator does not light. d) The corresponding segments of all digits do not light up; or they continue to light up. e) Wrong figure appears. f) A certain group of indicators do not light up. g) The figure of all digits flicker. -3 Other possible problems caused by defective control unit. a) Buzzer does not sound or continues to sound. b) Clock does not operate properly. c) Cooking is not possible. 3. If the Key unit or the Control unit is defective.
  • Page 19 R - 5 2 0 L K TEST PROCEDURES R - 5 2 0 LW PROCEDURE COMPONENT TEST LETTER FROZEN POWER NO. G1 NO. G13 BONE-IN ROLLS/ POULTRY LEVEL MUFFINS GROUND FRESH BAKED CUSTOM START KEEP WARM STOP Key unit ribbon cable RICE MEAT ROLLS/ POTATOES CLEAR MINUTE PLUS...
  • Page 20 R - 5 2 0 L K R - 5 2 0 LW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER FOIL PATTERN ON THE PRINTED WIRING BOARD TEST To protect the electronic circuits, this model is provided with a fine foil pattern added to the primary on the PWB, this foil pattern acts as a fuse. 1. Foil pattern check and repairs. Disconnect the power supply cord, and then remove outer case. ) Open the door and block it open. 3) Discharge high voltage capacitor. 4) Follow the troubleshooting guide given below for repair. STEPS OCCURRENCE CAUSE OR CORRECTION Only pattern at "a" is broken.
  • Page 21 R - 5 2 0 L K R - 5 2 0 LW AH SENSOR TEST Checking the initial sensor cooking condition WARNING : The oven should be fully assembled before following procedure. (1) The oven should be plugged in at least two minutes before sensor cooking. () Room temperature should not exceed 95½F (35½C). (3) The unit should not be installed in any area where heat and steam are generated. The unit should not be installed, for example, next to a conventional surface unit. Refer to the “INSTALLATION INSTRUCTIONS” of the operation manual.
  • Page 22 R - 5 2 0 L K R - 5 2 0 LW If new sensor dose not operate properly, the problem is with the control unit, and refer to explanation below. CHECKING CONTROL UNIT (1) Disconnect the power supply cord, and then remove outer case. () Open the door and block it open. (3) Discharge high voltage capacitor. (4) Disconnect the sensor connector that is mounted to control panel. (5) Then connect the dummy resistor circuit (see fig.) to the sensor connector of control panel. (6) Disconnect the leads to the primary of the power transformer. (7) Ensure that these leads remain isolated from other components and oven chassis by using insulation tape. (8) After that procedure, re-connect the power supply cord. (9) Check the sensor cook operation proceed as follows: 9-1. Open the door. Touch the TIMER/CLOCK pad once and the POWER LEVEL pad twice. Close the door and touch the START pad once. Open the door and touch the number pads 1 once and the number pad 4. Close the door and the touch the START pad. 9-. The control panel is in the sensor cooking operation. 9-3. After approximately 5 seconds, push plunger of select switch for more than 3 seconds. This condition is same as judgement by AH sensor.

  • Page 23: Touch Control Panel

    R - 5 2 0 L K R - 5 2 0 LW TOUCH CONTROL PANEL ASSEMBLY OUTLINE OF TOUCH CONTROL PANEL The touch control section consists of the following units. 3) Power Source Circuit This circuit generates voltages necessary in the control (1) Key Unit unit from the AC line voltage. () Control Unit (The Control Unit consists of Power Unit In addition, the synchronizing signal is available in order and LSI Unit). to compose a basic standard time in the clock circuit. Symbol Voltage Application The principal functions of these units and the signals com- VSS -5V LSI(IC1) municated among them are explained below. 4) Relay Circuit Key Unit A circuit to drive the magnetron, fan motor, turntable The key unit is composed of a matrix, signals generated in...
  • Page 24 R - 5 2 0 L K R - 5 2 0 LW DESCRIPTION OF LSI The I/O signal of the LSI is detailed in the following table. Pin No. Signal Description Power source voltage input terminal. 1- VL-VL1 Standard voltage for LCD. 3-6 AN7-AN4 Terminal to change cooking input according to the Model. By using the A/D converter contained in the LSI, DC voltage in accordance with the Model in operation is applied to set up its cooking constant.
  • Page 25 R - 5 2 0 L K R - 5 2 0 LW Pin No. Signal Description Signal similar to AN3. P41 When either G11 line on key matrix is touched, a corresponding signal will be input into P41. P40 Connected to GND through the pull-down resistor. Auto clear terminal. RESET Signal is input to reset the LSI to the initial state when power is applied. P71 Signal similar to AN3. When either G10 line on key matrix is touched, a corresponding signal will be input into P71. Signal similar to ANI3. P70 When either G9 line on key matrix is touched, a corresponding signal will be input into P70.
  • Page 26 R - 5 2 0 L K R - 5 2 0 LW Pin No. Signal Description Connected to LCD. The relation between signals are as follows: LSI signal (Pin No.) LCD (Pin No.) LSI signal (Pin No.) LCD (Pin No.) SEG0 (7) ........SEG 0 SEG11 (61) ........ SEG 11 SEG1 (71) ........SEG 1 SEG1 (60) ........ SEG 1 SEG (70) ........SEG  SEG13 (59) .
  • Page 27 R - 5 2 0 L K R - 5 2 0 LW ABSOLUTE HUMIDITY SENSOR CIRCUIT (1) Structure of Absolute Humidity Sensor the food is heated to generate moisture by which the The absolute humidity sensor includes two thermistors resistance balance of the bridge circuit is deviated to as shown in the illustration. One thermistor is housed in increase the voltage available at AN1 terminal of the the closed vessel filled with dry air while another in the LSI. open vessel. Each sensor is provided with the protective Then the LSI observes that voltage at AN1 terminal cover made of metal mesh to be protected from the and compares it with its initial value, and when the external airflow.
  • Page 28 R - 5 2 0 L K R - 5 2 0 LW TOUCH CONTROL PANEL SERVICING 6) Run the oven and check all functions. 1. Precautions for Handling Electronic Components A. On some models, the power supply cord between the This unit uses CMOS LSI in the integral part of the circuits. touch control panel and the oven itself is so short that When handling these parts, the following precautions the two can’t be separated. For those models, check and should be strictly followed. CMOS LSI have extremely repair all the controls (sensor-related ones included) of high impedance at its input and output terminals. For the touch control panel while keeping it connected to this reason, it is easily influenced by the surrounding the oven.

  • Page 29: Component Replacement And Adjustment Procedure

    1. Without the RF gasket (Magnetron). Do not operate the oven if any of the following conditions . If the wave guide or oven cavity are not intact. exist: 3. If the door is not closed. 4. If the outer case (cabinet) is not fitted. WARNING FOR WIRING To prevent an electric shock, take the following pre- 3) Sharp edge: cautions: Bottom plate, Oven cavity, Waveguide flange, 1. Before wiring: Chassis support and other metallic plate. 1) Disconnect the power supply cord. 4) Movable parts (to prevent a fault): ) Open the door block it open.
  • Page 30 R - 5 2 0 L K R - 5 2 0 LW CAUTION: 1. DISCONNECT OVEN FROM POWER SUP- PLY BEFORE REMOVING OUTER CASE. . DISCHARGE THE HIGH VOLTAGE CA- PACITOR BEFORE TOUCHING ANY OVEN COMPONENTS OR WIRING. Special screw NOTE: When replacing the outer case, the 2 special Torx screws must be reinstalled in the same locations.
  • Page 31 R - 5 2 0 L K R - 5 2 0 LW OVEN LAMP AND LAMP SOCKET REMOVAL 1. Disconnect the power supply cord and remove outer case. . Open the door and block it open. 3. Discharge high voltage capacitor. 4. Remove the oven lamp from the oven lamp socket. Terminal Oven lamp 5. Pull the wire leads from the oven lamp socket by pushing socket the terminal hole of the oven lamp socket with the small flat type screw driver. 6. Remove the oven lamp socket from the magnetron duct by turning the socket counterclockwise.
  • Page 32 (Rear side) Ribbon cable Long slit Slit Membrane Graphic switch sheet Contact surface Rubber connector TURNTABLE MOTOR REMOVAL 1. Disconnect the power supply cord. . Remove turntable and turntable support from oven 5. Disconnect wire leads from turntable motor. cavity. (See "Positive lock connector removal") 3. Lay the oven on it's backside. Remove the turntable motor 6. Remove one (1) screw holding turntable motor to oven cover by snipping off the material in four corners. cavity. 4. Where the corners have been snipped off bend corner 7. Now the turntable motor is free. areas flat. No sharp edges must be evident after removal 8. After replacement, use the one (1) screw provided with of the turntable motor cover. the TTM Kit, to attach the turntable motor cover.
  • Page 33 R - 5 2 0 L K R - 5 2 0 LW COOLING FAN MOTOR REMOVAL REMOVAL CAUTION: 1. Disconnect the power supply cord and then remove outer * Do not reuse the removed fan blade because the case. hole (for shaft) may be larger than normal. . Open the door and block it open. 3. Discharge high voltage capacitor.
  • Page 34 R - 5 2 0 L K R - 5 2 0 LW 3. Secure latch hook (with two () mounting screws) to and check continuity of the monitor circuit. Refer to chapter oven flange. "Test Procedure" and Adjustment procedure. 4. Make sure that the monitor switch is operating properly DOOR SENSING SWITCH/PRIMARY INTERLOCK SWITCH AND MONITOR SWITCH ADJUSTMENT 1. Disconnect the power supply cord, and then remove hook, pushing and pulling upper portion of door toward outer case.
  • Page 35 R - 5 2 0 L K R - 5 2 0 LW 9. Release the door panel from twelve (1) tabs of door frame. 10. R emove the door panel from the door frame. 11. N ow, door panel with sealer film is free. 1. T ear sealer film from door panel. 13. N ow, door panel is free. 14. S lide latch head upward and remove it from door frame with releasing latch spring from door frame and latch head.

  • Page 36: Pictorial Diagram

    R - 5 2 0 L K R - 5 2 0 LW...

  • Page 37: Control Unit Circuit

    R - 5 2 0 L K R - 5 2 0 LW...

  • Page 38: Printed Wiring Board

    R - 5 2 0 L K R - 5 2 0 LW CHIP SIDE CN-F 1 2 3 CN-B WH-2 WH-2 Q4 SP1 VRS1 Figure S-5 . Printed Wiring Board of Power Unit...

  • Page 39: Parts List

    AH sensor CABINET PARTS 2- 1 GDAI-B061MRP0 Base plate 2- 2 GLEGPB004MRF0 Foot 2- 3 GCABUB096MRP0 Outer case cabinet (R-520LK) 2- 3 GCABUB089MRP0 Outer case cabinet (R-520LW) CONTROL PANEL PARTS 3- 1 GPNLCB090MRK0 Control unit assy 3- 2 HPNLFB024MRF0 Control panel (R-520LK)
  • Page 40 7- 5 XCBS730P08000 Screw : 3mm x 7- 6 XHTS740P08RV0 Screw : 4mm x 8mm 7- 7 LX-CZA070WRE0 Special screw (Torx tamper proof screw) 7- 8 XOTS840P12000 Screw HOW TO ORDER REPLACEMENT PARTS To have your order filled promptly and correctly, please furnish the following information. 1. MODEL NUMBER . REF. NO. 3. PART NO. 4. DESCRIPTION Order Parts from the authorized SHARP parts Distributor for your area. Defective parts requiring return should be returned as indicated in the Service Policy.
  • Page 41 R - 5 2 0 L K R - 5 2 0 LW OVEN AND CABINET PARTS 1-14 1-13 4-13 1-11 4-12 1-12 4-10 1-10 4-11...
  • Page 42 R - 5 2 0 L K R - 5 2 0 LW CONTROL PANEL PARTS 3-10 3-11 DOOR PARTS 5-10 5-11 MISCELLANEOUS Actual wire harness may be different from illustration.

  • Page 43: Packing And Accessories

    R - 5 2 0 L K R - 5 2 0 LW PACKING AND ACCESSORIES TOP PAD ASSEMBLY DOOR PROTECTION SHEET 6-3 TURNTABLE TRAY PLASTIC BAG TRAY HOLDER 6-6 OPERATION MANUAL BOTTOM PAD ASSEMBLY 6-2 TURNTABLE SUPPORT PACKING CASE...
  • Page 44 R - 5 2 0 L K R - 5 2 0 LW COPYRIGHT © 006 BY SHARP CORPORATION ALL RIGHTS RESERVED. No part of this publication may be reproduced, stored in retrieval systems, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher. 006 SHARP CORP. (5M.00E) Printed in U.S.A...
