Health O Meter 500HB Installation Instructions Manual

Thank you for purchasing this Health o meter
injury or damage to your scale, please follow the instructions in this user manual very carefully.
Refer to the scale type from the list below and follow the instructions on the page noted.
500KL – Assembled Scales
500KL – Unassembled Scales
500KL – Assembled ..............................................................................................................................................................pg. 4
500KL – Unassembled Scales..............................................................................................................................................pg. 5
502KL – All Scale Versions....................................................................................................................................................pg.7
Cautions and Warnings
•
The handlebars are intended for patient use only. Do not use the handlebars to transport the scale or use the scale as
a handcart to transport items.
•
To prevent patient injury, the patient must be attended throughout the entire weighing event. Caregivers should
ensure that the patient is stable and provide support as needed when getting onto and off of the scale.
•
Do not allow the patient to use the handlebars to pull themselves onto the scale.
•
Excessive movement of the handlebars may affect the weight lock function.
•
Do not allow patients to use excessive force to push or pull on the handlebars during the weighing process.
In no event whatsoever shall Pelstar
Tools Included: ¼" Drill Bit*, Allen Wrench, Ratchet Allen Wrench, Tools Required: Utility Knife, Power Drill*
(*Note: Power drill and drill bit are not required when mounting handlebars onto scales with factory installed mounting
holes and cover caps. See photo on page 7.)

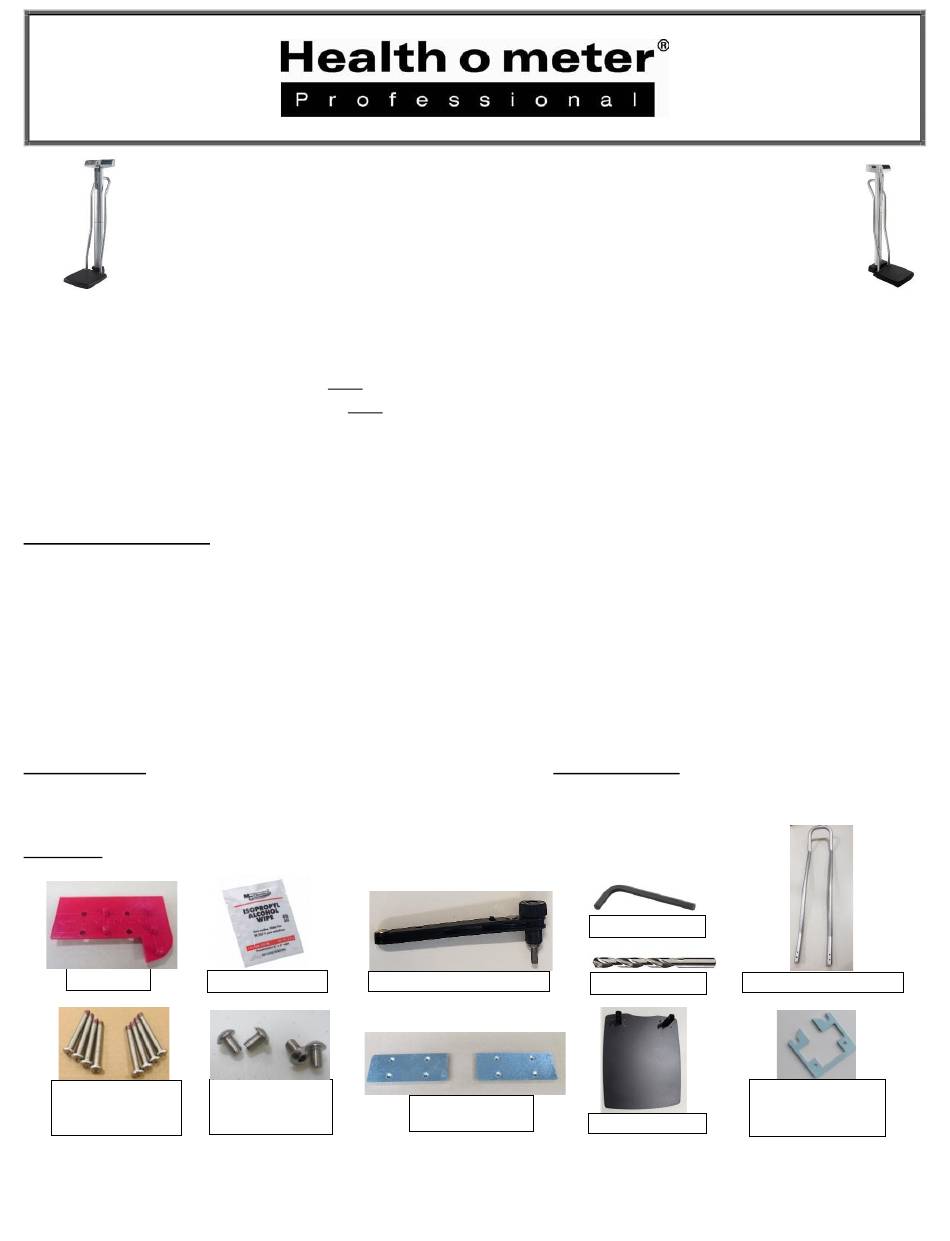

Parts List:
Drill Guide
1/4-20 X 2 1/4
Button Head
Screws, 8 Each
P/N 82-00009 500HB REV G
500HB Installation Instructions
(Scale Version REV J Only) - Refer to the scale's product label to determine the scale version
(Scale Version REV J Only) - Refer to the scale's product label to determine the scale version
®
, LLC be liable for damages or injuries whatsoever arising out of or connected
with the assembly, use, or misuse of its products.
Alcohol Wipe
Ratchet Allen Wrench
1/4-20 X 1/2
Button Head
Screws, 4 Each
®
Professional product. To prevent patient/caregiver
500HB Mount
Bracket, 2 Each
1
Allen Wrench
¼" Drill Bit* 500HB Handlebar
500HB SPACER
(not used on 502
series scales)
500HB Base
............pg. 2
........pg. 3
