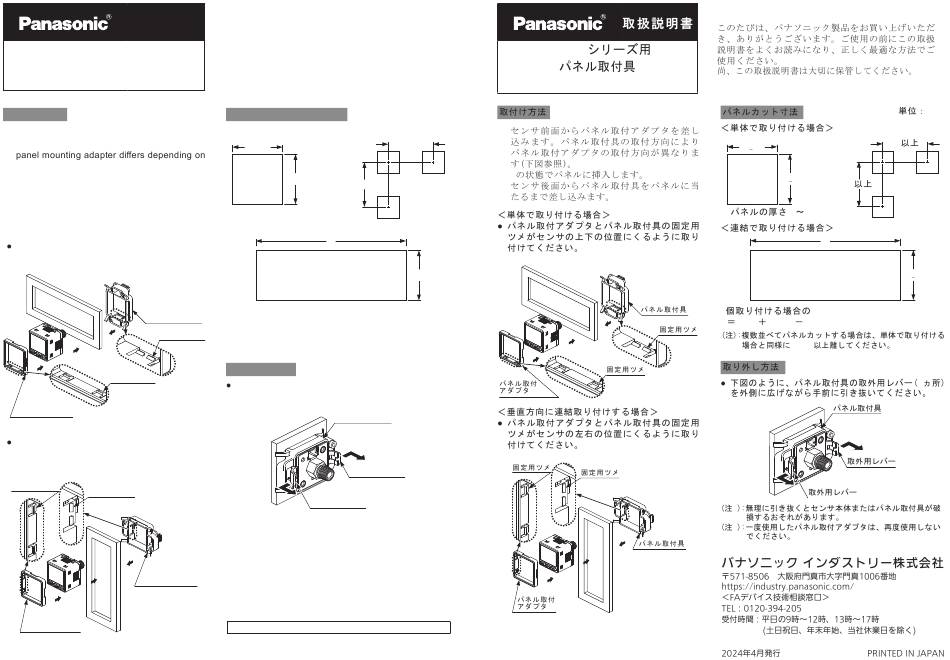

Panasonic MS-DP1-2 Instruction Manual

INSTRUCTION MANUAL
Panel Mounting Bracket
for DP-100 Series
MS-DP1-2
MJEC-MSDP12 No.0101-56V
How to mount
1. Fit the panel mounting adapter on the front
side of the sensor. Mounting direction of the
the mounting direction of the panel mounting
bracket. (Refer to the diagram below.)
2. Insert to the panel, in condition 1.
3. Insert the panel mounting bracket from the
rear side of the sensor till it touches the
panel.
<For horizontal adjacent mounting>
Mount the panel mounting adapter and the
panel mounting bracket so that the fixing
hooks are vertical.
Panel mounting
bracket
Fixing hooks
Fixing hooks
Panel mounting
adapter
<For vertical adjacent mounting>
Mount the panel mounting adapter and the
panel mounting bracket so that the fixing
hooks are horizontal.
Fixing hooks
Fixing hooks
Panel mounting
bracket
Panel mounting
adapter
Thank you very much for purchasing Panasonic
products. Read this Instruction Manual carefully and
thoroughly for the correct and optimum use of this
product. Kindly keep this manual in a convenient
place for quick reference.
Dimensions of panel cutout
<For single mounting>
55 or more
0
31
-0.4
0
31
-0.4
55 or more
(Panel thickness: 1 to 6)
<For adjacent mounting>
X
When n pieces are mounted
X = 31×n + 3.5×(n - 1)
(Note):In case of adjacent mounting, be sure to keep apart
from each other in 55mm or more as well as for single
mounting.
How to remove
Pull out the panel mounting bracket while pushing
the removing levers out.
Panel mounting
bracket
Removing lever
Removing lever
(Note1) : Take care that it the sensor is forcibly pulled, the
sensor itself or the panel mounting bracket may
break.
(Note2) : Do not reuse the panel mounting adapter which has
been used once.
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024 PRINTED IN JAPAN
DP-100
MS-DP1-2
(Unit:mm)
