Summary of Contents for Lanzar VIBE442N

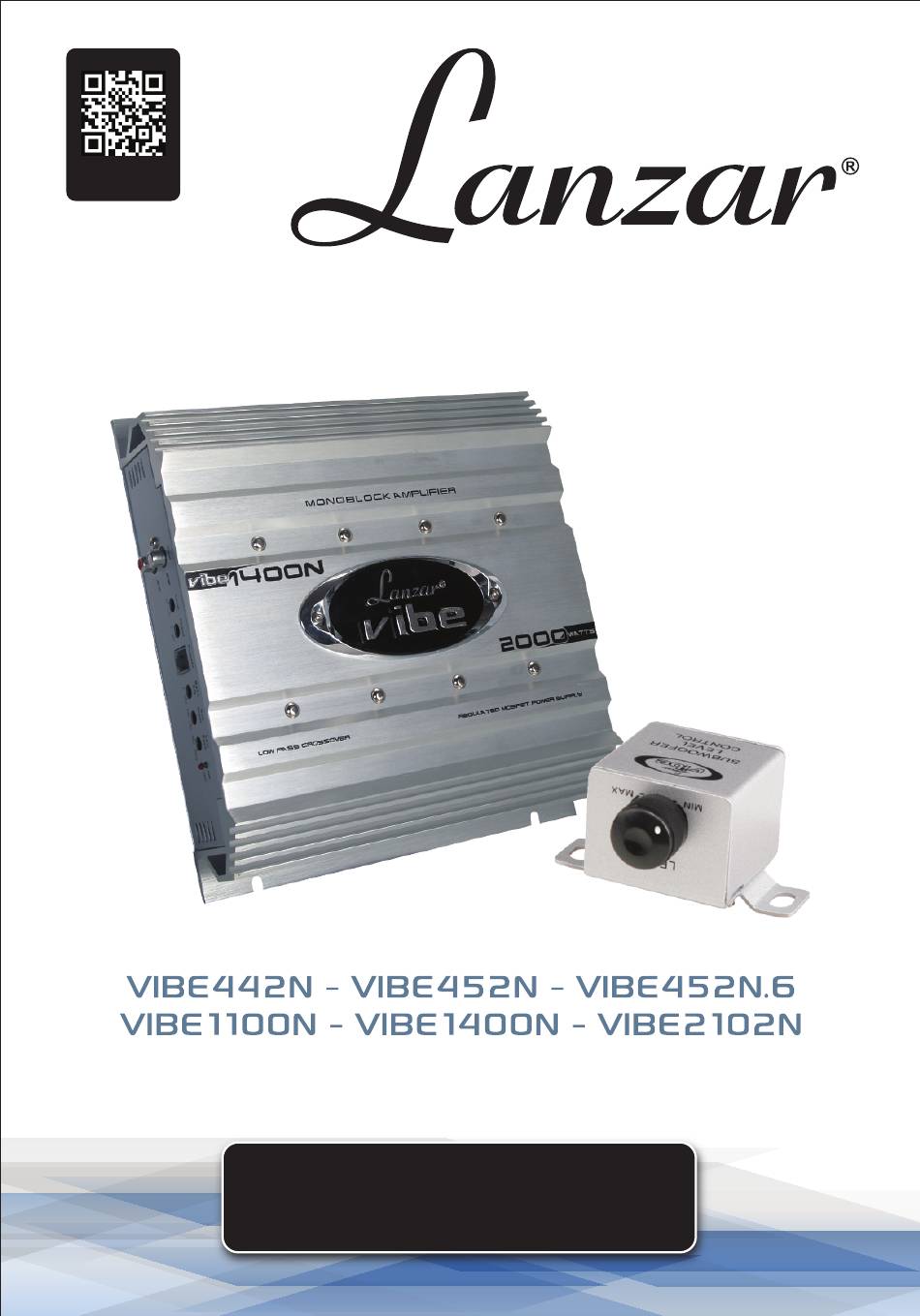

- Page 1 Visit Our Website SCAN ME PyleUSA.com Mono Block Amplifier USER GUIDE...
-
Page 2: Table Of Contents
You've made a great choice with the Lanzar Vibe ampli er—a quality product designed and engineered to provide many years of uncompromised musical service. Vibe ampli ers feature the latest technology, including a DC to DC Switching Power Supply, o ering the headroom needed for the most demanding peaks and dynamic ranges in modern CDs and recordings. -
Page 3: Features
• Silver-Plated Power, RCA, and Speaker Connectors • High-E ciency Heavy Aluminum Heatsink • Bass Boost Remote Control TECHNICAL SPECS VIBE1100N VIBE1400N VIBE2102N VIBE442N VIBE452N VIBE452N.6 MODEL Mono Channel Mono Channel 2 Channel 4 Channel 4 Channel 4 Channel Ampli er... -
Page 4: Precautions
PRECAUTIONS 1. Before drilling or cutting any holes, carefully investigate your car's layout to avoid damaging fuel lines, gas tanks, hydraulic lines, and electrical wiring. 2. Do not operate the ampli er when it is unmounted. Securely attach all audio system components within the vehicle to prevent damage, especially in the event of an accident. -
Page 5: Controls
CONTROLS VIBE1100N - VIBE1400N Power & Protection Input Level Controls Indicators Enables matching of input levels Provides instant information to the output levels from the head on the status of the ampli er, unit (or other signal source). including short-circuit and thermal overload alerts. - Page 6 CONTROLS VIBE2102N Power & Protection Input Level Controls Indicators Enables matching of input levels Provides instant to the output levels from the head information on the unit (or other signal source). status of the ampli er, including short-circuit and thermal overload alerts.
- Page 7 CONTROLS VIBE442N - VIBE452N - VIBE452N.6 Input Level Controls Power & Protection Enables matching of input Indicators levels to the output levels Provides instant information from the head unit on the status of the ampli er, (or other signal source).
-
Page 8: System Wiring
SYSTEM WIRING Mono Block Con guration VIBE1100N - VIBE1400N 2 Channel Stereo Con guration VIBE2102N www.PyleUSA.com... - Page 9 SYSTEM WIRING 2 Channel Bridged Mode Con guration VIBE2102N 2 Channel Tri-Mode Con guration VIBE2102N www.PyleUSA.com...
- Page 10 SYSTEM WIRING 4 Channel Stereo Con guration VIBE442N - VIBE452N - VIBE452N.6 4 Channel Bridged Mode Con guration VIBE442N - VIBE452N - VIBE452N.6 www.PyleUSA.com...
-
Page 11: Troubleshooting
SYSTEM WIRING 4 Channel Tri-Mode Con guration VIBE2102N TROUBLESHOOTING AMPLIFIER WILL NOT POWER UP • Check for a good ground connection. • Ensure that the remote DC terminal has at least 3V DC. • Verify battery power on the + terminal. •... -
Page 12: Cleaning And Storage
PROTECTION LED COMES ON WHEN THE AMPLIFIER IS POWERED UP • Check for shorts on speaker leads. • Ensure the volume control on the head unit is turned down low. • Remove speaker leads and reset the ampli er. If the Protection LED still comes on, the ampli er may be faulty. AMPLIFIER(S) GETS VERY HOT •... -
Page 13: Register Product
STORAGE Disconnect All Cables: Before storing the ampli er, disconnect all power, input, and output cables. Store these cables separately to avoid tangling and potential damage. Cool, Dry Environment: Store the ampli er in a cool, dry place, away from direct sunlight, heat sources, and moisture. - Page 14 Questions or Comments? We are here to help! Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
