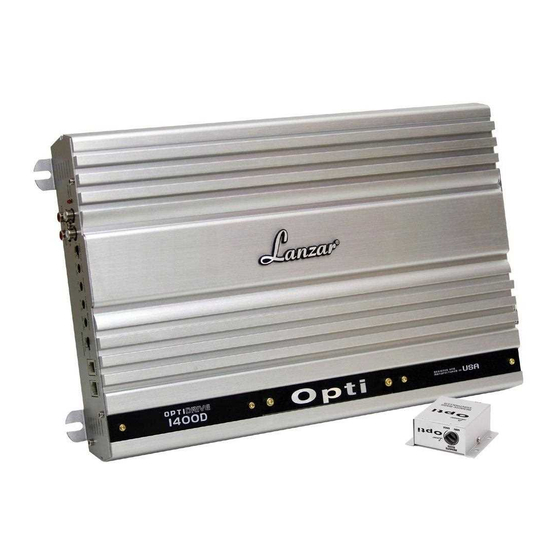

Summary of Contents for Lanzar Opti 1000D
- Page 2 1. Contents 2. Introduction 3. Features 4. Specifications 5. Amplifier installation 6. 7. Features and controls 8.9.System wiring 10.11. Troubleshooting...
- Page 3 Thank you for purchasing the Lanzar OPTI Class-D amplifier. Rest assured you have purchased a quality product designed and engineered to give you many years of uncompromised musical service. The OPTI Class-D amplifier has been designed using the latest in electronic technology available today.
- Page 4 CLASS-D DESIGN Low - frequency information for subwoofer only. High efficient power POWER SUPPLIES Stiffly regulated PWM power supplies. MOSFET switches maintain rated power over a wide range of battery voltages. LOW PASS FILTER Adjustable from 50Hz to 150Hz with a slope of 24dB per octave. This allows for the adjustment of the upper point of the frequency bandwidth and the respective subwoofer.
- Page 5 OPTI 1000D OPTI 1400D OPTI 2000D RMS Power, INTO 4 Ohms 350W MONO 500W MONO 700W MONO RMS Power, INTO 2 Ohms 650W MONO 800W MONO 1100W MONO RMS Power, INTO 1.3 Ohms 900W MONO 1000W MONO 1600W MONO MAX Power, INTO 1.3 Ohms...
- Page 6 1. Find a suitable location in the vehicle to mount the amplifier. 2. Make sure there is sufficient air flow around the intended mounting location. 3. Bolt the amplifier to the mounting surface. 4. Connect the power ground terminal to the nearest point on the chassis of the car.
- Page 7 OPTI 1000D/1400D/2000D Remote Phase Bass Level Subsonic Shift Pass Boost Bridged Mode Power Protection Slave Master 0dB 18dB Data Link Line out Input...
- Page 8 1. Line Out RCA Jacks - The LINE OUT allows you to build multiple amplifier systems with out having to use splitter cords to distribute the signal. Now it is simple a matter of bringing one set of RCAs into the first amplifier, then using the line out RCA jacks as the feed to the next amplifier.
- Page 9 OPTI 1000D/1400D/2000D Phase Bass Remote Level Subsonic Shift Pass Boost Bridged Mode Power Protection Slave Master 0dB 18dB Data Link Line out Input TO OUTPUT FROM HEAD UNIT TO REMOTE GAIN CONTROLLER Speaker Fuses Remote Ground Power CHASSIS GROUND FUSE...
- Page 10 BRIDGING TWO AMPLIFIER Master Amp Fuse Rating MODEL FUSES OPTI 1000D 30A x 3 Phase Bass Remote Level Subsonic Shift Pass Boost Bridged Mode Power OPTI 1400D 30A x 4 Protection Slave Master 0dB 18dB Data Link OPTI 2000D 30A x 6...
- Page 11 Before removing your amplifier, refer to the list below and follow the suggested procedures. Always test the speakers and their wires first. Check for good ground connection. Check that remote DC terminal has at least 13.8v DC. Check that there is battery power on the +terminal. Check all fuses.
- Page 12 Check that the Level control(s) is set to match the signal level of the head unit. Check that all crossover frequencies have been properly set. Check for shorts on the speaker leads. This is always caused by a poorly-grounded RCA patch cord. LANZAR SPEAKERS SPEAKER SYSTEM...
