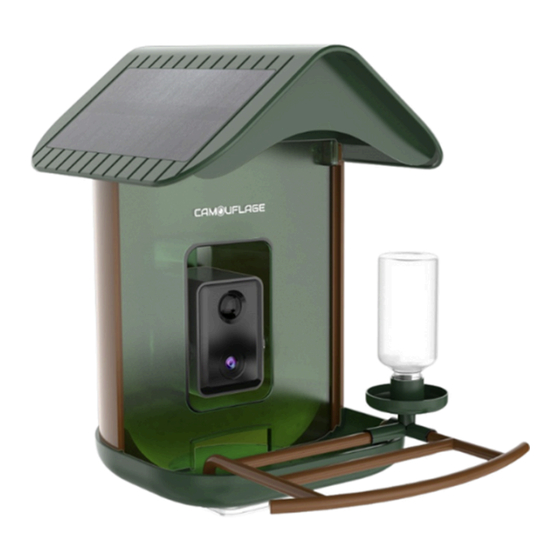

Camouflage EZ-LiveFeed 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ-LiveFeed 1 and is the answer not in the manual?

Questions and answers

Related Manuals for Camouflage EZ-LiveFeed 1

Summary of Contents for Camouflage EZ-LiveFeed 1

  • Page 1 Camouflage EZ-LiveFeed 1...

  • Page 2: Table Of Contents

    Contents Contents PREFACE 1. TIPS 2. WHAT’S IN THE BOX? 3. SPECIFICATIONS FOR BIRD FEEDER 4. INTRODUCTION FOR BIRD FEEDER 5. INTRODUCTION FOR CAMERA Indicator light 6. HOW TO CONNECT TO THE APP Installing the app Connecting the app 7. APP INTERFACE INTRODUCTION 8.

  • Page 3: Preface

    PREFACE Congratulations on purchasing the Camouflage EZ-LiveFeed1. In order to use our product easily and have a general understanding, we have created this manual especially for you. This manual explains how to systematically use this camera. Read this manual carefully before use in order to master the method quickly and correctly.

  • Page 4: Tips

    TIPS ● Keep the bird feeder and all accessories out of reach of children and pets. ● Make sure the camera has been fully charged for the first time. ● Please do not expose the camera lens to sunlight directly . ●...

  • Page 5: What's In The Box

    2. WHAT’S IN THE BOX? Bird feeder Bird feeder bracket Bracket connector Drill sticker Perch Screw *3 Green screws spacers Screw for bracket Waterproof Screw Charging cable rubber for perch *2...

  • Page 6: Specifications For Bird Feeder

    3. SPECIFICATIONS FOR BIRD FEEDER Product Model EZ-LiveFeed1 Charging Solar panel and USB cable Battery 5200 mAh Rechargeable Lithium-Ion Battery Resolution 2.0MegaPixels Photos and 1080P HD Live Stream Video Operating Temperature -5°F to 120°F (-20.5°C to 48.5°C) Wireless Type WiFi 2.4GHz Field of View Diagonal: 130°, Horizontal: 94°, Vertical: 40°...
  • Page 7 Power Supply DC 5V2A Power Consumption 2W( Max.) Battery Life 4-6 years Night Visual Range 8m(Max) Anti-flicker 50HZ /60HZ SOLAR PANEL SPECIFICATION IPCE Working Voltage (Vmp) 6V±5% Working Current (Imp) 400mA±5% Open Circuit Voltage (VOC) 7.2V±5% Short-Circuit Current (ISC) 480mA±5%...

  • Page 8: Introduction For Bird Feeder

    4.INTRODUCTION FOR BIRD FEEDER...

  • Page 9: Introduction For Camera

    5.INTRODUCTION FOR CAMERA 1. Indicator light 2. Infrared LED 3. Microphone 4. Motion sensor 5. Light sensor 6. Lens 7. Mounting hole 8. Speaker 9. Power on/off 10. Sync/Reset 11. Charging port 12. TF card slot (capacity expansion 128gb)

  • Page 10: Indicator Light

    Indicator light 1. Camera turn on: Red light always ON. 2. Pairing mode: Red light fast blinking. 3. Network connecting: Green light fast blinking. 4. Network connected: Green light always ON. 5. Abnormal status : Red light slow blinking.(Need to reset). 6.

  • Page 11: How To Connect To The App

    HOW TO CONNECT TO THE APP Installing the app...

  • Page 12: Connecting The App

    Download or scan the QR code and install the Bird Lover App for either IOS or Android. Once downloaded, the APP will prompt you to register your device. Enter your email address and select the country you live in. You will receive the registration code.
  • Page 13 2. Open the APP and connect according to the following steps. Select the device: BF11...
  • Page 14 3. Enter the WIFI password.
  • Page 15 Problems connecting? Make sure to follow the following steps: 1. Find out if you have 2.4Ghz Link: 2. Switch to 2.4Ghz if you have a dual band wifi router link:...
  • Page 16 4. Scan the QR code with the camera, and enter the connection after hearing the sound of the camera prompt. NOTE: The QR code needs to be aimed at the camera below...
  • Page 17 5. Wait for the connection to complete, and click "Done" .

  • Page 18: App Interface Introduction

    7. APP INTERFACE INTRODUCTION 1.Quality adjustment : you can choose HD or SD 2.Battery Remaining Capacity 3.Voice switch 4.Zoom in the screen for camera 5.Screen horizontal and vertical adjustment 6.Take photo 7.Bird recognition 8.Shot videos 9.Playback for previous 10.View photos or videos took 11.Check out the bird collection 12.Share the device 13.Motion detection(Click to turn...

  • Page 19: Top Cover Installation

    8. TOP COVER INSTALLATION 1. Align the top cover with the groove of the birdhouse and press down. 2. Connect the battery charging cable to the top cover.

  • Page 20: How To Install The Birdfeeder

    3. Twist and snap the top cover. 9.HOW TO INSTALL THE BIRDFEEDER 1. Stick the sticker on the tree or wall and drill holes within the range marked on the sticker.
  • Page 21 2. Insert the green plastic screw spacers into the hole. 3. Fix the bracket with long screws.
  • Page 22 4. Install the bird feeder and align the three holes underneath. 5. Fix bird feeder with three short screws.
  • Page 23 6. Install the perch with the two screws in the package. 7. The bird house can rotate left and right.

  • Page 24: How To Charge The Camera

    HOW TO CHARGE THE CAMERA Rotate the camera down. Connect the solar charging cable. Or remove the camera and charge it with the charging cable.

  • Page 25: Guarantee

    11. GUARANTEE We are very proud of our products. We always keep our promises. We offer advanced warranty period and service. When you purchase our product, you are covered by a limited warranty. We warrant our products to be free from defects in materials and workmanship for a limited warranty from the date of original purchase.

  • Page 26: Faq

    If you need to return a product under this warranty, please contact your supplier. Q: Do I need to create an account to use the App? A: Yes, you need to use email address or phone number to get a verification code for registering an account .
  • Page 27 at a time. If it is linked by other accounts, please Long press the reset button for 10s to release. Q: Can I share the Smart Bird Feeder with other users? A: Yes. You are able to share the Smart Bird Feeder with other users however they will need to install the “Bird Lover”...
  • Page 28 It is low power consumption camera. Plus the solar panel power in charge, it can maintain the daily energy consume in sunny day. If the battery drains too fast you should check: 1. Whether you check the camera with APP too often. 2.
  • Page 29 And set the app notification to turn on or off “Enable Notifications”. You can also set up a schedule for “Do-Not Disturb Schedule” at the same interface. 2.Turn on or off the “Motion Detection” at the UI interface. 3.Turn on or off the “Detection Alarm Settings” on the Setting interface.
  • Page 30 Demonstration: The best angle for recognition Q: What should I do if the device is not working properly? 1.Please check whether the power cable is correct plugged in and make sure the power switch is turned on. 2.Please check whether the WI-FI is available and the smart bird feeder is work at the range of WI-FI.
  • Page 31 Scan the QR code and access our online environment, where you will find more information about our products.
