Smart view DS-812F User Manual

DVI
SPLITTER
U M
SER ANUAL
DS-812F / DS-814F
Package Contents-

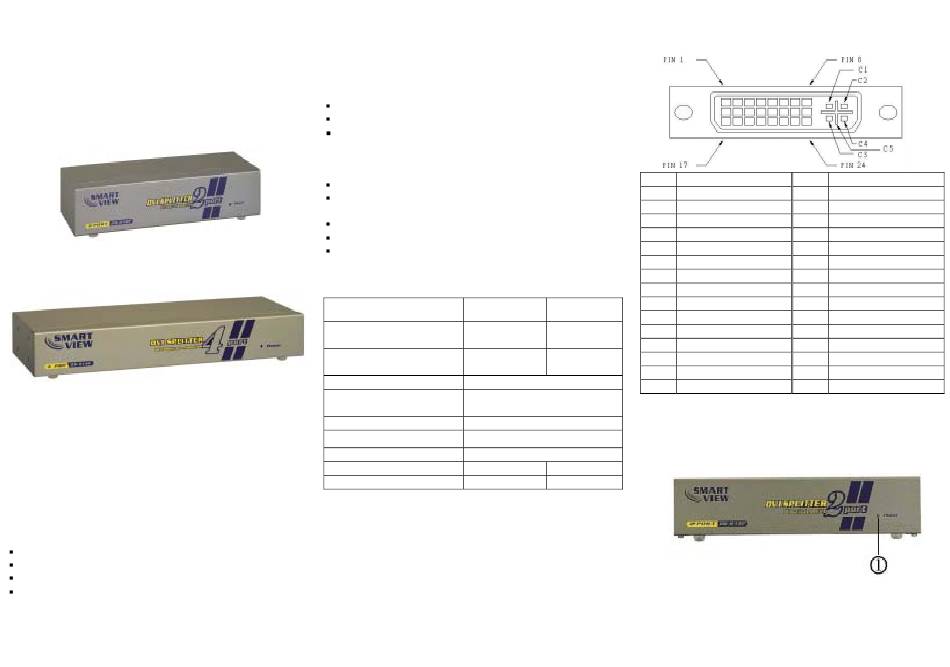

1 Smart View DS-812F or DS-814F DVI Splitter
1 user manual
1 power adapter DC 7.5V 1.5A
2 rack rails, 8 screws for DS-814F only
Any thing missed, please contact with your vendor.
Introduction
Through the DVI (Digital Visual Interface) splitter DS-812F,
DS-814F, you can use one PC to display identical image
on 2,4 monitors or even more.
DVI splitter is ideal for:
Test bench facilities
Data Center
Help desks
Features
Use PanelLink digital technology.
Supports high-resolution display up to UXGA
(25-165MHz).
Can be cascaded.
Compliant with the specification of DVI 1.0.
(DS-812F)
1U rack design for DS-814F.
1 In 2 Out
Specifications
Function
Video Input Connector
(DVI Female)
Video Output Connector
(DVI Female)
Max. Resolution
(DS-814F)
Cable Distance
1 In 4 Out
(Device to Monitor)
Signal Type
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH) mm
Technical Specifications
Input/Output Signal
Pin #
DS-812F DS-814F
1 1
2 4
1600 x 1200 60 Hz
10 m (Max.)
Standard DVI Signal
DC 7.5V 1.5A
Metal
620 g 985 g
200x75x42 269x104x42
-1-
Signal Pin #
1 16
T.M.D.S Data 2- Hot Plug Detect
2 17
T.M.D.S Data 2+ T.M.D.S Data 0-
3 18
T.M.D.S Data 2/4 Shield T.M.D.S Data 0+
4 T.M.D.S Data 4- 19 T.M.D.S Data 0/5 Shield
5 T.M.D.S Data 4+ 20 T.M.D.S Data 5-
6 21
DDC Clock T.M.D.S Data 5+
7 22
DDC Data T.M.D.S Clock Shield
8 23
Analog Vert. Sync T.M.D.S Clock+
9 T.M.D.S Data 1- 24 T.M.D.S Clock-
10 T.M.D.S Data 1+
11 T.M.D.S Data 1/3 Shield C1 Analog Red
12 C2
T.M.D.S Data 3- Analog Green
13 C3
T.M.D.S Data 3+ Analog Blue
14 C4
+5V Power Analog Horz Sync
15 GND C5 Analog Ground
F
RONT VIEW
1. Power LED
-2-
Signal
