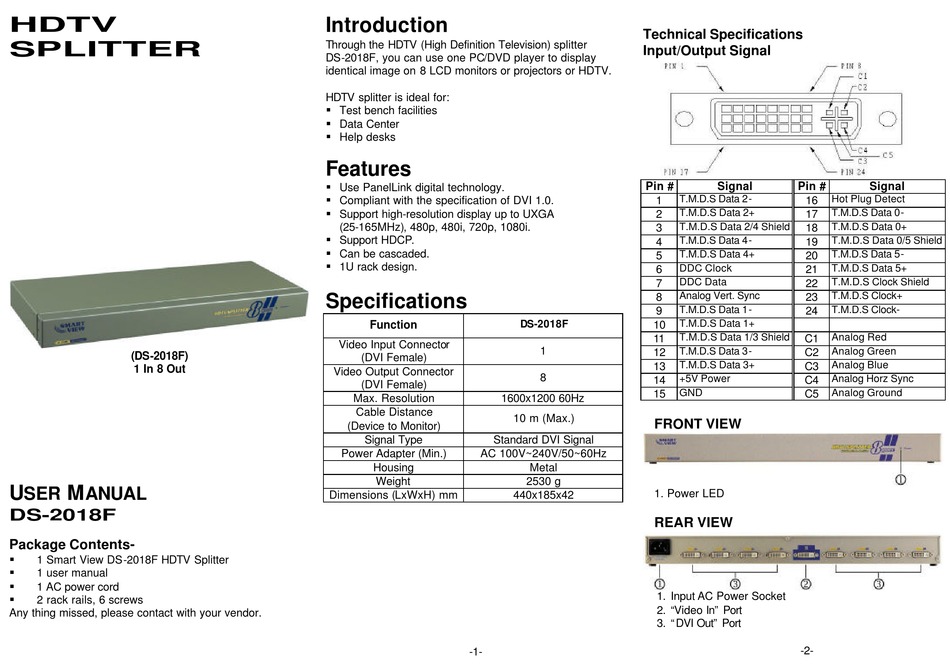

Smart view DS-2018F User Manual

HDTV
SPLITTER
(DS-2018F)
1 In 8 Out
U M
SER ANUAL
DS-2018F
Package Contents-
§
1 Smart View DS-2018F HDTV Splitter
§
1 user manual
§
1 AC power cord
§
2 rack rails, 6 screws
Any thing missed, please contact with your vendor.

Introduction

Through the HDTV (High Definition Television) splitter
DS-2018F, you can use one PC/DVD player to display
identical image on 8 LCD monitors or projectors or HDTV.
HDTV splitter is ideal for:
§ Test bench facilities
§ Data Center
§ Help desks

Features

§ Use PanelLink digital technology.
§ Compliant with the specification of DVI 1.0.
§ Support high-resolution display up to UXGA
(25-165MHz), 480p, 480i, 720p, 1080i.
§ Support HDCP.
§ Can be cascaded.
§ 1U rack design.

Specifications

Function
Video Input Connector
(DVI Female)
Video Output Connector
(DVI Female)
Max. Resolution 1600x1200 60Hz
Cable Distance
(Device to Monitor)
Signal Type Standard DVI Signal
Power Adapter (Min.) AC 100V~240V/50~60Hz
Housing
Weight
Dimensions (LxWxH) mm
-1-

Technical Specifications

Input/Output Signal
Pin #
T.M.D.S Data 2-
1
T.M.D.S Data 2+
2
T.M.D.S Data 2/4 Shield
3
T.M.D.S Data 4-
4
T.M.D.S Data 4+
5
DDC Clock
6
DDC Data
7
Analog Vert. Sync
8
T.M.D.S Data 1-
9
DS-2018F T.M.D.S Data 1+
10
T.M.D.S Data 1/3 Shield
11
1 T.M.D.S Data 3-
12
T.M.D.S Data 3+
13
8
+5V Power
14
GND
15
10 m (Max.)
FRONT VIEW
Metal
2530 g
1. Power LED
440x185x42
REAR VIEW
1. Input AC Power Socket
2. "Video In" Port
3. "DVI Out" Port
Signal Pin # Signal
Hot Plug Detect
16
T.M.D.S Data 0-
17
T.M.D.S Data 0+
18
T.M.D.S Data 0/5 Shield
19
T.M.D.S Data 5-
20
T.M.D.S Data 5+
21
T.M.D.S Clock Shield
22
T.M.D.S Clock+
23
T.M.D.S Clock-
24
Analog Red
C1
Analog Green
C2
Analog Blue
C3
Analog Horz Sync
C4
Analog Ground
C5
