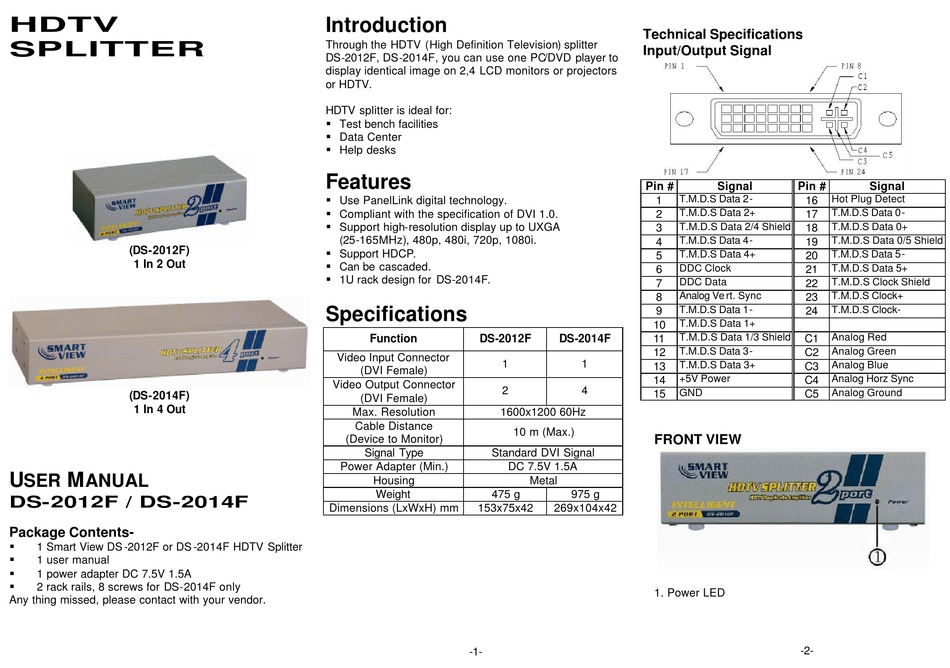

Smart view DS-2012F User Manual

HDTV
SPLITTER
(DS-2012F)
1 In 2 Out
(DS-2014F)
1 In 4 Out
U M
SER ANUAL
DS-2012F / DS-2014F
Package Contents-
§
1 Smart View DS -2012F or DS -2014F HDTV Splitter
§
1 user manual
§
1 power adapter DC 7.5V 1.5A
§
2 rack rails, 8 screws for DS-2014F only
Any thing missed, please contact with your vendor.

Introduction

Through the HDTV (High Definition Television) splitter
DS-2012F, DS-2014F, you can use one PC/DVD player to
display identical image on 2,4 LCD monitors or projectors
or HDTV.
HDTV splitter is ideal for:
§ Test bench facilities
§ Data Center
§ Help desks

Features

§ Use PanelLink digital technology.
§ Compliant with the specification of DVI 1.0.
§ Support high-resolution display up to UXGA
(25-165MHz), 480p, 480i, 720p, 1080i.
§ Support HDCP.
§ Can be cascaded.
§ 1U rack design for DS-2014F.

Specifications

Function DS-2012F
Video Input Connector
1
(DVI Female)
Video Output Connector
2
(DVI Female)
Max. Resolution 1600x1200 60Hz
Cable Distance
(Device to Monitor)
Signal Type Standard DVI Signal
Power Adapter (Min.)
Housing
Weight 475 g
Dimensions (LxWxH) mm 153x75x42
-1-

Technical Specifications

Input/Output Signal
Pin #
T.M.D.S Data 2-
1
T.M.D.S Data 2+
2
T.M.D.S Data 2/4 Shield
3
T.M.D.S Data 4-
4
T.M.D.S Data 4+
5
DDC Clock
6
DDC Data
7
Analog Ve rt. Sync
8
T.M.D.S Data 1-
9
T.M.D.S Data 1+
10
T.M.D.S Data 1/3 Shield
DS-2014F 11
T.M.D.S Data 3-
12
1
T.M.D.S Data 3+
13
+5V Power
14
4
GND
15
10 m (Max.)
FRONT VIEW
DC 7.5V 1.5A
Metal
975 g
269x104x42
1. Power LED
Signal Pin # Signal
Hot Plug Detect
16
T.M.D.S Data 0-
17
T.M.D.S Data 0+
18
T.M.D.S Data 0/5 Shield
19
T.M.D.S Data 5-
20
T.M.D.S Data 5+
21
T.M.D.S Clock Shield
22
T.M.D.S Clock+
23
T.M.D.S Clock-
24
Analog Red
C1
Analog Green
C2
Analog Blue
C3
Analog Horz Sync
C4
Analog Ground
C5
-2-
