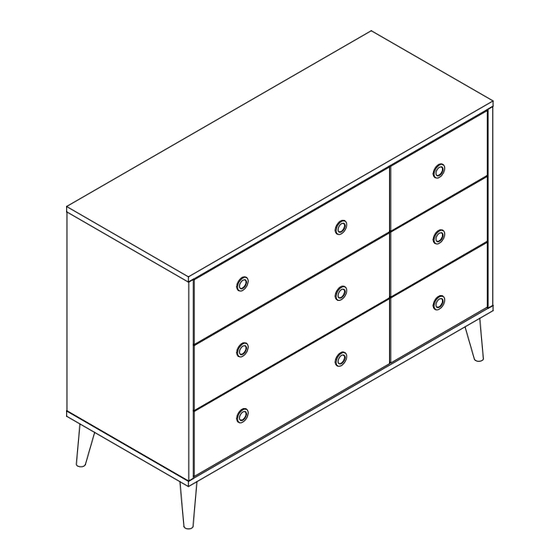

6-drawer dresser, walnut/olive stone/white
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Weight Limit for Top of Dresser: 30 lb / 13.6 kg
Weight Limit per large drawer: 15 lb / 6.8 kg
Weight Limit per small Drawer: 5 lb / 2.3 kg
C.L. - 2021.09.29
© 2021 Dorel Home Products All Rights Reserved
DL8876-1BWN (Walnut), DL8876-1BGN (Olive Stone),
Thank you for purchasing from Dorel!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE
DEPARTMENT BEFORE RETURNING PRODUCT TO
THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739.
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE
REFERENCE.
DL8876-1BWH (White)
6-Drawer Dresser
Lot Number
(TAKEN FROM CARTON)
DL8876-1B00-100083-JAD
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL8876-1BWN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Home Products DL8876-1BWN

Summary of Contents for Dorel Home Products DL8876-1BWN

  • Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. C.L. - 2021.09.29 DL8876-1B00-100083-JAD © 2021 Dorel Home Products All Rights Reserved...

  • Page 2: Tools Required

    Limited 1 year Warranty Read Before Beginning Assembly Dorel warrants this product to be free from defects in material and workmanship ● Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
  • Page 4 PARTS...
  • Page 5 PART S LIST TOP PANEL LEFT SIDE PANEL MIDDLE RIGHT SIDE PANEL BACK RAIL PANEL 1 PC 1 PC 1 PC 1 PC 1 PC BACK TOP PANEL BACK BOTTOM PANEL FRONT RAIL BOTTOM PANEL 1 PC 1 PC 1 PC 1 PC 4 PCS MIDDLE...

  • Page 6: Part Numbers

    PANEL 3 PCS 3 PCS BAR 3 PCS 3 PCS Each part has a unique part number. PART NUMBERS Please reference the appropriate part DL8876-1BGN DL8876-1BWN DL8876-1BWH number when contacting customer (Olive Stone) (Walnut) (White) service for replacement parts. T713700...

  • Page 7: Hardware List

    30 PCS 5 PCS Hardware Pack HP # : T DL8876-1BWH (White) DL8876-1BWN (Walnut) HP # : T DL8876-1BGN (Olive Stone) Please do not completely tighten all the hardware, until the entire assembly is complete, Ø1/4 x 13mm x 90mm...
  • Page 9 Step 1 Insert large cam bolts (1) into the top / bottom panels (A&I), left / right side panels (B&D) and back bottom panel (G) as shown. X 18...
  • Page 10 Step 2 Insert large cam lock (2) and large wood dowels (3) into the middle panel (C) as shown. Attach bottom panel (G) to middle panel (C) and secure by rotating the large cam lock (2) 1/2 turn clockwise using a Phillips head screwdriver (not included).
  • Page 11 Step 3 Insert large wood dowels (3) into the middle panel (C) as shown. Attach the front / back rails (E&H) to middle panel (C) as shown.
  • Page 12 Step 4 Insert large cam locks (2) and large wood dowels (3) into the front / back rails (E&H) and back bottom panel (G) as shown. Attach left / right panels (B&D) to the front / back rails (E&H) and back bottom panel (G) and secure by rotating the large cam lock (2) 1/2 turn clockwise using a Phillips head...
  • Page 13 Step 5 Attach legs (J) and middle leg (K) to bottom panel (I) with bolts (10) using Allen key (12). Tighten bolts firmy.
  • Page 14 Step 6 Insert large cam locks (2) to the back bottom panel (G) as shown. Insert large wood dowels (3) and barrel nuts (7) into the left / right side panels (B&D) and middle panel (C) as shown. Attach bottom panel (I) to back bottom panel (G) and secure by rotating the large cam lock (2) 1/2 turn clockwise using a Phillips head...
  • Page 15 Step 7 Insert large cam locks (2) and large wood dowels (3) into left / right side panels (B&D) and middle panel (C) as shown. Attach top panel (A) to the left / right side panels (B&D), middle panel (C) and secure by rotating the large cam lock (2) 1/2 turn clockwise using a Phillips head screwdriver...
  • Page 16 Step 8 Attach front rail (H) to top panel (A) with screws (9) using Phillips head screwdriver (not included).
  • Page 17 Step 9 Attach back rail (E) to top panel (A) with screws (9) using Phillips head screwdriver (not included).
  • Page 18 Step 10 Attach back top panel (F) to back rail (E), left / right side panels (B&D) and back bottom panel (G) with screws (8) using Phillips head screwdriver (not included). X 16...
  • Page 19 Step 11 Insert small cam bolts (4) into left drawer fronts (L) and left drawer backs (P). Insert small wood dowels (6) into left drawer fronts (L) as shown. Insert small cam locks (5) into drawer left / right side panel (M&O). Attach drawer left / right side panel (M&O) to the left drawer fronts (L) and secure by rotating the small...
  • Page 20 Step 12 Insert small wood dowels (6) into left drawer fronts (L) and small cam lock (5) into the drawer support bar (Q) as shown. Slide the left drawer panels (N) into the grooves of drawer left / right side panel (M&O).
  • Page 21 Step 13 Insert small cam bolts (4) into right drawer fronts (R). Insert small wood dowels (6) into right drawer fronts (R) as shown. Insert small cam locks (5) into drawer left / right side panel (M&O). Attach drawer left / right side panel (M&O) to the right drawer fronts (R) and secure by rotating the small cam lock (5) 1/2 turn clockwise using a...
  • Page 22 Step 14 Slide the right drawer panels (S) into the grooves of drawer left / right side panel (M&O). Attach the right drawer backs (T) to the drawer left / right side panel (M&O) with screws (9) using Phillips head screwdriver (not included).
  • Page 23 Step 15 Insert the drawers into the dresser. To safely secure the dresser to the wall, please see next step at Page 25.

  • Page 24: Helpful Hints

    Helpful Hints CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible • Move your new furniture carefully, with two injury.
  • Page 25 HOLE HOLE...
  • Page 26 DL8876-1BWN (Nogal), DL8876-1BGN (Verde Preguntas, inquietudes, partes que faltan? CONTACTE NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE Piedra), DL8876-1BWH (Blanco) ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. Cómoda de 6 cajones Si le faltan piezas o las que se incluyen están dañadas, con mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra.
  • Page 28 Paquete de componentes Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts HP # : TDL8876-1BWH-0 DL8876-1BWH (Blanco) DL8876-1BWN (Nogal) IMPORTANTE: La lista de números de piezas que aparece a continuación es HP # : TDL8876-1BWN-0 DL8876-1BGN (Verde Piedra) exclusiva de su producto. Por favor, manténgalo a mano cuando solicite piezas de repuesto.
  • Page 29 Instrucciones Paso 8 Fije (H) a (A) con (9) y un destornillador Phillips (no incluido). Paso 1 Paso 9 Inserte (1) en (A&I), (B&D) y (G), como se muestra. Conecte (E) a (A) con (9) y un destornillador Phillips (no incluido). Paso 2 Paso 10 Inserte (2) y (3) en (C), como se muestra.

  • Page 30: Consejos Útiles

    Límites de peso, parte superior de la cómoda : 30 lb / 13.6 lb Paso 15 Límites de peso, cajón ancho: 15 lb / 6.8 kg Inserta los cajones en la cómoda. Límites de peso, cajón pequeño: 5 lb / 2.3 kg Por razones de seguridad, recomendamos fijar la cómoda en la pared.
  • Page 31 AGUJERO AGUJERO...

  • Page 32: Informations Sur La Garantie

    Des questions, des préoccupations ou des pièces DL8876-1BWN (Noyer), DL8876-1BGN (Vert manquantes? CONTACTEZ NOTRE SERVICE À LA CLIENTÈLE AVANT DE RETOURNER LE PRODUIT AU DÉTAILLANT. Pierre), DL8876-1BWH (Blanc) Si des pièces sont manquantes ou endommagées, nous expédierons volontiers vos pièces de rechange gratuitement.

  • Page 34: Liste Des Pièces

    Pièces Pour des pièces de rechange, visitez www.dhpfurniture.com/fre/replacement-parts DL8876-1BWH (Blanc) HP # : TDL8876-1BWH-0 DL8876-1BWN (Noyer) HP # : TDL8876-1BWN-0 IMPORTANT: La liste des références ci-dessous est propre à votre produit. DL8876-1BGN (Vert Pierre) Veuillez l'avoir sous la main lorsque vous appelez pour des pièces de rechange.
  • Page 35 Instructions Étape 9 Fixez (E) à (A) avec (9) et un tournevis cruciforme (non inclus). tape 1 É Insérez (1) dans (A&I), (B&D) et (G), tel qu'illustré. Étape 10 Fixez (F) à (E), (B&D) et (G) avec (8) et un tournevis cruciforme Étape 2 (non inclus).

  • Page 36: Conseils Utiles

    Limite de poids, dessus de commode : 30 lb / 13,6 lb Étape 15 Limite de poids, grand tiroir : 15 lb / 6,8 kg Insérez les tiroirs dans la commode. Limite de poids, petit tiroir : 5 lb / 2,3 kg Pour des raisons de sécurité, nous vous recommandons de terminer par fixer la commode au mur.
  • Page 37 TROU TROU...
