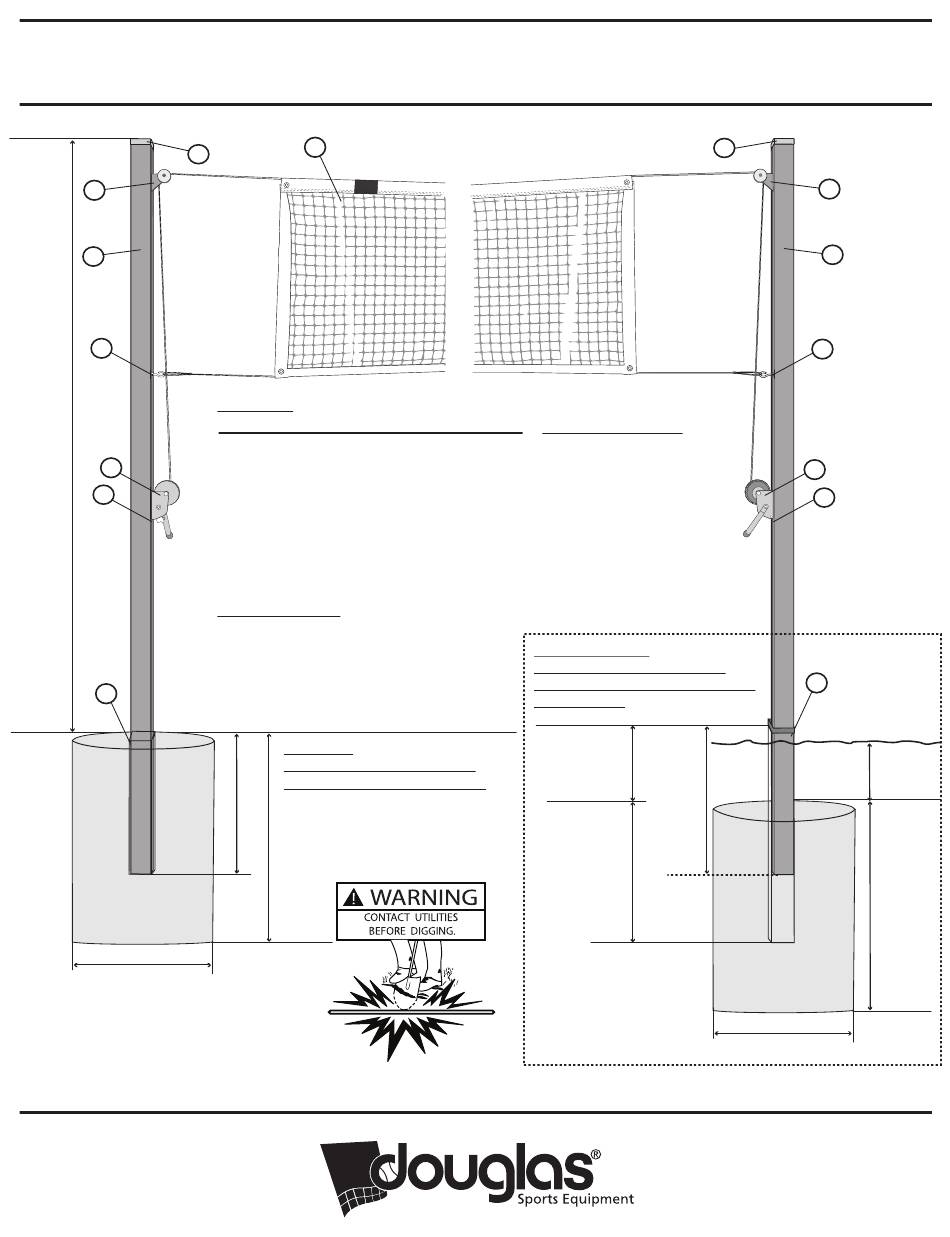

Douglas VBS-4SQ Installation Instructions

Douglas VBS -4SQ Aluminum Outdoor Volleyball System
®
8'6"
Top-of-Pole
D
A
E
B
C
H
Concrete Footing
2' Minimum
F
E
PARTS LIST
Ref. Qty Description
A (2) 4" Square Poles -10'6" Long
B (2) Reels and Hardware
C (2) Reel Brackets with Bolts
C (2) Pulley Attachments
D (2) Eye bolts Attachments
E (2) Pole Caps
F (1) VB-1200 Volleyball Net, 36"H x 32'L
Lacing Cord (included with net)
SOLD SEPARATELY (Recommended but optional)
G (1) Pair of 24" SQ Ground Sleeves
(#65280) (GS-24SQ)
H (1) Pair of 36" SQ Ground Sleeves w/
collars (#65270) (GS-36SQ/AL)
STANDARD
GROUND SLEEVE INSTALLATION
WITH GS-24SQ GROUND SLEEVES
2'
3'
Minimum
RECOMMENDED TOOLS
Level
Ladder or Step Stool
Concrete
Shovel
1/4" Allen Wrench
(Included with Reel)
9/16" Wrench
Measuring Tape
SAND VOLLEYBALL
GROUND SLEEVE INSTALLATION
WITH GS-36SQ/AL GROUND SLEEVES
WITH COLLARS
Ground Sleeve
1' Above Ground
Post 2' in
Concrete
Ground Sleeve
2' in Concrete
*Tighten the set screws on
the ground sleeve's collar
to set poles at the necessary
8'6" height.
Item # 65350
E
D
A
E
B
C
I
Collar with set screws
6-9"
Sand
3'
Minimum
Concrete Footing
2' Minimum
PAGE 1 OF 3
