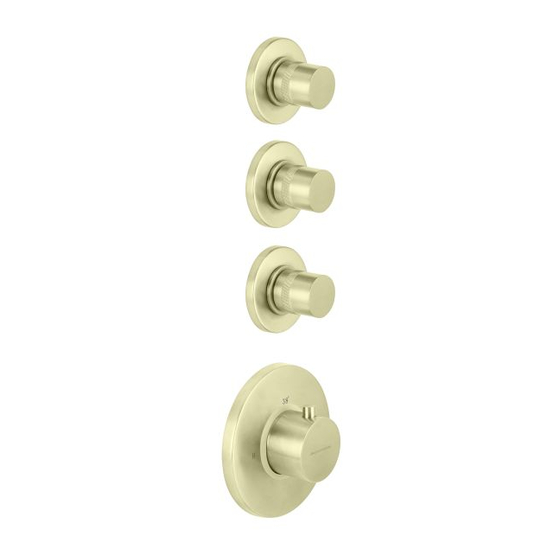

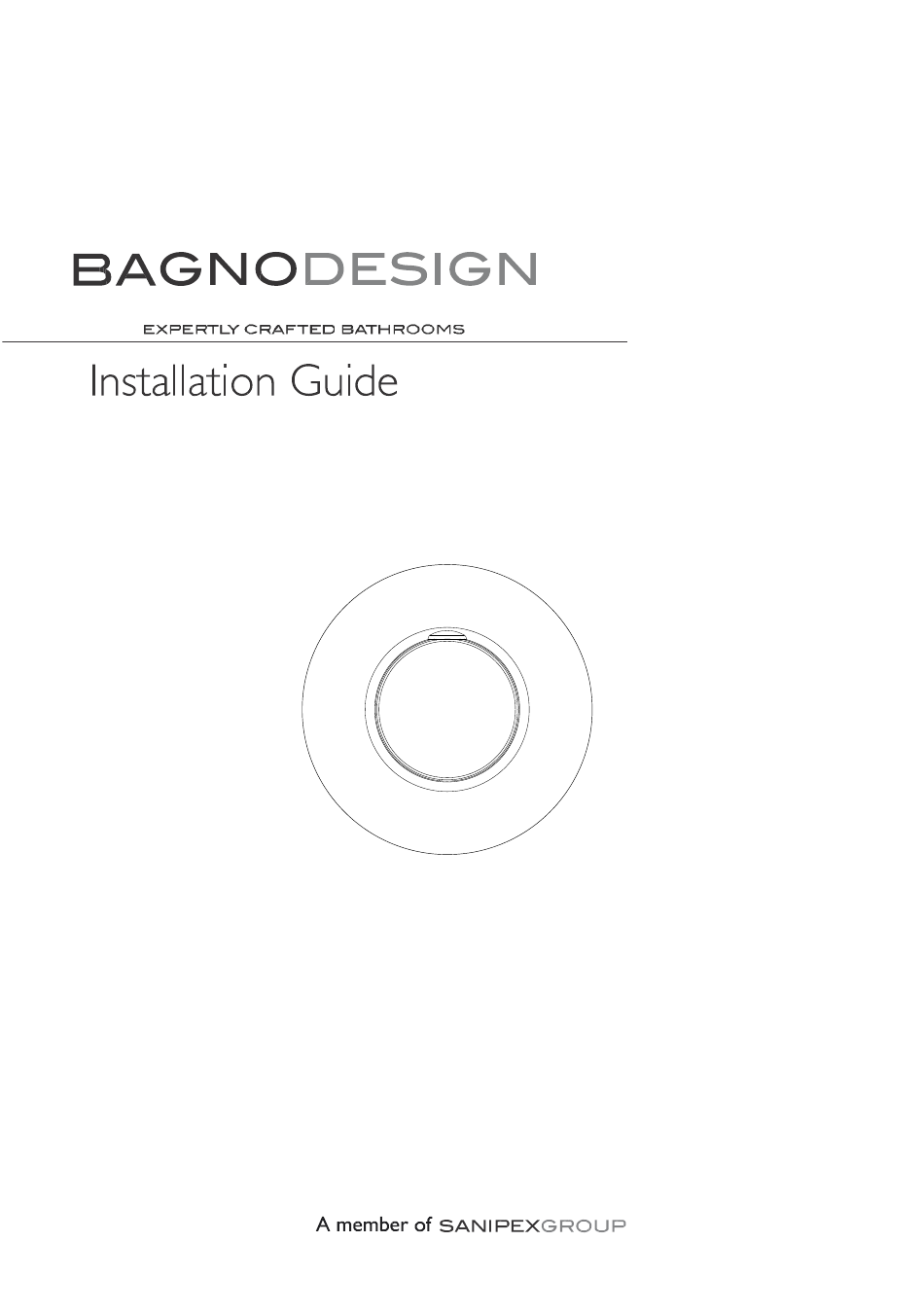

- Page 1 BDM-SPA-T101-XX CONCEALED VALVE FOR BDM-SPA-T303-A-XX www.sanipexgroup.com...
-
Page 2: Important Please Read
IMPORTANT PLEASE READ All products manufactured and supplied by BAGNODESIGN are fit for purpose as long as they are Installed, used correctly, cleaned and receive regular maintenance in accordance with these instructions ... Remove all packaging and check the product for damage or missing parts before commencing with the installation. -
Page 3: Technical Drawing
TECHNICAL DRAWING... - Page 4 Carryout grooving according to the dimensions of the actual product. Embedding range of split panel and valve. Note: the wall surface should is finished surface or tiled surface. Take out the hand wheels, female thread sockets, panel and PVC pipes, and then install the 52 jacket and 30 jackets.
- Page 5 Drill 4 mounting holes in the wall with an electric drill (The hole diameter shall not be greater than the diameter of the self-tapping screw, and refer to the embedded back plate hole layout for the hole positions. Turn on the valve, remove silt, sand and other impurities in the pipes, and then turn off the valve.
- Page 6 Turn on the valve and observe for 5-10 minutes, check whether the connections are tight and make sure there is no leakage or seepage, and then turn off the valve. Fix the control valve. Fix the valve in the slot using self-tapping screws and plastic expansion plugs.
- Page 7 Pull out th jackets, & install the panel, female thread sockets, hand wheels and other parts. Installation complete. All surface should be cleaned using a clean damp cloth. No abrasive Cleaning cleaning agents or materials should be used.
- Page 8 www.sanipexgroup.com INM-SPA-T101-A-XX-03-24...
