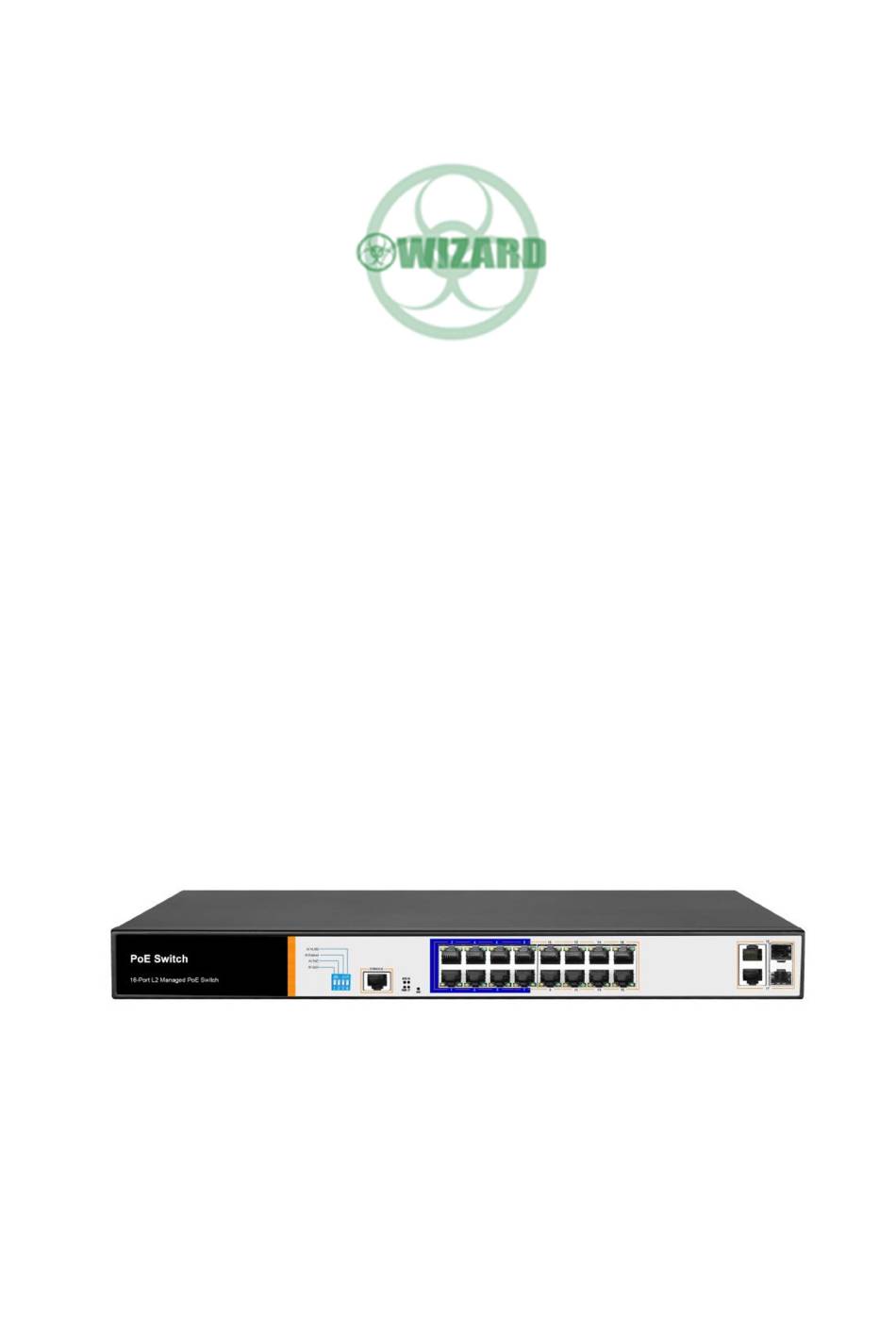

- Page 1 User Manual ON-PS3016S 16 Port L2 Managed PoE Switch...
- Page 2 Installation manual introduction The Product installation manual mainly describes ON-PS3016S PoE switch hardware features, installation methods, and precautions during the installation This manual includes the following chapters: Chapter 1: Product Introduction. Briefly describes the basic features of the switch and the appearance details.
-
Page 3: Chapter 1 Product Introduction

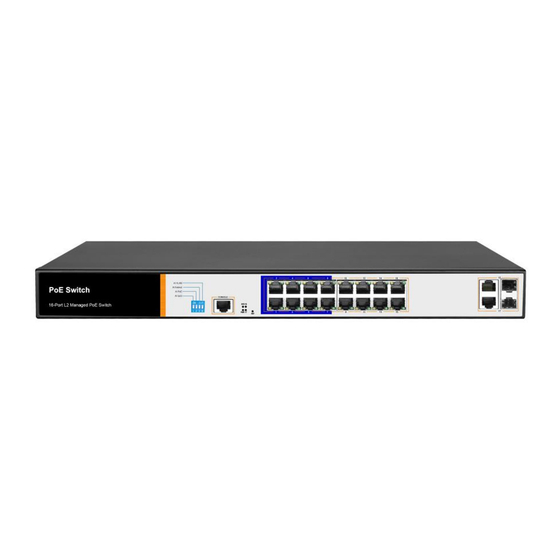

Chapter 1 Product Introduction 1.1Product introduction ON-PS3016S is managed PoE switch for security transmission and WIFI coverage, meet the WIFI AP, IP-camera, WIFI bridge, IP phones and other types of equipment PoE power supply needs. Products using a new generation of high-performance hardware and software platforms,... -
Page 4: Front Panel
1.3Appearance Front Panel Including indicators, RJ45 port, shortcut buttons, RST button, SFP port, CONSOLE port, as shown in below Indicators ON-PS3016S The indicator working status is shown as the following table Work Indicators Title Color Description status Solid... -
Page 5: Back Panel
Combo port. At the same time Combo port two ports can only use one. Two Combo port shared 17, 18 Indicator light SFP Port ON-PS3016S provide 2 Combo Gigabit SFP optical ports (SFP1, SFP2), can be inserted into the Gigabit SFP module RST Button ... -
Page 6: Chapter 2 Installation
Power socket Connect the power cable to the switch ON-PS3016S with an AC power supply of 100-240V to 50/60Hz Ground terminal Use a wire ground to prevent lightning strikes. To avoid lightning strikes on the product and extend the life of the product Chapter 2 Installation 2.1 Installation Precautions... -
Page 7: Product Installation
You may need to use a screwdriver during installation, electrostatic wrist strap, fiber optic cable and other tools to prepare your own 2.2 Product installation 19-inch standard rack installation ON-PS3016S is designed according to the standard 19-inch rack size, you can... -
Page 8: Chapter3 Hardware Connection
easily install to the rack, the specific installation steps are as follows: Check rack grounding and stability； Install the two L-brackets in the accessory on each side of the switch panel and secure with the screws provided in the accessory place the switch in an appropriate place in the rack and be supported by the bracket. - Page 9 Do not connect the RJ45 port to the phone line SFP Port connection ON-PS3016S SFP port only support Gigabit fiber module. Recommended use of standard SFP module products The process of installing a fiber module on a switch is as follows: First, grasp the optic fiber module from the side, insert it smoothly along the SFP port slot until the optic fiber module and switch are in close contact;...
- Page 10 3.4 Device initialization The switch automatically initializes when the power switch is turned on. Indicator will appear the following situation: After the power is turned on, the power indicator remains on, the other indicator is off at this time; After about 1 second, all lights except for the power light turn on for about 35 seconds and then turn off;...
- Page 11 Step3、 Open computer's browser, type 192.168.254.1 in the address box, hit the Enter key Step4、Enter the default username and password “admin” and then click Login Step5、Entered the switch web management interface successfully when you see picture as below, you can begin to configure the switch...
-
Page 12: Chapter 4 Hardware Specifications
Chapter 4 Hardware Specifications Hardware Specifications IEEE 802.3i IEEE 802.3u IEEE 802.3x Standard IEEE 802.3ab IEEE 802.3af IEEE 802.3at 16 10/100Mbps RJ45 port 2 10/100/1000Mbps RJ45 port Port 2 Gigabit SFP port 1 Console port 16 10/100 Mbps RJ45 port support PoE+ power Total max power 150W Single max power 30W 18 Link/Act indicator... -
Page 13: Software Specifications
100-160V/50-60Hz Input Power Size（L× 440mm×178mm×44mm W×H） 4.2Software Specifications IEEE 802.3:Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (fiber) IEEE 802.3ad:Standard method for performing link Protocol standard aggregation IEEE 802.3x:flow control IEEE 802.1p:LAN Layer 2 QoS/Cos protocol for traffic priority (multicast filtering) - Page 14 Support static, dynamic, filter address table Password protection Support based on the port number, IP address, MAC address restrictions on user access Safety Support HTTPS、SSL V3、TLS V1、SSH V1/V2 Support IP-MAC-PORT ternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping、DHCP attack protection Support 802.1X certificated、AAA Support port security, port isolation...
- Page 15 Support fast leave mechanism Support multicast VLAN Supports multicast filtering, packet statistics, and unknown multicast discards. Support multicast suppression Storm suppression Support broadcast suppression Support unknown unicast suppression Support static aggregation Support dynamic aggregation Link aggregation Support IP, MAC, and hybrid load balancing modes Supports up to 32 aggregation groups Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet IPv6...
