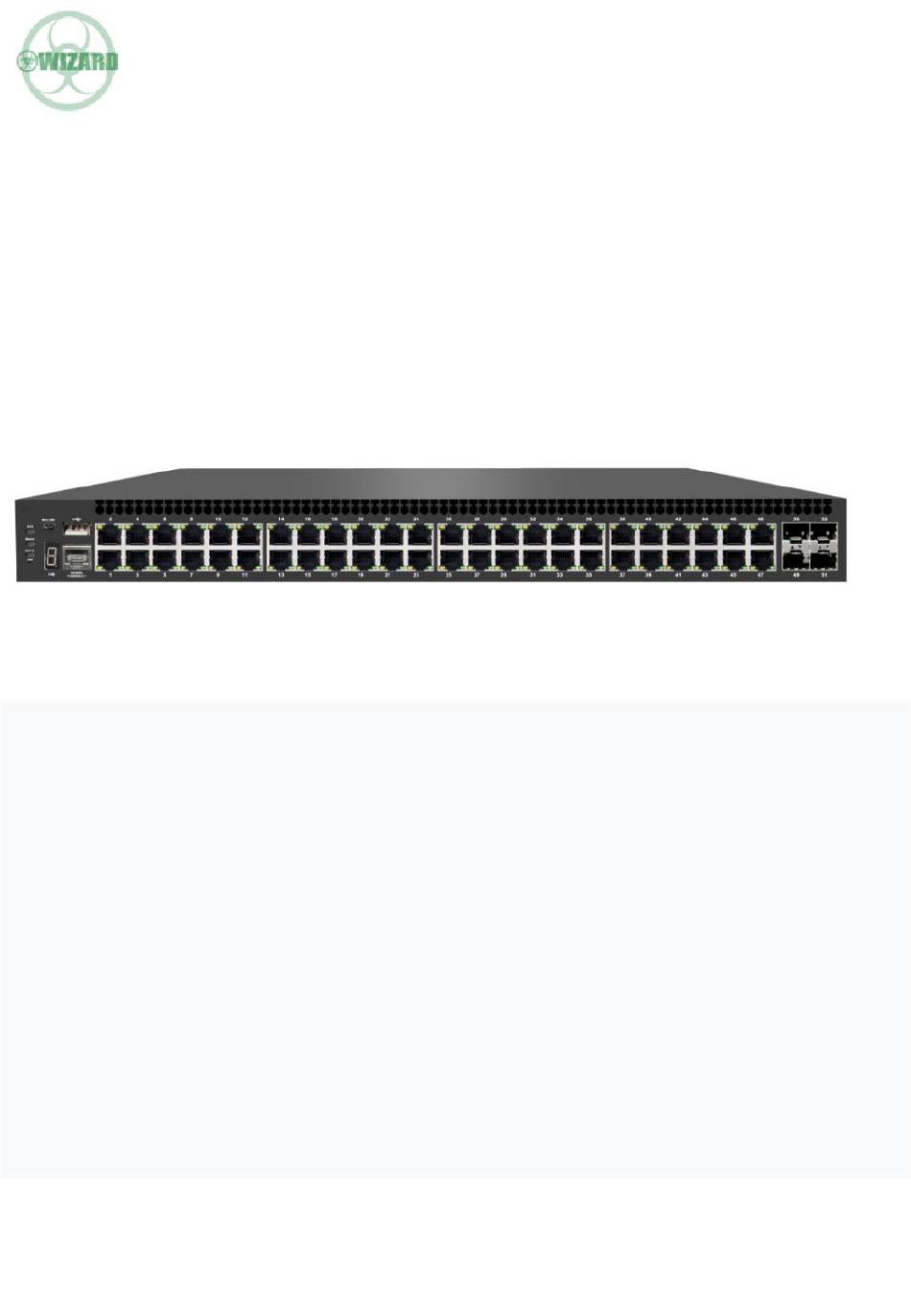

Model :
ON-S5700-48GP-4TF
48 * Gigabit Port + 4 * 10G SFP Port +
1 * Console Port + 1 * Mini-usb Console port +
1 * USB 2.0 (300W) Layer 3 Managed PoE switch
Introduction to the installation manual
The Product User's Manual mainly introduces the software and hardware parameters,
installation methods, and precautions during the installation process of ON-S5700-
48GP-4TF switch.
This manual includes the following sections:
Chapter 1: Product introduction. Briefly describe the basic functions and features of the
switch, detailed hardware and software specifications, and appearance information.
Chapter 2: Hardware Connections. Guide the connection and precautions between the
switch and other devices.
Chapter 3: Product Installation. Guide the hardware installation method and precautions
of the switch.
Chapter 4: Product Packaging and Use Recommendations
Advertisement
Table of Contents
Related Manuals for Wizard ON-S5700-48GP-4TF
Summary of Contents for Wizard ON-S5700-48GP-4TF
- Page 1 Model : ON-S5700-48GP-4TF 48 * Gigabit Port + 4 * 10G SFP Port + 1 * Console Port + 1 * Mini-usb Console port + 1 * USB 2.0 (300W) Layer 3 Managed PoE switch Introduction to the installation manual...
-
Page 2: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1 Product Introduction ON-S5700-48GP-4TF layer 3 management switches are designed for small and medium enterprises (SMEs), large enterprises and Internet service providers (ISPs).They have high performance, flexibility, fault tolerance and advanced software capabilities to maximize commercial value. ON-S5700-48GP-4TF switch features 48... - Page 3 1.3 Product Software and Hardware Specifications Chip Broadcom high performance chipset Flash 16MB Memory 256MB DDR 48 x 10/100/1000Mbps RJ45 POE ports Ports 4x 10GSFP+ Fiber ports 1Console ports,1 Mini USB console port, 1 USB 2.0 Mode：Storage/ forwarding Total Bandwidth：176Gbps Performance Transmission Rate：131Mpps Mac address: 16K...
- Page 4 management, mobile management prevention in advance; Real-time map, fast fault location; Cloud operation, maintenance, configuration, upgrade batch stop processing; Multi-user, multi-dimensional authority, hierarchical management control; AI blessing, intelligent scheduling; Business analysis and decision making; Open interface, customer business import; Support for automatic identification, management and acquisition of information about the downlink device IEEE 802.3: Ethernet media access control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet...
- Page 5 Support ND configuration Supports RIP V1/V2, OSPFv1\OSPFv2 dynamic routing Router Support static routing Support DHCP server DHCP Support DHCP relay Support DHCP Snooping Support 4K numbers of VLAN Support 802.1Q VLAN、MAC VLAN ,IP VLAN VLAN Voice VLAN According IEEE 802.1dstandard Support MAC address automatic learning and aging MAC address list Support static, dynamic, filtering address table...
- Page 6 Support AI POE Support L2(Layer 2)～L4(Layer 4) Packet filtering (ACL) Support port mirroring, port redirection, flow rate limiting, QoS re- marking Support 8 ports queues Support port priority, 802.1P priority, DSCP priority (QoS) Support SP, WRR, WFQ priority scheduling algorithm Supports automatic identification, management, and retrieval of information about attached devices Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w)and...
- Page 7 Support Ping, Tracert detection, cable detection 1.4 Product appearance Front panel Contains indicator light, RJ45 port as shown below Indicator light The working information of ON-S5700-48GP-4TF indicator is as shown in the following table. Indicator light Indicato normal status...
- Page 8 Rear panel Includes: power outlet, power switch, ground terminal SFP port ON-S5700-48GP-4TF provides four 10 Gigabit SFP optical module expansion slots for plugging into Gigabit SFP modules. Console port The Console port is used to connect to the serial port of a computer or...
-
Page 9: Chapter 2 Hardware Connection
Connect the switch and the RJ45 port of the peer network device with a network cable. 2.2 Connecting SFP Ports The SFP port of ON-S5700-48GP-4TF supports only 10 Gigabit fiber modules. It is recommended to use standard SFP module products. The process of installing a fiber module on a switch is as follows: 1、Grasp the fiber module from the side and insert it smoothly along the... -
Page 10: Chapter 3 Product Installation
Rx ends of the interface are correctly connected, and the other end of the fiber is connected to another device. 3、After power-on, check the status of the corresponding indicator. If the indicator is on, the link is up. If the indicator is off, the link is down. Check the line and confirm that the peer device is enabled. - Page 11 power supply remains off during the installation process. Wear an ESD-preventive wrist strap and ensure that the ESD-preventive wrist strap is in good contact with the skin to avoid potential safety hazards. Switch only can work normally under the correct power supply. Please confirm that the power supply voltage matches the voltage indicated by the switch.
- Page 12 anti-static, when the static electricity exceeds a certain intensity, it will still cause fatal damage to the electronic components on the internal circuit board. To avoid the static electricity affecting the normal operation of the device, please pay attention to the following: 1、Regular dust removal to keep indoor air clean;...
- Page 13 3.2 Product Installation 19 inch standard rack mount ON-S5700-48GP-4TF is designed to fit the standard 19-inch rack and can be easily mounted to the rack. The specific installation steps are as follows:： 1、Check the grounding and stability of the rack;...
- Page 14 Note: Good grounding of the rack is an important guarantee for anti-static, anti-leakage, lightning protection and anti-interference of the equipment. Therefore, ensure that the grounding wire of the rack is properly installed. The equipment installed in the rack is generally from bottom to top to avoid overload installation;...
- Page 15 Step3、Turn on the browser , input 192.168.254.1, and click Enter Step4 、Enter the web manage UI, Input the Username and PW, both are admin and log in Step5、 You already entered the web management UI of the switch and can start to configure the switch...
-
Page 16: Chapter 4, Packing List And Recommendations For Use
Chapter 4, packing list and recommendations for use 4.1Open the package and check the list below. Objects Quantity Remark Switch 1 pc Power cable 1 pc Support power to SW Hook 2 pcs To installation Warranty Card 1 pc To After sale service Manual 1 pc To guide the user... - Page 17 cable if it is not special.； 7. Do not use the switch in places with excessive dust and electromagnetic radiation. Do not use the switch in a place that is hot and not ventilated.； 8. Please do not place heavy objects on the switch to avoid accidents.；...
