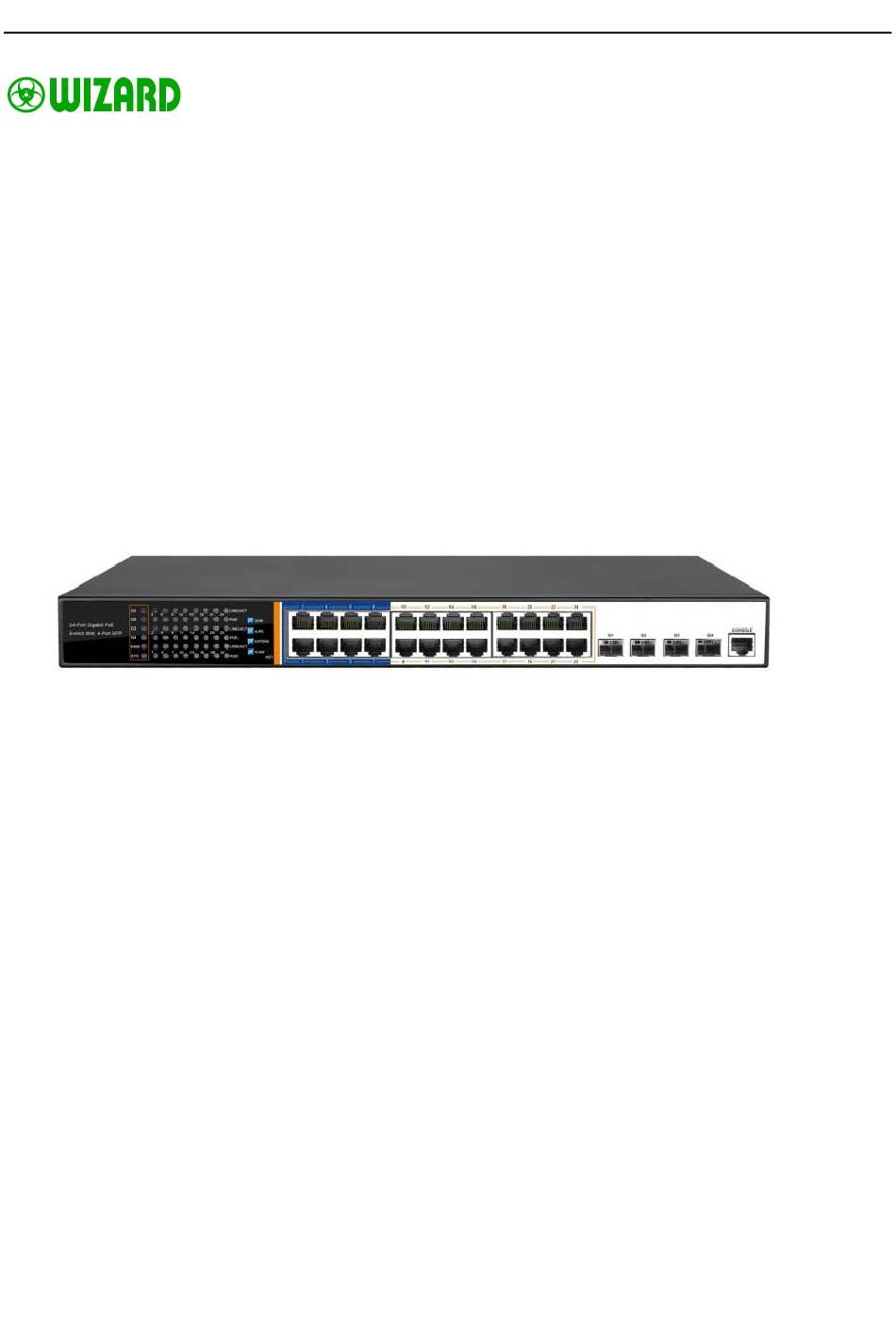

- Page 1 Model : ON-PS2024G 24CH Gigabit Layer 3 Managed PoE Switch...
- Page 2 Agreement The term "switch" mentioned in this manual, unless otherwise specified, refers to 24-port full Gigabit managed PoE switch, hereinafter referred to as ON-PS2024G Some pictures for the schematic, the product itself and pictures may be different This icon indicates the items to be cautioned in the operation. If the operation is wrong, the equipment may be damaged and other adverse consequences.
-
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1Product introduction ON-PS2024G is managed PoE switch for security transmission and WIFI coverage, meet the WIFI AP, IP-camera, WIFI bridge, IP phones and other types of equipment PoE power supply needs. Products using a new generation of high-performance hardware and software platforms, providing... - Page 4 When the switch mode of operation is CCTV mode, 1-8 port can support 250 meters power supply with 10Mbps speed rate SFP Port ON-PS2024G provide four Gigabit SFP optical ports (G1~G4), can be inserted into the Gigabit SFP module RST Button ...
-
Page 5: Chapter 2 Installation
Console port Console port used to connect to computer or other terminal to manage or configure the switch. Back Panel Including: power socket, power switch, ground terminal Power socket A 100-240VAC 50/60 Hz power receptacle for accommodating the supplied power cord ... - Page 6 Temperature and humidity To ensure the long-term stability working of the switch , please maintain a certain temperature and humidity environment. High or low humidity easily lead to leakage of insulation materials, deformation and even the corrosion of metal parts, the temperature is too high will accelerate the aging process of insulating materials, seriously affecting the service life of equipment.
-
Page 7: Chapter3 Hardware Connection
2.2 Product installation 19-inch standard rack installation ON-PS2024G is designed according to the standard 19-inch rack size, you can easily install to the rack, the specific installation steps are as follows: First, Check rack grounding and stability；... - Page 8 Do not connect the RJ45 port to the phone line 3.2 SFP Port connection ON-PS2024G SFP port only support Gigabit fiber module. Recommended use of standard SFP module products The process of installing a fiber module on a switch is as follows: First, grasp the optic fiber module from the side, insert it smoothly along the SFP port slot until the optic fiber module and switch are in close contact;...
- Page 9 Please do not look directly into the optical fiber connector with your eyes as this may cause eye injury 3.3 Check before power on Check whether the outlet power supply meets the switch specifications; Check the power, switches, racks and other equipment have been properly grounded;...
-
Page 10: Chapter 4 Hardware Specifications
Step4、Enter the default username and password “admin” and then click Login Step5、Entered the switch web management interface successfully when you see picture as below, you can begin to configure the switch Chapter 4 Hardware Specifications 4.1Hardware Specifications IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX fast Ethernet... - Page 11 Single port max 30W 28 Link/Act LEDs 24 POE LEDs LEDs 1 Power LEDs Forwarding mode: store and forward Switch Volume (Full-duplex) ：56Gbps Performance Packet forwarding rate：41.664Mpps 8K MAC address table 100-240V/50-60Hz Input 440mm×320mm×44mm Dimension （L×W×H） 4.2 Software Specifications One key VLAN One key CCTV(1-8 port 250meters PoE distance) Shortcut function One key Q0S (Video priority)
- Page 12 Support static, dynamic, filter address table Based on user rating management and password protection Support based on the port number, IP address, MAC address restrictions on user access Safety Icmp-echo、DoS protection Support DHCP Snooping、DHCP attack protection Support port security, port isolation Support L2(Layer 2)～L4(Layer 4) packet filtering function Access control (ACL)
- Page 13 4.2 Features 1-8 port support 250Meters long-distance power supply (recommended cat5e or 6 network cable) Support a key VLAN, the port 1-24 isolated from each other, which can effectively inhibit network storms, improve network performance Supports IEEE 802.3af / at standard, automatically detects and identifies devices that comply with the IEEE 802.3af / at standard and supply power to it ...
