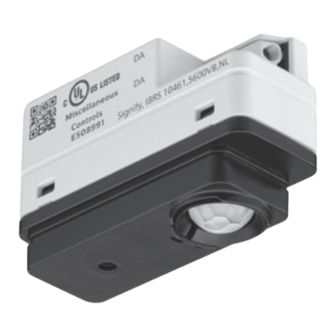

SR Sensor
SC200B/02
Installation Instructions
Instructions d'installation
Instrucciones de instalación
50.8 mm (2.00 in)
42.8 mm (1.69 in)
1
B Fragile
4422 963 83872
30 August 2024
SC200B/02 WH
Istruzioni per l'installazione
Installatie-instructies
18.9 mm
(0.74 in)
4x
r = 2.5 mm (0.10 in)
2
SC200B/02 WH
Light sensor
RF antenna LED indicator
SC200B/02 BL
Light sensor
RF antenna LED indicator
05
TYPE D
SC200B/02 BL
Installationsanweisungen
イ ンス トール手順
IR receiver
PIR
DA
SC200B/02
DA
IR receiver
Connectors
PIR
(non-polarized)
max
≤90%
65 °C
kg
min
20 g
-40 °C
安装指示书
إرشادات التركيب
SC200B/02
SR driver
Solid conductor wire
0.25 to 0.75 mm
(AWG 24 to 18)
2
7 to 9 mm
(0.28 to 0.35 in)
Conduct material: Copper
SR-
SR+
SR driver
www.philips.com/lighting
Advertisement
Related Manuals for Philips SC200B/02
Summary of Contents for Philips SC200B/02
- Page 1 SR Sensor SC200B/02 SC200B/02 WH SC200B/02 BL Installation Instructions Instructions d’installation Istruzioni per l’installazione Installationsanweisungen 安装指示书 إرشادات التركيب Instrucciones de instalación Installatie-instructies イ ンス トール手順 18.9 mm 50.8 mm (2.00 in) (0.74 in) SC200B/02 SR driver 42.8 mm (1.69 in) r = 2.5 mm (0.10 in)
- Page 2 321 mm from your body. received, including interference that may cause undesired operation. Any Hereby, Signify declares that the radio equipment type SC200B/02 is in changes or modifications not expressly approved by Signify could void compliance with Directive 2014/53/EU. The full text of the EU declaration of the user’s authority to operate this equipment.
