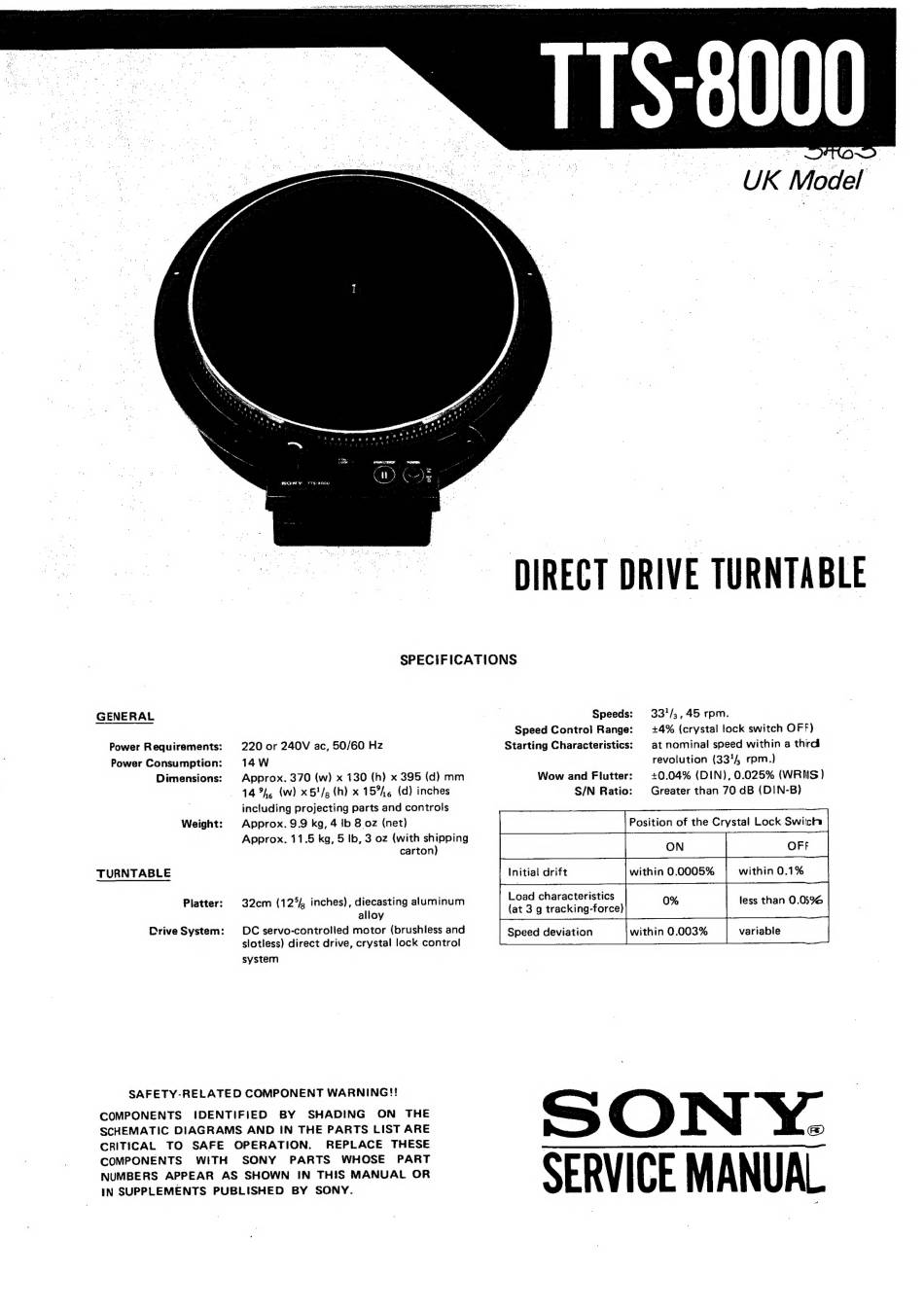

Sony TTS-8000 Service Manual

oe = UK Model
Ll all Pore
BOMY 1s #000
SPECIFICATIONS
GENERAL
7
Speeds: 331/;,45 rpm.
Speed Control Range: +4% (crystal lock switch OFF)
Power Requirements:
220 or 240V ac, 50/60 Hz
Starting Characteristics:
at nominal speed within a third
Power Consumption:
14W
revolution (3374 rpm.)
Dimensions:
Approx. 370 (w) x 130 (h) x 395 (d) mm
Wow and Flutter:
+0.04% (DIN), 0.025% (WRNS)
14%. (w) x5%/, (h) x 15°%.6 (d) inches S/N Ratio: Greater than 70 dB (DIN-B)
including projecting parts and controls
Weight: Approx. 9.9 kg, 4 Ib 8 oz (net)
Approx. 11.5 kg, 5 Ib, 3 oz (with shipping
carton)
Paras Position of the Crystal Lock Swiich
pw ir
Initial drift within 0.0005% within 0.1%
Load characteristics A
(at 3 g tracking-force) less than 0.0596
Speed deviation within 0.003%
TURNTABLE
Platter: 32cm (12°% inches), diecasting aluminum
alloy
Drive System: DC servo-controlled motor (brushless and
slotiess) direct drive, crystal lock control
system
SAFETY-RELATED COMPONENT WARNING!!
