Summary of Contents for Gold Medal 2114-00-206

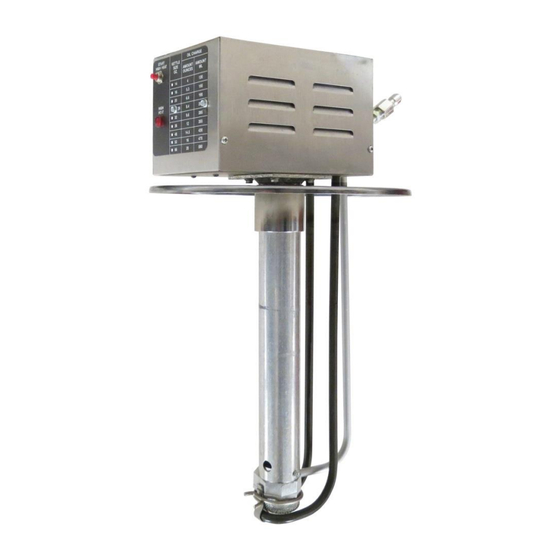

- Page 1 Instruction Manual Bucket Oil Pump Model No. 2114-00-206 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2023 Gold Medal Products Co. Part No. 79064E...
-
Page 2: Table Of Contents
Bucket Oil Pump Model No. 2114-00-206 Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Model Description ..............................5 Items Included with this Unit ........................... 5 Setup ................................... 5 Electrical Requirements ............................. 6 Before You Plug In Machine .......................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2114-00-206: Bucket Oil Pump; features a Dual Teach Timer. Items Included with this Unit Instruction Manual 2 ft. -
Page 6: Electrical Requirements
DO NOT use a water jet or excessive water when cleaning. 008_012221 This machine is intended to be used with a Gold Medal popcorn popper with a proper power cord to connect to the pump. A certified electrician must furnish sufficient power for proper machine operation (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage requirements). -
Page 7: Preparing The Pump For Operation
1. Place the Bucket Oil Pump in a pre-melted bucket of oil. Note: To prevent possibility of damage to the heat element, we recommend pre-melting the oil in the bucket with Gold Medal’s Hot Wand (Item No. 2018) before inserting the bucket pump. -
Page 8: Program The E-Z Set Timer
Bucket Oil Pump Model No. 2114-00-206 Program the E-Z Set Timer Follow the steps below to program the timer to dispense the oil amount needed to pop a batch of popcorn. It is recommended to set the oil volume to approx. 30% of the raw popcorn charge used. -
Page 9: Operating Instructions
Note: To prevent the possibility of damage to the heat element, we recommend pre-melting the oil in the bucket with Gold Medal’s Hot Wand (Item No. 2018) before inserting the bucket pump. 1. Turn Oil System Master Switch ON (switch is located on control panel of the popper). -
Page 10: High Heat Cycle
Bucket Oil Pump Model No. 2114-00-206 High Heat Cycle The High Heat Cycle is used for a new bucket of oil, or at the beginning of the day, to get oil in the bucket to proper operating consistency. The High Heat Cycle is factory set at 20 minutes. -
Page 11: Care And Cleaning
1. With machine off, unplug unit and allow oil pump and popper kettle to cool completely before attempting to clean (always have power disconnected when wiping unit off). 2. Fill a clean, empty pail half-full with hot water and Gold Medal Chlor-Tech Sanitizer (reference instructions on sanitizer container for appropriate amount). - Page 12 Bucket Oil Pump Model No. 2114-00-206 4. Place pump in pail of solution. 5. Let pump soak for ten minutes, lift pump from solution and wipe down with a clean, solution soaked cloth. Return pump to bucket. 6. Attach the 6-ft piece of tubing to oil dispense tube above popper kettle (see image below).
-
Page 13: Troubleshooting
Bucket Oil Pump Model No. 2114-00-206 Troubleshooting General unit troubleshooting issues are listed below, also reference the Troubleshooting section in the popper manual. Issue Possible Cause Solution Oil Pump Does Not Deliver A. Oil System Master Switch A. Check to make sure the Oil System Master Oil to Kettle Switch is ON. -
Page 14: The Following Sections Are For Qualified Service Personnel Only
Bucket Oil Pump Model No. 2114-00-206 THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. -
Page 15: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 16: Pump Exterior View
Bucket Oil Pump Model No. 2114-00-206 Pump Exterior View Data Plate (located See Safety Labels section. on back of unit). General images shown for reference only. Part Number Item Part Description 2114-00-206 HIGH HEAT LABEL 79090 JUNCTION BOX COVER 115651... -
Page 17: Junction Box Interior - Left Side View
Bucket Oil Pump Model No. 2114-00-206 Junction Box Interior – Left Side View See Motor Components Relay (on Dual Timer Model) General images shown for parts reference only. Part Number Item Part Description 2114-00-206 PLUG ASSEMBLY (6 Position) 115617 SPDT 120 VAC RELAY... -
Page 18: Motor Components
Bucket Oil Pump Model No. 2114-00-206 Motor Components Part Number Item Part Description 2114-00-206 1/8 X 1 SS COTTER PIN 86574 BUCKET PUMP DRIVE SHAFT 79011 PUMP MOTOR GASKET 79005 PUMP MOTOR 79006 Safety Label and Accessories Item Part Description... -
Page 19: Wiring Diagram
Bucket Oil Pump Model No. 2114-00-206 Wiring Diagram Model No. 2114-00-206 gmpopcorn.com Page 19... -
Page 20: Warranty
No claim under this warranty shall be honored in the event that components in the unit at the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty is effective only when electrical items have been properly attached to city utility lines only at proper voltages.
