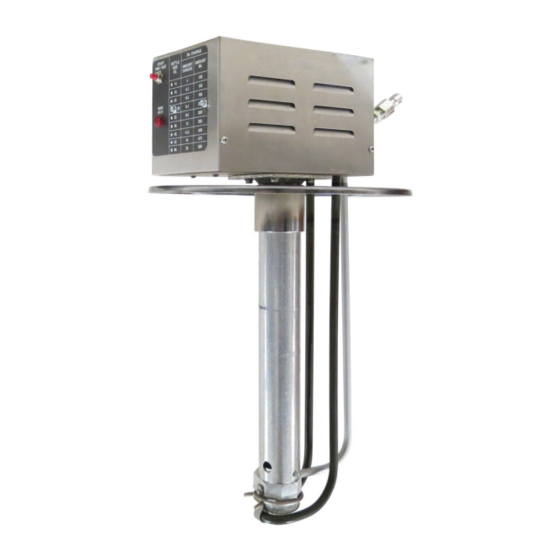

Bucket oil pump

Advertisement

Instruction Manual
Bucket Oil Pump
Export Model No. 2114XE, 2114XD
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
© 2017 Gold Medal Products Co.
Part No. 79064XE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2114XE and is the answer not in the manual?

Questions and answers

Summary of Contents for Gold Medal 2114XE

  • Page 1 Instruction Manual Bucket Oil Pump Export Model No. 2114XE, 2114XD 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2017 Gold Medal Products Co. Part No. 79064XE...
  • Page 2: Safety Precautions

    Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com...
  • Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
  • Page 4: Installation Instructions

    To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2114XE: Export Bucket Oil Pump; features a Teach Timer. 2114XD: Export Bucket Oil Pump; features a Dual Teach Timer. Items Included with this Unit 2 Cup Acrylic Measure 2 ft.
  • Page 5: Electrical Requirements

    Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that the machine powering this pump be plugged directly into a wall outlet.
  • Page 6: Preparing The Pump For Operation

    1. Place the Bucket Oil Pump in a pre-melted bucket of oil. Note: To prevent possibility of damage to the heat element, we recommend pre-melting the oil in the bucket with Gold Medal’s Hot Wand (Item No. 2018EX) before inserting the bucket pump.
  • Page 7 Bucket Oil Pump Export Model No. 2114XE, 2114XD Program the E-Z Set Timer Follow the steps below to program the timer to dispense the oil amount needed to pop a batch of popcorn. It is recommended to set the oil volume to approx. 30% of the raw popcorn charge used.
  • Page 8: Controls And Their Functions

    Note: To prevent the possibility of damage to the heat element, we recommend pre-melting the oil in the bucket with Gold Medal’s Hot Wand (Item No. 2018EX) before inserting the bucket pump. 1. Turn Oil System Master Switch ON (switch is located on control panel of the popper).
  • Page 9 Bucket Oil Pump Export Model No. 2114XE, 2114XD High Heat Cycle The High Heat Cycle is used for a new bucket of oil, or at the beginning of the day, to get oil in the bucket to proper operating consistency. The High Heat Cycle is factory set at 20 minutes.
  • Page 10: Care And Cleaning

    1. With machine off, unplug unit and allow oil pump and popper kettle to cool completely before attempting to clean (always have power disconnected when wiping unit off). 2. Fill a clean, empty pail half-full with hot water and Gold Medal Chlor-Tech Sanitizer (reference instructions on sanitizer container for appropriate amount).
  • Page 11 Bucket Oil Pump Export Model No. 2114XE, 2114XD 3. Lift bucket pump from oil pail and allow oil to drain from pump, then wipe off any excess oil with a clean cloth. 4. Place pump in pail of solution. 5. Let pump soak for ten minutes, lift pump from solution and wipe down with a clean, solution soaked cloth.
  • Page 12: Troubleshooting

    Bucket Oil Pump Export Model No. 2114XE, 2114XD Troubleshooting General unit troubleshooting issues are listed below, also reference the Troubleshooting section in the popper manual. Issue Possible Cause Solution Oil Pump Does Not Deliver A. Oil System Master Switch A. Check to make sure the Oil System Master Oil to Kettle Switch is ON.
  • Page 13: Maintenance Instructions

    Bucket Oil Pump Export Model No. 2114XE, 2114XD MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water.
  • Page 14: Ordering Spare Parts

    Bucket Oil Pump Export Model No. 2114XE, 2114XD ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. (General images may be used in manual for reference only.) 2. Use only approved replacement parts when servicing this unit.
  • Page 15 Bucket Oil Pump Export Model No. 2114XE, 2114XD Pump Exterior View Data Plate (located See Safety Labels section. on back of unit). Part Number Item Part Description All Models HIGH HEAT LABEL 79090 JUNCTION BOX COVER 79062 BUCKET PUMP LID ASSEMBLY...
  • Page 16 Bucket Oil Pump Export Model No. 2114XE, 2114XD Junction Box Interior – Left Side View See Motor Components Diode (ref. Wire Diagram) Single Timer Unit shown for general reference only. Relay (on Dual Timer Model only) Part Number Item Part Description...
  • Page 17: Motor Components

    Bucket Oil Pump Export Model No. 2114XE, 2114XD Motor Components Part Number Item Part Description All Models 1/8 X 1 SS COTTER PIN 86574 BUCKET PUMP DRIVE SHAFT 79043 PUMP MOTOR GASKET 79005 PUMP MOTOR 79077 gmpopcorn.com Page 17...
  • Page 18: Safety Labels

    Bucket Oil Pump Export Model No. 2114XE, 2114XD Safety Labels Part Number Item Part Description All Models 2114 LABEL 79439 MAIN GROUND LABEL 42375 Accessories Item Part Description Part Number NORPRENE A-60-F TUBING 91703 HOSE CLAMP W/SCREW 41163 2 CUP ACRYLIC MEASURE 62807 gmpopcorn.com...
  • Page 19: Wiring Diagram

    Bucket Oil Pump Export Model No. 2114XE, 2114XD Wiring Diagram Model No. 2114XE gmpopcorn.com Page 19...
  • Page 20 Bucket Oil Pump Export Model No. 2114XE, 2114XD Model No. 2114XD gmpopcorn.com Page 20...
  • Page 21 © 2017 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
