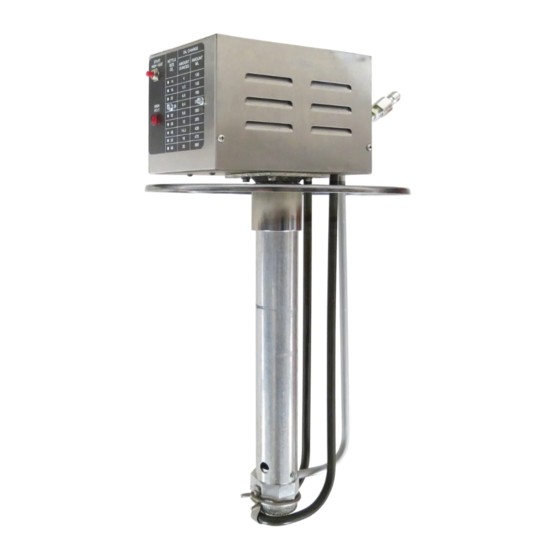

Bucket pump with teach-me timer

Advertisement

Quick Links

Part No. 79064E
Revised: March 2009

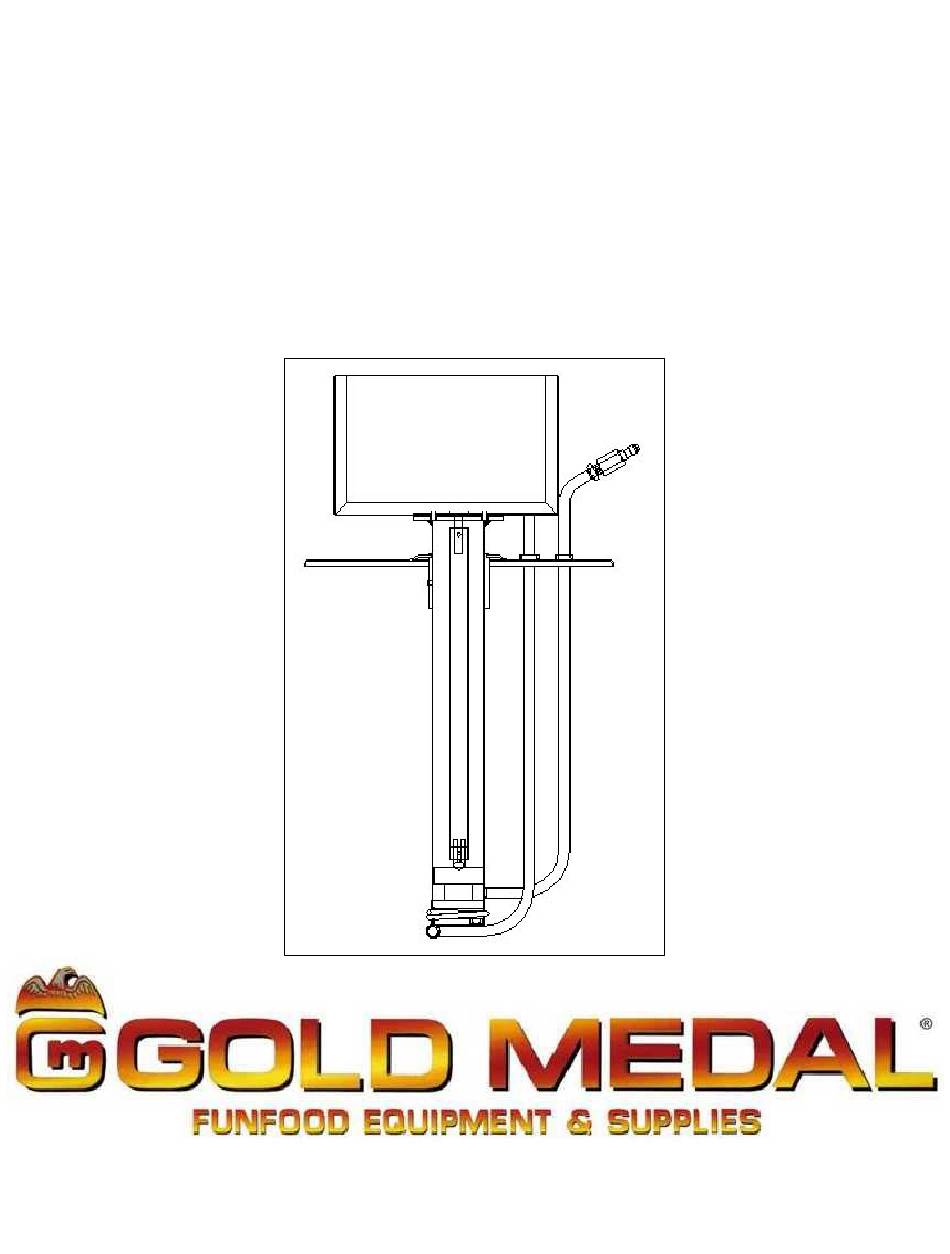

Bucket Pump With Teach-Me Timer
Instruction Manual
Models: 2114E & 2114ED
For Machines Manufactured After March 2009
Cincinnati, OH 45241 USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2114E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gold Medal 2114E

  • Page 1 Part No. 79064E Revised: March 2009 Bucket Pump With Teach-Me Timer Instruction Manual Models: 2114E & 2114ED For Machines Manufactured After March 2009 Cincinnati, OH 45241 USA...
  • Page 2 Safety Precautions...
  • Page 3: Installation

    INTRODUCTION This manual provides instruction for installation and operation of the Models 2114E and 2114ED – manufactured after March of 2009. The unit you have purchased is a quality product that should give you years of trouble-free operation if used correctly, and properly maintained.
  • Page 4 (see adjustment instructions on the following page). NOTE: We recommend pre-melting oil in the bucket with Gold Medal’s HOT WAND, catalog #2018, before inserting your new bucket pump to prevent the possibility of damage to the heat element.
  • Page 5 E-Z SET TIMER OPERATING INSTRUCTIONS Program Mode: This machine is equipped with a programmable timer for setting the amount of oil needed for popping popcorn. To put the pump into program mode, hold the Oil Dispense push button down, while turning on the Oil System Master switch.
  • Page 6: Maintenance Instructions

    3. Please include your model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 (800) 543-0862...
  • Page 7 Bucket Pump Parts Breakdown – Bottom View Models: 2114E & 2114ED...
  • Page 8 Bucket Pump Parts Breakdown – Top View Models: 2114E & 2114ED...
  • Page 9 Bucket Pump Parts Breakdown – Top View Continued Models: 2114E & 2114ED...
  • Page 10 Bucket Pump Parts List – Models: 2114E & 2114ED Item No. Part No. Description Quantity 79017 Element Retainer 79018 Clamp, Filter Screen 79023 Pump Mounting Tube 79030 Bucket Lid Assy. 79016 Filter Screen 79001 Pump Assy. 79002 Heat Element 79015...
  • Page 11 The 2114 and 2114D bucket pumps have been replaced by the 2114E and 2114ED bucket pumps. The 2114E & 2114ED pumps have the teach timer with a fixed 20 minute high heat timer. The 2114E is a direct replacement for the 2114 pump. (and the 2257 pump) The 2114ED pump used with the flexi-pop and salt/sweet model machines is not a direct replacement for the 2114D pumps.
  • Page 12 Bucket Pump Electrical Schematic – Model 2114E Models: 2114E & 2114ED...
  • Page 13 Bucket Pump Electrical Schematic – Model 2114ED Models: 2114E & 2114ED...
  • Page 14: Warranty

    Bucket Pump WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
