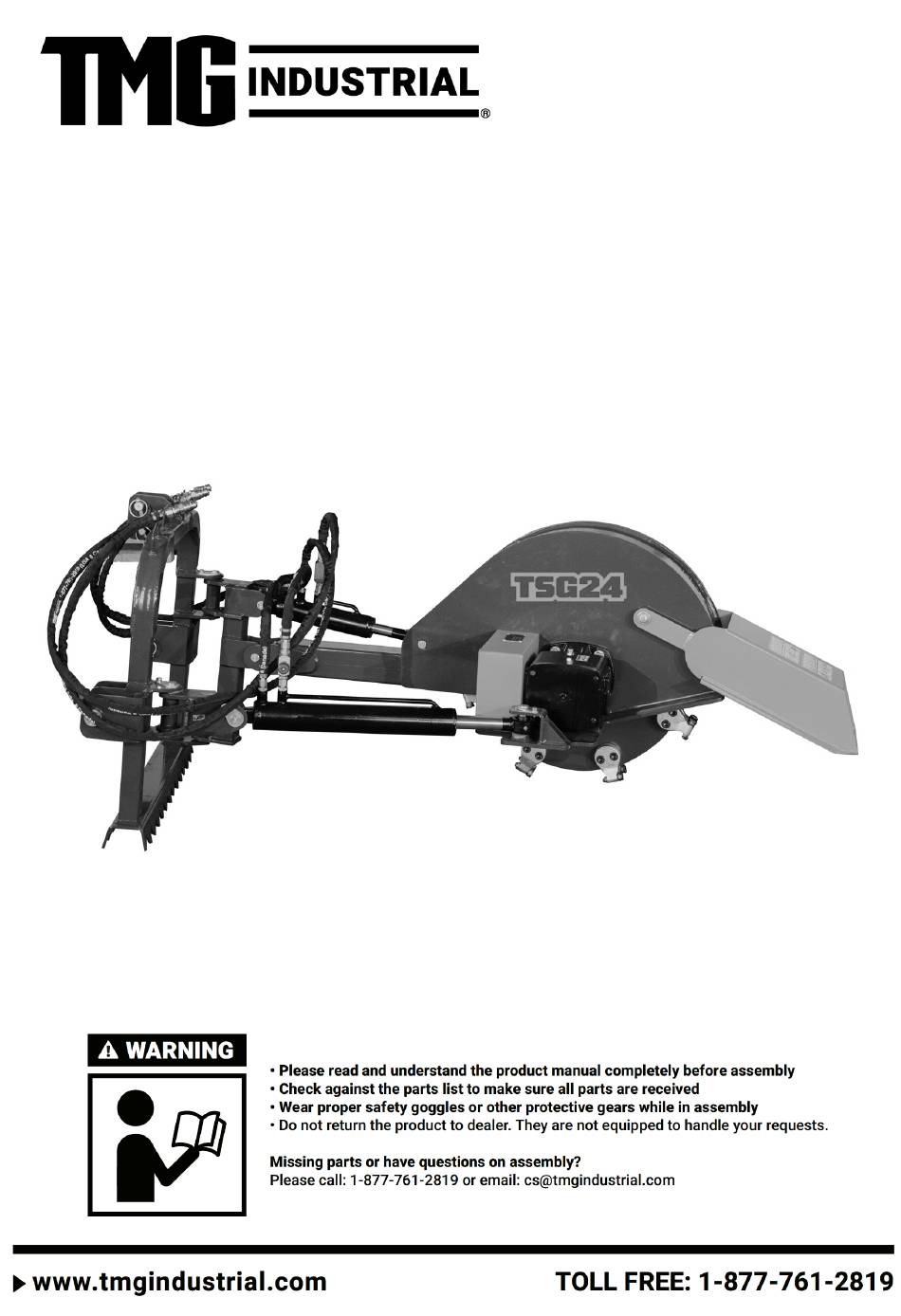

- Page 1 TMG-TSG24 PRODUCT MANUAL v.2024.06.20 3 PTO STUMP GRINDER, ROTOR SIZE: 24” www.tmgindustrial.com 1 / 12 TOLL FREE: 1-877-761-2819...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ........................... 2 ..................................3 AFETY ....................................3 ENERAL .................................. 3 VOID OLLOVER ..................................4 ARDAN HAFT OPERATION ..................................4 ............................4 UST ADD OIL BEFORE FIRST USE ..........................5 EQUIRED QUIPMENT RACTOR ..........................5 EQUIRED QUIPMENT RACTOR PTO S... -
Page 3: Your Safety
Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG 3-PTO Stump Grinder. YOU must ensure that you and anyone else who is going to use, maintain or work around the 3-PTO Stump Grinder be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. -
Page 4: Cardan Shaft
Use caution when operating on slopes and do not operate on excessively steep slopes. Do not exceed load capacity of equipment. Cardan Shaft 1. Only use such cardan shafts which are recommended by the manufacturer. 2. The cardan shaft protection pipes, protective funnels and attachment protection must be mounted on the machine and be in perfect condition. -
Page 5: Required Equipment Of The Tractor
PTO shaft with chosen gear ratio, max. 540 RPM. Three-point hitch of I category. The model TMG-TSG24 requires a tractor of at least 20 hp or up to a maximum of 60 hp. Maximum number of revolutions and direction of tractor PTO shaft rotation is 540 rpm/min. -
Page 6: Grinder
Be careful that the cardan clicks into place on both connection points! Once the winch is attached to the tractor, strengthen the stabilizers on the lower connection rods and level the winch with a hitch nut into position, so that the winch is tilted backwards for approximately 20 degrees. Grinder The cutting height should be 0.5"-1.25". -
Page 7: Maintenance
MAINTENANCE Before Every Use Check hydraulic hoses and fittings daily for leaks. Replace hose if worn or damaged. Investigate the location of any oil leaks and repair. Lubricate all joints with lithium grease. Inspect the unit for any buildup of contamination (dirt, stones, etc.). Check cutting teeth every 2 hours of use. -
Page 8: Hydraulic System
To avoid an accident that could result in Death or Serious Injury, never find yourself in a position where any body part is located under an unsupported blade or frame when servicing this attachment. WARNING! Hazardous dust can be generated if painted surfaces are heated or welded and could result in death or Serious Injury. Remove paint before welding and always make repairs in a well-ventilated area and wear an approved respirator. -
Page 9: Specification
SPECIFICATION Specifications & Capacities MODEL TMG-TSG24 Maximum cutting depth – below ground 12” Maximum cutting height – above ground 18” Cutting arc (degrees) 40° Type of PTO included 20-60HP Required hydraulic flow 5-13GPM Cutting wheel speed 950 U/min Weight 620lbs... - Page 10 Part No. Ref. Part Description GB/T 5783 Bolt M12X35 GB/T93.1 Spring Washer 12 GB/T 97.1 Washer 12 TSG61.7 Outer Plate Weldment GB/T 5783 Bolt M16*65 GB/T 97.1 Washer 16 GB/T 889.1 Lock Nut M16 SSG61.4 Cutting Wheel Assembly GB/T 96-1985 Big Washer 12 TSG61.15 Guard Spacer...
-
Page 11: Hydraulic Components Assembly
Hydraulic components Assembly Part No. Ref. Part Description TSG61.12-2 Swing Cylinder GE10LM16x1.5EDOMD End Straight Joint M16x1.5-M16x1.5 EGE10LR38ED End Straight Joint M16x1.5-G3/8 STB 3/8 Control Valve GE10LR38EDOMD End Straight Jointm16x1.5-G3/8 TSG61.12-3 Oil Hose GE10LR1/2ED End Straight Joint M16*1.5-G1/2" GB/T 5862 Quick Change Connector G1/2 TSG61.12-1 Lifting Cylinder EGE10LRED... -
Page 12: Cutting Wheel Assembly Assembly
Cutting Wheel Assembly Assembly Part No. Ref. Part Description SSG61.4-7 Cutting wheel ESG47.4-2 Teeth base900-2 ESG47.4-8 Teeth 900 ESG47.4-3 Teeth base900-3 ASME B18.16.6 Nylon Insert Lock Nuts ASME B18.3 HEX SOCKET HEAD BOLT ESG47.4-4 Teeth base900-4 ESG47.4-5 Teeth base900-5 ESG47.4-6 Teeth base900-6 ESG47.4-1 Teeth base900-1...
