Summary of Contents for TMG TMG-ESG18

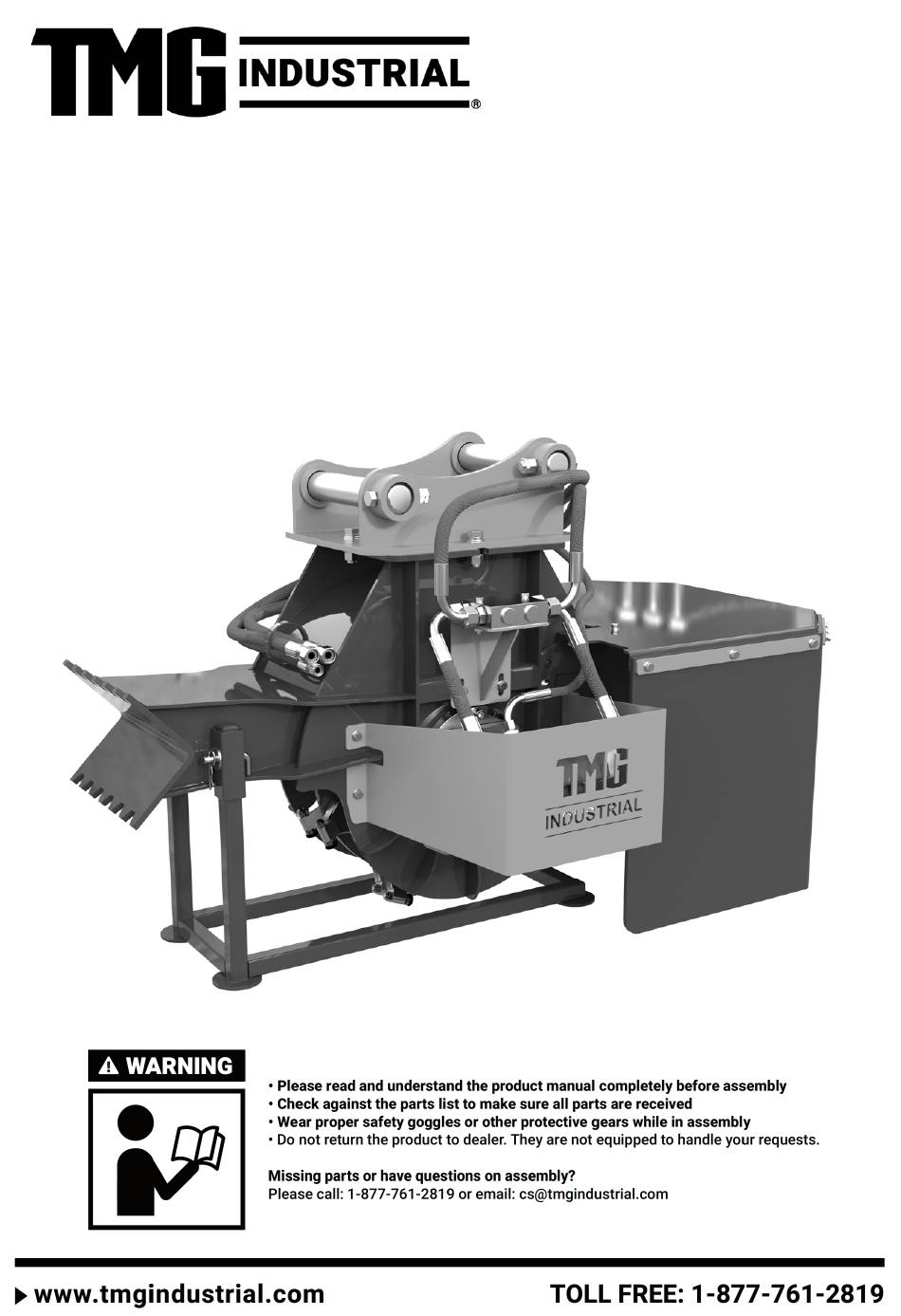

- Page 1 TMG-ESG18 PRODUCT MANUAL v.2022.12.20 18“ EXCAVATOR STUMP GRINDER...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ............................3 ....................................3 AFETY ..................................3 ENERAL AFETY ..............................4 QUIPMENT AFETY UIDELINES ..................................5 AFETY RAINING ..................................... 5 AFETY IGNS ..................................6 AFETY ECALS ..................................... 6 REPARATION ................................7 AINTENANCE AFETY ..................................7 YDRAULIC AFETY .................................. -
Page 3: Important Safety Information
Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG EXCAVATOR Skeleton. YOU must ensure that you and anyone else who is going to use, maintain or work around the EXCAVATOR Skeleton be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. -
Page 4: Equipment Safety Guidelines
- Wet weather gear - Hearing Protection 6. Install and secure all guards before starting. 7. Wear suitable ear protection for prolonged exposure to excessive noise. 8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. -
Page 5: Safety Training
10. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the EXCAVATOR and machine manuals. -
Page 6: Safety Decals
Safety Decals Preparation Never use the machine until you have read and completely understand this manual, the EXCAVATOR tractor Operator's Manual and each of the Safety Messages found on the safety signs on the EXCAVATOR tractor and machine. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, cleaning, or moving the unit. -
Page 7: Maintenance Safety
Maintenance Safety Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Follow good shop practices. Keep service area clean and dry. Be sure electrical outlets and tools are properly grounded. Use adequate light for the job at hand. Make sure there is plenty of ventilation. -
Page 8: Transport Safety
If injured by a concentrated high-pressure stream of hydraulic fluid, seek medical attention immediately. Serious infection or toxic reaction can develop from hydraulic fluid piercing the skin surface. Relieve pressure on hydraulic system before maintaining or working on system. Transport Safety Comply with state and local laws governing safety and transporting of machinery on public roads. -
Page 9: Grinder
A case drain line (3/8'') must be added prior to use! Grinder The cutting height should be 0.5"-1.25". we think the customer cutting more than 1.25", that makes grinder working slowly. The grinder should work from right to left or left to right. grinder parallel not vertical. When the attachment has completed a pass, move it rearward about 0.5“-1.25”... -
Page 10: Maintenance
MAINTENANCE Before Every Use Check hydraulic hoses and fittings daily for leaks. Replace hose if worn or damaged. Investigate the location of any oil leaks and repair. Lubricate all joints with lithium grease. Inspect the unit for any buildup of contamination (dirt, stones, etc.). Check cutting teeth every 2 hours of use. -
Page 11: Hydraulic System
WARNING! To avoid an accident that could result in Death or Serious Injury, never find yourself in a position where any body part is located under an unsupported blade or frame when servicing this attachment. WARNING! Hazardous dust can be generated if painted surfaces are heated or welded and could result in death or Serious Injury. Remove paint before welding and always make repairs in a well-ventilated area and wear an approved respirator. -
Page 12: Specification
SPECIFICATION Specifications & Capacities Runs on 3-to-7-ton excavators • Reversible teeth, rotated 3 times before needing to be replaced; forged steel with carbide face • Includes a kickstand to keep the implement level while unhitched • Oil leakage line necessary •... -
Page 13: Parts List
PARTS LIST 18“ excavator stump grinder Assembly www.tmgindustrial.com 13 / 16 TOLL FREE: 1-877-761-2819... -
Page 14: Esg18 Spare Parts List
ESG18 spare parts list Part No. Ref. Part Description ESG47.13 Support leg ESG47.10 Motor cover GB/T 5783 Bolt M8*25 GB/T 93 SPRING WASHER 8 GB/T 97.1 Washer 8 A2F55W2Z2 HYD MOTOR GB/T 93 SPRING WASHER 10 GB/T 70.1 Hex Bolt M10*35 GB/T 70.1 Hex Bolt M12*45 GB/T 93... -
Page 15: Cutting Wheel Assembly
ESG47.16 Guard Mounting Plate 01 ESG47.17 GB/T 96 BIG WASHER 8 GB/T 5783 Bolt M8*16 GB/T 5783 Bolt M16*100 ESG47.30 Hook weldment EXF1200.18 Cutting wheel assembly Part No. Ref. Part Description ESG47.4-7 Cutting wheel ESG47.4-2 Teeth base900-2 ESG47.4-8 Teeth 900 ESG47.4-3 Teeth base900-3 ASME B18.16.6... -
Page 16: Hydraulic Components
Hydraulic Components Part No. Ref. Part Description ESG47.14-1 Hydraulic hose01 Length:292mm ESG47.14-2 Hydraulic hose02 Length:292mm ESG47.14-3TMG Hydraulic hose03 Length:2000mm ESG47.14-4TMG Hydraulic hose04 Length:2000mm ESG47.14-5TMG Hydraulic hose05 Length:2000mm GE15LRED END STRAIGHT JOINT G1/2"-M22*1.5 G10LM18x1.5EDOMD Connector M18*1.5-M16*1.5 ISO6162-1/-2 Split flange FHS63 SAE www.tmgindustrial.com 16 / 16 TOLL FREE: 1-877-761-2819...
