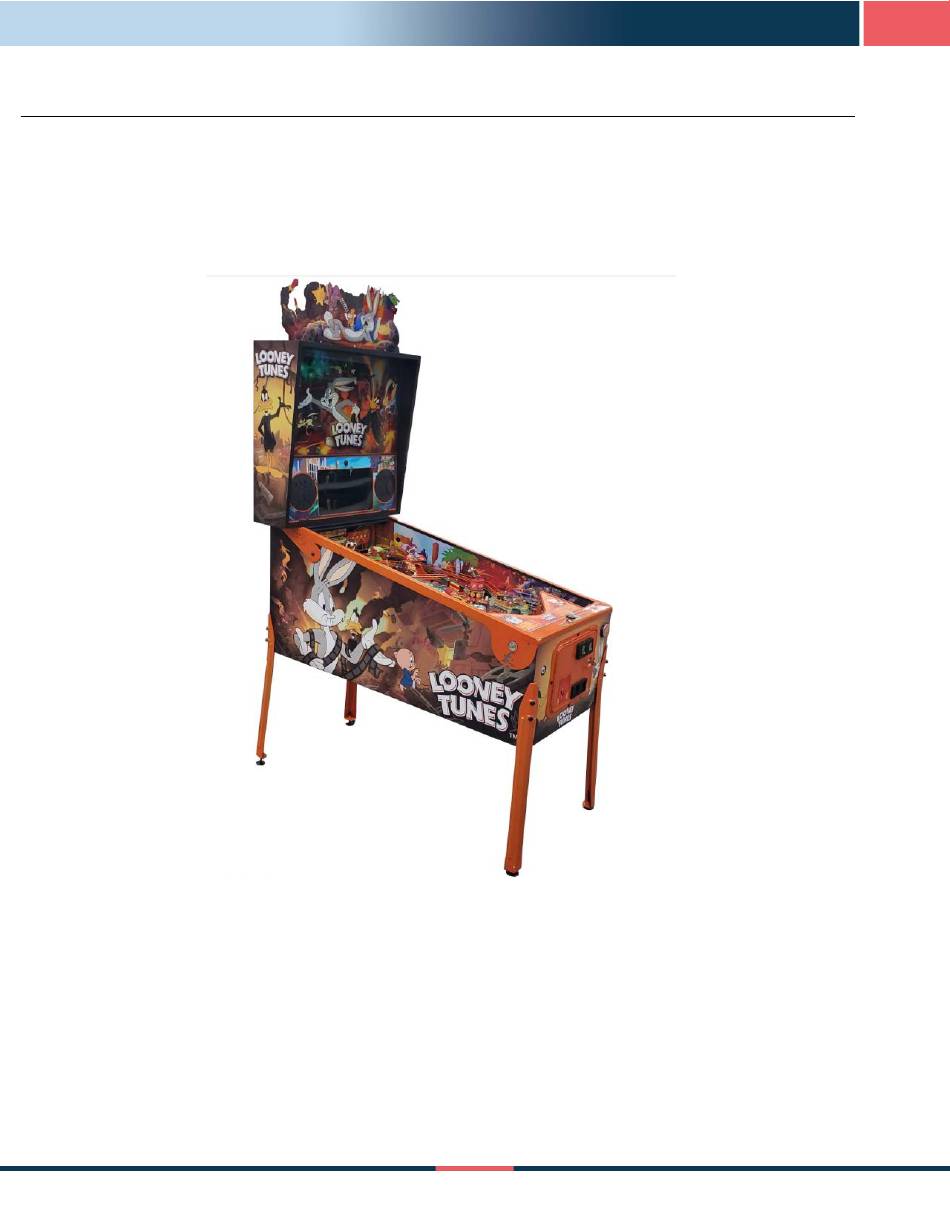

- Page 1 Spooky Pinball Presents Looney Tunes...
-
Page 2: Table Of Contents
Chapter 1. Game Assembly and Setup ............3 Update Instructions ................5 Updating the Looney Tunes Base Image ..........6 Maintaining Your Pinball Machine ............6 Chapter 2. Game Menu System ..............7 Chapter 3. Cabinet Components ............17 Head Breakdown ..............18 Playfield From Overhead View ..........19... - Page 3 Warden Board Fuse Locations ..........59 Chapter 4. Diagnose a Bad MOSFET on the Warden Board ....... 61 Tools Required ..............61 Looney Tunes Coil Chart ..............63 Chapter 5. Looney Tunes Switch Chart ........... 65 Looney Tunes Coil Chart ..............67...
-
Page 4: Chapter 1 Game Assembly And Setup
Setup without topper (h x w x d) - 75 x 29 x 55 in 3/8 OD Parts List 3/16 in Need to report a code bug in Looney Tunes? You can send an Qty. Part (s) email directly to service@spookypinball.com with the subject Set of coin door keys “Code Bug”... - Page 5 Game Assembly and Setup Rubber Rings 2. Using your wire cutters, cut the plastic strap that runs the length of the game. ATTENTION! DO NOT CUT THE PLASTIC STRAP JUST YET! Be careful there is some tension on this strap and it may release with some force.
-
Page 6: Update Instructions
Install the balls Update Instructions 1. Remove the pinballs from their package. Please take a SPOOKY PINBALL SOFTWARE UPDATE INSTRUCTIONS minute to inspect them for any nicks or scratches. Also, this is a good time to wipe them off before installing 1. -
Page 7: Updating The Looney Tunes Base Image
2. Unzip the contents of your download and copy to a new, or freshly formatted USB drive. Need to report a code bug in Looney Tunes? You can send an 3. Safely eject the USB drive after the file transfer email directly to service@spookypinball.com with the subject... -
Page 8: Chapter 2 Game Menu System
Match Boost Match Enabled Maximum Initials Length Tilt Warnings Tilt Settle Time MS 1000 ms 10000 ms 1500 ms Allow Tilt In Shooter Lane Restart Enabled Tournament Mode Active Trough Settle Time Volume: Master Table 2-1. Standard Settings Spooky Pinball... - Page 9 Game Menu System Feature Settings Feature Settings Default TNT Add-A-Ball Ball Default Save Episode Select Method Optional Always Random Anvil SJP HI Magnet Select Select Pulse Toon Selecting Timer Giant Rocket Multiball Ball Save Toon Select React Time First Lock Fuse Length Toon Mode Default Additional Fuses Add Ball Save...
- Page 10 First Acme Crate Hits Acme Crate Hits Boost Max Acme Crate Hits TNT Lock Release Delay TNT Lock Release Post Hold Time Carrots For First Hare Restore Carrot Increase For Hare Restore Grinder Disabled Table 2-2. Feature Settings Spooky Pinball...
- Page 11 Game Menu System Coil Settings Default Lower Left Flipper Main Pulse MS Lower Right Flipper Main Pulse MS Upper Left Flipper Main Pulse MS Upper Right Flipper Main Pulse MS Drop Target Knock- down Drop Target Reset Crate Eject Pulse MS Vault Eject Pulse MS Hole Eject Pulse MS Auto-plunge Pulse MS...
- Page 12 Table 2-4. Servo Settings Pricing Settings Default Free Play Coins Per Credit Bonus Credit After Number Of Bonus Credits Bonus Coin After Number Of Bonus Coins Bonus Credit Count Coin Value Target Free Game Percent Table 2-5. Pricing Settings Spooky Pinball...
- Page 13 Game Menu System Replay Settings Default Bonus Credit Count Replay Award Disabled/ Credit Credit/Points Replay Point Value (If Set) 1,000,000 200,000,000 50,000,000 Replay Backdown Amount 1,000,000 100,000,000 50,000,000 Replay Increase Amount 1,000,000 100,000,000 50,000,000 Losing Streak Threshold Replay Minimum Score 20,000,000 4,000,000,000 50,000,000...
- Page 14 Servo Test/Adjust ● Use action button To change servo ● User flippers to toggle To move servo to next postion ● Lock Diverter ● Crate Door Servos ● TNT Plunger ● Scoop Feeder ● TAZ Toy Table 2-7. Tests Spooky Pinball...
- Page 15 Game Menu System Utilities ● Standard Settings ● Feature Settings ● Pricing Settings ● Coil Settings ● Replay Settings ● Servo Settings ● Hardware Audits Reset Set- ● Earnings Audits tings/Data ● Feature Audits ● Classic High Scores ● Vanity High Scores ●...
- Page 16 Upper Right Ramp Shots ● Lower Left Flips ● Upper Left Flips ● Lower Right Flips ● Upper Right Flips ● Left Outlane Drains ● Right Outlane Drains ● Number Of Times Tilted ● Number Of Times Warned Table 2-9. Audits Spooky Pinball...
-
Page 17: Cabinet Components
Chapter 3 Layouts and Schematics Cabinet Components Tilt Bob Action Button/Light Small Power Supply Power Switch/Fuse Cover Large Power Supply Power Splitter Board Subwoofer Cabinet Switch Expander Shaker Motor Amplifier Service Outlet Spooky Pinball... -
Page 18: Head Breakdown
Head Breakdown Display Display Driver Board Knocker Speaker Back Box Lights Speaker LED Kit Topper/Speaker/Flipper LED Driver Board Computer Knocker/Shaker Expan- sion Board... -
Page 19: Playfield From Overhead View
Playfield From Overhead View Spooky Pinball... -
Page 20: Playfield Underside
Playfield Underside Back Right Diverter Trough Auto Launch Left Flipper Right Flipper Left Sling Right Sling Rocket Diverter Left Front Scoop TNT Post Right Flipper Middle Left Scoop Drop Target Knockdown Drop Reset Left Flipper Magnet Back Crate Scoop... -
Page 21: Boards On Playfield Underside
Boards on Playfield Underside Warden Servo Board Opto Board A Opto Board B Magnet Board Spooky Pinball... -
Page 22: Illuminated Playfield Underside
Illuminated Playfield Underside... -
Page 23: Coin Door
Coin Door Spooky Pinball... -
Page 24: Open View Of Crate Door
Open View of Crate Door... -
Page 25: Upper Portion Of Playfield With Toy
Upper Portion Of Playfield With Toy Spooky Pinball... -
Page 26: Lcd Display
LCD Display LCD Display Recommended Sett ings: 1× HD-MI VGA DVI LCD Controller Board M.NT68676.3 (new version) (Access using Display Adjustment Panel board to the left of 1× Inverter Board the display’s driver board) 1× LVDS Signal Cable Brightness - 40% 1×... -
Page 27: Large Power Supply
Large Power Supply Small Power Supply Spooky Pinball... -
Page 28: Shaker Motor
Shaker Motor To Adjust Shaker Motor Vibration 1. With the shaker motor cover removed, locate the two counterweights on each side held in place with a hex screw. 2. Loosen the hex screw. You will be able to rotate the counterweight. -
Page 29: Shaker Motor Board
Shaker Motor Board Shaker Motor in Cabinet Spooky Pinball... -
Page 30: Trough
Trough Service Outlet... -
Page 31: Right Flipper Button
Right Flipper Button Start Button Connection Spooky Pinball... -
Page 32: Monitor Control Adjust Board
Monitor Control Adjust Board LED Control Board... -
Page 33: Flipper Detail
Flipper Detail Amplifier Front View Amplifier Top View Spooky Pinball... -
Page 34: Amplifier Rear View
Amplifier Rear View... -
Page 35: Hh-0035 Pico Layout (Topper)
HH-0035 PICO Layout (Topper) Spooky Pinball... -
Page 36: Hh-0035 Pico Breakout (Topper)
HH-0035 PICO Breakout (Topper) -
Page 37: Hh-0065 Servo Expander
HH-0065 SERVO Expander Spooky Pinball... -
Page 38: Hh-0065 Servo Expander Breakout
HH-0065 SERVO Expander Breakout SPKY-0100 LEFT ORBIT LAYOUT... -
Page 39: Spky-0101 Lower Left Orbit Layout
SPKY-0101 LOWER LEFT ORBIT LAYOUT Spooky Pinball... -
Page 40: Spky-0103 Right Lanes Layout
SPKY-0103 RIGHT LANES LAYOUT... -
Page 41: Spky-0106 Right Outer Orbit Layout
SPKY-0106 RIGHT OUTER ORBIT LAYOUT Spooky Pinball... -
Page 42: Spky-0107 Bbq Layout
SPKY-0107 BBQ LAYOUT SPKY-0108 TOP INNER ORBIT LAYOUT... - Page 43 Spooky Pinball...
-
Page 44: Spky-0109 Right Inner Orbit Layout
SPKY-0109 RIGHT INNER ORBIT LAYOUT... -
Page 45: Spky-0110 Magnet Layout
SPKY-0110 MAGNET LAYOUT HH-0020 LED Harness Converter Schematic Spooky Pinball... -
Page 46: Hh-0022 Trough Opto-To-Switch Converter Layout
HH-0022 Trough Opto-To-Switch Converter Layout HH-0022 Trough Opto-To-Switch Converter Schematic... -
Page 47: Hh-0023 Drop Bank Led Panel Layout
HH-0023 Drop Bank LED Panel Layout Spooky Pinball... -
Page 48: Hh-0023 Drop Bank Led Panel Schematic
HH-0023 Drop Bank LED Panel Schematic... -
Page 49: Hh-0000 Warden Root
HH-0000 Warden Root Spooky Pinball... -
Page 50: Hh-0000 Warden Uc
HH-0000 Warden uC Spooky Pinball... -
Page 51: Hh-0000 Warden Power
HH-0000 Warden Power... -
Page 52: Hh-0000 Warden Pwm Outputs
HH-0000 Warden PWM Outputs Spooky Pinball... -
Page 53: Hh-0000 Warden Led Out
HH-0000 Warden LED Out... -
Page 54: Hh-0000 Warden 48V0 Transistors
HH-0000 Warden 48V0 Transistors Spooky Pinball... -
Page 55: Hh-0000 Warden Aux Transistors
HH-0000 Warden AUX Transistors... -
Page 56: Hh-0000 Warden Rev 6 Diagram
HH-0000 Warden Rev 6 Diagram Spooky Pinball... -
Page 57: Populated Warden Board
Populated Warden Board... -
Page 58: Warden Board Fuse Locations
Warden Board Fuse Locations Need to report a code bug in Scooby Doo? You can send an email directly to service@spookypinball.com with the subject “Code Bug” Spooky Pinball... -
Page 59: Chapter 4. Diagnose A Bad Mosfet On The Warden Board
Wire snips ● Insulating tape YOU ARE WORKING WITH SENSITIVE ELECTRONIC MATERIALS. PLEASE USE CAUSTION! To diagnose a bad MOSFET 1. Set the multimeter to 20k ohms. If 20k ohms is not available, use the closest available ohms setting. Spooky Pinball... - Page 60 Diagnose a Bad MOSFET on the Warden Board 3. To test the MOSFETs, identify the Q8-Q30 MOSFETs A functioning MOSFET should display no on the main Warden board. resistance reading. If there is any reading, it indicates a faulty component. Test all Figure 4-2.
-
Page 61: Looney Tunes Coil Chart
Note: Ensure safety precautions are taken, and the machine is disconnected from power during this process. Seek pro- fessional assistance if you are not comfortable or experienced in working with electronic components. Need to report a code bug in Looney Tunes? You can send an email directly to service@spookypinball.com with the subject “Code Bug”... - Page 62 Looney Tunes Switch Chart Chapter 5 Switch and Coil Charts Looney Tunes Switch Chart Switch Bank for Main Playfield Switch Bank 1 Switch Bank 2 Switch Bank 3 NONE Grey Stand Up Bank Top Grey Middle Scoop Grey Trough 7...
- Page 63 Looney Tunes Switch Chart F 50 Inner Right Orbit NONE Action White E 51 Door Entry Purple Spinning Toy Home Purple Upper Right Flip- D 52 Upper Right Ramp Blue Lock Enter Blue Upper Left Flipper Purple Made C 53...
- Page 64 Note: Ensure safety precautions are taken, and the machine is disconnected from power during this process. Seek professional assistance if you are not comfortable or experienced in working with electronic components. Need to report a code bug in Looney Tunes? You can send an email directly to service@spookypinball.com with the subject “Code Bug”...
