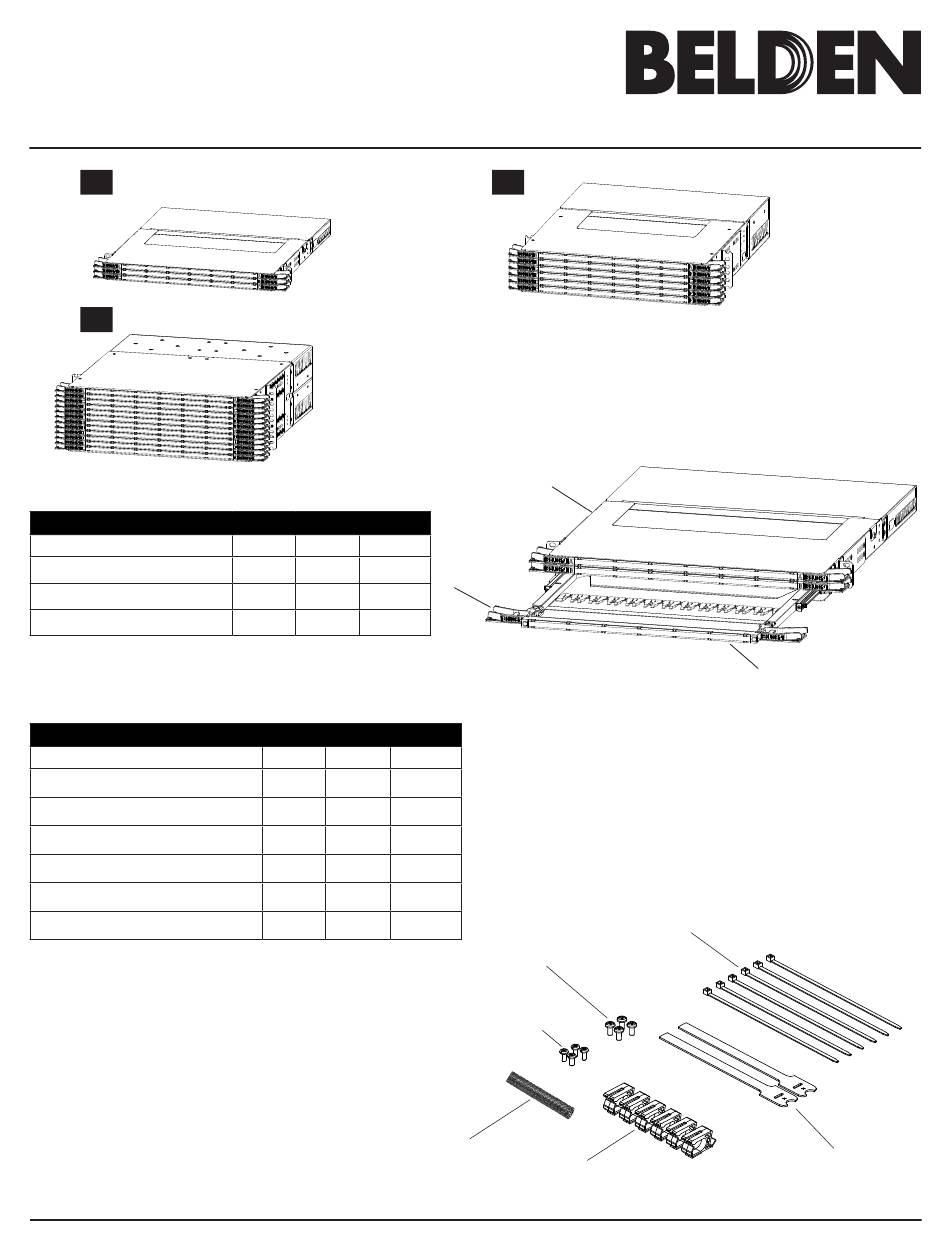

DCX – 1U/2U/4U
QUICK START GUIDE
ES: Visite nuestra pagina web www.belden.com para obtener el guía de instalación en español.
FR: Veuillez visiter notre site web au www.belden.com pour obtenir le guide d'installation en français.
1U
4U
Carton contents quantity
Carton contents quantity
Carton contents:
1. Housing assembly
2.
Rackmount tray assembly
3.
Housing tray label holder
Hardware kit quantity
Hardware kit quantity
Hardware kit:
Rackmount cable manager
Self-locking cable tie Black 8"
Velcro cable tie 0.5" X 8"
#10-32 UNC 2-B x 0.5" , Machine Screw Phillips
#12-24 UNC 2-B x 0.5" , Machine Screw Phillips
Wrap-around sleeve 18''
DCX 1U-2U-4U QUICK START GUIDE
DCX 1U
DCX 2U
DCX 4U
1
1
1
3
6
12
3
6
12
DCX 1U
DCX 2U
DCX 4U
6
12
24
6
12
24
2
4
8
4
4
4
4
4
4
3
6
12
#12-24 UNC 2-B x 0.5" , Machine Screw Phillips
Wrap-around sleeve 18''
2U
1
2
DCX RACKMOUNT 1U AS SHOWN
#10-32 UNC 2-B x 0.5" , Machine Screw Phillips
Rackmount cable manager
PX107647-EN REV B
3
Self-locking cable tie
Black 8"
Velcro cable tie 0.5" X 8"
Page 1 of 9
Advertisement
Related Manuals for Belden DCX-1U
Summary of Contents for Belden DCX-1U
- Page 1 DCX – 1U/2U/4U QUICK START GUIDE ES: Visite nuestra pagina web www.belden.com para obtener el guía de instalación en español. FR: Veuillez visiter notre site web au www.belden.com pour obtenir le guide d’installation en français. Carton contents quantity Carton contents quantity...
- Page 2 Mounting the DCX housing Insert the bottom screws into the rack or cabinet as shown (use #12-24 or #10-32 machine screws provided in the hardware kit). Leave ¼ ” of the screw exposed. Install the housing into the rack and position the bottom slots of the mounting bracket onto the installed screws. These screws will carry the weight of the housing during the installation.
- Page 3 See the section on the ‘‘Opening the tray’’ to open bottom tray and top tray Open the bottom tray as needed, and tighten the installed screws firmly. Open the top tray as needed, and insert and tighten the top screws. DCX 1U-2U-4U QUICK START GUIDE PX107647-EN REV B Page 3 of 9...
-
Page 4: Opening The Tray
Opening the tray Hold the sides of the tray with both hands. Pull the tray from both sides into the patching position. = Tray will lock itself once in patching position DCX 1U-2U-4U QUICK START GUIDE PX107647-EN REV B Page 4 of 9... - Page 5 To open the tray completely, squeeze both front latches and pull both sides of the tray. = Stop pulling the tray once it encounters resistance To close the tray, apply slight pressure upwards onto the front of the tray (highlighted in black) using your fingers and push the tray into the panel until patching position is reached.
-
Page 6: Opening The Rear Door
Pull latch on both sides and push back into closed position. Opening the rear door Hold the swell latch with your hand and rotate it 90° inward. DCX 1U-2U-4U QUICK START GUIDE PX107647-EN REV B Page 6 of 9... - Page 7 Pull the cover out from the gap on both sides. Installation of adapter frames or cassette Release the patch cover by lifting both sides of the cover and pull it outwards. DCX 1U-2U-4U QUICK START GUIDE PX107647-EN REV B Page 7 of 9...
- Page 8 Align the MPO Adapter Frames to the tray attaching ports, make a slight push to attach the MPO Adapter Frames to the tray. The installation procedures shown are similar for: - DCX Adapter Frames (FFxD0xLx) - DCX Pre - Term Adapter Frames (FFxDxxLDMFxx) - DCX Splice Cassette ( FCxDxxLxFx) DCX 1U-2U-4U QUICK START GUIDE PX107647-EN REV B...
- Page 9 To remove the MPO Adapter Frame from the tray, press on the latch and slide the component outward. Frame Latch DCX 1U-2U-4U QUICK START GUIDE PX107647-EN REV B Page 9 of 9...
