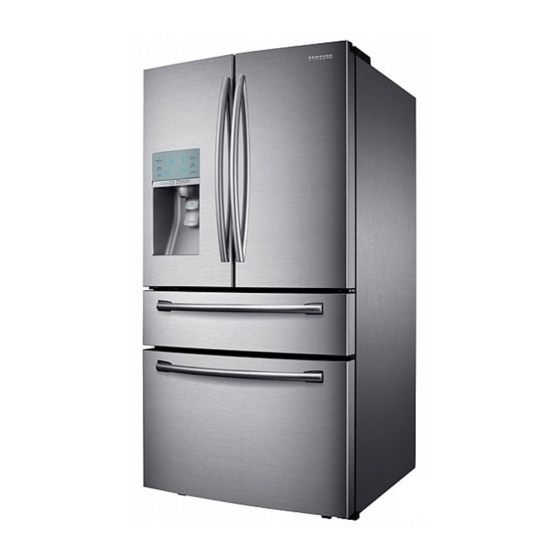

REFRIGERATOR
REFRIGERATOR
FRENCH DOOR REFRIGERATOR
MODEL NAME :
RF31FM** / RF24FS**
MODEL CODE :
RF31FMESBSR/AA
RF31FMESBSR/SA
RF31FMEDBSR/AA
RF31FMEDBBC/AA
RF31FMEDBWW/AA
RF31FMEDBSL/ML
RF31FMEDBSL/HC
CONTENTS
1. PRECAUTIONS (SAFETY WARNINGS) ·······4
2. PRODUCT SPECIFICATIONS ······················8
3. DISASSEMBLY AND REASSEMBLY ·········26
4. TROUBLESHOOTING ································67
5. PBA DIAGRAM ·········································118
6. WIRING DIAGRAM ···································123
7. BLOCK DIAGRAM ····································125
8. MODEL CODE TABLE ······························127
RF24FSEDBSR/AA
RF24FSEDBSR/EU
RF24FSEDBSR/EF
RF24FSEDBBC/EU
RF24FSEDBSR/WT
RF24FSEDBSL/SA
RF24FSEDBX3/SC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF31FM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung RF31FM Series

Summary of Contents for Samsung RF31FM Series

  • Page 1 REFRIGERATOR FRENCH DOOR REFRIGERATOR MODEL NAME : RF31FM** / RF24FS** MODEL CODE : RF31FMESBSR/AA RF24FSEDBSR/AA RF31FMESBSR/SA RF24FSEDBSR/EU RF31FMEDBSR/AA RF24FSEDBSR/EF RF31FMEDBBC/AA RF24FSEDBBC/EU RF31FMEDBWW/AA RF24FSEDBSR/WT RF31FMEDBSL/ML RF24FSEDBSL/SA RF31FMEDBSL/HC RF24FSEDBX3/SC REFRIGERATOR CONTENTS 1. PRECAUTIONS (SAFETY WARNINGS) ·······4 2. PRODUCT SPECIFICATIONS ······················8 3. DISASSEMBLY AND REASSEMBLY ·········26 4.
  • Page 2 The manufacturer or dealer cannot be responsible for the interpretation of this information. SAMSUNG ELECTRONICS AMERICA, INC. Technical Service Guide Copyright 2012 All rights reserved. This service guide may not be reproduced in whole or in part in any form without written permission from the SAMSUNG ELECTRONICS Company.

  • Page 3: Table Of Contents

    Contents 1. Precautions (safety warnings) ..............4 2. Product specifications ................8 2-1) Introduction of Main Function ........................9 2-2) Specifications ..............................11 2-3) Interior Views ............................... 12 2-4) Model Specification & Specification Chart ....................14 2-5) Dimensions of Refrigerator (Inch, mm) ....................... 17 2-6) Optional Material Specification........................
  • Page 4 Contents 3-36) Descriptions of CO Cylinder Installation and Sparkling Water Functions (only for RF31FM*S**) ..59 4. Troubleshooting ..................67 4-1) Function for failure diagnosis ........................68 4-1-1. Test mode (manual operation / manual defrost function) ............68 4-1-2. Display function of Communication error ..................69 4-1-3.

  • Page 5: Precautions (Safety Warnings)

    1. PRECAUTIONS (SAFETY WARNINGS) PRECAUTIONS (SAFETY WARNINGS) ● Unplug the appliance before replacing or repairing electrical parts. ⇒ Be careful to avoid electric shock. ● Always use only the correct replacement parts. ⇒ Check the model name, rating voltage, rating current, running temperature symbols.
  • Page 6 PRECAUTIONS (SAFETY WARNINGS) Read all instructions before repairing the product and follow the instructions in order to prevent danger or property damage. Plug out and remove all the items in regrigerator prior to repair. CAUTION/WARNING SYMBOLS DISPLAYED SYMBOLS means "Prohibited". Indicates that a danger of death Warning...
  • Page 7 PRECAUTIONS (SAFETY WARNINGS) Please let users know following warnings & cautions in detail. Warning & Caution Customers should not store narrow Drugs requiring precise Customers should not store glass or long bottles or food in a small temperatures should not be stored bottles of liquid in the freezer section.
  • Page 8 PRECAUTIONS (SAFETY WARNINGS) FLOORING For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 660lb (299kg).

  • Page 9: Product Specifications

    2. PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS 2-1) Introduction of Main Function ........................9 2-2) Specifications ..............................11 2-3) Interior Views ............................... 12 2-4) Model Specification & Specification Chart ....................14 2-5) Dimensions of Refrigerator (Inch, mm) ....................... 17 2-6) Optional Material Specification........................19 2-7) Refrigerant Route in Refrigeration cycle ....................

  • Page 10: 2-1) Introduction Of Main Function

    PRODUCT SPECIFICATIONS 2-1) Introduction of Main Function • A newly developed SAMSUNG French door refrigerator in 2013 has the following characteristics. Surround Multi Flow • Provides uniform cooling for each shelf and every corner in the fresh food section. This is accomplished by using a center positioned fan and duct with multiple cooling flow openings.
  • Page 11 PRODUCT SPECIFICATIONS ▶...

  • Page 12: 2-2) Specifications

    PRODUCT SPECIFICATIONS 2-2) Specifications ELECTRICAL SPECIFICATIONS REFRIGERATOR Defrost Control From 12 to 22 hrs(comp.run ti m e) Thermo Bimetal Protector 140°F(60°C)(off) 104°F(40°C)(on) Defrost Thermistor(502AT) F: 50°F(10°C)(off) R: 59°F(15°C)(off) Maximum Current Leakage 0.25 mA Maximum Ground Path Resistance 0.1 Ohm E n e r g y C o n s u m p t i o n 5 6 2 k W h / y e a r NO LOAD PERFORMANCE Ambient Temperature...

  • Page 13: 2-3) Interior Views

    PRODUCT SPECIFICATIONS 2-3) Interior Views Model : RF31FM** Refrigerator Light FF Ice-Maker Sparkling Module Cover (Optional) Sparkling Water Tank (Optional, Inside) Slide-Shelf Foldable-Shelf 2 Step Slide-Shelf Foldable-Shelf Vertical Hinged Door Bins Section Cylinder Cover (Option) Vegetable & Fruit Drawers Auto Closer Flex Zone Light Light...
  • Page 14 PRODUCT SPECIFICATIONS Model : RF24FS** Refrigerator Light FF Ice-Maker Foldable-Shelf Fixed-Shelf Fixed-Shelf 2 Step Vertical Hinged Foldable-Shelf Section Vegetable & Fruit Drawers Door Bins Water Filter Auto Closer Light Flex Zone Convertible Room Auto Closer Guard Auto Pull Out Drawer Freezer Drawer Freezer...

  • Page 15: 2-4) Model Specification & Specification Chart

    PRODUCT SPECIFICATIONS 2-4) Model Specification & Specification Chart RF31FM** RF24FS** RF31FM*S* RF31FM*D* ITEM Model ① ICE&WATER DISPENSER& SPARKLING WITH FLEX ZONE ② ICE&WATER DISPENSER WITH FLEX ZONE 35 6/8 Inch (908mm) On Cabinet 31 Inch (788mm) 24 1/8 Inch (613mm) W/O Handle 35 1/2 Inch (901mm) 28 1/2 Inch (726mm)
  • Page 16 PRODUCT SPECIFICATIONS Items Specification Model RF31FM** / RF24FS** Model MKV190CL2B/E01 Compressor Starting type BLDC Oil Charge FREOL α - 15c Freezer SPLIT FIN TYPE Evaporator Refrigierator SPLIT FIN TYPE Condenser Forced and Natural Convection Type Dryer Molecular shieve XH-9 Capillary tube (Dia x Length) R:0.032"...
  • Page 17 PRODUCT SPECIFICATIONS Items Specification Model RF31FM** / RF24FS** Defrost Heater (FRE) Heated at F Defrost AC 120V, 230W Defrost Heater (REF) Heated at R Defrost AC 120V, 120W F/S : AC 120V, 141W Heater-Ice Maker C/D : AC 120V, 120W Interlock with French DISPENSER Heater AC 120V, 2.5W...

  • Page 18: 2-5) Dimensions Of Refrigerator (Inch, Mm)

    PRODUCT SPECIFICATIONS 2-5) Dimensions of Refrigerator (Inch, mm) Model : RF31FM** 35 6/8” 59.7” (1516mm) 4" (102mm) 4" (102mm) 0º~120º 0º~120º 37 7/8" (963mm) 1 3/16" (30.6mm) 35 1/2" (901mm) 5/8" (17.5mm) 5/8" (17.5mm) 1/2" (11.5mm) 1/2" (11.5mm) 2" (50.8mm) 2"...
  • Page 19 PRODUCT SPECIFICATIONS Model : RF24FS** 35 6/8" 59.7” (1516mm) 4" (102mm) 4" (102mm) 0º~120º 0º~120º 31" (788mm) 1 3/16" (30.6mm) 28 5/8" (726mm) 5/8" (16mm) 5/8" (16mm) 7/16" (11mm) 7/16" (11mm) 2 3/8" (59.5mm) 2 3/8" (59.5mm)

  • Page 20: 2-6) Optional Material Specification

    PRODUCT SPECIFICATIONS 2-6) Optional Material Specification Part Name Part Code AMOUNT FILTER WATER-ASSY DA29-00020B ASSY INSTALL-ACCESSORY DA99-03490Q LED LAMP REF DA97-12606A LED LAMP CASE-VEG R, L DA41-00519S LED LAMP FRE DA41-00676G LED LAMP MID DA41-00676G LED LAMP REF(SIDE) DA41-00519Q...

  • Page 21: 2-7) Refrigerant Route In Refrigeration Cycle

    PRODUCT SPECIFICATIONS 2-7) Refrigerant Route in Refrigeration cycle Compressor → Condenser → Hot Pipe → Back Cluster Pipe → Dryer → Capillary Tube → Refrigerator Evaporator → Pipe Direct Ice → Freezer Evaporator → Suction Pipe → Compressor...

  • Page 22: Principle Of Freezeer

    PRODUCT SPECIFICATIONS 2-7-1. Principle of freezeer PIPE DIRECT ICE...

  • Page 23: Operation Theory Of Refrigeration Cycle Components

    PRODUCT SPECIFICATIONS 2-7-2. Operation theory of refrigeration cycle components ■Condenser 1) Role: A device which radiates heat to the outside (water/air) to make liquid state for the high temperature / high pressure gas refrigerant discharged from compressor 2) Types A. Air-cooling Type : Condense air by circulating naturally or manually. 1) Natural Convection Type : Used for the household refrigerator which has small condensing capacity.
  • Page 24 PRODUCT SPECIFICATIONS ■Evaporator 1. Role: As the low pressure liquid refrigerant flowed from capillary absorbs heat inside of the refrigerator, it becomes low pressure gas and refrigerate the foods. 2. Theory: The low pressure refrigerant flowed to evaporator operates cooling which takes ambient evaporated potential heat with maintaining the evaporation up to evaporate completely.

  • Page 25: Refrigeration Cycle Type

    PRODUCT SPECIFICATIONS ※ . Influence of moisture ① Moisture precipitation - Blocked by ice ② Refrigerant and reaction ③ Life reduction of oil ④ Acceleration of oxidization ⑤ Copper plating phenomenon ⑥ Gas dissolution by the interaction of synthetic insulating material (insulator) ※.

  • Page 26: 2-8) Cooling Air Circulation

    PRODUCT SPECIFICATIONS 2-8) Cooling Air Circulation Refrigerator Ice Maker Air-flow Discharge Return Flex Zone Freezer...

  • Page 27: Disassembly And Reassembly

    3. DISASSEMBLY AND REASSEMBLY DISASSEMBLY AND REASSEMBLY 3-1) PRECAUTION ..............................27 3-2) Refrigerator Door ............................28 3-3) Door Handle Refrigerator ..........................30 3-4) Door Handle Freezer & Flex zone ......................30 3-5) Refrigerator Light ............................31 3-6) Cover-Display & Water-Dispenser ......................31 3-7) Water-Dispenser (RF31FM*S**) .........................

  • Page 28: 3-1) Precaution

    DISASSEMBLY AND REASSEMBLY 3-1) PRECAUTION ● Unplug the refrigerator before cleaning and making repairs. ● Remove any foreign matter or dust from the power plug pins. - Otherwise there is a risk of fire. ● Do not use a cord that shows cracks or abrasion damage along its length or at either end. ●...

  • Page 29: 3-2) Refrigerator Door

    DISASSEMBLY AND REASSEMBLY 3-2) Refrigerator Door Part Name How To Do Descriptive Picture 1. Remove the 3 screws holding down the Top Table and remove the Top Table ( ) 2. Disconnect the electrical ( ) above the upper left door hinge To disconnect the connector ( ) more easily, press the end of the hook ( ) and pull connector.
  • Page 30 DISASSEMBLY AND REASSEMBLY Part Name How To Do Descriptive Picture 5. Lift the door straightly up to remove while opening it more than 90°. Be careful not to drop the door. CAUTION 6. With a Philips head screwdriver, remove the screw ( ) attatched to the lower left and right door hinges.

  • Page 31: 3-3) Door Handle Refrigerator

    DISASSEMBLY AND REASSEMBLY 3-3) Door Handle Refrigerator Part Name How To Do Descriptive Picture 1. Loosen the Set Screw situated at the end of the inner part of handle about 0.1in by using Hex wrench. Door Handle Fridge 2. Pull the Set handle out by moving it straight up.

  • Page 32: 3-5) Refrigerator Light

    DISASSEMBLY AND REASSEMBLY 3-5) Refrigerator Light Part Name How To Do Descriptive Picture 1. Press the tabs on the back of the Lamp Cover and take it off. Refrigerator Light 2. Remove the 2 screws And separate the LED panel. 3-6) Cover-Display &...

  • Page 33: 3-7) Water-Dispenser (Rf31Fm*S**)

    DISASSEMBLY AND REASSEMBLY 3-7) Water-Dispenser (RF31FM*S**) Part Name How To Do Descriptive Picture 1. Disengage 2 the Housing Connectors by pushing a flatblade screwdriver. Water-Dispenser 2. Remove 2 screws of the Guide Ice (SPARKLING Route Assy. OPTION) 3. Pull the Guide Ice Route Assy and Disassemble the water hose.
  • Page 34 DISASSEMBLY AND REASSEMBLY Part Name How To Do Descriptive Picture 4. Assembly shall be in order from the disassembly. Before assembling Case-Ice and Route, please check the status of the hose. Water-Dispenser (SPARKLING OPTION) 5. When assembling Cover-Display, first insert it from upper side and then assemble to bottom side.

  • Page 35: 3-8) Water-Dispenser (Rf31Fm*D** / Rf24Fs**)

    DISASSEMBLY AND REASSEMBLY 3-8) Water-Dispenser (RF31FM*D** / RF24FS**) Part Name How To Do Descriptive Picture 1. Disengage the Housing Connector by pushing a flat-blade screwdriver. 2. Remove 2 screws of the Case Ice Route Assy. Water-Dispenser 3. Pull the Case Ice Route Assy. (Ice/Water model ) 4.

  • Page 36: 3-9) Glass Shelf

    DISASSEMBLY AND REASSEMBLY 3-9) Glass Shelf Part Name How To Do Descriptive Picture Remove the shelf by lifting the front Glass Shelf part of the shelf up and pulling it out. 3-10) Foldable Glass Shelf Part Name How To Do Descriptive Picture 1.

  • Page 37: 3-12) Case Water Filter

    DISASSEMBLY AND REASSEMBLY 3-12) Case Water Filter Part Name How To Do Descriptive Picture To disassemble the Case Water Filter, remove the water filter and all drawers and shelves. 1. Remove the 3 screws holding down the Top Table and remove the Top Table ( ).

  • Page 38: 3-13) How To Remove The Carbonator Kit

    DISASSEMBLY AND REASSEMBLY Part Name How To Do Descriptive Picture 5. Disconnect the 2 Housing connectors ( ). Case Water Filter 6. Lift and pull the Case Water Filter out. 3-13) How to Remove the Carbonator Kit Part Name How To Do Descriptive Picture 1.
  • Page 39 DISASSEMBLY AND REASSEMBLY Part Name How To Do Descriptive Picture 4. Remove the CO2 Cylinder(60L) by turning it counter clockwise. 5. Take off ( ) by removing the two screws. 6. Remove the three screws. How to Remove the Carbonator Kit 7.

  • Page 40: 3-14) Motor Damper

    DISASSEMBLY AND REASSEMBLY 3-14) Motor Damper Part Name How To Do Descriptive Picture 1. Remove the 2 screws under the. water filter case and take off the cover damper ( ). Motor Damper 2. Disengage 2 housing connector. 3. Take off the Motor Damper by pulling a flat-blade screwdriver.

  • Page 41: 3-15) Water Filter (Assembly & Disassembly)

    DISASSEMBLY AND REASSEMBLY 3-15) Water Filter (Assembly & Disassembly) Part Name How To Do Descriptive Picture 1. Turn the water filter count- clockwise. (Refer to the picture) 2. Remove the water filter by pulling it. (Refer to the picture) Water Filter 3.

  • Page 42: 3-16) Gallon Door Bin (Rf31Fm*S**)

    DISASSEMBLY AND REASSEMBLY 3-16) Gallon Door Bin (RF31FM*S**) Part Name How To Do Descriptive Picture 1. Remove the Cap. Gallon Door Bin 2. Remove 2 screws of the Gallon Door (SPARKLING Bin. OPTION - TOP) 3. Lifting the Gallon Door bin up and pulling it out.

  • Page 43: 3-17) Gallon Door Bin (Rf31Fm*D** / Rf24Fs**)

    DISASSEMBLY AND REASSEMBLY 3-17) Gallon Door Bin (RF31FM*D** / RF24FS**) Part Name How To Do Descriptive Picture Gallon Door Bin 1. Remove the door bin by moving (Right) straight up. 2. a. Remove dis door bin by moving Gallon Door Bin straight up.

  • Page 44: 3-18) Vertical Hinged Section

    DISASSEMBLY AND REASSEMBLY 3-18) Vertical Hinged Section Part Name How To Do Descriptive Picture 1. Remove 2 screw cap parts with a flat-blade(-) screwdriver. (Refer to the picture) Before doing the above, make sure that the unit is unplugged. CAUTION 2.

  • Page 45: 3-19) Evaporator Cover In Refrigerator

    DISASSEMBLY AND REASSEMBLY 3-19) Evaporator Cover In Refrigerator Part Name How To Do Descriptive Picture 1. Remove the angle cap with a flat- blade screwdriver. (Refer to the picture) Be careful not to scratch or break the parts CAUTION 2. Loosen the 4 screws, which fix the Evaporator cover 3.

  • Page 46: 3-20) Evaporator In Refrigerator

    DISASSEMBLY AND REASSEMBLY 3-20) Evaporator In Refrigerator Part Name How To Do Descriptive Picture 1. Disconnect the housing connector <Left> part on left side. Before doing the above, make sure that the unit is unplugged. CAUTION <Right> 2. Disconnect the housing connector on right side.

  • Page 47: 3-21) Freezer Door

    DISASSEMBLY AND REASSEMBLY 3-21) Freezer Door Part Name How To Do Descriptive Picture 1. Pull out the Pull Out Drawer by maximum. 2. After lifting the Pull Out Drawer up holding both sides, remove it at the rail system. 3. Remove the Tilting Pocket( ) by lifting it up 4.

  • Page 48: 3-22) Convertible Door

    DISASSEMBLY AND REASSEMBLY 3-22) Convertible Door Part Name How To Do Descriptive Picture 1. Pull the and remove the convertible room ( ) by pulling it to your body with both hands. open to full extension. 2. Remove the cover housing ( ) by a flat-blade screwdriver.

  • Page 49: 3-23) Ice-Maker

    DISASSEMBLY AND REASSEMBLY 3-23) Ice-Maker Part Name How To Do Descriptive Picture 1. When pressing the Energy-Saver and the Fridge buttons on the Display together for 8 seconds at the same time, it will convert to the Test Mode and the entire Display function will be off.
  • Page 50 DISASSEMBLY AND REASSEMBLY 3-23) Ice-Maker Part Name How To Do Descriptive Picture 7. Remove the screw from the Duct Tray-ice. 8. With a flat blade screwdriver, push the duct to the right and remove it from the locking tab. (Refer to the image.) 9.

  • Page 51: 3-24) Auger Motor Fan

    DISASSEMBLY AND REASSEMBLY 3-24) Auger Motor Fan Part Name How To Do Descriptive Picture 1. Disconnect the FAN-AUGER-ASSY Connector. 2. Hold the Hook on the bottom of the Auger Motor Fan FAN-AUGER-ASSY and lift it up to make it free from the Locking Tab. 3.

  • Page 52: 3-25) Flex Zone Light

    DISASSEMBLY AND REASSEMBLY 3-25) Flex Zone Light Part Name How To Do Descriptive Picture 1. Remove the cover Flex zone lamp ( ) by a flat-blade screwdriver. Flex Zone Light 2. Disengage the housing. 3-26) Freezer Light Part Name How To Do Descriptive Picture 1.

  • Page 53: 3-27) Side Light

    DISASSEMBLY AND REASSEMBLY 3-27) Side Light Part Name How To Do Descriptive Picture 1. Remove the cover Side lamp ( ) by a flat-blade screwdriver. 2. Separate the Side lamp from the Refrigerator Light case. 3. Disengage the housing. 3-28) Door Switch In Freezer Part Name How To Do Descriptive Picture...

  • Page 54: 3-29) Evaporator Cover In Freezer

    DISASSEMBLY AND REASSEMBLY 3-29) Evaporator Cover In Freezer Part Name How To Do Descriptive Picture 1. Remove the freezer door and freezer drawer by pulling out the drawer and then unscrewing 2 screws. Evaporator Cover In 2. Lift up the evaporator cover. Freezer 3.

  • Page 55: 3-31) Comp Cooling Fan

    DISASSEMBLY AND REASSEMBLY 3-31) Comp Cooling Fan Part Name How To Do Descriptive Picture 1. Unscrew 5 screws of COVER COMP. 2. Remove the DRAIN HOSE. 3. Remove 1 screw. 4. Disengage the HOUSING Comp Cooling Fan CONNECTOR. (Refer to the picture) 5.

  • Page 56: 3-32) Comp Cooling Fan Motor

    DISASSEMBLY AND REASSEMBLY 3-32) Comp Cooling Fan Motor Part Name How To Do Descriptive Picture 1. Remove the screw with a flat blade screwdriver. 2. Remove the motor fan by pulling the fan out while graping the motor part. Comp Cooling Fan 3.

  • Page 57: 3-33) Relay O/L

    DISASSEMBLY AND REASSEMBLY 3-33) Relay O/L Part Name How To Do Descriptive Picture 1. Remove Cover Relay. Relay O/L 2. Remove the relay O/L with a flat- blade screwdriver. (Refer to the picture)

  • Page 58: 3-34) Compressor

    DISASSEMBLY AND REASSEMBLY 3-34) COMPRESSOR Part Name How To Do Descriptive Picture 1. Cut off the LOKRING connecting the COMP and the CONDENSER with a Pipe Cutter. (Red-line marking points) 2. Cut off the LOKRING connecting the CONDENSER and the HOT PIPE with a Pipe Cutter.

  • Page 59: 3-35) Electric Box

    DISASSEMBLY AND REASSEMBLY 3-35) Electric Box Part Name How To Do Descriptive Picture 1. Remove the 2 screw attached to the upper left and right Case PCB Panel with a phillips screwdriver(+). 2. Disengage all housing connectors from the main PCB. PBA Main Before doing the above, make sure that the unit is unplugged.

  • Page 60: 3-36) Descriptions Of Co 2 Cylinder Installation And Sparkling Water Functions (Only For Rf31Fm*S**)

    SODASTREAM are not legally responsible for any damage, including, but not limited to, property damage caused by gas leakage from the use of generic carbonators (or CO cylinders, 60L). The sparkling water system in your SAMSUNG refrigerator is designed to work ONLY WITH SODASTREAM carbonators (or CO cylinders, 60L) •...
  • Page 61 DISASSEMBLY AND REASSEMBLY 4. Lock the Cylinder into place by pressing the Lever. • The inner pressure of the Cylinder may make it difficult to press the lever down. Hold the lever as shown in the illustration on the right, and then push down.
  • Page 62 DISASSEMBLY AND REASSEMBLY Using the Sparkling Water Function (For Sparkling Water Refrigerators Only - Optional) With a Sodastream CO cylinder, your refrigerator can make and dispense sparkling (carbonated) water. Making Sparkling Water To turn on the Sparkling Water function and make sparkling water, press the Cubed/Crushed button for 3 seconds to turn on the Sparkling Water function.
  • Page 63 DISASSEMBLY AND REASSEMBLY Controlling the Carbonation Level When pressing the Sparkling Water button additionally while the Sparkling Water is selected, the Carbonation Level will change as follows; Medium (Level-2) → Strong (Level-3) → Weak (Level-1) → Medium (Level-2). • If there is previously produced sparkling water inside the Sparkling Water tank, the refrigerator dispenses sparkling water with the previous Carbonation Level.
  • Page 64 DISASSEMBLY AND REASSEMBLY Turning Off the Sparkling Water Function To turn off the Sparkling Water function, press the Cubed/Crushed button for 3 seconds. OFF Icon On Press for 3 seconds Any sparkling water remaining in the Sparkling Water tank after you have turned off the Sparkling Water function can still be dispensed.
  • Page 65 DISASSEMBLY AND REASSEMBLY Notes • If you open the refrigerator door while the refrigerator is making sparkling water, it will stop. When you close the door, it will resume making sparkling water in about a minute. • If you keep dispensing sparking water, the water stream may become unstable or break up.
  • Page 66 (or CO cylinder, 60L). turns on in the order of 1 1.), wait The sparkling water system of SAMSUNG until the refrigerator completes production before Refrigerators is designed to work ONLY turning the Sparkling Water Production function back on. Because you interrupted production, the WITH SODASTREAM carbonators (or CO sparkling water may be over carbonated.
  • Page 67 DISASSEMBLY AND REASSEMBLY Production Tank. It is not a defect. 3. Rotate the Cylinder • If the water hose is kinked or water is not counterclockwise to remove it from the Regulator. supplied properly, the Carbonation Level of the Sparkling Water will be high. This occurs because the the same amount of the carbon dioxide (CO ) is dispensed...

  • Page 68: Troubleshooting

    4. TROUBLESHOOTING TROUBLESHOOTING 4-1) Function for failure diagnosis ........................68 4-1-1. Test mode (manual operation / manual defrost function) ............68 4-1-2. Display function of Communication error ..................69 4-1-3. Self-diagnostic function ......................... 70 4-1-4. Display function of Load condition ....................73 4-1-5.

  • Page 69: 4-1) Function For Failure Diagnosis

    TROUBLESHOOTING 4-1) Function for failure diagnosis 4-1-1. Test mode (manual operation / manual defrost function) • If Energy Saver Key + Fridge/Hold 3 sec for Power Cool Key on the front of panel are pressed simultaneously for 8 seconds , it will be changed to the test mode and all displays on the front of panel will be off. •...

  • Page 70: Display Function Of Communication Error

    TROUBLESHOOTING 2) Forced Defrost 2-1) When you press any key one more time at Fridge off Forced Operation [OF r], rd lights up on the Display Panel. At this time, the Forcd Operation stops immediately and R-Defrost will be performed at the same time.

  • Page 71: Self-Diagnostic Function

    TROUBLESHOOTING 4-1-3. Self-diagnostic function 1) Self-diagnostic function in the Initial power ON 1-1) Micom operates self-diagnostic function to check the temperature sensor condition within 1 second when the refrigerator turned On initially. 1-2) If bad sensor is detected by the self-diagnostic function, the applicable display LED will blink for 0.5 sec. At this moment, there is no beep sound.(Refer to self-diagnostic CHECK LIST) 1-3) Self-diagnostic button is recognized only when the error is displayed by the bad sensor.
  • Page 72 TROUBLESHOOTING ※ R Self-diagnostics check list Item Trouble contents Diagnostic method The voltage of MAIN PCB CN30- “3” N76-”1”: FZ-Sensor Error shall be between 4.5V~1.0V The voltage of MAIN PCB CN30- “6” N76-”1”: FF-Sensor Error shall be between 4.5V~1.0V Display error : separation of sensor FZ-DEF-Sensor The voltage of MAIN PCB CN30- “5”...
  • Page 73 TROUBLESHOOTING ※ R Self-diagnostics check list Item Trouble contents Diagnostic method After separating MAIN PCB CN77 wire from Display error when open error is detected PCB, resistance value between Black ↔ Brown Flex Zone-Damper- by damper heater : separation of Damper wire shall be 135 ohm±...

  • Page 74: Display Function Of Load Condition

    TROUBLESHOOTING 4-1-4. Display function of Load condition RF31FM*S** (For Sparkling Model Only) RF31FM*D** / RF24FS** (For Ice/Water Model Only) ① ① ① ① ② ② ① If Energy Saver Key + Lighting key are pressed simultaneously for 6 seconds, ALL ON/OFF will blink with 0.5interval for 2 seconds.
  • Page 75 TROUBLESHOOTING ※ Load mode Check list Display LED Display contents Operation contents When FF compartment FAN operates with high R-1-ⓐ R-FAN High speed, applicable LED Blink When FF compartment FAN operates with low R-1-ⓑ R-FAN Low speed, applicable LED Blink When FF compartment defrost heater operates, LED R-1-ⓒ...

  • Page 76: Cooling Off Mode Setting Function North American(Us, Canada) Models Only

    TROUBLESHOOTING 4-1-5. Cooling OFF mode setting function North American(US, Canada) Models Only RF31FM*S** (For Sparkling Model Only) RF31FM*D** / RF24FS** (For Ice/Water Model Only) ① ① ① ① ① If Energy Saver Key + Power freeze Key are pressed for 5 seconds, Cooling Off mode will be started. 1) If Energy Saver Key + Power freeze are pressed simultaneously for 5 seconds during normal operation, Cooling Off mode will be started with buzzer sound(ding-dong).

  • Page 77: Option Setting Function

    TROUBLESHOOTING 4-1-7. Option setting function • If Freezer Key+ lighting Key are pressed simultaneously for 12 seconds during normal operation, fresh food and freezer compartments temperature display will be changed to option setting mode. KEY operation method for changing to option mode RF31FM*S** (For Sparkling Model Only) RF31FM*D** / RF24FS** (For Ice/Water Model Only) ①...
  • Page 78 TROUBLESHOOTING Code Reference Value 1) For example, if you want to change freezer compartment standard temperature to -4℉(-2°C) by operating option, do as below. This function is for changing the standard temperature. In -2℉(-19°C) of current temperature of freezer compartment, if you make the temperature lower to -4℉ (-2°C) by the option, the standard temperature would be controlled -6℉(-21°C) Therefore, if you change the setting of temperature option to -2℉(-19°C) on the panel, the appliance will be operated with -6℉(-21°C).

  • Page 79: Option Table

    TROUBLESHOOTING 4-1-8. Option TABLE ℉ ℃ ℉ ℃ -2℉ ℃ ℉ ℃ -4℉ ℃ ℉ ℃ ℉ ℃ ℉ ℃ ℉ ℃ +2℉ Code Reference Value ℃ ℉ ℃ +4℉ ℃ ℉ ℃ ℉ ℃ ℉ ℃ -4℉ ℉ ℃ ℉...
  • Page 80 TROUBLESHOOTING Code Reference Value Code Reference Value...
  • Page 81 TROUBLESHOOTING Code Reference Value Code Reference Value...
  • Page 82 TROUBLESHOOTING Code Reference Value Code Reference Value...

  • Page 83: 4-2) Diagnostic Method According To The Trouble Symptom(Flow Chart)

    TROUBLESHOOTING 4-2) Diagnostic method according to the trouble symptom(Flow Chart) DATA1.Temperature table Resistance value and MICOM port voltage of sensor according to the temperature SENSOR CHIP : based on PX41C, PX41C, 502AT/ 103**(ICE MAKER SENSOR(MOLD)/FULL UP, 20Kohm ( Actual measurement = value of the table below X 2 ) ℃...
  • Page 84 TROUBLESHOOTING DATA2. Humidity Sensor table - Voltage output table @23°…, 5Vdc --- HTG3515CH/HTG3535CH RH(Temperature compensate ) = RH (Relative Humidity ) + ( Temp(°C) °© 23°C) x 0.05 ℃ ℉ ℃ ℉ ℃ ℉ Voltage Resi s tance Voltage Resi s tance Voltage Resi s tance 2246...

  • Page 85: If The Trouble Is Detected By Self-Diagnosis

    TROUBLESHOOTING 4-2-1. If the trouble is detected by self-diagnosis - The error of sensor will be displayed on the front of display. when the error of sensor is detected at initial power ON, the appliance will not operated and display of abnormal sensor part will blink.
  • Page 86 TROUBLESHOOTING ERROR Code Start Is MAIN PCB DATA1. Connector CN30 and CN76 inserted Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** Is R Sensor R : CN30 - “6” ↔ CN76-"1" measuring resistance value unit normal? ** 0Ω: Short trouble /Ω∞: Open trouble Replace the temperature sensor...
  • Page 87 TROUBLESHOOTING ERROR Code Start Start Is MAIN PCB DATA1. Connector CN30 and CN76 inserted Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** R-DEF : CN30-"8" ↔ CN76-"1" measuring Is R DEF Sensor resistance value unit normal? ** 0Ω: Short trouble Ω∞: Open trouble...
  • Page 88 TROUBLESHOOTING ERROR Code Start Start DATA1. MAIN PCB Connector CN78 inserted Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** Ambient : CN78-”8”↔ “12” measuring resistance value ** Placed in the right top table of upper hinge. Ambient Sensor unit ** 0Ω: Short trouble / Ω∞: Open trouble normal?
  • Page 89 TROUBLESHOOTING ERROR Code Start Start Are MAIN PCB DATA1. Connector CN30 Temperature table inserted correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** F : CN30-“1” ↔ “4” measuring resistance value F Sensor unit normal? ** 0Ω: Short trouble / Ω∞: Open trouble Refer to circuit diagram in the manual Replace temperature sensor...
  • Page 90 TROUBLESHOOTING ERROR Code Start Start DATA1. MAIN PCB Connector CN30 and CN76 Temperature table insert correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** F-DEF : CCN30-”5” ↔ CN76-”1” measuring resistance FZ DEF Sensor unit value normal? ** 0Ω: Short trouble / Ω∞: Open trouble...
  • Page 91 TROUBLESHOOTING ERROR Code Start Start Is MAIN PCB DATA1. Connector CN78 and CN76 inserted Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** Ambient : CN78 ”10”↔ CN76-”1” Measure the voltage Ice room sensor unit of Resistance value normal?
  • Page 92 TROUBLESHOOTING ERROR Code Start Start Is MAIN PCB DATA1. Connector CN30 and CN76 insert Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor Is Mid drawer Sensor Flex : CN30 ”9” ↔ CN76 ”1” measuring resistance value ** 0Ω: Short trouble / Ω∞: Open trouble normal? Refer to circuit diagram in the manual...
  • Page 93 TROUBLESHOOTING ERROR Code Start Start Is MAIN PCB Connector CN30 inserted correctly? ** Measuring point of resistance value according to Bad contact of connector /insert correctly Sensor" Humidity : CN30 ”1” ↔ ”3” Is Humidity Sensor Resistance value with opened : about 50Ω unit normal? ** 0Ω: Short trouble /Ω∞: Open trouble Replace the Humidity Sensor...
  • Page 94 TROUBLESHOOTING ERROR Code Start Start Is Damper Heater normal?(about135ohm) Bad contact of connector/ insert correctly Measure the voltage of Resistance Is MAIN PCB connector between ① - ② after (CN77) inserted correctly? CN77 connector open / 1350 ohm ± 7% 1) Wire connector Initial Working...

  • Page 95: If Fan Does Not Operate

    TROUBLESHOOTING 4-2-2. If FAN does not operate - The refrigerator of this model has BLDC FAN motor. BLDC motor is driven by DC 7~12V. - On the normal condition of COMP ON, it operates together with F-FAN motor. If door is opened and closed once at a high ambient temperature, it will be operated after 1 minute delay.

  • Page 96: If Ice Room Fan Does Not Operate

    TROUBLESHOOTING 4-2-3. If ICE Room Fan does not operate - This refrigerator has BLDC FAN motor. BLDC motor is driven by DC7~12V. - When COMP ON, normally operates with F-FAN motor. - If there is any trouble, you should select the self-diagnostic function to check the trouble before power off. - When pressing the ICE TEST S/W for a certain period of time (over Start 1.5sec), the function is accomplished.

  • Page 97: When Ice Maker(Ff) Does Not Operate

    TROUBLESHOOTING 4-2-4. When ICE MAKER(FF) does not operate 1. Water will be automatically supplied to the Ice Maker depending on temperature & time conditions, and ice will be produced to dispense. 2. Power is applied to one end of the wires. So, make sure to refer to its Exploded View whenever doing the disassembly.

  • Page 98: If Defrost Does Not Operate (F,R Def Heater)

    TROUBLESHOOTING 4-2-5. If defrost does not operate (F,R DEF Heater) R DEF ERROR F DEF ERROR Start **Measuring point of resistance value according to heater** F-DEF : CN70 “3”(Brown) ↔ CN72 ”3” (Gray) measuring resistance value(63 ohm ± 7%) Are the all deforst R-DEF : CN70 ”1”(White) ↔...

  • Page 99: When Power Is Not Applied

    TROUBLESHOOTING 4-2-6. When Power is not applied - To check the Inverter PBA, Caution refer to the Operation and Start 'Refer' sections in this There is Over AC 115V and DC 310V manual at the Inverter PBA Power Circuit. So, be cautious when repairing the unit or measuring values..

  • Page 100: When Compressor Does Not Run (Inverter Comp.)

    TROUBLESHOOTING 4-2-7. When Compressor does not run (Inverter COMP.) Start 10 minutes have passed since COMP was off Check in 10 minutes When Forced Operation Refer to the TEST mode is activated, COMP Function in this manual operates Forced Operation signal sound should be checked F-Sensor is Good 0~800Hz 50%...

  • Page 101: When Alarm Sounds Continuously Without Stop(Related With Buzzer Sound)

    TROUBLESHOOTING 4-2-8. When alarm sounds continuously without stop(related with buzzer sound) ① If 'ding-dong'sound continuously Start Door is ajar Is door closed completely? Remove causes after comprehending the conditions of interferance by door gasket, food etc, Is water penetrated into the door switch? Replace Door S/W Seperate the door switch andcheck if the Is the door...
  • Page 102 TROUBLESHOOTING ③ If buzzer does not sound Buzzer is installed on the panel PCB in this model. If buzzer does not sound even though the button is pressed, manual operation is started and door is opened, it should separate panel PCB and check the breakage of buzzer and bad soldering. It is very hard to repair the panel PCB because it consists of SMD assemblies.

  • Page 103: When The Panel Pba Does Not Operate Normally

    TROUBLESHOOTING 4-2-9. When the Panel PBA does not operate normally ① When the entire or a certain section of the Panel PCB does not light up - There is a MICOM embedded in the Panel PCB. So, take care when doing repairs. And, except the Solder Touch, replace the PCB.

  • Page 104: If Mid Drawer Panel Pcb Is Not Working Normally

    TROUBLESHOOTING 4-2-10. If Mid drawer Panel PCB is not working normally You should check the display after door opening because the display of this model operates only when the fresh food compartment door is opened. Start room Does R Door switch operate normally? Check and repair the switch * Refer to <how to repair door switch>...

  • Page 105: When Refrigerator Room Lamp Does Not Light Up

    TROUBLESHOOTING 4-2-11. When refrigerator ROOM Lamp does not light up When controlling the regrigerator light with Regulator(12V) : LED LAMP → Applying to the F/R Room compartment (Option) * If the Vegetable Lamp does not work properly, check the R compartment LED Lamp because it is connected with the R compartment LED Lamp in parallel.

  • Page 106: If Ice Water Is Not Supplied

    TROUBLESHOOTING 4-2-12. If ICE Water is not supplied 1. Please shut the water supplying prior to repair. 2. Power is applied to the one end of wires. Be careful when disassembling not to get an electric shock. 2) Ice Water(R) Valve Start PCB Typical Ground J23 JUMMPER Is the confirming...

  • Page 107: If Sparkling Is Not Supplied

    TROUBLESHOOTING 4-2-13. If Sparkling is not supplied 1. Please shut the water supplying prior to repair. 2. Power is applied to the one end of wires. Be careful when disassembling not to get an electric shock. 3. Check the Door while it is being closed. (By using a magnet stick, simulate a door-closed condition.) Start Replace the Dispenser Is the Switch of the Dispenser Lever...

  • Page 108: If Cubed Or Crushed Ice Is Not Supplied

    TROUBLESHOOTING 4-2-14. If Cubed or Crushed Ice is not supplied Fridge door shall be Start closed during operation. Are Ices ejected? Are Ices in the Ice bucket? Is “Ice Off” mode ① Check the Ice making switch selected on the display ②...

  • Page 109: If Cover Ice Route Motor(Geard Motor) Is Not Working Normally

    TROUBLESHOOTING 4-2-15. If Cover Ice Route Motor(Geard Motor) is not working normally Caution 1. When replacing the Cover Ice Motor, pull out the plug to avoid an electric shock. 2. Be careful! When disassemble the Cover Ice Motor, spring can jumped out and may cause personal injury. 3.

  • Page 110: Ir Sensor Trouble-Shooting

    TROUBLESHOOTING 4-2-16. IR Sensor Trouble-Shooting 1. When the IR sensor is defective, ice is not produced even if there is no Ice Maker Error, Ice Maker Sensor Error or the Ice Maker Function Error. (When turning on the Self Diagnosis Function, it does not produce ice even if there is no 14E, 15E or 39E being displayed.) 2.

  • Page 111: Led Blinking Frequency Depending On Protecting Functions

    TROUBLESHOOTING 4-2-17. LED blinking frequency depending on protecting functions If Failure Condition is detected during compressor is operating, immediately stop Compressor operating and stand by 5 minutes. During this 5 minutes, RPM command signal is not available. It means, even if available RPM command signal is applied to the compressor, it does not work and keep standing by.

  • Page 112: 4-3) General Diagnosis

    TROUBLESHOOTING 4-3) General diagnosis PROBLEM SOLUTION • Check that the power plug is properly connected. refrigerator • Check if the set temperature on the digital display is warmer than does not work the freezer or fridge inner temperature. If it is, set the refrigerator at all or it colder.
  • Page 113 TROUBLESHOOTING PROBLEM SOLUTION Ice Maker is • Did you wait for 12 hours after installation of the water supply line not producing before making ice? ice. • Is the water line connected and the shut-off valve opened? • Did you manually stop the ice making function? •...

  • Page 114: 4-4) Diagnosis For Sparkling System

    TROUBLESHOOTING 4-4) Diagnosis for Sparkling system (Only for RF31FM*S*) ⑨ ⑤ ① ② ⑥ ⑧ ③ ④ ⑦ DIS valve F-10 R-10 ⑫ ⑩ ⑬ R-10-ⓔ Sparkling Water Tank Fill-Up Detection ⑪ Cylinder Lever R-10-ⓕ Sparkling Water Tank Low Detection Display error when open error is detected by The voltage of ASSY PCB KIT CN31- “1”...
  • Page 115 TROUBLESHOOTING Trouble PROBLEM Trouble Shooting Step 2 Possible Causes SOLUTION Shooting Step 1 Even if it has passed the production time of the selected Check if the Fridge Door The Fridge Door is Sparkling Level, it keeps Switch is defective or close open.
  • Page 116 TROUBLESHOOTING Trouble PROBLEM Trouble Shooting Step 2 Possible Causes SOLUTION Shooting Step 1 1. Check it at the Display 1. Reset the CO2 Cylinder by Function of Load Condition pressing the Sparkling Water Mode. button (③) for 3 seconds : It is displayed that there is no on the Display Panel and detection for both the Water reproduce the Sparkling...
  • Page 117 TROUBLESHOOTING Trouble PROBLEM Trouble Shooting Step 2 Possible Causes SOLUTION Shooting Step 1 When plugging out the Hose 1. Defective Housing 1. Reconnect the Housing (⑩) of the 5-Way Valve (⑨,⑫) Connection (⑨,⑫) and check it. Input Terminal and pressing 2.
  • Page 118 TROUBLESHOOTING Trouble PROBLEM Trouble Shooting Step 2 Possible Causes SOLUTION Shooting Step 1 When pressing the Energy Saver button (①) on the Display Panel for 5 seconds after opening the Fridge Door, it will send off a Ding Dong sound and then the CO2 Valve will be open for a Weak second.

  • Page 119: Pba Diagram

    This document can not be used without Samsung's authorization 5. PBA DIAGRAM PBA DIAGRAM 5-1) PBA Layout with part position ........................119 5-2) PBA Layout with part position (Inverter Board) ..................120 5-3) Connector Layout with part position (Main Board) ..................121 5-3-1. RF31FM** / RF24FS** ........................121 5-4) Connector Layout with part position (Inverter Board) ................

  • Page 120: 5-1) Pba Layout With Part Position

    This document can not be used without Samsung's authorization PBA DIAGRAM 5-1) PBA Layout with part position 1. DC12V, 5V, GND supplied from SMPS PCB (Not Used) 2. Circuit for controlling Step-Valve (3-Way Valve) * Option 3. FAN MOTOR control part : To supply the power from 8.3V ~ 12V according to the motor types.

  • Page 121: 5-2) Pba Layout With Part Position (Inverter Board)

    This document can not be used without Samsung's authorization PBA DIAGRAM 5-2) PBA Layout with part position (Inverter Board) 1. PCB Power Supply : From the SMPS circuit, it supplies 13.2V and 5V for the Main PBA control and supplies 15V and 5V to the Inverter circuit for the Compressor control.

  • Page 122: 5-3) Connector Layout With Part Position (Main Board)

    This document can not be used without Samsung's authorization PBA DIAGRAM 5-3) Connector Layout with part position (Main Board) 5-3-1. RF31FM** / RF24FS** Main Valve Mid DRAWER-DOOR Switch OPEN MID DRAWER ROOM DISPLAY ICE Pipe Heater(FF) F/B ICE Water Pipe Heater (FF)

  • Page 123: 5-4) Connector Layout With Part Position (Inverter Board)

    This document can not be used without Samsung's authorization PBA DIAGRAM 5-4) Connector Layout with part position (Inverter Board) 5-4-1. RF31FM** / RF24FS**...

  • Page 124: Wiring Diagram

    This document can not be used without Samsung's authorization 6. WIRING DIAGRAM WIRING DIAGRAM 6-1) Model : RF31FM*D** / RF24FS** Common for All Models...
  • Page 125 WIRING DIAGRAM Model : RF31FM*S** For Sparkling Model Only...

  • Page 126: Block Diagram

    This document can not be used without Samsung's authorization 7. BLOCK DIAGRAM BLOCK DIAGRAM 7-1) Whole block diagram 7-1-1. MODEL : RF31FM**...

  • Page 127: Model : Rf24Fs

    This document can not be used without Samsung's authorization BLOCK DIAGRAM 7-1) Whole block diagram 7-1-2. MODEL : RF24FS**...

  • Page 128: Model Code Table

    8. MODEL CODE TABLE 8. MODEL CODE TABLE 8-1) RF31FM**...

  • Page 129: 8-2) Rf24Fs

    MODEL CODE TABLE 8-2) RF24FS**...
