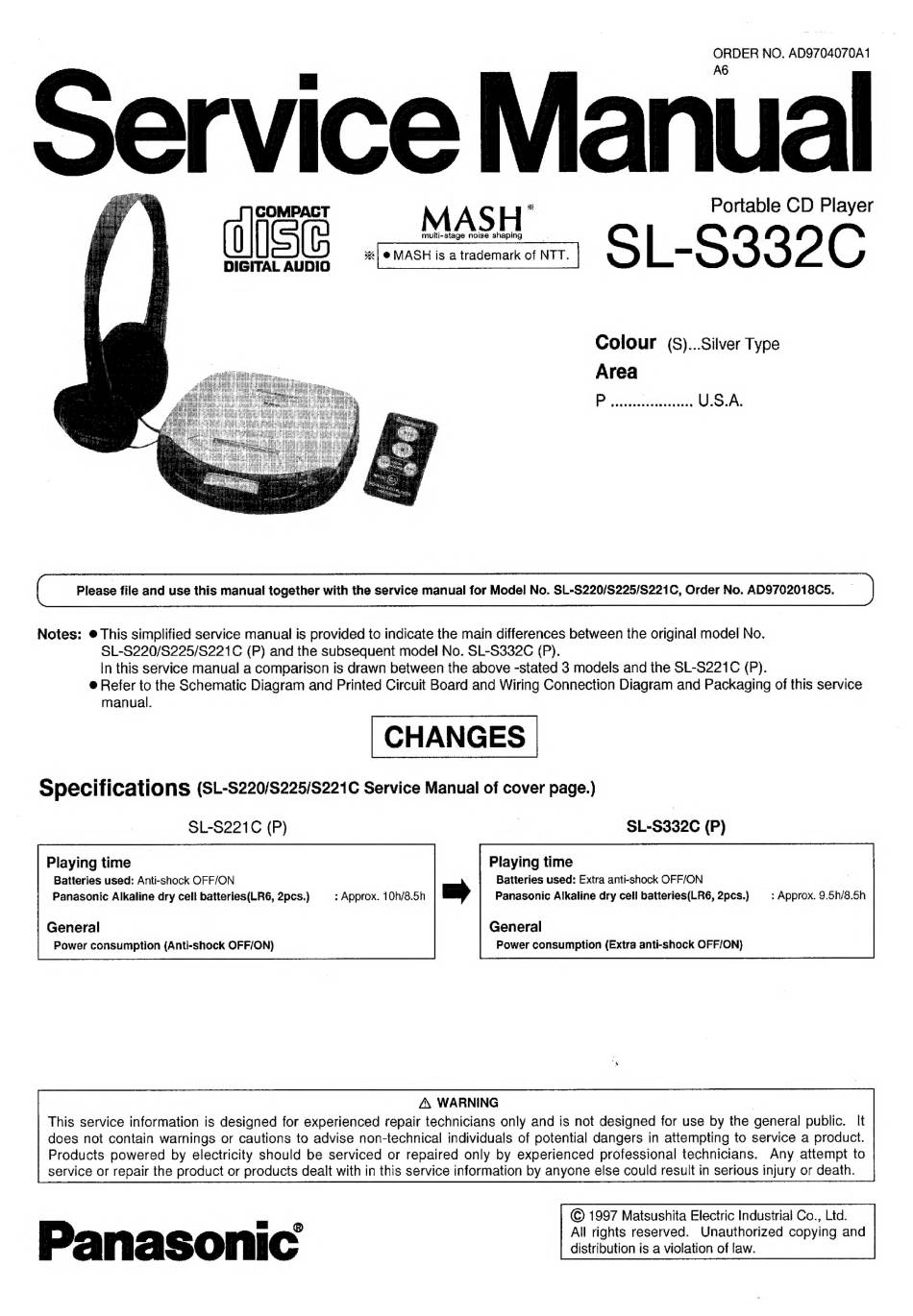

Panasonic SL-S332C Service Manual

ORDER NO. AD9704070A1
A6
multi-stage SH 3 3 x, C
e | ® MASH is a trademark of NTT. | ® MASH is a trademark of NTT. a trademark of NTT. m
OS) a6
Colour (S)...Silver Type
Area
Please file and use this manual together with the service manual for Model No. SL-S220/S225/S221C, Order No. AD9702018C5.
Notes: @ This simplified service manual is provided to indicate the main differences between the original model No.
SL-S220/S225/S221C (P) and the subsequent model No. SL-S332C (P).
In this service manual a comparison is drawn between the above -stated 3 models and the SL-S221C (P).
® Refer to the Schematic Diagram and Printed Circuit Board and Wiring Connection Diagram and Packaging of this service
Specifications (SL-S220/S225/S221C Service Manual of cover page.)
SL-S221C (P) | SL-S332C (P)
Playing time Playing time
Batteries used: Anti-shock OFF/ON Batteries used: Extra anti-shock OFF/ON
Panasonic Alkaline dry cell batteries(LR6, 2pcs.) : Approx. 10h/8.5h Panasonic Aikaline dry cell batteries(LR6, 2pcs.) : Approx. 9.5h/8.5h
General General
Power consumption (Anti-shock OFF/ON) Power consumption (Extra anti-shock OFF/ON)
