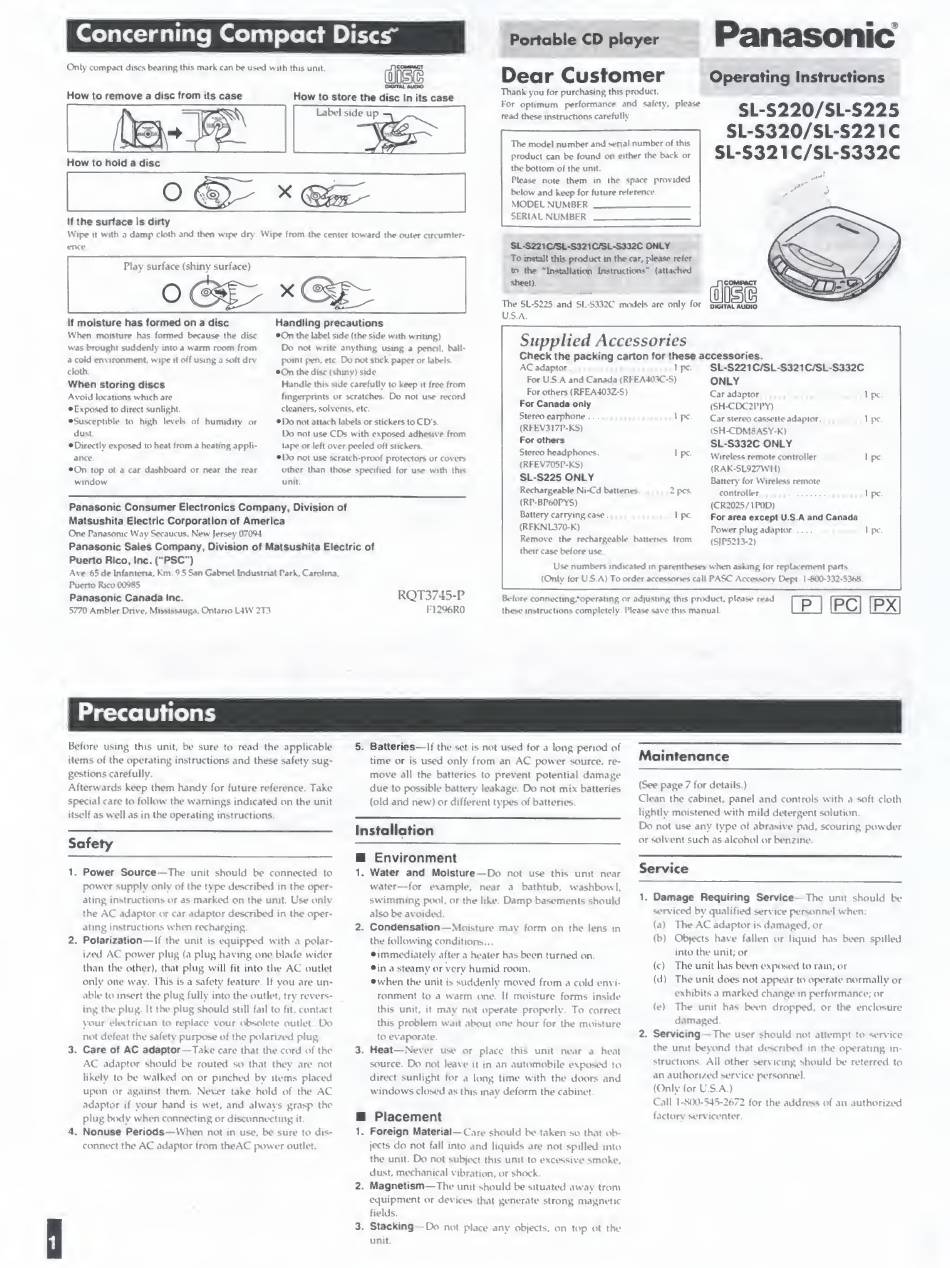

Panasonic SL-S220 Operating Instructions Manual

Concerning Compact Discs"
Portable CD player
Panasonic
Only compact discs bearing this mark can be used with this unit.
How to remove a disc from its case How to store the disc in its case
How to hold a disc
If the surface is dirty
Wipe it with a damp cloth and then wipe dry. Wipe from the center toward the outer circumfer¬
ence
Play surface (shiny surface)
0(^0
If moisture has formed on a disc
When moisture has formed because the disc
was brought suddenly into a warm room from
a cold environment, wipe it off using a soft dry
cloth
When storing discs
Avoid locations which are
• Exposed to direct sunlight.
•Susceptible to high levels of humidity or
dusl.
• Directly exposed lo heat from a healing appli¬
ance.
•On top of a car dashboard or near the rear
window
Handling precautions
•On the label side (the side with writing)
Do not write anything using a pencil, ball¬
point pen. etc Do not stick paper or labels.
•On the disc (shiny) side
Handle this side carefully lo keep it free from
fingerprints or scratches. Do not use record
cleaners, solvents, etc.
• Do not attach labels or stickers to CD's.
Do not use CDs with exposed adhesive from
tape or left over peeled off stickers.
• Do not use scratch-proof protectors or covers
other than those specified for use with this
unit.
Panasonic Consumer Electronics Company, Division of
Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric of
Puerto Rico, Inc. ("PSC")
Ave 65 de lnfantena. Km. 9.5 San Gabriel Industrial Park. Carolina.
Puerto Rico 00985
Panasonic Canada Inc.
RQT37 45-P
5770 Ambler Drive, Mississauga. Ontario L4W 2T3 FI 296R0
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions carefully
The model number and venal number of this
product can be found on either the back or
the bottom of the unit.
Please note them in the space provided
below and keep for future reference
MODEL NUMBER __
SERIAL NUMBER _
SL-S221C/SL-S321C/SL-S332C ONLY
To install this product in the car, please reter
tn the "Installation Instruction*" (attached
sheet).
The SL-S225 and SL-S332C models are only for
U.S.A.
Operating Instructions
SL-S220/SL-S225
SL-S320/SL-S221C
SL-S3210/SL-S332C
Supplied Accessories
Check the packing carton for these accessories.
AC adaptor. Ipc SL-S221C/SL-S321C/SL-S332C
For U S A and Canada (RFEA403C-S)
ONLY
For others (RFEA403Z-S)
Car adaptor 1 pc.
For Canada only
(SH-CDC2PPY)
Stereo earphone. I pc.
Car stereo cassette adaptor.. . Ipc.
(RFEV317P-KS)
(SH-CDM8ASY-K)
For others
SL-S332C ONLY
Stereo headphones
1 pc.
Wireless remote controller
1 pc.
(RFEV705P-KS)
(RAK-SL927WH)
SL-S225 ONLY
Battery for Wireless remote
Rechargeable Ni-Cd batteries 2 pcs.
controller . 1 pc
(RP-BP60PYS)
(CR2025/1POD)
Battery carrying case
Ipc.
For area except U.S.A and Canada
<RFKNL370^K)
Power plug adaptor. 1 pc.
Remove the rechargeable batteries from
(SJP5213-2)
their case before use.
Use numbers indicated in parentheses when asking for replacement parts
(Only for US.A) To order accessories call PASC Accessory Dept 1-800-332-5368
Before connectmg."operating or ad|usting this product, please read
these instructions completely. Please save this manual.
fPl IPC1 fPX
Precautions
Before using this unit, be sure to read the applicable
items of the operating instructions and these safety sug¬
gestions carefully.
Afterwards keep them handy for future reference. Take
special care to follow the warnings indicated on the unit
itself as well as in the operating instructions.
Safety
1. Power Source—The unit should be connected to
power supply only of the type described in the oper¬
ating instructions or as marked on the unit. Use only
the AC adaptor or car adaptor described in the oper¬
ating instructions when recharging.
2. Polarization—If the unit is equipped with a polar¬
ized AC power plug (a plug having one blade wider
than the other), that plug will fit into the AC outlet
only one way. This is a safety feature. If you are un¬
able to insert the plug fully into the outlet, try revers¬
ing the plug. If the plug should still fail to fit. contact
your electrician to replace your obsolete outlet Do
not defeat the safety purpose of the polarized plug.
3. Care of AC adaptor -Take care that the cord of the
AC adaptor should be routed so that they are not
likely to be walked on or pinched by items placed
upon or against them. Never take hold of the AC
adaptor if your hand is wet, and always grasp the
plug body when connecting or disconnecting it.
4. Nonuse Periods—When not in use, be sure to dis¬
connect the AC adaptor from theAC power outlet.
I
5. Batteries—If the set is not used for a long period of
time or is used only from an AC power source, re¬
move all the batteries to prevent potential damage
due to possible battery leakage. Do not mix batteries
(old and new) or different types of batteries.
Installation
■ Environment
1. Water and Moisture—Do not use this unit near
water—for example, near a bathtub, washbowl,
swimming pool, or the like. Damp basements should
also be avoided.
2. Condensation —Moisture may form on the lens in
the following conditions...
•immediately after a heater has been turned on.
• in a steamy or very humid room.
•when the unit is suddenly moved from a cold envi¬
ronment to a warm one. If moisture forms inside
this unit, it may not operate properly. To correct
this problem wait about one hour for the moisture
to evaporate.
3. Heat—Never use or place this unit near a heat
source. Do not leave it in an automobile exposed to
direct sunlight tor a long time with the doors and
windows closed as this may deform the cabinet.
■ Placement
1. Foreign Material—Care should be taken so that ob¬
jects do not fall into and liquids are not spilled into
the unit. Do not subject this unit to excessive smoke,
dust, mechanical vibration, or shock.
2. Magnetism—The unit should be situated away from
equipment or devices that generate strong magnetic
fields.
3. Stacking —Do not place any objects, on top of the
unit.
Maintenance
(See page 7 for details.)
Clean the cabinet, panel and controls with a soft cloth
lightly moistened with mild detergent solution.
Do not use any type of abrasive pad, scouring powder
or solvent such as alcohol or benzine.
Service
1. Damage Requiring Service The unit should be
serviced by qualified service personnel when:
(a) The AC adaptor is damaged; or
(b) Objects have fallen or liquid has been spilled
into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not appear to operate normally or
exhibits a marked change in performance; or
(e) The unit has been dropped, or the enclosure
damaged.
2. Servicing—The user should not attempt to service
the unit beyond that described in the operating in¬
structions. All other servicing should be referred lo
an authorized service personnel.
(Only for U.S.A.)
Call 1-800-545-2672 for the address of an authorized
factorv servicenter.
