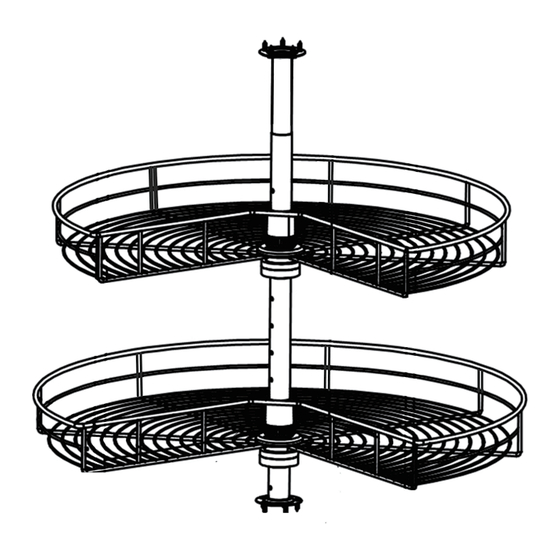

- Page 1 FTKDRH-2008 FTKDRH-2009 FSBY-V1 IRON CORNER BASKET...
- Page 2 "IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY" 1. Assemble on a flat, clean and soft surface. 2. Ensure you have all the required parts and organize them before assmbling. 3. Wrar gloves the entire time so you don ＇ t cut your hands. 4*16MM...
- Page 3 ASSEMBLY INSTRUCTIONS Put the basket into the cabinet with reference to the auxiliary circle, adjust the Angle of the basket, and lock it on the cabinet with 4*16 screws step1:Draw two auxiliart circles on the top plate and bottom plate of the cabinet as shown below to locate the installation hole.
- Page 4 2pcs 2pcs 2pcs 2pcs Basket diagram ×2 Install the plastic piece D to the lower tube as shown in the picture below,and then insert the bolt...
- Page 5 Install the lower basket on the lower tube as shown below Effect Picture Install the basket onto the lower tube as shown below...
- Page 6 10pcs Put the upper tube into the lower tube from the top down as shown below...
- Page 7 Remove the bolt, move the basket up and down to adjust the spacing, and tighten the plastic parts to complete the installation Tighten the plastic parts on the premise that the basket can revole freely, remember not to lock Effect Picture...
