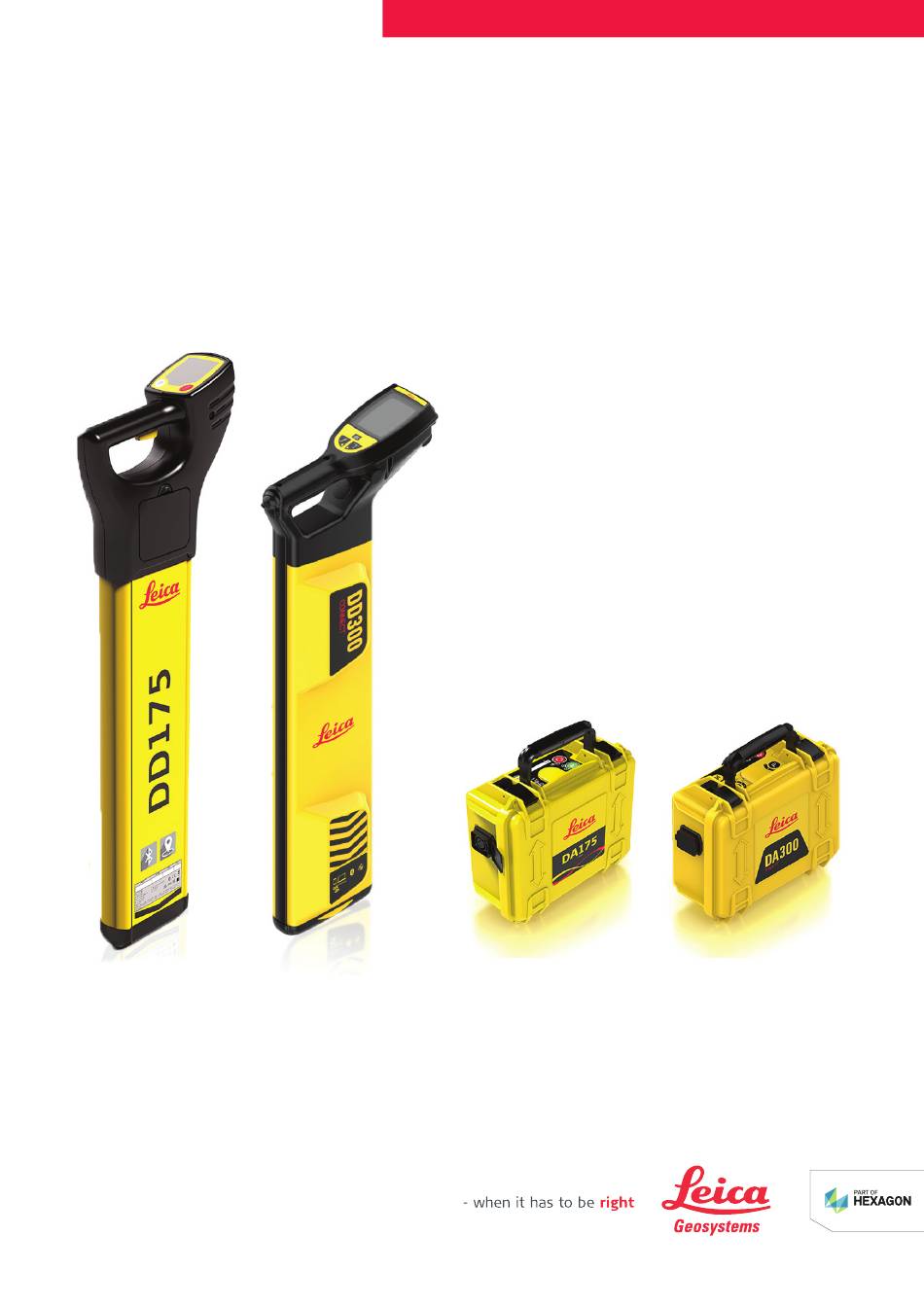

- Page 1 Leica Detection DD Series Locators & Accessor- Quick Guide Version 1.1 English...
- Page 2 Important Information about your Instrument Read and follow the User Manual on https://myworld-portal.leica-geosystems.com/ before using the product. Direct link to Direct link to DD120/DD130/ DD300: DD175: This Quick Start Guide contains first use directions as well as initial, • basic instructions for setting up the product and operating it.
-
Page 3: Conformity To National Regulations
Conformity to National Regulations Labelling DA series DA175: DA300: transmitters Leica Geosystems Power: Leica Geosystems Power: 4xLR20 (D) Alkaline Heinrich-Wild-Strasse Heinrich-Wild-Strasse 4xLR20 (D) Alkaline CH-9435 Heerbrugg normal / 2A Max. CH-9435 Heerbrugg normal / 2A Max. Made in the UK... - Page 4 The full text of the EU declaration of conformity is available at the following Internet address: http://www.leica-geosystems.com/ce. Valid for DD120/DD130/DD175/DD300 in EU: Hereby, Leica Geosystems AG declares that the radio equip- ment type DD120/DD130/DD175/DD300 is in compliance with Directive 2014/53/EU and other applicable European Direct- ives.
- Page 5 Valid for DD120/DD130/DD175/DD300 in United Kingdom: UKCA Hereby, Leica Geosystems AG declares that the radio equip- ment type DD120/DD130/DD175/DD300 is following the pro- visions of the applicable relevant statutory requirement UK Directive UK SI 2017 No. 1226 Radio Equipment Regulation 2017.
- Page 6 CAN ICES-003 B/NMB-003 B IC: 8991A-DA300 Valid for all products in USA/Canada: Changes or modifications not expressly approved by Leica Geosystems for compliance could void the user's authority to operate the equipment. Others The conformity for countries with other national regulations has to be approved prior to use and operation.
-
Page 7: Instrument Components
Battery compartment 6 x LR6 (AA) alkaline batteries are used. Replace all batteries when indicated. Case foot The case foot can be replaced if it is worn. Contact your agency or Leica Geosystems 0016742_002 authorised service workshop. DD120/DD130/ DD175 locator... - Page 8 Description of components DD300 locator Display Locator keyboard USB port Trigger Battery compartment Locator foot (wear part) 29200_002 DD300 locator keyboard 29202_001 Function key Press and release to change the search mode. Depth Estimation key Press and release to take a depth reading. Menu key Press and hold to display the Locator main menu or to return back to the locate screen.
- Page 9 Description Accessory compart- of transmitter ment components Connection socket 4 × LR20 alkaline batteries compart- ment Signal transmitter keyboard 29206_001 Speaker Induction arrow Transmitter key- Power key board Power Output key and LED indicators Low Battery LED indicator Connection Mode LED 131k indicator Frequency key and LED...
- Page 10 ☞ Result: The small LED next to the charge jack flashes at a fast rate to indicate the wake up process, then flashes at a slower rate to indicate that the battery pack is active and charging. ☞ Applicable to the DD300 locators and DA Signal Transmitters. Instrument Components...
-
Page 11: Technical Data
Technical Data Environmental For locator and transmitter: specifications Temperature Operating temperature [°C] Operating temperature [°F] -20 to +50 -4 to +122 Protection against water, dust and sand Protection DD120/DD130/DD175 Locator IP54 (IEC 60529) DD300 Locator IP65 (IEC 60529) DA175 Transmitter Opened: IP65 (IEC 60529) Closed: IP67 (IEC 60529) DA300... -
Page 12: Care And Transport
Care and Transport Transport in a road Never carry the product loose in a road vehicle, as it can be affected by vehicle shock and vibration. Always carry the product in its container and secure it. Products without For products for which no container is available use the original packaging or container its equivalent. -
Page 13: Operation
Operation Turning on and off Only at the first use to start the locator: the DD120/DD130/ Press and hold the trigger until the word DD175 SET appears on the display. 0016786_002 Then press and hold the Function key for five seconds. The locator can be operated now. - Page 14 29208_001 Turning on and off Press the Power key to turn the transmitter on or the transmitter off. 29209_001 Operation...
- Page 16 914096-1.1.0en Original text Printed in Switzerland, © 2024 Leica Geosystems AG Leica Geosystems AG Heinrich-Wild-Strasse 9435 Heerbrugg Switzerland www.leica-geosystems.com...
