R S 5 O W N E R S M A N U A L

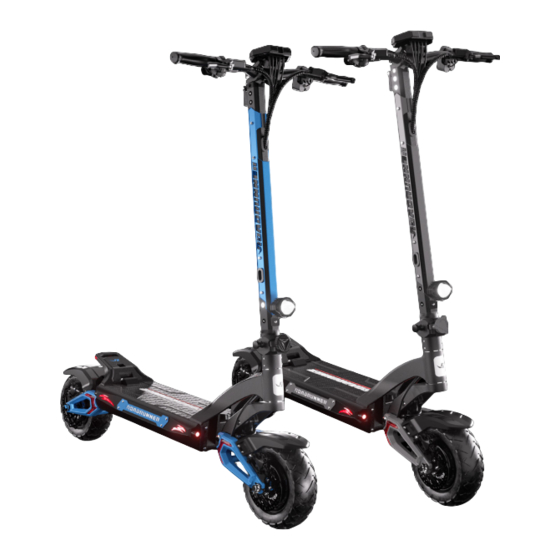

ROADRUNNER RS5 ELECTRIC SCOOTER
Owner's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RoadRunner RS5

  • Page 1 R S 5 O W N E R S M A N U A L ROADRUNNER RS5 ELECTRIC SCOOTER Owner’s Manual...
  • Page 2 R S 5 O W N E R S M A N U A L RoadRunner RX5 Scooter Pictures in this manual are for reference only. Please read the full instruction manual before using your Scooter. For instructional videos on how to: get...
  • Page 3 R S 5 O W N E R S M A N U A L ROADRUNNER RS5 ELECTRIC SCOOTER OWNER’S MANUAL Congratulations on your purchase of the RoadRunner RS5 electric scooter! This manual contains important information regarding the setup, operation, and maintenance of your scooter.
  • Page 4: Table Of Contents

    R S 5 O W N E R S M A N U A L Table of Contents GETTING STARTED What’s in the Box Scooter Specs 6 - 7 INSTALLATION + OPERATION Charging the Scooter Battery and Charger Information Battery Installation How to lock and fold the stem 1 1 - 1 2 Handlebar Installation...
  • Page 5: What's In The Box

    R S 5 O W N E R S M A N U A L What’s in the Box RS5 Scooter Front and Rear Fenders Scooter keys (2) Decklid keys (2) Allen Wrench Tool...
  • Page 6: Scooter Specs

    R S 5 O W N E R S M A N U A L Scooter Specs Product name RoadRunner RS5 Electric Scooter Product model Folded Dimensions 51” (l) x 12” (w) x 24” (h) Upright Dimensions 55” (l) x 12” (w) x 49 (h) Deck Plate 20”...
  • Page 7 LED Headlight, Rear LED Brake Lights, Front and Rear Running Lights Turn Signals Rear and Side Deck Turn Signals Lithium battery: RS5 PRO 52V 23ah Lithium Ion battery RS5 MAX 52V 32ah LG Lithium Ion battery Speed Controller 1 x 70 amp Sine Wave Charger 100-240 V, 50/60Hz, 3.0A...
  • Page 8: Charging The Scooter

    R S 5 O W N E R S M A N U A L Charging the Scooter U S I N G C H A R G I N G P O R T S O N S I D E D E C K O F S C O O T E R Plug the charger into a 120V power supply (wall outlet, power strip, etc.) Open the waterproof cover on the...
  • Page 9: Battery And Charger Information

    R S 5 O W N E R S M A N U A L Battery and Charger Information Your RoadRunner RS5 scooter comes with an LG Lithium- ion battery and a smart charger. Important: Only use the provided charger and battery with your RS5.
  • Page 10: Battery Installation

    R S 5 O W N E R S M A N U A L Battery Installation Use deck lid keys to unlock and open the deck lid. Slide the quick connect plug inside the deck to- wards the front of the scooter to make room for the battery.
  • Page 11: How To Lock And Fold The Stem

    R S 5 O W N E R S M A N U A L How to lock and fold the stem H O W T O F O L D T H E S C O O T E R : Unscrew the folding knob on the front of the stem until the silver clasp is clear of the stem.
  • Page 12 R S 5 O W N E R S M A N U A L How to fold and lock the stem H O W T O U N F O L D T H E S C O O T E R : Release the folding hook from the latch under the footplate.
  • Page 13: Handlebar Installation

    R S 5 O W N E R S M A N U A L Handlebar Installation H O W T O : Using a number 4 hex key, remove all four bolts from the handlebar bracket and set them aside with the top bracket. Place the handlebar on the lower bracket, centering it properly.
  • Page 14: Handlebar Controls And Instruments

    R S 5 O W N E R S M A N U A L Handlebar Controls + Instruments Multi-Function Control Module Display Left (Rear Brake) Right (Front Brake) Throttle...
  • Page 15: Lcd Display

    R S 5 O W N E R S M A N U A L LCD Display Speedometer Battery Voltage Gear Mode Indicator Dual/Single Mode 1 (slow) Motor Mode 2 (medium) Mode 3 (fast) Indicator Battery Level Odometer (Total miles + Trip miles) Indicator...
  • Page 16: Multi-Function Control Module

    R S 5 O W N E R S M A N U A L Multi-Function Control Module Power/Mode Button Dual/Single Motor Turn Signals Horn Headlights/ Running Lights...
  • Page 17: Parameter Settings (P-Settings)

    R S 5 O W N E R S M A N U A L Parameter Settings (P-Settings) To make changes to any P-settings, press Example: to modify KM vs. miles, press the power button quickly three times in row. the power button quickly three times in row to enter P1.
  • Page 18: Operating Instructions

    R S 5 O W N E R S M A N U A L Operating Instructions Power ON/OFF: Gear Setting: Turn your key to the right to Press the button located on the turn on, turn your key to the left throttle to switch gears.
  • Page 19: Error Codes

    R S 5 O W N E R S M A N U A L Error Codes E-001 Rear motor haul error - swap front and rear motor heads. If code still appears, replace the controller. If it does not appear, replace the motor.
  • Page 20 R S 5 O W N E R S M A N U A L Performance Features + Care Instructions...
  • Page 21: Frame, Stem, And Locking Mechanism

    R S 5 O W N E R S M A N U A L Frame, Stem, and Locking Mechanism With safety as the The RS5 has an paramount design innovative stem with a objective, the aerospace dual locking mechanism.
  • Page 22: Nutt Hydraulic Brakes

    R S 5 O W N E R S M A N U A L NUTT Hydraulic Brakes Proper care and maintenance of the NUTT hydraulic brakes on the RoadRunner RS5 PRO and RS5 MAX electric scooters are essential for ensuring optimal braking performance and safety. Here are some detailed care and maintenance tips...
  • Page 23 R S 5 O W N E R S M A N U A L NUTT Hydraulic Brakes Regular Maintenance 1. Brake Fluid Check: Check the brake fluid level regularly, ideally once a month. Use the recommended type of brake fluid specified by the manufacturer, typically DOT 4 or DOT 5.1.
  • Page 24 R S 5 O W N E R S M A N U A L NUTT Hydraulic Brakes Cleaning Brake Components: Clean the brake calipers, rotors, and pads regularly to remove dirt and grime. Use a brake cleaner or isopropyl alcohol to clean the brake components.
  • Page 25 By following these care and maintenance tips, you can ensure that the NUTT hydraulic brakes on your RoadRunner RS5 PRO and RS5 MAX electric scooters remain in top condition, providing reliable and safe braking performance.
  • Page 26: Tubeless Tires

    R S 5 O W N E R S M A N U A L Tubeless Tires Caring for the tubeless tires on the RoadRunner RS5 PRO and RS5 MAX electric scooters involves several key steps to ensure their longevity and optimal...
  • Page 27 R S 5 O W N E R S M A N U A L Tubeless Tires Regular Maintenance 1. Tire Pressure: Check the tire pressure regularly. If the scooter is ridden more, check more often. Maintain the recommended tire pressure as specified by specifications found on the sidewall of the tire.
  • Page 28 R S 5 O W N E R S M A N U A L Tubeless Tires Cleaning Keep the tires clean by washing them with water and mild soap. Avoid using harsh chemicals or solvents that could damage the tire material. Usage Tips 1.
  • Page 29 Use tires recommended by the scooter manufacturer to ensure compatibility and safety. By following these care instructions, you can help extend the life of your tubeless tires and maintain the performance of your RoadRunner RS5 PRO and RS5 MAX electric scooters.
  • Page 30: Safety Instructions

    Safety Instructions • This scooter is for use by one adult rider at a time. • The RS5 is designed for experienced riders only. • When riding, wear safety gear including a helmet. • Always keep both hands on the handlebar and both feet on your scooter while riding.
  • Page 31: Warranty Policy

    R S 5 O W N E R S M A N U A L Warranty Policy The RoadRunner RS5 Scooter comes with a limited warranty that lasts for one year. To get more details about the warranty, scan the QR Code below...
  • Page 32: Contact Us

    R S 5 O W N E R S M A N U A L Contact Us Product Support Need technical or mechanical assistance with your RoadRunner Scooter? https://roadrunnerscooters.com/pages/contact-us Phone: 720.664.4456 Address: 2337 Arapahoe St. Suite 105 Denver, CO 80205...
  • Page 33 R S 5 O W N E R S M A N U A L ROADRUNNER RS5 ELECTRIC SCOOTER Owner’s Manual...
