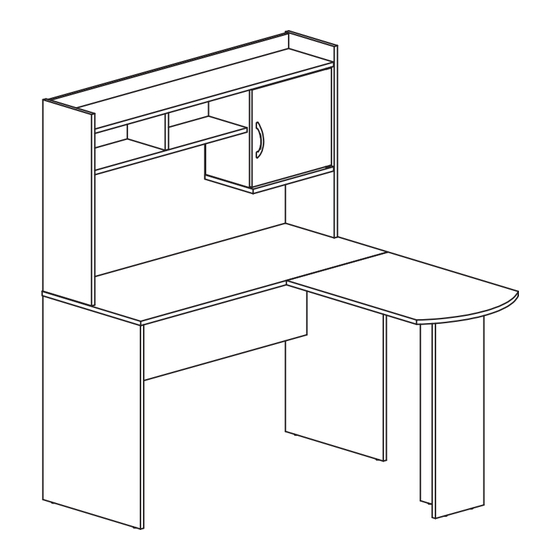

Date or Purchase ____ / ____ / ____
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
Please Recycle
Recicle Por Favor
9871303W COM
STOP
If a part is missing or damaged, visit our website or call our toll-free
customer service line. We will gladly ship your replacement parts
FREE of charge.
WWW.AMERIWOOD.COM/PARTS
For prompt, reliable service please have your assembly manual ready.
Recommended # of people needed for assembly: 2
Estimated assembly time is 2 hours.
Spanish translations are located in the center of this manual.
Se localizan las traducciones españolas en el centro de este
manual.
DO NOT RETURN PRODUCT TO THE STORE
Individual stores do not stock parts.
Need Parts or Assistance?
or call toll free:
1-800-489-3351
B349871303WCOM00MP

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9871303WCOM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ameriwood HOME 9871303WCOM

Summary of Contents for Ameriwood HOME 9871303WCOM

  • Page 1 9871303W COM Date or Purchase ____ / ____ / ____ Lot Number: STOP DO NOT RETURN PRODUCT TO THE STORE Individual stores do not stock parts. If a part is missing or damaged, visit our website or call our toll-free customer service line.
  • Page 3 PARTS return back return panel modesty panel right panel T9871303040MP T9871303030MP T9871303050MP left panel T9871303020MP T9871303010MP hutch divider hutch partition return top right hutch panel left hutch panel T9871303100MP T9871303110MP T9871303070MP T9871303090MP T9871303080MP desk top T9871303060MP back panel hutch shelf hutch top rail hutch back hutch top shelf...
  • Page 4 PARTS Hardware Bag Reference number : 29871303WCOM0MP (x37) (x1) (x1) (x37) TMP22620 TMP4018 TMP1208 TMP5102 cam lock magnet 1/4" flat head screw cam bolt (x16) (x12) (x14) TMP4514 TMP84381 (x1) TMP8002 5/8" pan screw 1-1/2" screw TMP62000 wood dowel hinge kit (x12) (x7) (x2)
  • Page 5 PARTS Hardware Bag Reference number : 29871303WCOM0MP This illustration shows how the cam fastening system works. Esta ilustración muestra el sistema de fijación de leva y como funciona. (x4) TMP6350 (x37) 2" flat head screw TMP10137 Tighten to fully seat. Do not over Proper orientation of cam.
  • Page 6 - Screw three CAM BOLTS (1) into the HUTCH TOP SHELF (P). - Attach the HUTCH BACK (N) to the HUTCH TOP SHELF (P) using three SCREWS (7). - Insert five CAM LOCK (2) into the HUTCH TOP RAIL (O). - Attach the HUTCH TOP RAIL (O) to the HUTCH TOP SHELF (P) using two SCREWS (7) and tighten the CAMS.
  • Page 7 - Screw three CAM LOCK (1) into the HUTCH TOP SHELF (P). - Tap one WOOD DOWEL (5) & one MAGNET (3) into the HUTCH PARTITION (L). - Insert two CAM LOCKS (2) into the HUTCH PARTITION (L). - Insert one CAM LOCK (2) into the HUTCH DIVIDER (M). proper orientation of cam lock posición correcta de la cerradura de leva.
  • Page 8 - Attach the HUTCH PARTITION (L) and HUTCH DIVIDER (M) to the HUTCH TOP SHELF (P) and tighten the CAMS. LOCK APRETAR UNLOCK DESAPRETAR B349871303WCOM00MP 8 /23 www.ameriwood.com...
  • Page 9 - Screw two CAM BOLTS (1) in to the HUTCH PARTITION (L). - Insert four CAMS (2) and two WOOD DOWELS (5) into the HUTCH TOP SHELF (P). - Insert four CAMS (2) and two WOOD DOWELS (5) into the FIXED SHELF (Q). proper orientation of cam lock posición correcta de la cerradura de leva.
  • Page 10 - Fasten the FIXED SHELF (Q) to HUTCH PARTITION (L) and thghten the CAMS. LOCK APRETAR UNLOCK DESAPRETAR B349871303WCOM00MP 10 /23 www.ameriwood.com...
  • Page 11 - Insert two CAM LOCKS (2) and a WOOD DOWEL (5) into the HUTCH SHELF (R). - Attach the HUTCH SHELF (R) to the HUTCH PARTITION (L) with two SCREWS (7). - Screw five SCREW (7) to FIXED SHELF (Q) with part (M) & (N). proper orientation of cam lock posición correcta de la cerradura de leva.
  • Page 12 - Screw five CAM BOLTS (1)into the holes in the RIGHT HUTCH PANEL (K) & LEFT HUTCH PANEL (J) . - Insert one WOOD DOWELS (5) into the RIGHT HUTCH PANEL (K) & LEFT HUTCH PANEL (J) . - Attach the RIGHT HUTCH PANEL (K) to the HUTCH TOP SHELF (P) and HUTCH SHELF (R) and tighten the CAMS. - Attach the LEFT HUTCH PANEL (J) to the HUTCH TOP SHELF (P) and FIXED SHELF (Q) and tighten the CAMS.
  • Page 13 9871303WCOM No regrese el producto a esta tienda, tiendas individuales no almacenan partes. Si le falta una parte o esta danada, llame al numbero gratis a la lineas de servicio al cliente. Nosotros con gusto le mandaremos la parte sin ningun costo adicional.
  • Page 14 LISTA DE PARTES ITEM DESCRIPCION CANTIDAD ITEM DESCRIPCION CANTIDAD panel izquierdo tapa de la leva panel derecho tornillo ½” panel de retorno tornillo 7/8” trasero de retorno tapa del tapón de la tuerca panel de modestia clavo escritorio perno para conectar cima de retorno juego de la bisagra panel izquierdo de la cabina...
  • Page 15 PASO 5 PASO 10 Conecte las partes (L) y (Q) a (M), (N) y (P) usando dos Inserte dos CERRADURAS DE LEVA (17) y dos CLAVOS DE TORNILLOS (15) y apriete las levas. MADERA (10) en el PANEL IZQUIERDO (A) y el PANEL DERECHO (B).
  • Page 16 PASO 15 PASO 17 Una el PANEL DE RETORNO (C) y REGRESE DE NUEVO (D) Presione todas las CUBIERTAS PARA EL CERRADURA DE al TOP DE RETORNO (H) y apriete las levas. LA LEVA (1) en todos los CERRADURAS DE LA LEVA (17). Toque dos TACK GLIDES (14) en el borde inferior del RETURN Presione las cuatro TAPAS DE TORNILLOS (5) en los cuatro PANEL (C) y otro en el borde inferior de RETURN BACK (D).
  • Page 17 - Turn the HUTCH COMPONENT from step 7 over on its front. Position the BACK PANEL onto the unit so that it is flush on the bottom edge with the HUTCH SHELF (R) and equally spaced side to side, then use twelve NAILS (12) to fasten it to the rear of the hutch cabinet. ...
  • Page 18 - With the help of another person to turn the HUTCH COMPONENT from step 8 over on its front. - Attach DESK TOP (G) to HUTCH COMPONET using four SCREW (13). - Screw four CAM BOLTS (1) into the designated holes in the DESK TOP (G). B349871303WCOM00MP 14 /23 www.ameriwood.com...
  • Page 19 - Insert six CAM LOCKS (2) and two WOOD DOWELS (5) into the holes in the MODESTY PANEL (E). - Insert two CAM LOCKS (2) and two WOOD DOWELS (5) into the LEFT PANEL (A) and RIGHT PANEL (B). - Screw three CAM BOLTS (1) into the LEFT PANEL (A) and RIGHT PANEL (B). proper orientation of cam lock posición correcta de la cerradura de leva.
  • Page 20 - Attach the LEFT PANEL (A), MODESTY PANEL (E), and RIGHT PANEL (B) together and lock the cams. - Use a hammer to tap two TACK GLIDES (11) into the edge of the LEFT and RIGHT PANELS. LOCK APRETAR UNLOCK DESAPRETAR B349871303WCOM00MP 16 /23...
  • Page 21 - With the help of another person, fasten the LEFT PANEL (A), RIGHT PANEL (B) and MODESTY PANEL (E) (component from previous page) joint to the PANEL (G) as shown. And then tighten the CAMS. LOCK APRETAR UNLOCK DESAPRETAR B349871303WCOM00MP 17 /23 www.ameriwood.com...
  • Page 22 - Attach two CONNECTING PLATES (15) to the RETURN TOP (H) using eight SCREWS (8). - Screw six CAM BOLTS ( 1 ) into the holes in the RETURN TOP (H) and three into the RETURN PANEL (C). - Insert four CAM LOCKS (2) into the RETURN PANEL (C) and four into the RETURN BACK (D). proper orientation of cam lock posición correcta de la cerradura de leva.
  • Page 23 - Fasten the RETURN PANEL (C) and RETURN BACK (D)together and tighten the CAMS . - Attach the RETURN PANEL (C) and RETURN BACK (D) to the RETURN TOP (H) and tighten the CAMS. - Tap two TACK GLIDES (11) into the bottom edge of the RETURN PANEL (C) and one into the bottom edge of the RETURN BACK (D). LOCK APRETAR UNLOCK...
  • Page 24 - With assistance of another person, attach the RETURN TOP (H) to the DESK TOP (G) using eight SCREWS (8). B349871303WCOM00MP 20 /23 www.ameriwood.com...
  • Page 25 - Attach the HANDLE (10) to the DOOR (S) with two SCREWS (9). - Screw the SCREW (4) to the DOOR (S). - Fasten one DOOR HINGE (6a) to the top of the DOOR (S) using a SCREW (6c). - Insert one BUSHING (6b) into the hole in the HUTCH SHELF (R) and place the other HINGE (6a) onto the BUSHING. - Place the other BUSHING (6b) onto the HINGE attached to the DOOR.

  • Page 26: Maximum Loads

    - Press all the COVER STICKERS (14) onto all the CAM LOCKS (2) to cover the hole. MAXIMUM LOADS 5 lbs 10 lbs 2.26 kg 4.53 kg 10 lbs 4.53 kg 100 lbs / 45.36 kg This unit has been designed to support the maximum loads shown.
  • Page 27 Call our toll free number for any assistance you should need or visit our website: www.Ameriwood.com/parts 1-800-489-3351 Clean the product with your favorite furniture polish and a soft cloth. DO NOT USE harsh chemicals or abrasive cleaners. Move your new furniture carefully with two people. Lift and carry the unit. Never push or drag the unit. Do not allow children to climb or play on the unit.
