PACKING LIST

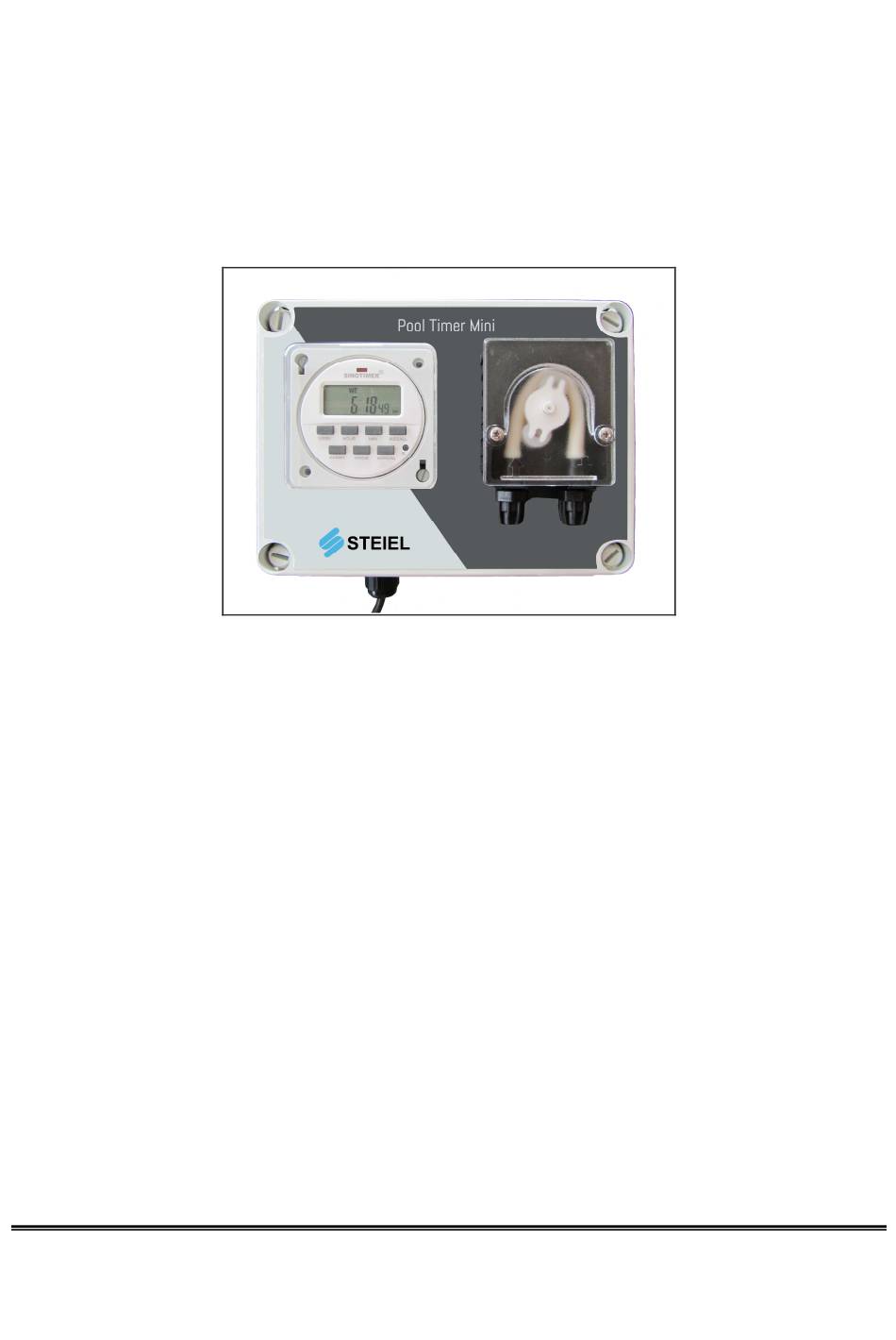

The POOL TIMER MINI is supplied complete with:
•
Kit of standard accessories for peristaltic pump, including suction and injection tubes, foot filter
and injection valve
•
Instruction manual
TECHNICAL CHARACTERISTICS
Working Temperature
Storage Temperature
Power Supply
Case
Dimensions
Weight
Installation
Protection Rate
Peristaltic Pump
PoolTimerMini_r2.0 – 07/2021
0 to +50 °C
-10 to +50 °C
230 V~ (or 115 V~) ±10%, 50/60 Hz; 8 W, 35 mA
shockproof ABS
200 x 150 x 80 mm
approx. 2 kg
wall mounting
IP54
refer to the dedicated section
page 4
