- Page 1 POOL TIMER MINI INSTRUCTION MANUAL STEIEL Elettronica S.r.l. – Viale Europa, 24 – 35020 Ponte San Nicolò – PADOVA - ITALY Tel. +39 049.8961488 – www.steiel.it – info@steiel.it Certified Company, according to UNI EN ISO 9001 standards...
- Page 2 WARNINGS This manual is dedicated to the technical personnel responsible of the installation, management, and maintenance of the plants. The manufacturer assumes no responsibility for damages or malfunctions occurring after intervention by non-authorized personnel, or not compliant with the prescribed instructions. Before performing any maintenance or repair action, ensure that the system is electrically and hydraulically insulated.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PACKING LIST ....................... page 4 TECHNICAL CHARACTERISTICS ..................4 DIGITAL TIMER ........................5 Button Keys ........................5 Technical Data ......................5 Setting the Clock ......................5 Setting the Timer ......................5 PERISTALTIC PUMP ......................6 Technical Data ......................6 Hydraulic Connections .................... -
Page 4: Packing List

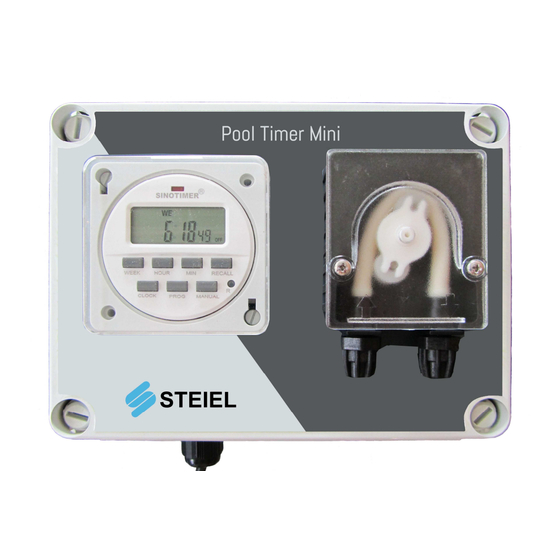

PACKING LIST The POOL TIMER MINI is supplied complete with: • Kit of standard accessories for peristaltic pump, including suction and injection tubes, foot filter and injection valve • Instruction manual TECHNICAL CHARACTERISTICS Working Temperature 0 to +50 °C Storage Temperature -10 to +50 °C... -
Page 5: Digital Timer
DIGITAL TIMER Button Keys • Manual mode • Timer • Clock • Day of the week • Hours • Minutes • Cancel / Recall Technical Data Timing Range 1 min … 168 hours Black-out 90 days Schedule up to 16 ON/OFF per day Average Error <... -
Page 6: Peristaltic Pump
PERISTALTIC PUMP Technical Data Flow Rate 2.4 l/h @ 1 bar Materials PP case and fittings, polycarbonate front panel and transparent protection, PBT roller-holder with Delrin (self-lubricant) rollers, Santoprene internal tube External Tube 4x6 mm Hydraulic Connections Warning! Avoid restricting or sharp bends in the suction and injection pipes, as they may affect the performance and durability of the pump itself. -
Page 7: Maintenance And Storage
Maintenance and Storage The periodic maintenance operations are essential for the proper functioning of the system and its duration in time. The below advice should be strictly followed: Check the level of the solution to be dosed to prevent the pump from running dry. Check that the suction and delivery pipes are clean and not containing any impurities, which could damage the tube and cause flow rate anomalies.
