Summary of Contents for Tannoy CMS 1201SW

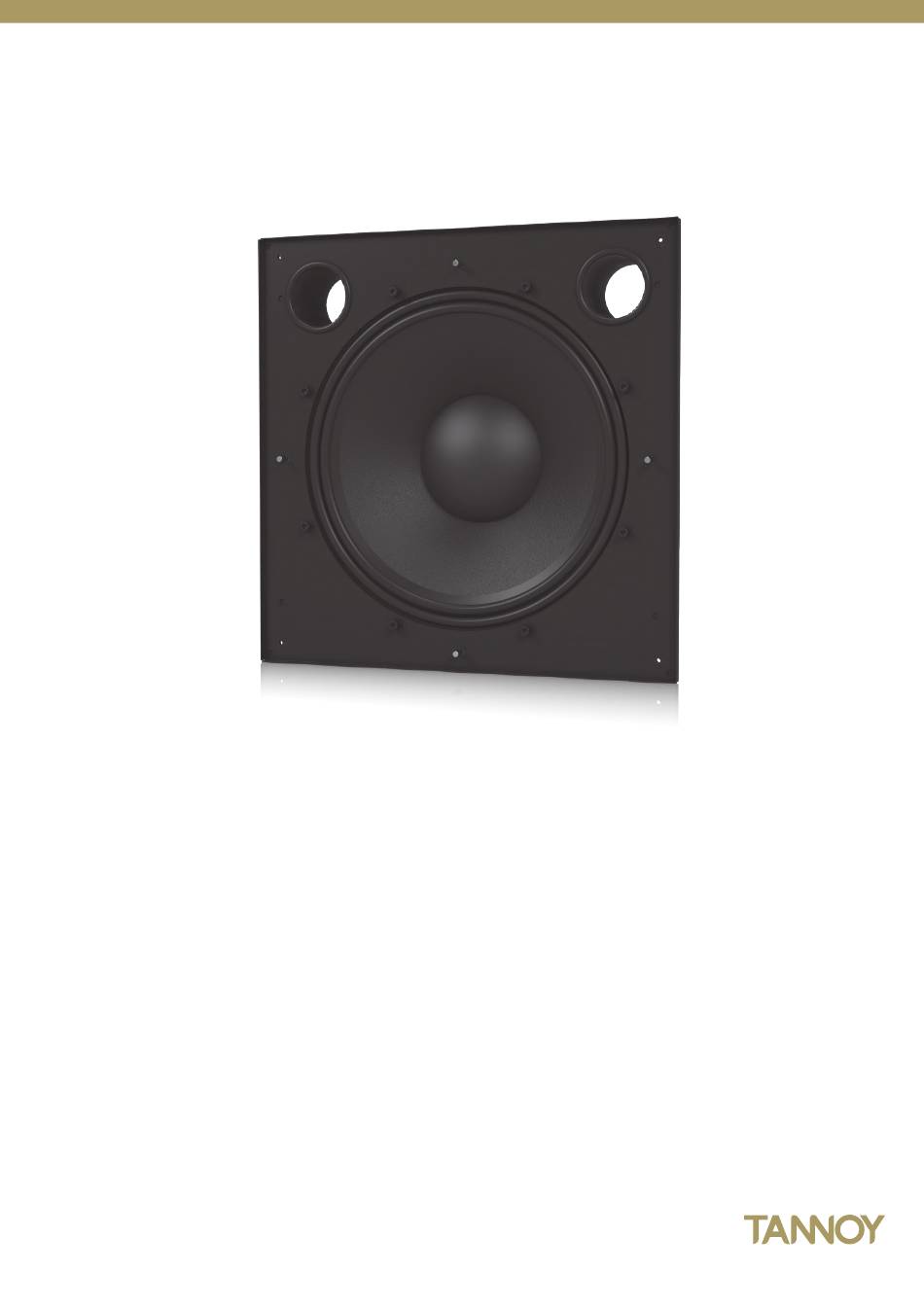

- Page 1 Quick Start Guide CMS 1201SW 12" Ceiling Subwoofer for Installation Applications V 1.0...
- Page 2 Midas, Klark Teknik, Lab Gruppen, by qualified personnel. or table specified by the Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, manufacturer, or sold with This symbol, wherever it appears, Behringer, Bugera, Oberheim, Auratone, Aston the apparatus. When a cart alerts you to the presence of uninsulated...
-
Page 3: Unpacking And Visual Checks
Tannoy’s existing class-leading CMS range, or any full range system requiring extended bass response. Intended for systems utilizing an external active crossover and separate amplifier channel for the subwoofers, the CMS 1201SW features a high power handling 12" (300 mm) bass driver featuring a 3" copper sandwich voice coil for low power compression and triple aluminium demodulating rings for ultra-low distortion. - Page 4 Installation Guide Back-can The custom engineered powder coated steel back-can has been designed to cater for all conceivable installation possibilities making the CMS 1201SW extremely versatile. Internally dampened with particle board, the addition of the back-can provides exceptional low frequency performance.
- Page 5 20 mm (0.79") and 29 mm (1.14") conduit knockouts on all five sides of the can. Saving time and manpowerduring installation has been a driving factor behind the design of the CMS 1201SW system. Baffle assemble can be hooked onto the back can with care.
- Page 6 Quick Start Guide Dimensions 588.2 457.0 [23.16"] [17.99"] 24.6 100.0 100.0 [0.97"] [3.94"] [3.94"] 302.6 315.0 [11.91"] [12.40"] 15.3 [0.60"] 516.0 725.0 [20.31"] [28.54"] 60.0 [2.36"] 432.0 [17.01"] 432.0 [17.01"]...
-
Page 7: Specifications
1. Average over stated bandwidth. Measured in an IEC baffle in an Anechoic Chamber 2. Unweighted pink noise input, measured at 1 metre on axis 3. PEQ1: 50Hz +2.6dB PEQ2: 175Hz -4.6dB A full range of measurements, performance data, CLF and Ease™ Data for CMS 1201SW can be downloaded from www.tannoypro.com. -
Page 8: Aspectos Importantes
Important information Informat 1. Register online. Please register your new 1. Enregistrez-vou Music Tribe equipment right after you purchase it by temps d’enregistrer votre pr visiting musictribe.com. Registering your purchase using que possible sur le site Intern our simple online form helps us to process your repair d’enregistrer le produit en lig claims more quickly and efficiently. - Page 9 Quick Start Guide Hereby, Music Tribe declares that this product is in compliance with Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC, and this passive product is not applicable to EMC Directive 2014/30/EU, LV Directive 2014/35/EU. Full text of EU DoC is available at https://community.musictribe.com/ EU Representative: Music Tribe Brands DK A/S Address: Ib Spang Olsens Gade 17, DK - 8200 Aarhus N, Denmark...
