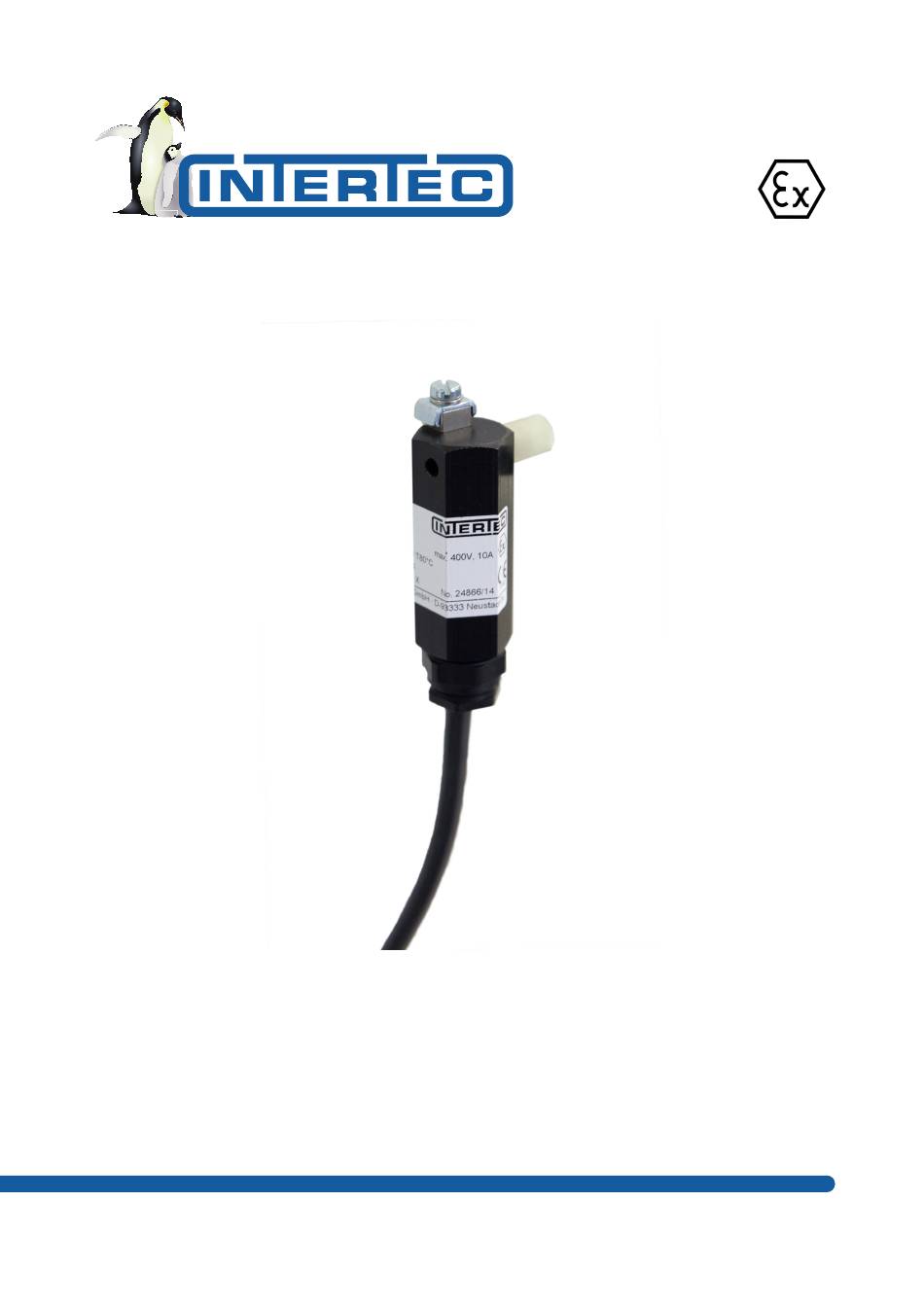

- Page 1 Operating Instructions Temperature switch TA.. HOM107645195en-8 • 11/06/2024...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use................................... 3 3 Specific conditions for use ........................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Installation accessories............................ 4 7 Technical Data ................................ 4 8 Installation Instructions............................ -
Page 3: General
www.intertec.info Operating Instructions Temperature switch TA.. 2. For use in the explosive dust atmosphere, the General relevant requirements of IEC 60079-14, IEC These operating instructions describe the safe and 60079-17 and IEC 60079-19 shall be complied with. proper way to work with the device. The safety information and instructions given as well as the local Explanation of symbols for warnings accident prevention regulations and general safety... -
Page 4: Safety Information
www.intertec.info Operating Instructions Temperature switch TA.. Safety information Permitted operating voltage max. 275 V / 300 V Rated current (in compliance max. 10 A with VDE 0298) CAUTION Ambient temperature - 60 to + 60 °C Max. permitted operating - 60 to + 180 °C Risk of injury at the rib ends temperature The sharp edges on the heating ribs may cause injury if... -
Page 5: Connection
www.intertec.info Operating Instructions Temperature switch TA.. To fix the TA.. at the heater type as shown in Fig.1, there are M6 holes on the sides of the block. • Turn the threaded rod supplied with the bolt package of the VARITHERM approx. 5 mm into one of these threaded holes. - Page 6 www.intertec.info Operating Instructions Temperature switch TA.. The design of the device does not require any maintenance. NOTICE Terminal box NEVER retighten the KLE type cable gland. The cable gland is maintenance-free and has been tightened to the required torque at the factory. Retightening the KLE cable gland can cause damage to seals and cable.
-
Page 7: 14 Eu Declaration Of Conformity
www.intertec.info Operating Instructions Temperature switch TA.. Fault Cause Effect/Measure NOTICE Device does not Temperature Check switch (power installation, Environmental damage may be caused if circuit) is continuity test of disposed of incorrectly! interrupted the power circuit. permanently Note the Electrical scrap and electronics components are subject switching point of to hazardous waste treatment and must only be the temperature... - Page 8 www.intertec.info Operating Instructions Temperature switch TA.. If the information contained in this instruction manual should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further information and service. Please contact your INTERTEC contact person or directly contact INTERTEC-Hess GmbH Raffineriestr.
