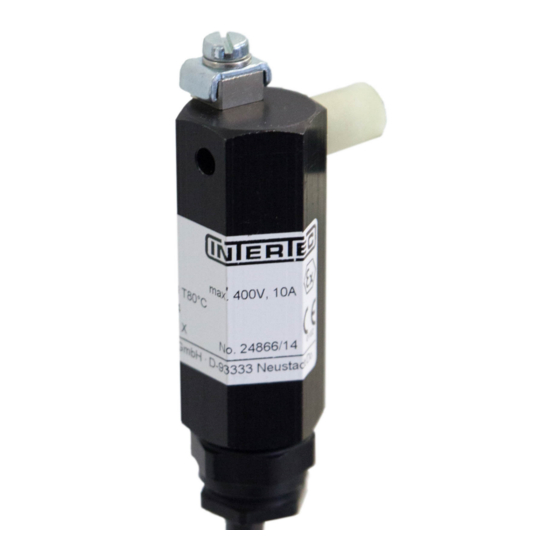

- Page 1 Operating Instructions Temperature switch TA.. HOM107645195Ien-5 • 21/09/2020...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Installation accessories ............................ 3 5 Technical Data ................................ 3 6 Installation Instructions ............................ 4 7 Connection................................ 5 8 Maintenance................................ -
Page 3: General
www.intertec.info Operating Instructions Temperature switch TA.. General DANGER These operating instructions describe the safe and proper way to work with the device. The safety DANGER information and instructions given as well as the local This sign is warning about an extremely hazardous accident prevention regulations and general safety situation which, if not heeded, will lead to death or regulations valid in the area of application must be... -
Page 4: Installation Instructions
www.intertec.info Operating Instructions Temperature switch TA.. Rated current (in compliance max. 10 A with VDE 0298) Ambient temperature - 60 to + 60 °C Max. permitted operating - 60 to + 180 °C temperature Temperature tolerance +/- 3°C Dimensions (height x wrench 90 x (WS) 24 mm size) Material... -
Page 5: Connection
www.intertec.info Operating Instructions Temperature switch TA.. Terminal box Heating br=brown bl=blue ye/gn=yellow/green Illustration 3: TAE with heating Illustration 2: Installation example of a TA.. with MULTITHERM Terminal box heater and clearance Connection INFO The device may only be connected up and secured by a trained person, taking into account the "rated voltage"... -
Page 6: Troubleshooting
www.intertec.info Operating Instructions Temperature switch TA.. The design of the device does not require any CAUTION maintenance. All components have to be kept clean and free of dust Risk of burns from a hot surface and harmful substances that could lead to excessive Attainable highest temperatures: temperature rise. -
Page 7: 13 Eu Declaration Of Conformity
www.intertec.info Operating Instructions Temperature switch TA.. The local community authorities or specialist waste Please contact your INTERTEC contact person or disposal companies provide information directly contact environmentally friendly disposal. INTERTEC-Hess GmbH Raffineriestr. 8 EU declaration of conformity 93333 Neustadt/Donau manufacturer, INTERTEC-Hess GmbH, Germany...
