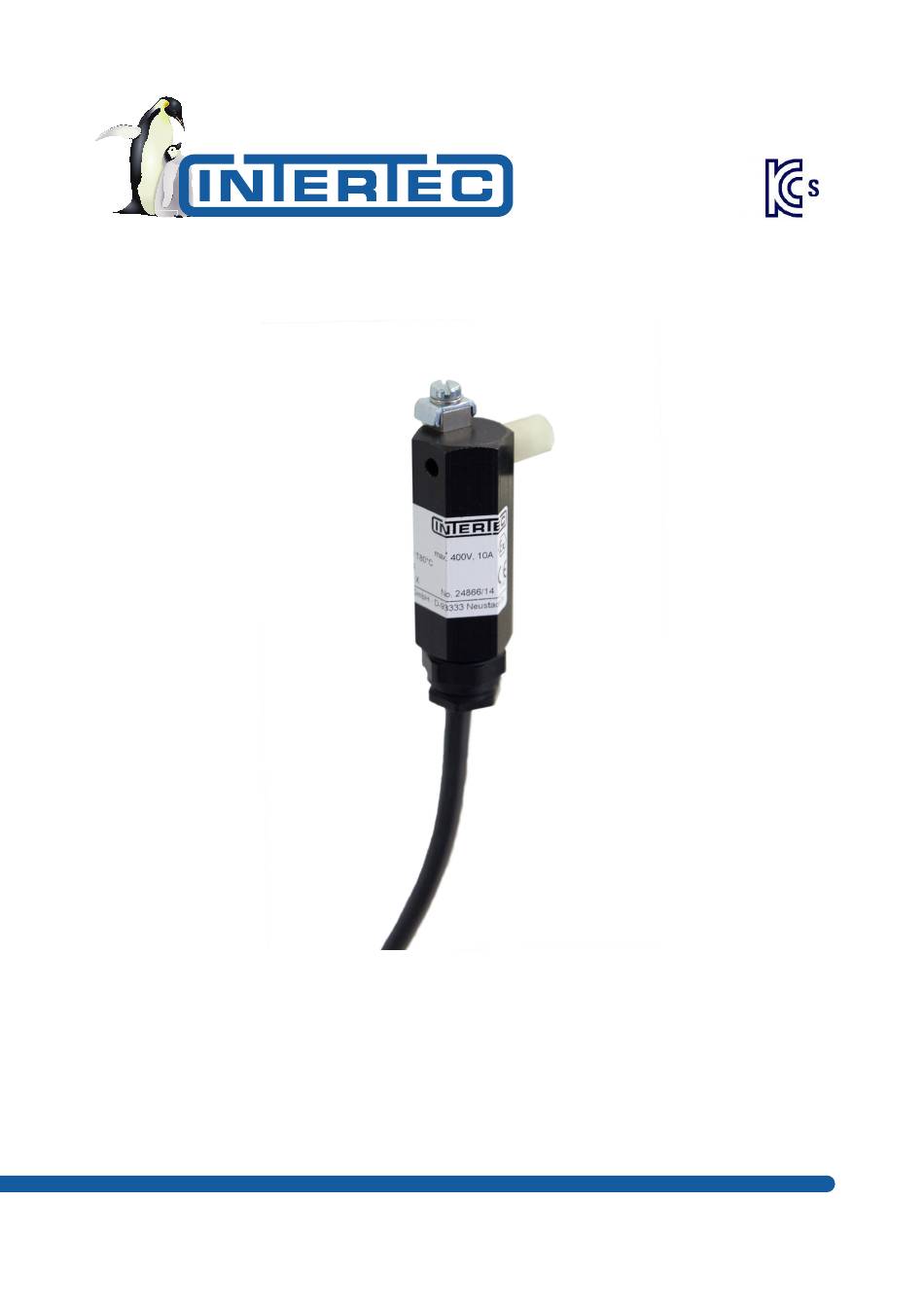

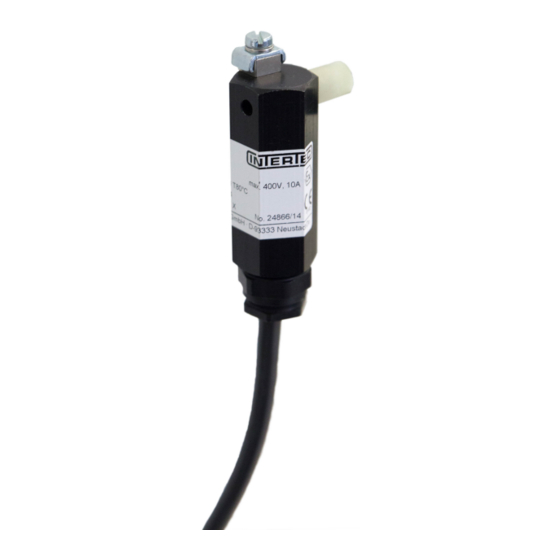

- Page 1 Operating Instructions Temperature switch TA HOM183166987Ien-2 • 07/05/2019...
- Page 2 www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Installation accessories ............................ 3 5 Technical Data ................................ 3 6 Installation Instructions ............................ 4 7 Connection................................ 5 8 Maintenance................................
- Page 3 This sign is warning about a hazardous situation which, if not heeded, may lead to death or serious irreversible injury. The temperature switch TA.. is manufactured according to the guideline Directive from Ministry of Employment and Labor No. 2016-54 and serves as a thermostat, fault CAUTION alarm or thermal fuse.
- Page 4 Operating Instructions Temperature switch TA Permitted operating voltage max. 275 V respect- ively 400 V Rated current (in compliance max. 10 A with VDE 0298) Ambient temperature - 60 to + 60 °C Max. permitted operating tem- - 60 to + 180 °C...
- Page 5 Operating Instructions Temperature switch TA supply as soon as the insulation resistance is no greater than 50 Ω per Volt of the rated voltage (refer also to KS C IEC 60079-14). Terminal box Heating br=brown bl=blue ye/gn=yellow/green Illustration 3: TAE with heating Illustration 2: Installation example of a TAE with MULTITHERM...
- Page 6 Operating Instructions Temperature switch TA Maintenance CAUTION The design of the device does not require any mainten- ance. Risk of burns from a hot surface Attainable highest temperatures: Functional and safety test intervals can be freely selec- ted by the operator in accordance with the applicable - Max.
- Page 7 Operating Instructions Temperature switch TA The local community authorities or specialist waste dis- INTERTEC-Hess GmbH posal companies can provide information on environ- Raffineriestr. 8 mentally friendly disposal. 93333 Neustadt/Donau Germany Declaration of Conformity Phone: +49 9445 9532-0 The manufacturer, INTERTEC-Hess GmbH, Raffiner- iestrasse 8, 93333 Neustadt/Donau, Germany, hereby e-mail: info@intertec.info...
