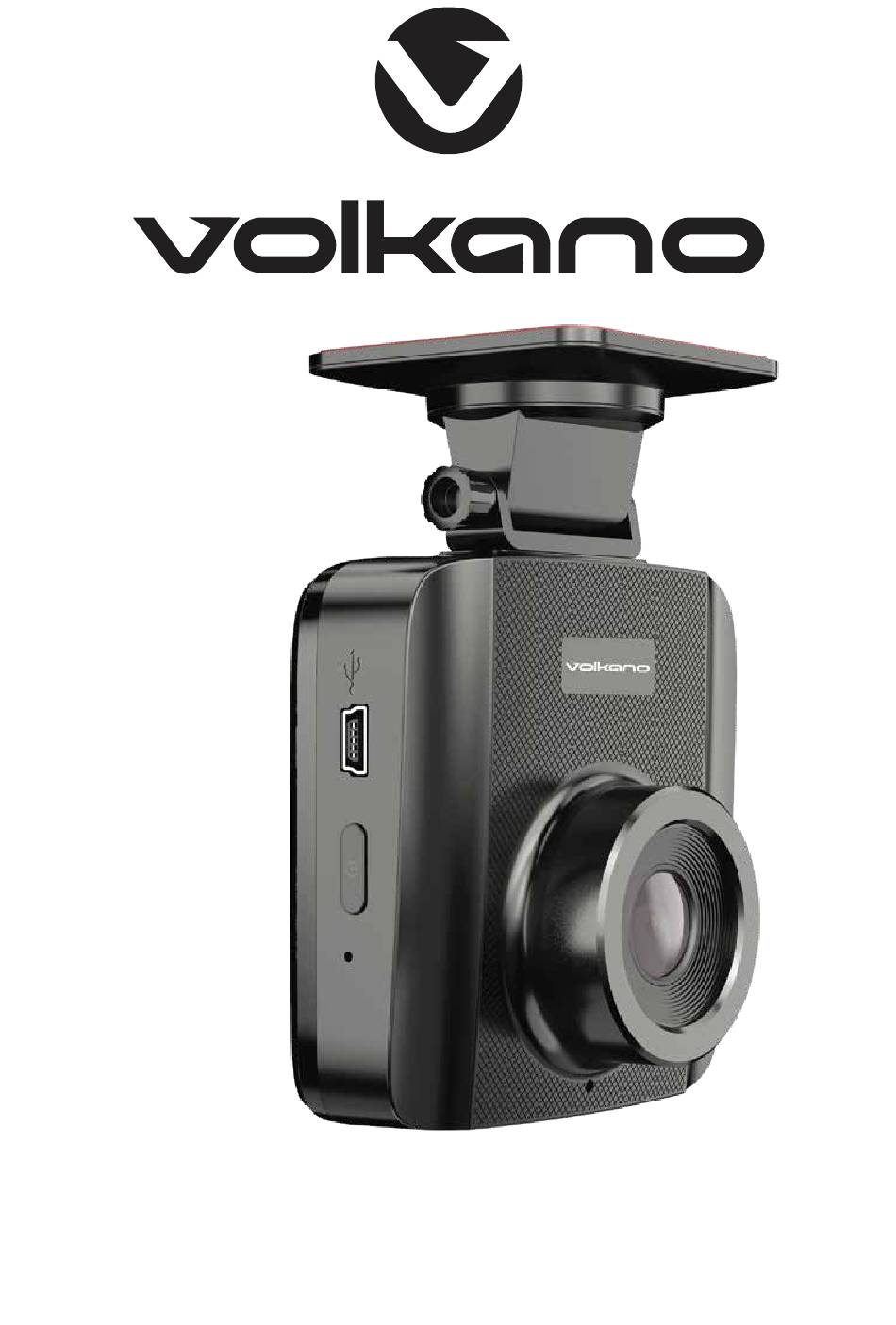

- Page 1 Traffic 720P HD DASH CAMERA INSTRUCTIONS PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Specifications
The Highlights: - Vehicle Windscreen mounted camera for recording video and sound while driving. - Can be used as a web camera with a computer. - Video and Photographs can be transferred to a computer for later use. - Lock mode to secure recordings in the event of an accident or incident. - This Dashcam has an internal battery, in the event of an incident you can unplug the camera and use it to take pictures of the scene. -
Page 3: Description Of Parts
Notes: - Do not install the camera in a location that will block your view of the road, interfere with the mirror or controls, or obstruct the airbag. - To obtain the best open-field view, install the camera above the center of the dashboard near the rear-view mirror. -
Page 4: Included In The Box
We recommend the use of a high speed (Class 6 or higher) Memory Card for best results. Your Volkano Dash Cam will operate with memory cards up to 64GB in size. To insert the memory card, ensure the Dash Cam is turned off then gently insert it into the Micro SD Card Slot with the arrow pointing toward the slot and push it until it clicks into place. - Page 5 Typical usage times for a 64GB Memory Card is 1230 minutes on HD (720p) Mode. Fitting Your Volkano Dash Cam: Peel the 3M Tape film off the bottom of the bracket, Firmly place the bracket the desired position on your Dashboard, then slide the camera onto the bracket and adjust the angle to the desired position.
-
Page 6: Operating Your Dash Cam
Operating Your Dash Cam: 1. Charging: A. Using the built-in rechargeable lithium battery: Charging options: 1. Connect it to the vehicle 12V outlet using the supplied charger. 2. Connect it to a 5V USB charger or a computer or power bank. B. -
Page 7: Settings Menu
D. Playback Mode: • After the Dash Cam is switched on, press the MENU button once and navigate to the forth option and press OK. You can navigate through the saved content by using the UP and DOWN buttons. Use the OK button to Play or Pause video. •... - Page 8 6. Screen Switch: this setting, when enabled will turn the screen off after a set period of time. The options are: Close (disabled), 1 minutes, 2 minutes, 3 minutes. 7. Voice Recording: This is to activate sound recording while video is being recorded. Options are: Open (On) / Closed (Off).
-
Page 9: Troubleshooting
Troubleshooting: - Should your Dash Cam freeze or stop operating for any reason, please press the Reset switch by inserting the end of a paper clip into the reset hole until you feel it click. Your Dash Cam will then reset and resume normal operation. - If the dash cam is not going to used for an extended period of time we recommend that that it is unplugged and packed away to preserve is life. -
Page 10: Care And Cleaning
Care & Cleaning: - Turn the Device off when not in use or before cleaning. - The Casing may be cleaned by wiping with a soft, damp cloth moistened with water only. Do not use harsh abrasives or cleaners. Dry thoroughly with a soft cloth. - Do not use abrasive or harsh chemicals on the lens or display of the device.
