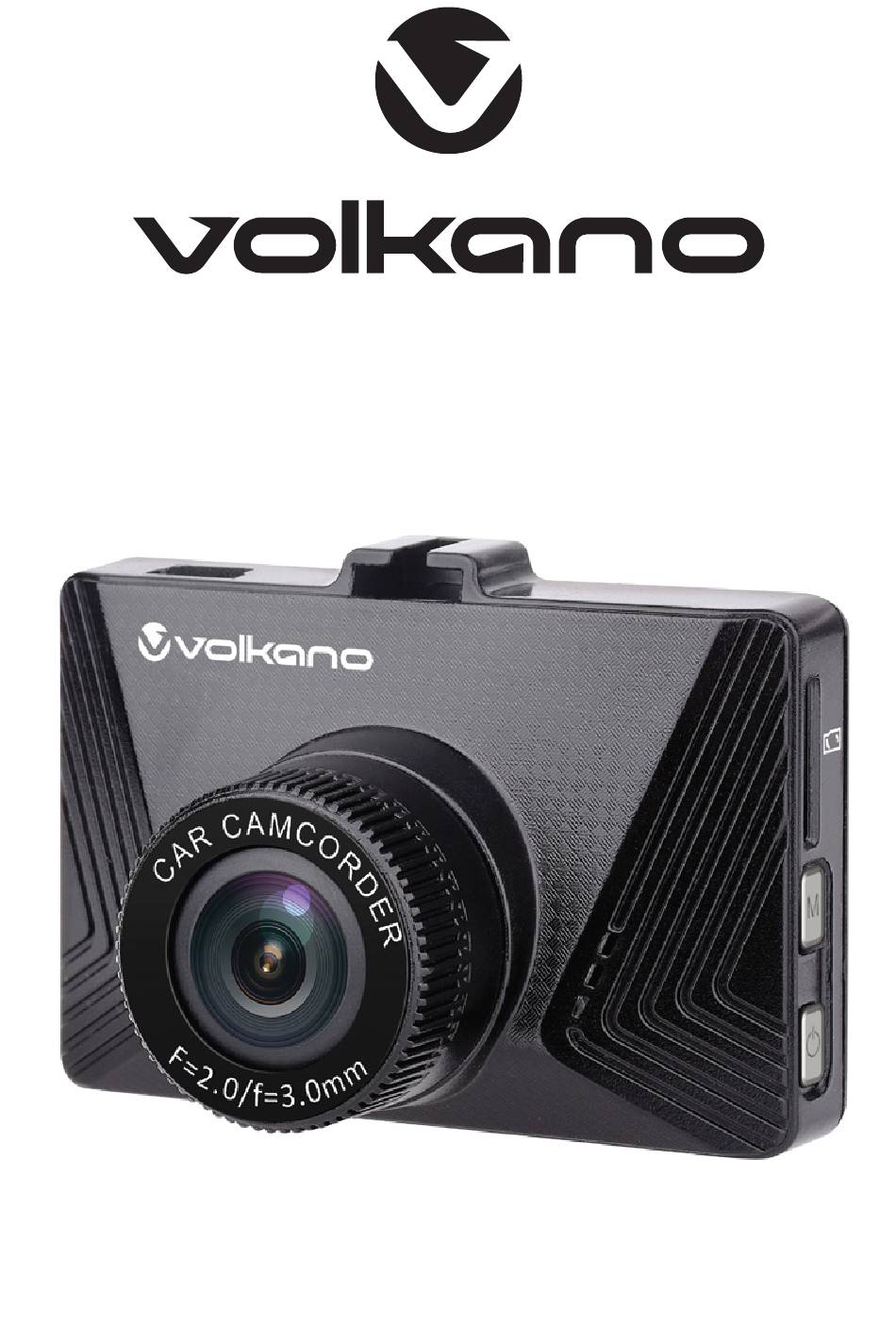

- Page 1 Suburbia 720P HD DASH CAMERA INSTRUCTIONS PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 Specifications: Screen 2.0-inch LCD Video Format Video resolution 720P@30fps, 480p@30fps Image Format Photo resolution 12M/10M/8M/5M/3M/2M/1.3M/1M/VGA G-SENSOR Micro card up to 32GB Lens f=3.0mm, F2.0 Microphone Notes: - Do not install the camera in a location that will block your view of the road, interfere with the mirror or controls, or obstruct the airbag.
- Page 3 Description of Parts: Object Function Lens The camera lens records video and shoots photos Indicators Top: Turns red when ready to record, flashes when recording. Bottom: Turns blue while charging Display Screen Previews recordings, displays menu options Attach the included suction cup mount to your Bracket Slot camera by attaching it to the bracket slot Use for charging...
- Page 4 Inserting a Memory Card: Before using your dashcam, insert a Micro SD Memory Card into the memory card slot. A Micro SD memory card is required in order to store recorded photos and videos. Your dashcam supports Micro SD Memory Cards up to 32GB in capacity. To ensure smooth performance and plenty of room for recording long journeys, it is recommended to use a memory card rated class 6 or above, with at least 8GB in capacity.
- Page 5 Mounting the Dash Cam: Attach the dashcam to your vehicle’s windshield with the included suction cup mount. 1. Slide the windshield mount bracket hook into the bracket slot on the top of the dashcam. Make sure it slides in place so that the suction cup mount is securely attached to your dashcam.
- Page 6 Powering on and Charging: In order to power on your dashcam, you can plug one end of the supplied car charger into the cigarette lighter socket of your vehicle, and then connect the other end to the USB port on your dashcam. Once plugged in, your dashcam turns on and starts recording automatically when ignition is turned on, When the ignition is turned off, the dashcam will turn off shortly afterwards.
- Page 7 Exploring Your Dashcam’s Different Modes: Your dashcam has three separate modes. To switch between modes, press the Mode button repeatedly until you access the mode of your choice. Once you’ve reached the mode of your choosing, you can press the Power button to open the setting menu of that specific mode.
- Page 8 Video Capture Mode: In order to record video content, ensure that the your dashcam is in video capture mode. Preparing Your Dashcam for Video Recording: In order to record video with your dashcam, ensure that a Micro SD memory card is inserted into the memory card slot on dashcam.
- Page 9 Setting Description Movie Size Sets the resolution of the video. (1080P 1920x1080, 720P 1280x720 or VGA 640x480) Loop Time Sets the duration for each recording. Motion Detection OFF/ON Video sound OFF/ON Date stamp OFF/Date/Date & time Displays or hides the date/time stamp on your recordings. OFF/High/Middle/Low G-sensor Photo Capture Mode:...
- Page 10 Photo Capture Mode Settings: Setting Description Resolution Sets the image resolution. (9M/5M/3M/2M/1.3M/1M/VGA) Quality Super Fine/Fine/Normal for choice Driver Mode OFF/Self 2S/Self 10S/Burst for choice Date Stamp Displays or hides the date/time stamp on your photos. Playback Mode: If your dashcam is powered on, and not recording video, then you can view the photos or videos that you have already taken by entering playback mode.
- Page 11 General Settings Menu: If your dashcam is powered on, and not recording video, then you can access the general settings menu from any mode. To do so, press the Power button once. Then press the Mode button to access the general settings menu. icon will appear in the upper left-hand corner of the screen when you are in the general settings menu.
- Page 12 Troubleshooting: - Should your Dash Cam freeze or stop operating for any reason, please press the Reset switch by inserting the end of a paper clip into the reset hole until you feel it click. Your Dash Cam will then reset and resume normal operation. - If the dash cam is not going to used for an extended period of time we recommend that that it is unplugged and packed away to preserve is life.
- Page 13 Care & Cleaning: - Turn the Device off when not in use or before cleaning. - The Casing may be cleaned by wiping with a soft, damp cloth moistened with water only. Do not use harsh abrasives or cleaners. Dry thoroughly with a soft cloth. - Do not use abrasive or harsh chemicals on the lens or display of the device.
