Nym
2840 - 2841 - 2845 - 2846 - 2850 - 2855
DESIGN
Cazzaniga - Mandelli - Pagliarulo
ISTRUZIONI
Instructions - Gebrauchsanweisungen - Instrucciones
EN -

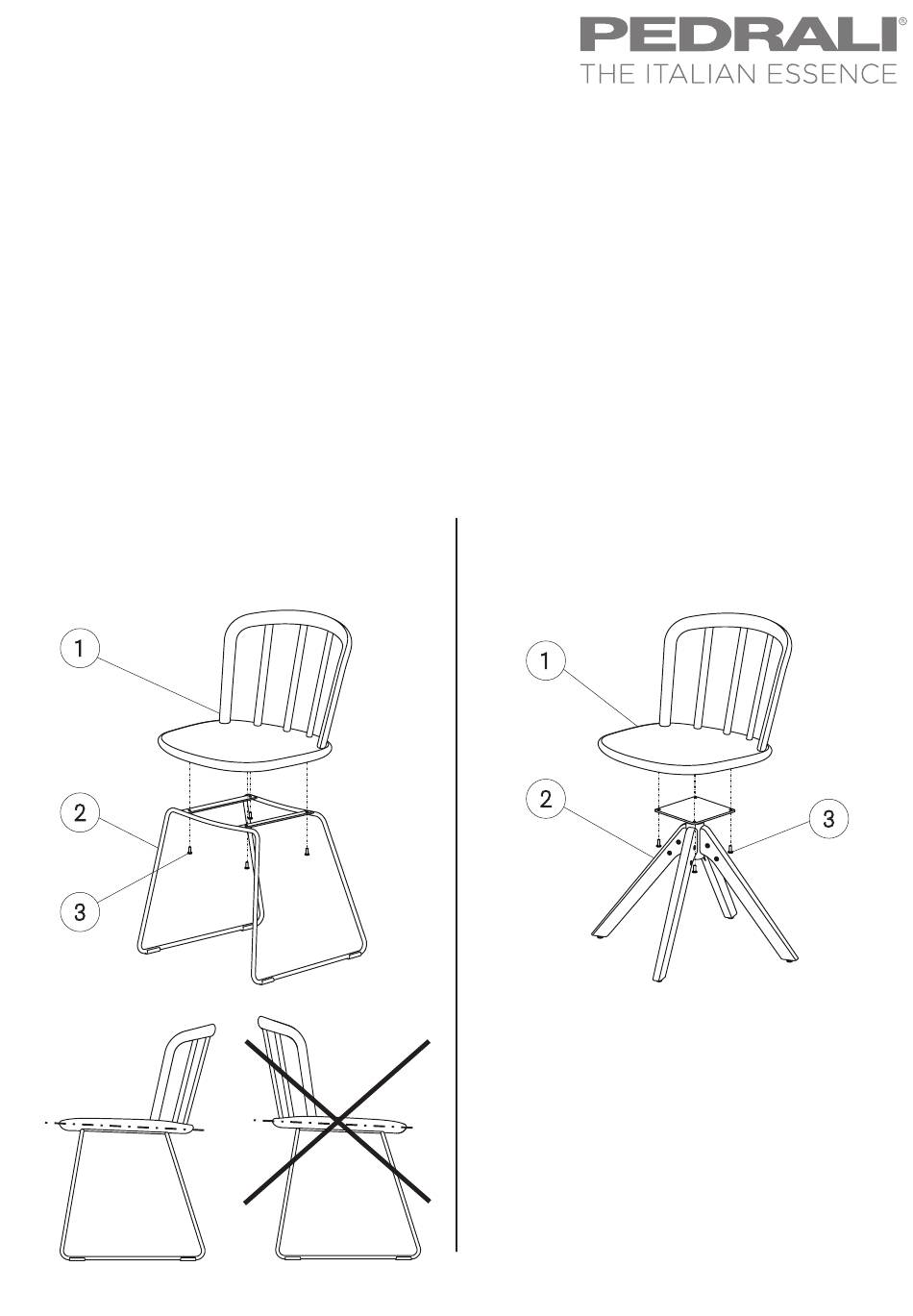

Put the shell (1) onto the holes of the frame (2) and make sure that you are putting it in the right inclination. Fix the
screws (3).
IT -
Posizionare la scocca (1) in corrispondenza dei fori del telaio (2), facendo attenzione alla corretta inclinazione. Fissare le
viti (3).
DE -
Die Schale (1) an den Löchern des Gestells (2) positionieren und auf die richtige Neigung aufpassen. Die Schrauben (3)
befestigen.
FR -
Positionner la coque (1) en correspondance des trous de la structure (2), faisant attention à l'inclinaison. Fixer les vis (3).
ES -
Posicionar la carcasa (1) en correspondencia de los agujeros del armazón (2) poniendo atención en la correcta inclinación.
Fijar los tornillos (3).
2850 - 2855
1
2
3
YES
2840 - 2841 - 2845 - 2846
NO
1
2
3
