AETEK 2E10-110-TX-V2 Quick Installation Manual

Epo2 adapter

Advertisement

Quick Links

INTRODUCTION
Model
Power Source
2E10-110-TX-V2
56VDC or EPo2 RX
2E11-110-RX-V2
56VDC or PoE Input EPo2 PoE In Rx Adapter, 1x EPo2 2P Terminal Block, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC
PACKAGE CONTENTS
* 1x Quick Installation Guide
IMPORTANT:
1. Use CAT5e or CAT6 UTP/STP cables and 2 wires cables.
2. Please avoid using low quality cables, which will seriously limit the cabling distance and power delivery.
3. Make sure the power source is sufficient for your configuration.
Caution !
You must turn off the 48VDC input on the line from the telephone company before you install EPo2 over existing
telephone line
You must turn off the power input on the doorbell line from the your power box of room controller before you install EPo2
over existing doorbell line

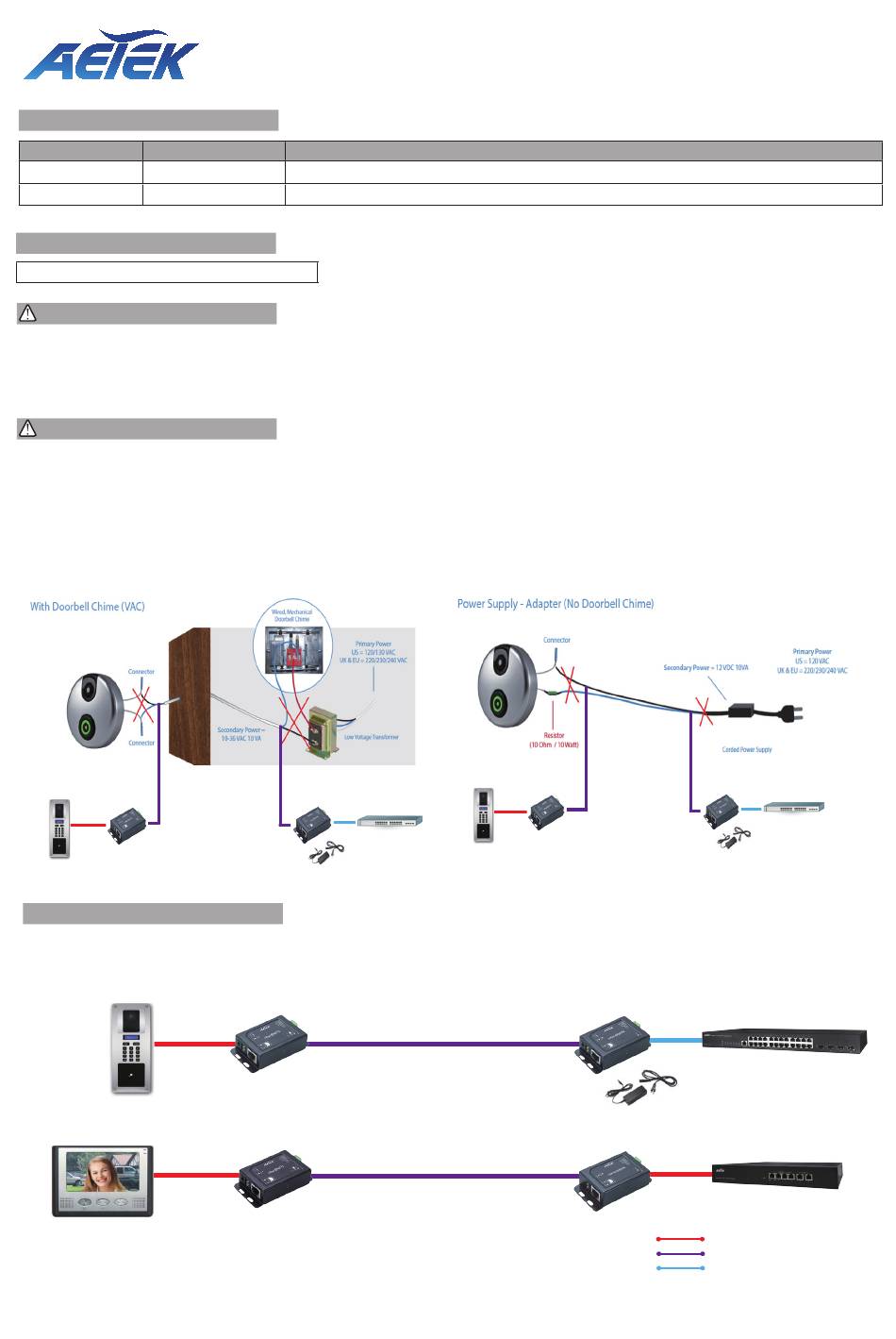

2E10-110-TX-V2
CONNECTION
Application :
2E10-110-TX-V2 / 2E11-110-RX-V2 EPo2 Adapter
Quick Installation Guide
Description
EPo2 Tx Adapter, 1x EPo2 2P Terminal Block, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC
2 wires
Doorbell wire
2E11-110-RX-V2
Network Switch
2E10-110-TX-V2
2E10-110-TX-V2
2E10-110-TX-V2
2E11-110-RX-V2
2 wires
Doorbell wire
or
Telephone line
2E11-110-RX-V2
2 wires
Doorbell wire
or
Telephone line
P/N: 5019048700
2 wires
Doorbell wire
2E11-110-RX-V2
Network Switch
C60-00F-01
C42-042-91-380
PoE (Data + Power)
2 wires Cables (Data + Power)
Ethernet (Data)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2E10-110-TX-V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for AETEK 2E10-110-TX-V2

  • Page 1 2E10-110-TX-V2 / 2E11-110-RX-V2 EPo2 Adapter Quick Installation Guide P/N: 5019048700 INTRODUCTION Model Power Source Description 2E10-110-TX-V2 56VDC or EPo2 RX EPo2 Tx Adapter, 1x EPo2 2P Terminal Block, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC 2E11-110-RX-V2 56VDC or PoE Input EPo2 PoE In Rx Adapter, 1x EPo2 2P Terminal Block, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC...
  • Page 2 • Press the Join button for 10~15 seconds to reset the Extender to default. All specifications are subject to change without noice. Copyright © 2024 AETEK INC. All rights reserved. AETEK INC. 6F, No.192-1, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
