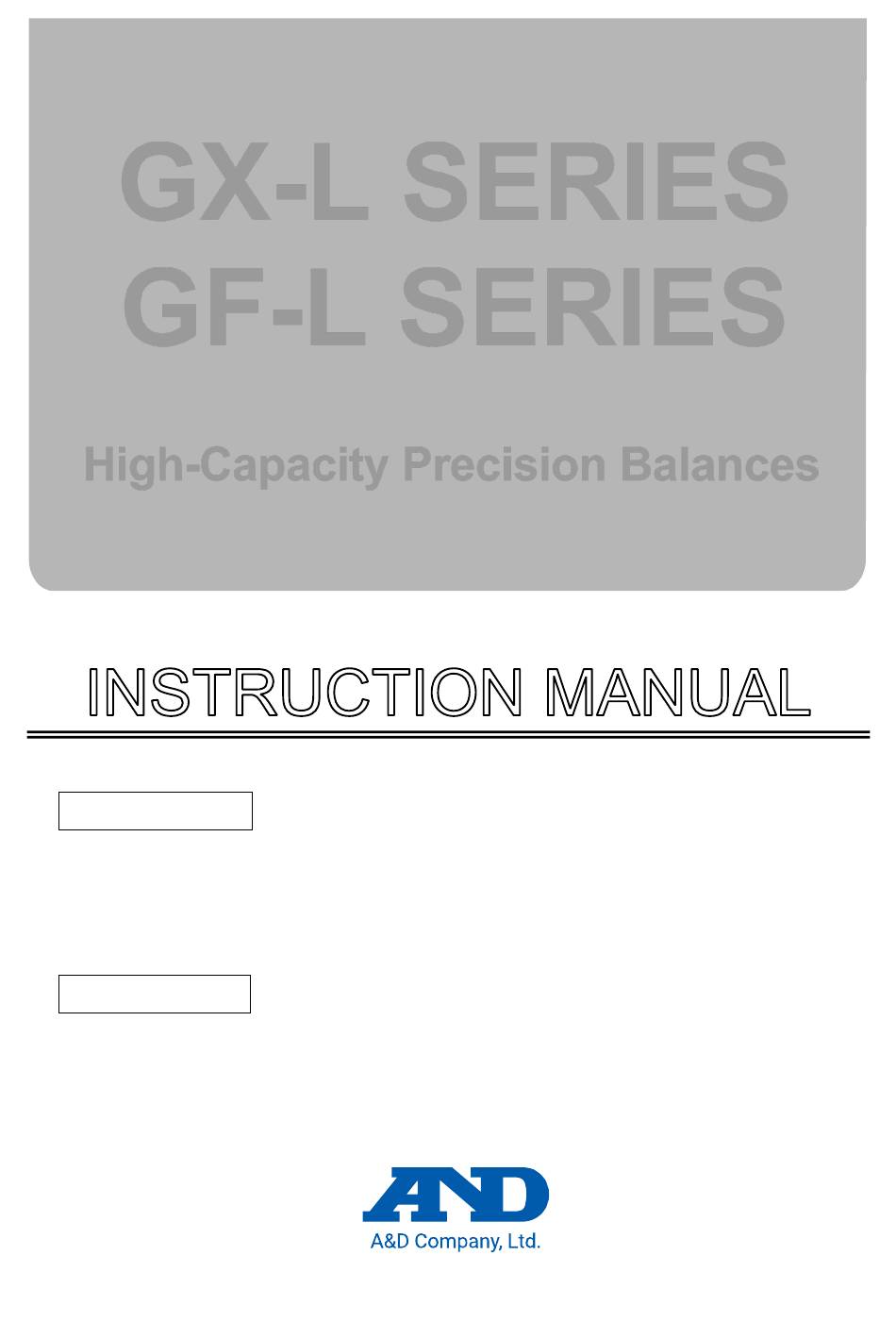

Page 1 GX-L SERIES GF-L SERIES High-Capacity Precision Balances GX-L Series GX-12001L / GX-22001L / GX-32001L / GX-32001LD / GX-42001L / GX-62001L GX-62000L / GX-102000L GX-32001LS / GX-32001LDS / GX-62001LS / GX-62000LS / GX-102000LS GF-L Series GF-12001L / GF-22001L / GF-32001L / GF-62000L...
Page 2 This Manual and Marks All safety messages are identified by the following, “WARNING” or “CAUTION”. The meanings are as follows: A potentially hazardous situation which, if not avoided, could result in WARNING death or serious injury. A potentially hazardous situation which, if not avoided, may result in minor CAUTION or moderate injury.
Page 3: Table Of Contents
Clearing the set time ......................46 7-1-3. Setting the interval time ......................47 7-2. Sensitivity adjustment using the internal weight (GX-L series only) ............49 7-3. Sensitivity adjustment using an external weight ................50 7-4. Setting the value of the weight ......................51 7-5.
Page 4 8-2-2. Initialization (function table only) .................... 60 9. Function Table ......................61 9-1. Setting the function table ........................61 9-2. Details of the function table ......................63 9-2-1. Output of the function table information ................. 72 9-3. “Environment/Display” explanation ....................74 9-4.
Page 5 16-4. Registering (changing) password ....................172 16-5. Deleting password ( ) ....................174 16-6. If password is lost or forgotten ....................... 174 17. Repeatability Check Function (GX-L series only) ............175 18. Interface Specifications ..................... 176 18-1. RS-232C ............................176 18-2. USB ..............................178 19.
Page 6 19-6. Windows communication tools for parameter setting (“WinCT-ParamSet”) ........189 19-7. Commands ............................. 190 19-7-1. Control commands ....................... 190 19-7-2. The <AK> code and error codes ..................193 19-7-3. Command usage examples ....................194 19-8. The UFC function ........................... 199 19-8-1.
Page 7: Introduction
(mass per sample in counting mode). (For weighing values, up to 200 values can be stored.) The GX-L series has automatic self sensitivity adjustment function using the internal weight, adapting to temperature changes, setting time and interval time.
Page 8: About The Models
GX-62000LS / GX-102000LS Separate type The GX-L series is equipped with the internal weight for sensitivity adjustment. You can use functions such as sensitivity adjustment using the internal weight and automatic sensitivity adjustment. The GF-L series does not have a built-in weight for sensitivity adjustment. When performing sensitivity adjustment, it is necessary to prepare a calibration weight separately.
Page 9 Swing-arm type GX-12001L / 22001L / 32001L / 32001LD / 42001L / 62001L / 62000L / 102000L GF-12001L / 22001L / 32001L / 62000L RS-232C serial interface AC adapter jack Movable range of the display (D-sub 9-pin) Approx. 160° USB (mini-B) CAUTION Hard to insert due to its design (dust-tight, protected...
Page 10 Separate type GX-32001LS / 32001LDS / 62001LS / 62000LS / 102000LS AC adapter jack RS-232C Movable range of the display interface Approx.140° (D-sub 9 pin) Cable USB (mini-B) CAUTION Hard to insert due to its design (dust-tight, protected against water jets). Insert firmly.
Page 11: Assembly And Installation
2-1. Assembly and installation 1. Consider the cautions described later regarding the place to install the balance. Level Tilted 2. Place the “weighing pan” on the main body of the balance. (Refer to Main unit previous pages.) rear side 3. Level the balance by adjusting the leveling feet so that the bubble High of the bubble spirit level is centered in the circle.
Page 12 Adjusting the level of the balance Example: Steps to take if the bubble is at the top left of the bubble spirit level Center circle of the bubble spirit level Bubble Bubble spirit level Procedure How to adjust the leveling feet Main unit rear side Step 1 Bubble spirit level...
Page 13: Precautions Before Use (Installation Considerations And Preparation)
2-2. Precautions before use (Installation considerations and preparation) Prepare the following installation conditions in order to bring out the full performance of the balance. This product is a high precision balance with a maximum resolution of 1/600,000. The balance tends to be susceptible to temperature changes, pressure fluctuations, vibration, drafts, and other factors at the installation site.
Page 14 If the balance is moved, it may be damaged by impact shocks. In addition, the weighing value will be  unstable immediately after the balance is moved. Avoid sudden movements, stops, or impact shocks, and provide a sufficient waiting time for the weighing value to stabilize when acquiring weighing data. The moving device should have a structure where the balance can be kept level.
Page 15: Precautions During Use (For More Accurate Weighing)
2-3. Precautions during use (for more accurate weighing) For precise and accurate weighing, please take notice of the following. Metal case Weighing errors may occur due to the influence of static electricity. Note that if the ambient humidity drops below 45 %RH, Charged sample insulators such as plastics are liable to have static electricity.
Page 16: Cautions After Use
2-4. Cautions after use Avoid mechanical shock to the balance. Do not disassemble the balance. Prevent foreign substances such as powder, liquid and metal pieces from entering the balance. Do not use any strong organic solvents to clean the balance. Clean the balance with a lint free cloth that is moistened with a mild detergent.
Page 17: Caution On The Power Supply
2-5. Caution on the power supply Do not remove the AC adapter while the internal weight is in motion, for example, right after the AC adapter is connected, or during sensitivity adjustment using the internal weight. If the AC adapter is removed under the conditions described above, the internal weight will be left unsecured, that may cause mechanical damage when the balance is moved.
Page 18: Display And Key Panel (Basic Operation)
3. Display and Key Panel (Basic Operation) Lit display Blinking display Name Processing indicator Stabilization indicator USB connection indicator When lit: Standby indicator for power supply When blinking: Prior notice for automatic sensitivity adjustment Displays the weighing value, stored data, and setting item Unit display Net mark Gross mark...
Page 19 In counting or percent mode, pressing this seconds after the function table menu is button activates the sample storing mode. displayed. Refer to “17. Repeatability Check Function (GX-L series only)”. In counting mode, pressing this key activates the mode to change the unit weight registration number.
Page 20: Smart Range Function
3-1. Smart range function GX-32001LD and GX-32001LDS are equipped with two ranges (by combination of weighing range and readability). The precision range has a higher resolution. The standard range has normal resolution. The range is switched automatically, depending on the value displayed. Placing a heavy load (tare) and pressing the TARE key allows weighing in the precision range.
Page 21: Weighing
4. Weighing 4-1. The units of measurement With the GX-L /GF-L series balance, the following weighing units and weighing modes are available: Counting mode Percent mode Density mode (To use this mode, it must be stored with the function table. (Refer to “9.
Page 22 For details about the units and modes, refer to the table below: Function table Name (unit, mode) Abbrev. Display Conversion to grams (Storing mode) Gram Kilogram 1000 g Counting mode Percent mode Ounce (Avoir) 28.349523125 g Pound 453.59237 g 1Lb=16 oz, Pound/Ounce L OZ 1 oz=28.349523125 g...
Page 23 The following tables indicate the weighing capacity and the minimum display for each unit, depending on the balance model. GX-12001L GX-22001L GF-12001L GF-22001L Unit Capacity Capacity Readability Gram 12000.0 22000.0 Kilogram 12.0000 22.0000 0.0001 Ounce (Avoir) 423.290 776.025 0.005 Pound 26.4555 48.5015 0.0005...
Page 24 GX-32001L GX-62001L GF-32001L GX-62001LS GX-32001LS Unit Capacity Capacity Readability Gram 32000.0 62000.0 Kilogram 32.0000 62.0000 0.0001 Ounce (Avoir) 1128.765 2186.985 0.005 Pound 70.5480 136.6865 0.0005 Pound/Ounce L oz 70L 8.77 136L10.99 0.01 Troy Ounce 1028.825 1993.345 0.005 Metric Carat 160000.0 310000.0 Momme 8533.35...
Page 25 GX-42001L Unit Capacity Readability 42000.0 Gram 42.0000 0.0005 Kilogram 1481.50 0.02 Ounce (Avoir) 92.594 0.002 Pound 92L 9.50 0.02 Pound/Ounce L oz 1350.34 0.02 Troy Ounce 210000 Metric Carat 11200.0 Momme 27006.5 Pennyweight 1111.12 0.02 Tael (HK general, Singapore) 1122.12 0.02 Tael (HK jewelry) 1120.00...
Page 26 GX-62000L GX-102000L GF-62000L GX-102000LS GX-62000LS Unit Capacity Capacity Readability Gram 62000 102000 Kilogram 62.000 102.000 0.001 Ounce (Avoir) 2187.00 3597.95 0.05 Pound 136.685 224.870 0.005 Pound/Ounce L oz 136L11.0 224L13.9 Troy Ounce 1993.35 3279.40 0.05 Metric Carat 310000 510000 Momme 16533.5 27200.0 Pennyweight...
Page 27 GX-32001LD GX-32001LDS Standard range Precision range Unit Capacity Readability Capacity Readability Gram 32000 6200.0 Kilogram 32.000 0.001 6.2000 0.0001 Ounce (Avoir) 1128.75 0.05 218.700 0.005 Pound 136.6850 0.005 13.6685 0.0005 Pound/Ounce L oz 70L 8.8 13L 10.70 0.01 Troy Ounce 1028.800 0.05 199.335...
Page 28 Programmable-unit Programmable-unit is a function for conversion. This function multiplies the weighing value in grams by the coefficient that can be set in the function table and displays the result. The coefficient must be within the range between the minimum and maximum shown below. If the coefficient set is beyond the range, an error is displayed, and the balance returns to the coefficient setting mode, prompting to enter an appropriate value.
Page 29 Using the function Press the MODE key to select the programmable-unit (no display on the unit section). Perform weighing as described in “4-2. Basic operation”. After weighing, the balance displays the result (weighing data in grams × coefficient).
Page 30: Basic Operation
4-2. Basic operation Press MODE key to select a unit of measure. In this example, Weighing pan is selected. Container Place a container on the weighing pan if necessary. Press the TARE to display (The decimal separator position depends on the balance model.) Sample Place a sample on the weighing pan or in the container.
Page 31 Zero-point setting, tare subtraction operation, and weighing range At the start of weighing The balance determines the reference zero-point when the power is turned on with the ON:OFF key. Depending on the load condition at that time, the balance will automatically judge whether to perform zeroing or tare subtraction operation.
Page 32: Counting Mode (Pcs)
4-3. Counting mode (PCS) This is the mode to determine the number of objects in a sample. Based on the reference sample unit weight (weight per piece), the balance calculates and displays how many pieces the sample weight corresponds to. The smaller the variation in the unit weight of sample pieces is, the more accurate the count will be.
Page 33 Automatic Counting Accuracy Improvement (ACAI) Processing indicator This function automatically improves the counting accuracy each time the number of sample pieces is increased. (Errors will be reduced as variations in sample weight are averaged.) After storing the unit weight in step 6, proceed to step 8 below. Add a few sample pieces.
Page 34: Percent Mode (Percent Weighing Mode)
4-4. Percent mode (Percent weighing mode) The percent mode displays the weighing value in a percentage compared with a reference mass as 100%. This is useful for target weighing or sample variance checks. Selecting the percent mode Press the MODE key to select the unit (percent mode).
Page 35: Animal Weighing Mode (Hold Function)
4-5. Animal weighing mode (Hold function) Using the hold function, even if the weighing value fluctuates, such as when weighing an animal, the fixed average value can be displayed. For details, refer to “9. Function Table” and “9-3. “Environment/Display”.
Page 36: Impact Shock Detection (Isd) Function
5. Impact Shock Detection (ISD) Function The GX-L/GF-L series has a function to detect impact shocks to the mass sensor section and to display the impact level. By lowering the impact level at the time of loading, it is possible not only to alleviate variation in the weighing value but also to reduce the risk of failure of the mass sensor section.
Page 37: Impact History Output
5-2. Impact history output The stored impact history can be output by sending a specified command to the balance or performing key operation. Output by command The stored impact data will be output all at once by sending a “ ?SA” command to the balance. Output by key operation Press the ON:OFF...
Page 38: Response Adjustment / Self Check Function
6. Response Adjustment / Self Check Function 6-1. Response Adjustment Disturbances such as draft and vibration at the place where the balance is installed affect weighing. In the response adjustment settings, the response characteristics of the balance can be set in three stages according to the disturbance.
Page 39 Response adjustment can be changed by the following method. Press and hold the MODE key for 2 seconds until RESPONSE is displayed, and then press the MODE key again. Press the MODE key to select the desired setting. ( FAST , MID , or SLOW can be selected.)
Page 40: Self Check Function / Automatic Setting Of Minimum Weight With Ecl
6-2. Self check function / automatic setting of minimum weight with ECL With the self check function, repeatability can be confirmed and displayed in addition to performing failure diagnosis, and whether or not the balance's performance is being exhibited can be easily checked. It is also possible to display and store the minimum weight (reference value) using repeatability data.
Page 41 Setting procedure flowchart Press and hold for 2 seconds Step 1 Release Step 2 Step 3 Change in weighing value of repeatability A few seconds later Step 4 [ Diagnosis result ] Step 4 [ Diagnosis result ] No problem Request for repair Output Output...
Page 42: Sensitivity Adjustment / Calibration Test
Sensitivity adjustment Automatic sensitivity adjustment ------------------------ Automatically adjusts the balance using the internal weight according to ambient temperature change/interval time. (GX-L series) Sensitivity adjustment using the internal weight ----- Adjusts the balance using the internal weight with one key press.
Page 43 Model Usable weight Factory setting Adjustable range GX-12001L 5 kg, 10 kg 10 kg GF-12001L GX-22001L 5 kg, 10 kg, 20 kg 20 kg GF-22001L GX-32001L GF-32001L 5 kg, 10 kg, 20 kg, 30 kg 20 kg -5.0 g to +5.0 g GX-32001LS GX-32001LD 5 kg, 10 kg, 20 kg, 30 kg...
Page 44: Automatic Sensitivity Adjustment (Gx-L Series Only)
7-1. Automatic sensitivity adjustment (GX-L series only) This function automatically adjusts the sensitivity of the balance according to ambient temperature change, set time or interval time using the internal weight. It works even when the display is off. After sensitivity adjustment, the balance will output the “sensitivity adjustment report”...
Page 45: Inputting The Set Time
7-1-1. Inputting the set time Press and hold the SAMPLE key for 2 seconds to display Press and hold for 2 seconds Press the SAMPLE key several times to display Press several times Press the PRINT key to display With displayed, press the ZERO key several times...
Page 46: Clearing The Set Time
7-1-2. Clearing the set time Refer to steps 1 to 5 in “7-1-1. Inputting the set time” to display Refer to steps 1 to 5 on the previous page Press the PRINT key to display the currently set time. Press the MODE key to display Press the...
Page 47: Setting The Interval Time
7-1-3. Setting the interval time Press and hold the SAMPLE key for 2 seconds to display Press and hold for 2 seconds Press the SAMPLE key several times to display Press several times Press the PRINT key to display With displayed, press the ZERO key several times...
Page 48 Correspondence table between the set value and interval time of the item Item Parameter Description ■ 0.5-hour interval time 1.0-hour interval time 1.5-hour interval time 2.0-hour interval time 2.5-hour interval time 3.0-hour interval time 3.5-hour interval time 4.0-hour interval time 4.5-hour interval time 5.0-hour interval time 5.5-hour interval time...
Page 49: Sensitivity Adjustment Using The Internal Weight (Gx-L Series Only)
7-2. Sensitivity adjustment using the internal weight (GX-L series only) Sensitivity adjustment using the internal weight can be performed with one key press. 1. With nothing on the weighing pan, warm up the balance by providing power for at least half an hour.
Page 50: Sensitivity Adjustment Using An External Weight
(On GX-L series only) Press and hold the CAL key for 2 seconds until is displayed, and then release the key. is displayed only on the GX-L series. Press and hold (Only when for 2 seconds is displayed only when set. Refer to “11-2.
Page 51: Setting The Value Of The Weight
7-4. Setting the value of the weight For a sensitivity adjustment or calibration test operation, the value of your external weight can be set. (See the usable weight on page 43). The setting can be made according to the setting procedure after is displayed in the procedure of “7-3.
Page 52: Correcting The Internal Weight Value (Gx-L Series Only)
7-5. Correcting the internal weight value (GX-L series only) The internal weight value can be corrected when is set in the function table. The following two correction methods are available. AUTO ..The method of internal weight value correction based on external weight using automatic input.
Page 53: Correcting The Internal Weight Value Auto (Gx-L Series Only)
7-5-1. Correcting the internal weight value AUTO (GX-L series only) This is a method to correct the internal weight value based on an external weight. First, perform the sensitivity adjustment by referring to “7-3. Sensitivity adjustment using an external weight”.
Page 54: Correcting The Internal Weight Value Manual (Gx-L Series Only)
7-5-2. Correcting the internal weight value MANUAL (GX-L series only) The GX-L series balance can correct the internal weight value within a certain range to conform to your external weight. The table below shows the correction reference values and correction ranges. The corrected value is maintained in non-volatile memory even if the AC adapter is removed.
Page 55 Correction of the internal weight value cannot be performed at factory settings. Refer to the setting procedure step 1 in “7-5. Correcting the internal weight value (GX-L series only)” and enable changes to the function table and correction of the internal weight value.
Page 56: Calibration Test Using An External Weight
When not changing the external weight When is displayed, release the key. When setting an external weight is displayed only on the GX-L series. Refer to is displayed only when set. ”7-4. Setting the Refer to “11-2. Data memory for sensitivity value of the weight”...
Page 57: Function Selection Switch And Initialization
8. Function Selection Switch and Initialization 8-1. Function selection switch The balance stores data that must not be changed unintentionally (such as adjustment data for accurate weighing, data for adapting to the usage environment, data to control the communications interface, etc.). In order to protect such data, "Function selection switch"...
Page 58 Example: Function selection switches of GX-L series (display at factory settings) Function table Prohibit changes to the function table. Allow changes to the function table. Sensitivity adjustment using the internal weight Prohibit sensitivity adjustment using the internal weight. Allow sensitivity adjustment using the internal weight.
Page 59: Initializing The Balance
Function table, unit weight value (counting mode), 100% reference mass value (percent mode) External weight value Function switch settings Statistical calculation data Internal weight value (GX-L series only) Caution After initializing the balance, be sure to perform sensitivity adjustment. Setting procedure 4.
Page 60: Initialization (Function Table Only)
8-2-2. Initialization (function table only) This function returns the following parameters to factory settings. Function table Press the ON:OFF key to turn the display off. 2. While pressing the PRINT SAMPLE keys, press the ON:OFF to display 3. Press the SAMPLE key twice to display Press and hold.
Page 61: Function Table
9. Function Table The function table enables you to change operation of the balance to the settings suitable for your application. Set parameters are stored in nonvolatile memory, even if the AC adapter is removed, and they are valid until rewritten.
Page 62 Setting example and menu structure This example shows how to set ”Stores the weighing data/sensitivity adjustment history ( )” for “Data Memory ( )” and “Every 1 minute ( )” for “Interval Time ( )”. Step1 Press and hold for 2 seconds Class Step 2 Press several times...
Page 63: Details Of The Function Table
9-2. Details of the function table Class Item Parameter Description Fast response, sensitive value Can also be changed ■ by manual Condition environment setting. Slow response, stable value If the range in which Stricter judgment (±1 d) the weighing display ■...
Page 64 Class Item Parameter Description 10% to 100% Backlight ■ 60% at factory settings brightness [00] Bubble spirit level lighting Environment ■ Bubble spirit level Display lighting (Continued from Impact shock detection previous page) Impact shock function ■ detection Automatic level detection & warning Level detection ■...
Page 65 Class Item Parameter Description Second upper limit Displays when is selected. Upper limit Refer to “9-5. Comparator function“. Displays Lower limit only when the 5- stage comparator is set. [03] Second lower limit Comparator value Displays when Reference value is selected. Refer to “9-5.
Page 66 Class Item Parameter Description Outputs data accepting ■ Key mode PRINT key when the display is stabled. Outputs data when the weighing value is stable Auto print mode A beyond the range of (Reference = zero) from the zero point. Outputs data when the Auto print mode B weighing value is stable...
Page 67 Class Item Parameter Description If greater than the ■ Positive only reference. Negative only If less than the reference. Auto print polarity Regardless of whether Bi-polar greater or less than the reference. ■ 10 d Select difference from the [05] Auto print band 100 d reference.
Page 68 Class Item Parameter Description At the specified display refresh rate ■ Every 2 seconds Every 5 seconds Used when “interval Every 10 seconds output mode ( ) is Interval time Every 30 seconds set in “data output mode”. Every 1 minute Every 2 minutes Every 5 minutes Every 10 minutes...
Page 69 Class Item Parameter Description ■ Printer Connection Stream output with External indicator 600 bps 1200 bps ■ 2400 bps 4800 bps Baud rate 9600 bps 19200 bps 38400 bps ■ 7 bits, even Data bit, 7 bits, odd Parity bit 8 bits, none [06] ■...
Page 70 Class Item Parameter Description ■ Quick USB USB Function Bidirectional USB virtual mode ■ A&D standard format [07] Refer to “9-7. Weighing USB interface NU format data format”. CSV format USB data format TAB format NU2 format ■ Normal weighing mode Capacity indicator mode Refer to “9-8.
Page 71 Interval time [17] Set time 1 Auto sensitivity adjustment Set time 2 Refer to “7-1. Automatic sensitivity adjustment (GX-L series only)”. Set time 3 Interval time Refer to “7-5-1. Correcting the internal Automatic input weight value AUTO (GX- L series only)”.
Page 72: Output Of The Function Table Information
9-2-1. Output of the function table information With the function table, you can set the balance's operation to that appropriate for how it is used. In the menu structure of the function table, setting items are included in each class, and a parameter is stored for each item.
Page 73 Example 1 Outputting the function table information to a printer Use an AD-8127 multi-functional compact printer. 1. Connect the balance and the printer. Set the print mode to "DUMP". For details about the settings and print modes, refer to the instruction manual of the printer. For connection between the balance and the printer, refer to “19.
Page 74: Environment/Display" Explanation
9-3. “Environment/Display” explanation Condition ( Sensitive response to fluctuation of a weighing value: For powder or liquid target weighing, weighing a very light sample, or when work efficiency is required rather than display stability, set the parameter to be a small value.
Page 75 Mode B (hold when stable) When the weighing value is beyond a certain range from zero (same weighing range as mode A) and the stabilization indicator lights up, the displayed value is held. When the object to be weighed is unloaded, the display is automatically set to zero after the display is maintained for 5 seconds.
Page 76 Display when power-on ( You can choose whether the balance will automatically zero the display when the power is turned on or start from the previous weighing value without automatically zeroing the display when the power is turned on. The tare value memory is useful when a hopper or other device is attached to the weighing pan and the power must be turned off during discharge weighing.
Page 77: Clock And Calendar Function
9-4. Clock and calendar function The balance is equipped with a clock and calendar function. When “ (Time/date output)” is set in “ (Data out)” of the function table ("9. Function Table"), the time/date can be added to the output data. The time and date can be checked/changed by the following operations.
Page 78 Checking/setting procedure (Continued) Continue from the previous page Setting the date Set the date using the following keys. (The year is set with the last 2 digits of the year.) ZERO key (+) ···· Increases the value of the blinking digit.
Page 79: Comparator Function
9-5. Comparator function For comparison using the comparator function, either 3-stage or 5-stage can be selected ( ). The 3-stage comparator is selected by default, and the / LO indicator will be displayed according to the result of comparison. When the 5-stage comparator is selected, “HH” and “LL” become available with indicators respectively displayed blinking.
Page 80 Selecting the comparator (3-stage/5-stage) 1. Press and hold the SAMPLE key for 2 seconds to display Press and hold of the function table. for 2 seconds 2. Press the SAMPLE key several times until is displayed. Press several times 3. Press the PRINT key.
Page 81 Setting example 1. Comparison when stable or overloaded. Upper/lower limits digital input. Selecting a comparison method (operating range, comparison criteria, and value input) (Setup procedures starting from the factory default setting) (with the 3-stage comparator, comparison when stable or overloaded excluding near zero ±...
Page 82 Entering the values displayed, press the PRINT With key. appears. Press the PRINT key. The currently set value is displayed with all the digits blinking. No change To change To continue with the set value, press the PRINT or the set value CAL key to proceed to step 10.
Page 83 Setting example 2. Continuous comparison except near zero ± 20 d. Reference / tolerance digital input. Selecting a comparison method (operating range, comparison criteria, and value input) Press and hold the SAMPLE key for 2 seconds to display of the function table. Press and hold for 2 seconds Press the...
Page 84 Entering the values 10. With displayed, press the PRINT key. appears. 12. Press the PRINT key. 13. The currently set value is displayed with all the digits blinking. To continue with the set value, press the PRINT or No change To change the set value CAL key to proceed to step 14.
Page 85 Setting example 3. Comparison when stable or overloaded including near zero. Upper/lower limits. Weighing input. Selecting a comparison method (operating range, comparison criteria, and value input) Press and hold the SAMPLE key for 2 seconds to display Press and hold (for 2 seconds) Press the SAMPLE...
Page 86 Entering the values 10. When is displayed, press the PRINT key to display 11. When is displayed, press the PRINT key to check the currently set value (all digits blinking). 12. Press the ZERO key to enter the load input mode. is displayed.。...
Page 87 Sounding the built-in buzzer according to the comparison result 1. Press and hold the SAMPLE key for 2 seconds to display of the function table. Press and hold for 2 seconds 2. Press the SAMPLE key several times to display 3.
Page 88 Comparator enlarged display function The comparator enlarged display function displays the comparison results in a magnified way on the main portion of the display, in place of the weight value. Selecting a unit of measurement Press the MODE key to select a unit to be used for comparison. Caution While the comparator enlarged display function is in use, unit selection using the MODE...
Page 89 Comparator settings Set the comparator as described in the previous section. Setting example: (Continuous comparison, excluding "near zero"). Using the comparator enlarged display function Press the ZERO key to set the display Standard display Comparator to zero. enlarged display (Weighing data and comparator) Place a sample on the weighing pan.
Page 90: Data Output Mode" Explanation
9-6. “Data output mode” explanation The data output timing of the balance can be switched by setting “ (Data output mode)” in “ (Data output)” of the function table (“9. Function Table”). Key mode Function table: When the PRINT key is pressed with the stabilization indictor turned on, the balance outputs the weighing data once.
Page 91 Key mode B Function table: Regardless of the status of the stabilization indicator, the balance outputs the weighing value once when the PRINT key is pressed. Key mode C Function table: When the PRINT key is pressed with the stabilization indictor turned on, the balance outputs the weighing value once.
Page 92 Tare weight output The balance can output the gross weight, net weight, and tare weight data. Display NET mark G mark PT mark Gross zero mark Mark Description Lights up when the tare weight is other than zero. Lights up when the tare weight is zero. Lights up together with the NET mark when the preset tare weight is set by PT command.
Page 93: Weighing Data Format
9-7. Weighing data format The output format of the balance’s weighing data can be switched in the function table by setting "USB data format ( )” for USB or, for RS-232C, "Data Format ( )“. A&D standard format RS-232C connection: Setting USB Connection: Setting...
Page 94 KF format RS-232C connection: Setting USB connection: Not supported This is the Karl-Fischer moisture meter format. Consists of 14 characters (excluding the terminator). There are no headers. The polarity sign is added to the first character if the value is not an overload or zero. The data is zero-suppressed (leading zeros are replaced with spaces).
Page 95 NU format RS-232C connection: Setting USB communication: Setting Only numerical data of the weighing value is output. Consists of 9 characters (not including the terminator). The data is padded with polarity and zeros (filling the data’s higher order’s surplus part with zeros). If the data is zero, the polarity is positive.
Page 96 Other data formats In addition to weighing data, various data can be added. Switch on / off each setting as necessary. Data number Setting When the data memory function is used, the data number is output. Consists of 6 characters (not including the terminator). When NU or NU2 format is selected with the Quick USB mode, only the decimal point (.) and number are output.
Page 97 Date Setting The date is output from the clock data of the balance. The order of YYYY/MM/DD can be changed by setting. Consists of 10 characters (not including the terminator). When NU or NU2 format is selected with the Quick USB mode, " . " is output instead of " / ". CR LF Date Terminator...
Page 98: Output Examples Of Weighing Data Format
9-7-1. Output examples of weighing data format When stable ˽ ˽ CR LF A&D ˽ ˽ ˽ ˽ ˽ CR LF ˽ ˽ ˽ ˽ ˽ CR LF ˽ ˽ ˽ ˽ ˽ CR LF CR LF ˽ ˽ CR LF CR LF ˽...
Page 99 When overloaded (positive) CR LF A&D ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ CR LF ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ ˽ CR LF + CR LF 9 CR LF ˽...
Page 100: Application Mode Explanation
9-8. Application mode explanation Normal weighing mode ( This is the normal weighing mode set at the factory. Capacity indicator mode ( In this mode, the balance displays the relation between the load and weighing capacity in percent for normal weighing.
Page 101: Storing Units
9-9. Storing units The units or modes can be selected and stored in the function table. The sequence of displaying the units or modes can be arranged to fit the frequency of use. The units stored are maintained in non-volatile memory, even if the AC adapter is removed. Setting procedure Select a unit or mode and arrange the sequence of display as follows: 1.
Page 102 Unit setting example The example below sets the units in the order with g (gram) as the first unit followed by pcs (counting mode). 1. Press and hold the SAMPLE key for 2 seconds to display of the function table, and then release the key. Press and hold for 2 seconds 2.
Page 103: Id Number And Glp Report
ID Number and GLP Report 10-1. Main objective The data output compliant with "GLP/GMP" can be output to a personal computer or optional printer using interfaces such as RS-232C. The balance can output the following GLP/GMP compliant reports via RS-232C or USB. Sensitivity adjustment report (Output for sensitivity adjustment using the internal weight [automatic ...
Page 104: Setting The Id Number
10-2. Setting the ID number Press and hold the SAMPLE key for 2 seconds to display in the function table mode. Press the SAMPLE key several times to display Press the PRINT key. Set the ID number using the following keys. SAMPLE key ........Selects the digit that blinks.
Page 105 Examples of sensitivity adjustment report using the internal weight This is the GLP report when the sensitivity of the balance is adjusted using the internal weight. Output the clock data built into the balance “ ”. Printer format (AD-8127) PC format (RsCom) Manufacturer Model Serial number...
Page 106 Examples of sensitivity adjustment report using an external weight This is the GLP report when the sensitivity of the balance is adjusted using the external weight. When " " is set. Printer format (AD-8127) PC format (RsCom) Manufacturer Model Serial number ID number Date Time...
Page 107 Title block and End block Application / Operation “ Title block” and “End block” can be added before and after a series of weighing values for data management. Pressing and holding the PRINT key for 2 seconds outputs "Title block" and "End block" alternately. Note If the data memory function is used (when other than “...
Page 108: Data Memory
Unit weights (Counting mode) Up to 50 sets Weighing values Up to 200 results Sensitivity adjustment history Internal weight sensitivity adjustment report (GX-L series only) Latest 50 sets External weight sensitivity adjustment report External weight calibration test report Comparator settings...
Page 109 Enabling data memory function Press and hold the SAMPLE key for 2 seconds to display Press and hold (2 seconds) Press the SAMPLE key several times to display Press several times Press the PRINT key. Press the SAMPLE key several times to display Press several times Press the...
Page 110 Display and symbol When the volume of Number of stored data weighing values stored Full memory Weighing display reaches its maximum, in progress blink in turn. Data number of the displayed weighing value Display of measured weighing value Caution When weighing data is being stored in memory, the data is output simultaneously using RS-232C or USB interface.
Page 111: Displaying The Stored Weighing Results
11-1-2. Displaying the stored weighing results Note Confirm that the "Data memory ( )" parameter is set to "Stores the weighing data and sensitivity adjustment history ( )". Press and hold the PRINT key (for 2 seconds) to display Left of the display Press the PRINT key to enter the memory recall mode.
Page 112: Deleting The Stored Weighing Results In Batch
11-1-4. Deleting the stored weighing results in batch 1. Press and hold the PRINT key for 2 seconds to display Press and hold for 2 seconds 2. Press the SAMPLE key several times to display Press several times 3. Press the PRINT key to display with “No”...
Page 113: Outputting Sensitivity Adjustment History
11-2-2. Outputting sensitivity adjustment history 1. In weighing mode, press and hold the CAL key Press and hold for 2 seconds for 2 seconds. When is displayed, release your finger from the key. appears. If there is no sensitivity adjustment history, is displayed, and then the balance Release.
Page 114: Deleting Sensitivity Adjustment History
11-2-3. Deleting sensitivity adjustment history 1. Press and hold the CAL key for 2 seconds. Press and hold for 2 seconds When is displayed, release the key. appears. Release 2. Press the SAMPLE key to display 3. Press the PRINT key to display 4.
Page 115: Data Memory For "Unit Weight" In The Counting Mode
11-3. Data memory for “unit weight” in the counting mode Features Up to 50 unit weights can be stored for “unit weight” in the counting mode. is the first unit weight data, and it is the standard memory in normal counting mode. 49 additional unit weights can be stored.
Page 116 Weighing input mode Weighing input mode is a mode in which the specified number of samples are placed on the weighing pan and the unit weight is stored. In weighing input mode, you can use ACAI after storing the unit weight. Refer to “4-3.
Page 117: Reading The Unit Weight Data
11-3-2. Reading the unit weight data Follow steps 1, 2 and 3 in “11-3-1. How to select, confirm, 4th unit weight and store the unit weight data” to enter confirmation mode. number Select the unit weight number to use with the following keys. ZERO key ...
Page 118: Data Memory For Comparator Settings
11-4. Data memory for comparator settings Features The data memory function can store 20 sets of upper and lower limit values for the comparator mode. Caution The reference value or tolerance value for comparator mode cannot be stored in memory. By reading the stored upper / lower limit value, weighing can be performed without storing each time.
Page 119 Digital input mode In the digital input mode, the upper and lower limit values are entered digitally using the keys. When in the digital input mode, the digit to be changed will blink. Selects digit Changes value Use the following keys to store upper and lower limit values. SAMPLE key ...
Page 120: Reading The Upper / Lower Limit Value (Quick Selection Mode)
11-4-2. Reading the upper / lower limit value (Quick selection mode) This is a simple way to read the comparator upper / lower limit value data stored in the memory. With this operation, the stored data can be quickly read and used. Note To store (register) the upper and lower limit values, refer to “11-4-1.
Page 121: Data Memory For Tare Value
11-5. Data memory for tare value Features The data memory function can store up to 20 sets of tare value for weighing. By reading the stored tare value, weighing can be performed without storing each time. Can be read easily using the MODE key (quick selection mode).
Page 122 Changing (storing) the selected (read) tare value 5. Press the SAMPLE key in step 4 to enter “Weighing input mode”. Note that pressing and holding the MODE key for 2 seconds switches the mode between “Weighing input mode” and “Digital input mode”. Note The tare value can be read by using the “PN:mm”...
Page 123: Reading The Tare Value (Quick Selection Mode)
11-5-2. Reading the tare value (Quick selection mode) This is a simple way to read the tare value stored in the memory. With this operation, the stored data can be quickly read and used. Note To store (register) tare value data, refer to “11-5-1.
Page 124: Statistical Calculation Mode
Statistical Calculation Mode Statistical calculation mode statistically calculates the weight data, and displays or outputs the results. To use this function, set " (Application mode)" to " " in " (Application function)" of the function table (“9. Function Table”) while referring "12-1.
Page 125: How To Use The Statistical Calculation: Preparation
12-1. How to use the statistical calculation: Preparation Switching to the statistical function mode (Changing the function table) Press and hold the SAMPLE key for 2 seconds to display Press and hold Press the SAMPLE key several times to display Press several times Press the...
Page 126 Selecting the unit Press the MODE key to select the unit to be used for statistical calculation mode. (In the example shown on the right, gram is selected.) Note Selecting the unit using the MODE key is not available after data is entered.
Page 127 Displaying and outputting statistical results (more than one data set) Each time the MODE key is pressed, the display shows the statistical result set in “ (Statistical function mode output items)” followed by Pressing the SAMPLE key displays the Display the previous item.
Page 128 Deleting the latest data When the wrong data is entered, it can be deleted and excluded from statistical Press several calculation. Only the last entry will be deleted, and other previous data cannot be times deleted. In weighing mode, press the MODE key to display Press the...
Page 129 Clearing the statistical data All the statistical data will be deleted and the number of data instances will be zero. In weighing mode, press the MODE key several times to display Press several times Press the PRINT key to display Press the ZERO key to display...
Page 130: Statistical Calculation Mode (Example Of Use)
12-2. Statistical calculation mode (Example of use) Here, as an example of use of statistical calculation mode, mixing of formula Press and hold ingredients such as chemicals is described. The mixing process is recorded for 2 seconds using the balance and the printer. In the example, the GX-62001L and the AD-8127 are connected using the RS-232C serial interface.
Page 131 How to use statistical calculation mode Press the ZERO key to set the display to zero. Place a container on the weighing pan, and then Container press the PRINT key to store the value (registration of tare value) The balance displays Container The data is output when the external output device (tare value)
Page 132: Flow Rate Measurement
Flow Rate Measurement The GX-L/GF-L series has a flow rate measurement mode to calculate the change in weighing values with time. The balance calculates the flow rate from the weight change over time and indicates the flow rate value per unit time on its display.
Page 133 Weighing and flow rate data can be simultaneously output to an external device. It makes designing a device such as PLC easier when building dispensing systems and so on. In addition, it is possible to transmit a contact signal when a weight reaches a specified value by using the optional comparator output (GXL-04).
Page 134: Flow Rate Calculation Method
13-1. Flow rate calculation method Q = | The flow rate is calculated by the following formula. W−W ′ Weight Q: Flow rate Ct: Flow rate calculation time W: Current weight W’: Weight before flow rate Change in weight calculation time = W - W’...
Page 135: Examples Of Manual Setting Of Flow Rate Calculation Time (Ct)
13-1-1. Examples of manual setting of flow rate calculation time (Ct) The examples below show the affect of the flow rate calculation time setting on the flow rate value. Inconstant flow rate Time [s] When the flow rate calculation time is 1 second: Time [s] Time [s] −W...
Page 136 When the flow rate calculation time is 5 seconds: Time [s] Time [s] −W ′ Flow rate −W ′ The flow rate per second is calculated from the change in weighing value over 5 seconds. Flow rate variation is lower compared with the 1 second flow rate calculation time. * When the flow rate calculation time is set to 5 seconds, the flow rate is displayed as “...
Page 137: How To Use Flow Rate Display (Frd) Function
13-2. How to use flow rate display (FRD) function 13-2-1. Switching to flow rate measurement mode (function table) 1. When the weighing display is shown, press and hold the Press and hold SAMPLE key for 2 seconds to display for 2 seconds 2.
Page 138: Setting The Flow Rate Calculation Time (Ct)
To change the flow rate calculation time (Ct) setting method, proceed to step 8. To store the current settings, proceed to step 10. If mL/s, mL/m, or mL/h is chosen, the density can be changed. The initial value is 1.0000g/cm For details, refer to "13-2-4.
Page 139 (1) Manual setting When the manual setting is selected, the values shown in the table below can be set. Flow rate calculation time (Ct) Second(s) [s] Minute(s) [m] Hour(s) [h] Selecting the flow rate calculation time (Ct) The flow rate calculation time can be changed by the following procedure. 1.
Page 140 The general standard settings of flow rate value and flow rate calculation time by model: The area marked in grey ( ) in each table shows the standard settings of the flow rate calculation time for various flow rates (mL/min). Note If the flow rate value does not stabilize with the following settings, set a longer flow rate calculation time.
Page 141 (2) Automatic setting Flow rate measurement can be performed without having to manually select the flow rate calculation time (Ct) for the flow rate. The flow rate calculation time will be determined between 1 second and 60 seconds according to the flow rate value being measured.
Page 142 Flow rate display update timing The display update timing is the interval at which the flow rate value displayed on the balance is updated. Output can be set at the desired timing. (1) When the flow rate calculation time is set automatically The display update timing of the flow rate is 1 second or 2 seconds.
Page 143: Density Input And Settings
13-2-4. Density input and settings When the flow rate unit is set to "mL/s," "mL/m," or "mL/h" (the function table: set to " ", " ", or " "), density can be entered. Density input enables conversion of mass to volume and calculation of the flow rate value in mL.
Page 144: Switching Displays
Selection of the density memory slot Up to 10 densities can be stored when the flow rate unit is in milliliters (mL/ * ). To store a new density, select unused density memory slot and then follow the density input procedure. When the weighing display is shown, press and hold the PRINT key for 2 seconds to display Press and...
Page 145: Example Of Use
13-3. Example of use Example of flow rate measurement with pump 1. Prepare the necessary equipment, such as pumps, sample fluids and containers. Confirm that the balance is in the flow Pump rate measurement mode. Tank Container 2. Press the ZERO key of the balance to set the weighing display to zero.
Page 146: Using The Comparator
13-3-1. Using the comparator When the Flow rate display (FRD) function is used with the comparator, either weighing value (in grams) or flow rate value can be chosen as a comparison target. The setting can be changed with “ (Flow measurement)” in " (Comparator)”.
Page 147 Example of using the comparator Filling 100 g with the contact output of the GXL-04 and the pump. (When the weighing value reaches 100 g, HI contact output from the balance stops the pump.) Note Confirm that the pump is equipped with a contact input. Note Refer to the instruction manual of the pump for details on cable wiring for the GXL-04 and the pump.
Page 148 Entering a HI value When is displayed, press the PRINT key. The current value is displayed. (All lights on) If the setting does not need to be changed, press the PRINT key or CAL key to proceed to step 11. No setting value change To change the setting value 10.
Page 149: Using Analog Voltage Output
13-3-2. Using analog voltage output Using the optional GXL-06 analog voltage output allows the flow rate value to be output as analog voltage. With this option, FRD mode operates differently than the normal weighing mode. Only flow rate value can be output as analog voltage. "Analog output mode ( )”...
Page 150 Example of using analog voltage output Slide switch Note Install the GXL-06 on the balance. Switch the slide switch on the option panel to select the voltage output range. (0 to 1 V or 0.2 to 1 V) Option panel Perform fine adjustment of the voltage output if necessary.
Page 151: Commands For The Flow Rate Display (Frd) Function
13-4. Commands for the Flow Rate Display (FRD) function The specified commands sent from a PC to the balance can be used to request weighing data, operate the keys, change the settings values and so on. To send a command to the balance, add a terminator (<CR> <LF> or <CR>...
Page 152 Commands to check the parameters Command Description/Example of response characters Requests the flow rate calculation time (Ct). Example: Flow rate calculation time (Ct) is 10 minutes. Requests the currently selected density memory slot. Example: ······· The density memory slot is 05. Requests the density value stored in the currently selected density memory slot.
Page 153: Minimum Weight Alert Function
Minimum Weight Alert Function Minimum weight is the minimum sample weight required to perform correct quantitative analysis taking the measurement error of the balance used into account. If the sample amount is too small, the proportion of measurement error in the measured value increases, and the reliability of the analysis result thus may drop. The minimum weight alert function makes it possible to judge immediately whether the sample amount meets the set minimum weight.
Page 154: Minimum Weight Comparison
14-1. Minimum weight comparison Setting procedure Press and hold the SAMPLE key for 2 seconds to display Press and hold for 2 seconds Press the SAMPLE key several times to display Press the PRINT key. Press appears. Press the ZERO key to switch the display several times...
Page 155: Input And Output Of Minimum Weight
14-2. Input and output of minimum weight 14-2-1. Setting procedure using the function table [Direct input of setting value] Continue from step 6 of “14-1. Minimum weight comparison”. With displayed, press the PRINT key. With displayed, select either operation: To set the minimum weight, press the PRINT Press twice again to proceed to step 9.
Page 156 [Input using repeatability with an external weight] Continue from step 6 of “14-1. Minimum weight comparison”. With displayed, press the PRINT key to display Press the SAMPLE key to display Press the PRINT key. , and weighing display appear, and then is displayed requesting the first load for repeatability measurement.
Page 157 Error messages Load exceeding the capacity is applied. Not enough load is applied. Note The balance returns to repeatability measurement when the error is cleared. Weighing value unstable (for approx. 20 seconds) during repeatability measurement Note After is displayed the balance will force end repeatability measurement and return to the function table.
Page 158: Procedure To Set In Weighing Mode
14-2-2. Procedure to set in weighing mode Press the MODE key in weighing mode. When is displayed, press the PRINT key. appears. After this, perform the minimum weight setting from step 8 of " [Direct input of setting value] " or step 8 of "...
Page 159 [The set minimum weight] The output content depends on the minimum weight setting method. Set with Set with Set with ECL...
Page 160: Outputting Data Less Than The Minimum Weight
14-3. Outputting data less than the minimum weight Output of data less than the minimum weight can be switched ON/OFF with the setting in the function table. Setting procedure In weighing mode, press and hold the SAMPLE for 2 seconds to display Press and hold for 2 seconds Press the SAMPLE...
Page 161: Density (Specific Gravity) Measurement
15. Density (Specific Gravity) Measurement The balance has a density mode that calculates the density of a solid or liquid from the weight in air and the weight in liquid. Caution Density mode is disabled by default. To use density mode, the function table needs to be changed in order to enable density mode "...
Page 162: Preparing For Measurement (Changing The Function Table)
15-1. Preparing for measurement (Changing the function table) Prior to measurement, change the function table as follows: Enabling density mode: Density mode is not enabled at factory settings. Refer to ”9-9. Storing units” to store density mode ( Density mode can be selected as a unit using the MODE key.
Page 163: Measuring The Density (Specific Gravity) Of A Solid (Function Table )
15-2. Measuring the density (specific gravity) of a solid (Function table Caution: If temperature of the liquid changes during measurement or when type of liquid is changed, reset the density of a liquid by "15-3. Inputting the density of a liquid "...
Page 164: Inputting The Density Of A Liquid
15-3. Inputting the density of a liquid With " (Liquid density input)" setting in the function table, water temperature input mode or density input mode is selected as described below. Water temperature input mode ( The currently set water temperature (unit: °C, factory setting: 25.0°C) is displayed.
Page 165: Measuring The Density (Specific Gravity) Of A Liquid (Function Table )
15-4. Measuring the density (specific gravity) of a liquid (Function table In density display, the three digits after the decimal point are fixed. The readability cannot be changed with the SAMPLE key. 15-1. Preparing for measurement (Changing the function table) In density measurement, the density is fixed and displayed according to float weight in air measurement and float weight in liquid...
Page 166: Inputting The Volume Of The Float
15-5. Inputting the volume of the float The currently set volume of the float is displayed. (Factory setting is 10.00 cm The set value can be changed with the following keys. Set a value between 0.01 cm and 99.99 cm with 0.01 cm increments.
Page 167: Password Lock Function
Password Lock Function The password lock function can restrict the use and functions of the balance. It is effective in preventing falsification of date and time settings or preventing changes in the function table by the user. The password is set with four digits/keys ( MODE , SAMPLE ,...
Page 168 Restricted items according to login level Weighing Login level Password input at the Sensitivity Function setting* start of weighing adjustment Administrator ( Available Available Required User ( Available* Not available Guest ( Not required Response adjustment change, minimum weight setting, repeatability check using the internal weight, function selection and initialization, and function table (clock &...
Page 169: Enabling Password Lock Function
16-1. Enabling password lock function With “ (Password function)“ setting in the function table, the password function can be switched between " (Disabled)“, “ (Enabled)“, and “ (Enabled)”. Press and hold for 2 seconds In weighing mode, press and hold the SAMPLE key for 2 seconds to display...
Page 170: Entering A Password At The Start Of Weighing
16-2. Entering a password at the start of weighing (Password entry required at the start of weighing) With the display turned off, press the ON:OFF key. After is displayed, the password input display appears. Enter a 4-digit password using the following keys.
Page 171: Logging Out
To login as the Administrator ( With the display turned off, press the ＋ ON:OFF key while pressing and holding the CAL key. Press and hold. Press. Enter a 4-digit password using the following keys. Note that the display will turn off after 10 minutes of inactivity.
Page 172: Registering (Changing) Password
16-4. Registering (changing) password The password can be changed with " (Password)" in the function table. In weighing mode, press and hold the SAMPLE for 2 seconds to display Press and hold for 2 seconds Press the SAMPLE key several times until appears.
Page 173 this example, password administrator ( ) is changed. Press the PRINT key to display the current password. (At factory settings, the password is set at the Administrator level to , which is set by pressing the ZERO key four times.) Current password display Set a new password using the following keys: 。...
Page 174: Deleting Password ( To )
16-5. Deleting password ( Refer to "16-4. Registering (changing) password" to select the user ( ) whose password you want to delete and display the password entry display. Refer to "16-4. Registering (changing) password" When entering the password, press and hold the CAL key Press and hold for 2 seconds to display...
Page 175: Repeatability Check Function (Gx-L Series Only)
Repeatability is an index of variation in measured values when the same weight is repeatedly loaded and unloaded, and is usually expressed as the standard deviation (σ ). The GX-L series has an internal weight. With the repeatability check function, the balance obtains 10 measurement results using the internal weight and displays its standard deviation.
Page 176: Interface Specifications
Interface Specifications 18-1. RS-232C Connector D-Sub 9-pin (male) Transmission EIA RS-232C system Transmission Asynchronous, two-way form Data transmission rate Approx. 5 times per second (5.21 Hz), approx. 10 times per second (10.42 Hz), approx. 20 times per second (20.83 Hz) (Linked with the function table “...
Page 177 The signal name is the name of the DTE side except for TXD and RXD. Connection diagram (when connecting to a PC) Balance (DCE) Pin No. PC (DTE) For use with some A&D products. Do not connect the cables to other manufacturers’ products such as a PC and PLC. Using the wrong connection cable may damage the device.
Page 178: Usb
18-2. USB Connector Mini B (female) Standard USB 2.0 Device class HID (Human interface device): Quick USB CDC (Communication device class): Virtual COM Mini B, pin arrangement Signal Pin No. Direction Meaning, remarks name VBUS Input Power Data transmission and reception Data transmission and reception...
Page 179: Connecting Peripheral Devices
Connecting Peripheral Devices It is possible to connect the balance to peripheral devices, PCs, PLCs, etc. by using the RS-232C connector and the USB mini B connector which are provided as standard with the balance. 19-1. Cables needed to connect to peripheral devices Connection cables for peripheral devices and interfaces are as follows.
Page 180: About Data Output Method
19-2. About data output method Change the function of the balance to make the operation method that which is suitable for use with the balance. Refer to “9. Function Table” for details of the function. 1) The weighing data output method using the RS-232C / USB interface can be specified with “ (Data output mode)”...
Page 181: Specific Examples When Connecting Multiple Peripheral Devices At The Same Time
19-3. Specific examples when connecting multiple peripheral devices at the same time [1] Connection between a printer and a PC Example of use: Printing the weighing data on the printer while importing the data into the PC. Example of simultaneous connection settings [1] ”Printer and PC” Connection method Function compatible with interface / device connected Device...
Page 182 [2] Connection between a printer and a remote display or the like Example of use: Displaying the weighing data on the remote display while printing the data on the printer. Example of simultaneous connection settings [2] ”Printer and remote display, etc.” Connection method Function compatible with interface / device connected Device...
Page 183 [3] Connection between a remote display and a PC Example of use: Displaying the weighing value on the remote display while logging the weighing value on the Example of simultaneous connection settings [3] [External display and PC] Connection method Function compatible with interface / device connected Device Interface Class...
Page 184: Printing Weighing Values To The Printer
19-4. Printing weighing values to the printer The following shows examples of the balance’s functions and printer settings corresponding to the type of printer used and the printing method such as weighing value. 19-4-1. AD-8127 multi-functional compact printer 1) When printing only weighing value: Common settings for the balance when printing only the weighing values on the AD-8127 Class Item...
Page 185 2) When adding information such as date/time and ID number to the weighing value using the clock function of the balance: Common settings for the balance when printing the weighing value and additional information on the AD- 8127 Class Item Parameter Contents Printer connection...
Page 186: Connecting To A Pc
19-5. Connecting to a PC 19-5-1. Quick USB mode Quick USB mode is a function used to connect the balance with a PC using a USB cable to directly input the output data of the balance into PC software such as Excel or Word. Windows XP or later is supported. Since the balance uses a standard Windows driver (HID), no installation of a special driver is necessary and communication is possible just by connecting the balance to the PC.
Page 187: Virtual Com Mode
19-5-2. Virtual COM mode Virtual COM mode is a function used to connect the balance with the supplied USB cable and create a COM port on the PC side for bi-directional communication. Windows 7 or later is supported. Except for Windows 10, Windows 11, when using for the first time, you need to install a special driver on the PC.
Page 188: Winct Data Transmission Software (Usb Virtual Com Mode Or Rs-232C)
19-5-4. WinCT data transmission software (USB Virtual COM mode or RS-232C) When a PC is connected via a USB interface in virtual COM mode or with a RS-232C cable, weighing data can be easily received by the PC with the use of the WinCT data communication software for Windows. WinCT can be downloaded from our website (https://www.aandd.jp).
Page 189: Windows Communication Tools For Parameter Setting ("Winct-Paramset")
19-6. Windows communication tools for parameter setting (“WinCT-ParamSet”) WinCT-ParamSet is data communication software for Windows that enables a PC to change the function table settings in the GX-L/GF-L series balances. RS-232C is used for communication with a PC. Prepare an appropriate cable to connect the PC to the balance (e.g., serial / USB converter AX-USB-9P). WinCT-ParamSet can be downloaded from the "Software"...
Page 190: Commands
Command string Function ON:OFF Turns the display on. Turns the display off. ･Sensitivity adjustment with the internal weight (GX-L series) CAL key ･Sensitivity adjustment with an external weight (GX-L series) Sensitivity adjustment with the external weight (GX-L series) MODE SAMPLE...
Page 191 Commands to preset tare value Command string Function Sets the tare value. The unit added is the unit that is output in the A&D standard format (three characters). For the counting or percent mode, gram is used. PT: **** , * g In the case of setting the preset tare value to 1234.6 g, the input will be PT:1234.6 g.
Page 192 Command to control the data memory function ( Command string Function Outputs all data in memory. Outputs weighing data with the data number nnn. ?MQnnn Input a value from 001 to 200 into nnn. Outputs the number of weighing data in memory. Deletes weighing data with the data number nnn.
Page 193: The Code And Error Codes
R, RZ commands RE-ZERO (Semi-automatic zero-point setting)* CAL command Sensitivity adjustment with the internal weight (GX-L series) Sensitivity adjustment with an external weight (GX-L series) EXC command Sensitivity adjustment with an external weight (GX-L series) If it is within the zero range, the zero point is updated. If it is beyond the zero range, tare subtraction is...
Page 194: Command Usage Examples
19-7-3. Command usage examples In this example, (AK, error code on) is set in the function table in order to output the <AK> code. <AK> code is the ASCII 06h code. Example of the ON command (Display on) PC side Time Balance side ON command...
Page 195 Example of the CAL command (GX-L Series: sensitivity adjustment with the internal weight) PC side Time Balance side CAL command Before execution CR LF AK CR LF Command received Executing (processing) Command completed AK CR LF Zero display For an example of the CAL command of the GF-L series, refer to the EXC command example.
Page 196 Example of the EXC command (Sensitivity adjustment with an external weight) PC side Time Balance side EXC command Before execution C CR LF AK CR LF Command received PRT command Waiting for the zero setting CR LF Command received AK CR LF Inputting the zero setting (processing) AK CR LF...
Page 197 Example of weighing with a container PC side Time Balance side Z command Before execution CR LF AK CR LF Command received Waiting for re-zero stability (processing) Command completed AK CR LF Zero display Action: Place a container Measured value of the container T command CR LF Command received...
Page 198 Example of setting a negative target value and filling with a sample until the display becomes zero Time PC side Balance side Z command CR LF Command received AK CR LF Waiting for re-zero stability (processing) PT command AK CR LF Command completed Target weight is 5000 g.
Page 199: The Ufc Function
19-8. The UFC function By using the Universal Flex Coms (UFC) function, it is possible to arbitrarily output contents of your choice when outputting the weighing data. You can also output a character string when printing a barcode with a label printer or the like.
Page 200 Enclose any ASCII code string in single quotation marks. The character strings that can be output are alphanumeric characters and symbols. The single quotation mark itself is represented by two single quotation marks. Example To output the character string A’BC’D: ’A’’BC’’D’ To output the ASCII control code, enter "# + 2 hexadecimal characters".
Page 201: Examples Of Creating Ufc Program Commands
19-8-2. Examples of creating UFC program commands Output example 1 Output example 2 2023/04/23 12:34:56 +2000.0 g SAMPLE ABC-123 TARE WEIGHT +3456.7 g +345.6 g GROSS +2345.6 g Content Content PF, command, character string "NET", line break PF, command, date, time, line break Space ×...
Page 202: Key Lock Function
19-9. Key lock function Key switches of the balance can be locked by sending a specified command to the balance. This is effective for controlling the balance only from an external device such as a PC. Even if key switches are locked, operations related to key control commands are available. (For key control commands, refer to section "19-7.
Page 203: Locking Specified Key Switches
19-9-2. Locking specified key switches By assigning a numerical value for ***** of a LK command, specific key switches can be disabled. The numerical value for ***** is the total of the decimal numbers converted from the bit value assigned for each key switch as shown below.
Page 204: Checking The Software Version Of The Balance
Checking the software version of the balance Specifications of the balance may differ depending on the software version that you use. To confirm the software version, follow the steps shown below. Unplug the AC adapter of the balance, and then plug it in again.
Page 205: Maintenance
Maintenance 21-1. Treatment of the balance The dustproof and drip-proof specifications of this product are waterproof for daily use, which allows the CAUTION pan to be washed in water while installed. For dustproof and drip-proof Note that if the balance is submerged in water or used performance, install the weighing pan.
Page 206: Troubleshooting
Troubleshooting 22-1. Checking the balance performance and environment Since the balance is a precision instrument, in some cases it may not be able to measure correct values due to adverse effects of the measurement environment or measurement method. If repeatability is poor when the sample is loaded and unloaded several times, or if the balance seems to be operating abnormally, check the following items.
Page 207: Error Displays (Error Codes)
The value to be set exceeds the setting range. Set again within the setting range. Internal weight error (GX-L series only) Applying the internal weight does not yield a change in the mass value as specified. Confirm that there is nothing on the pan and perform the EC，E16...
Page 208 Display Code Description and possible countermeasure Level check Check the bubble spirit level on the main unit of the balance. Adjust the level so that the bubble is inside the center circle of the bubble spirit level. Alternatively, press any key other than the ON:OFF key to cancel the display.
Page 209 Display Code Description and possible countermeasure Clock battery error The clock backup battery has been depleted. Press any key and set the time and date. Even if the clock backup battery is depleted, the clock and calendar function works normally as long as the balance is provided with power.
Page 210 Display Code Description and possible countermeasure EC，E07 Parameter setting error The value of the received command has exceeded the allowed value. Check the setting range of the numerical value of the command. If the errors described above cannot be released or other errors are Other errors displayed, contact your local A&D dealer.
Page 211: Other Display
22-3. Other display This is the automatic sensitivity adjustment notice (the mark blinking). If the balance is not used for several minutes with this mark blinking, the balance automatically performs sensitivity adjustment using the internal weight. (The blinking period depends on the operating environment.) Although it is possible to continue using the balance even while this mark is blinking, use after sensitivity adjustment is completed is advisable in order to maintain the weighing accuracy.
Page 212: Specifications
Specifications 23-1. Common specifications Internal weight Installed in GX-L series models Clock function Available Operating temperature and 5°C to 40°C, 85%RH or lower (no condensation) humidity range Display refresh rate 5 times/second, 10 times/second, or 20 times/second g (gram), kg (kilogram), pcs (counting mode), % (percent mode),...
Page 213: Individual Specifications
23-2. Individual specifications GX-L Series (Internal adjustment GX-32001L GX-32001LD GX-12001L GX-22001L GX-42001L type) GX-32001LS GX-32001LDS Weighing capacity 12 kg 22 kg 32 kg 32 kg 42 kg 32.008 kg / Maximum display 12.0084 kg 22.0084 kg 32.0084 kg 42.0080 kg 6.2009 kg...
Page 214 GX-L Series (Internal adjustment GX-62001L GX-62000L GX-102000L type) GX-62001LS GX-62000LS GX-102000LS Weighing capacity 62 kg 102 kg Maximum display 62.0084 kg 62.084 kg 102.084 kg Readability 0.1 g Repeatability 0.2 g 0.7 g (Standard deviation) Linearity ±0.5 g ±1 g ±2 g...
Page 215 GF-L Series (External adjustment GF-12001L GF-22001L GF-32001L GF-62000L type) Weighing capacity 12 kg 22 kg 32 kg 62 kg Maximum display 12.0084 kg 22.0084 kg 32.0084 kg 62.084 kg Readability 0.1 g Repeatability 0.1 g 0.7 g (Standard deviation) Linearity ±0.2 g ±1 g Stabilization time (when...
Page 216: External Dimensions
External Dimensions (1) Swing-arm type GX-12001L / 22001L / 32001L / 32001LD / 42001L / 62001L / 62000L / 102000L GF-12001L / 22001L / 32001L/ 62000L ( ) for GX-102000L Serial plate Underhook installation area Main unit bottom Unit: mm...
Page 217 (2) Separate type GX-32001LS / 32001LDS / 62001LS / 62000LS / 102000LS ( ) for GX-102000LS Serial plate Underhook installation area Serial plate Display stand Width 5 (long hole) Width 5 (long hole) Main unit bottom Enlarged view of the mounting holes on the back of the display section Unit: mm...
Page 218: Options And Accessories
Options and Accessories 25-1. Options Caution Only one of GXL-04, GXL-06, GXL-08, GXL-27, or the standard (RS-232C and USB) interfaces can be used. The GX-L/GF-L series are not IP65 with GXL-04, GXL-06 or GXL-08. Name Description Equipped with comparator relay output and buzzer (miniDIN 8pin), "RS-232C interface”, and external control input terminals that can perform the “RE-ZERO”...
Page 219 Name Description Can connect the balance to a LAN (Ethernet) and perform bi-directional communication with a PC on the LAN. Windows Data Communication Software for LAN Connection "WinCT-Plus" can be downloaded from A&D website.  Enables data acquisition from multiple weighing GXL-08 Ethernet (TCP/IP) interface instruments with a single PC via LAN connection.
Page 220: Accessories (Sold Separately)
25-2. Accessories (sold separately) Name Description Small dot impact printer that connects with the balance via the RS-232C interface. AD-8127 Multi-functional compact printer Various functions such as clock and calendar function, statistical function, interval print function, graphic print function, etc. are provided. Weighing values can be read remotely from the AD-8920A Remote display...
Page 221 Name Description A data logger equipped with four sensors for temperature, humidity, barometric pressure and vibration that can measure and store environmental data. When connected to the RS-232C interface of a balance, the AD-1687 can store environmental data AD-1687 Weighing environment logger along with weighing data.
Page 222 MEMO...
Page 223 THIS PAGE INTENTIONALLY LEFT BLANK.
Page 224 Back cover: A&D Global A&D Company, Limited 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 47747 Warm Springs Blvd, Fremont, California 94539, U.S.A. Tel: [1] (800) 726-3364 Weighing Support:[1] (888) 726-5931 Inspection Support:[1] (855) 332-8815 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom...
