Related Manuals for Cambridge SoundWorks Oontz Angle Solo
Summary of Contents for Cambridge SoundWorks Oontz Angle Solo

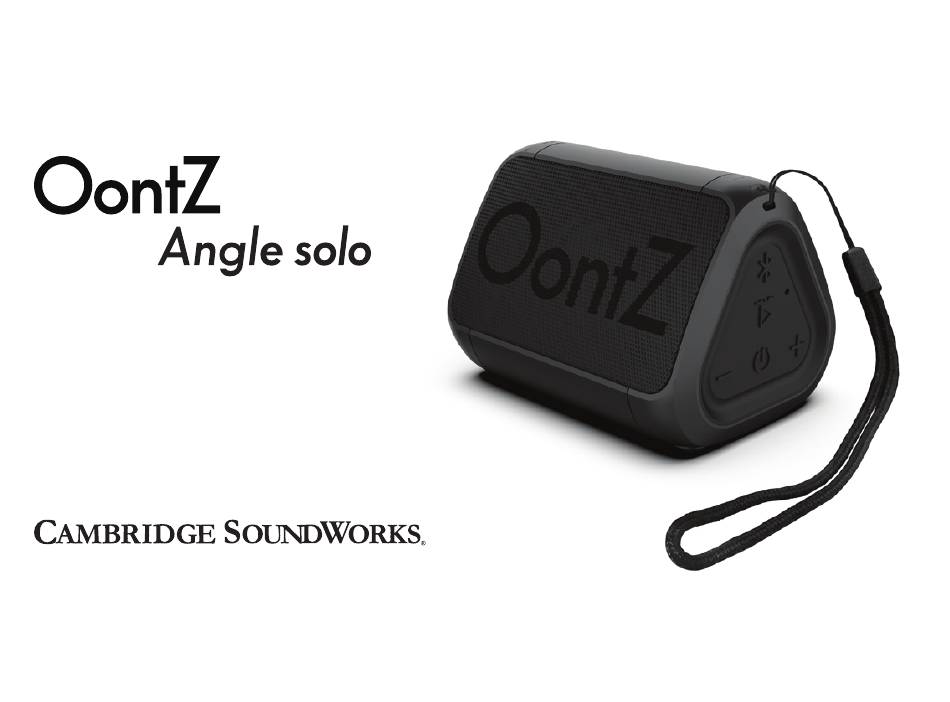

- Page 1 Quick Start Guide Portable Bluetooth Speaker Designed and Engineered By TheOontZ.com Lastest version of Quick Start Guide available online at www.theoontz.com/support...
- Page 2 In the Package Quick-Start Guide Type-C Charging Cable Lanyard Note: The cable and lanyard are packed below the plastic insert in the box. Slide out the insert to locate them.
-
Page 3: Table Of Contents
Bluetooth Dual Connection To Play with Non-Bluetooth Devices use a 3.5mm Stereo Audio Cable IPX7 Water Resistance Wireless Hands Free Personal Speakerphone OontZ Dual Speaker - Connect Two OontZ Angle solo Speakers Together 17 - 20 Reset Function Contacting Customer Support... -
Page 4: Buttons, Lights And Connectors
Buttons Bluetooth Button Play/Pause Button (Dual Function) Press and Release to Pause/Play Button Button (Dual Function) (Dual Function) Volume Down Volume Up Press to decrease volume Press to increase volume Track Back Track Forward Power Press and Hold Down to go to the Press and Hold Down beginning of the track to go to the next track... - Page 5 - Solid Blue speaker is connected Lit White/When the speaker is the second speaker connected in OontZ Dual Speaker - With a second OontZ Angle solo speaker (sold separately) you can wirelessly connect both speakers together to play with OontZ Dual Speaker.
- Page 6 Connectors AUX IN Jack Type-C - covers connectors - pull gently from the top to access connectors, it is a s t to provide water resistance Built-in Mic for Speakerphone Page 3...
-
Page 7: Attaching The Lanyard
Attaching the Lanyard - Slide the smaller - Slide the larger lanyard - Pull the larger lanyard lanyard loop through loop through the loop completely one of the lanyard smaller lanyard loop through the smaller attachment holes at that has passed lanyard loop to fasten the top of the speaker though the other... -
Page 8: Battery Features And Charging The Battery
- When playing from battery power the speaker is ready to play. OontZ Angle solo will turn o after 15 minutes of not playing audio to - For maximum playtime, fully conserve the battery charge. * charge the battery. - Page 9 Charging the Battery - Insert the small end of the Type-C Charging Cable into the Type-C Charging Connector as shown. - Insert the large end of the Type-C Charging cable into either a USB wall charger for a Smartphone or iPhone, or a USB port on your laptop/computer to charge the battery (see illustrations on page 7).
- Page 10 Charging the Battery (continued) Insert the large end of the Type-C Charging Cable into either a USB wall charger for a Smartphone or iPhone (a USB wall charger* that is 5V 1.0A maximum) or a USB port on your laptop/computer to charge the OontZ Angle solo rechargeable battery.
-
Page 11: Turning On And O
The speaker is in pairing mode - Solid Blue Your device has connected with the OontZ Angle solo and is ready to play Turn OFF Press and Hold Down the Power Button for 2 Seconds Blue Light will turn o... - Page 12 You will need to say "Alexa, connect my speaker" - Your device needs to be within 80 unobstructed feet of the OontZ Angle solo to pair and connect. If there is an issue when connecting please move your device closer to the speaker, then pair and connect.
-
Page 13: Pair & Connect With Your Device
-- With Your iPhone, iPad, iPod, Smartphone, Tablet & Mobile Devices - Go to Settings > Bluetooth, check Bluetooth is on - Select 'OontZ Angle solo DS xxx' when it appears under DEVICES (xxx: 3 characters which are unique to your speaker) - Page 14 - Select the 'OontZ Angle solo DS xxx' (xxx: 3 characters unique to your speaker) when it appears - The OontZ Angle solo will make a 'ding' sound when connected To connect the next time, turn on the OontZ Angle solo and say "Alexa, connect my speaker" or "Alexa, pair" Page 11...
- Page 15 This will use up the battery charge. We recommend to: 1) Keep the OontZ Angle solo plugged into a USB wall charger and it will remain on and available to play from the Amazon Echo device until you manually turn the speaker power o .
-
Page 16: Bluetooth Dual Connection
Bluetooth Dual Connection – When the speaker is turned on, it goes into BT pairing automatically. – Device A plays music after the Bluetooth connection is successful ,but device B cannot Bluetooth name of the speaker. – Double-click "Bluetooth Button "... -
Page 17: To Play With Non-Bluetooth Devices Use A 3.5Mm Stereo Audio Cable
- Make sure both ends of the cable are fully inserted - You are now ready to play. Important: The Bluetooth on the OontZ Angle solo is disabled when the 3.5mm audio cable is connected to the speaker. You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth device. -
Page 18: Ipx7 Water Resistance
Perfect for taking tothe lake,the beach, listening by the pool, listening in the shower - IPX7 means the OontZ Angle solo is WaterProof and can handle water spray or being splashed and can handle being partially or fully submerged in water up to a maximum of 3 feet deep, for up to a maximum of 30 minutes The rubber ap needs to be closed for the speaker to be waterproof and dustproof. -
Page 19: Wireless Hands Free Personal Speakerphone
Wireless Hands Free Personal Speakerphone The Wireless Hands Free Personal Speakerphone feature works over Bluetooth with Smartphones and iPhones only; this feature is not supported when connected to other types of devices. - Press and Release the Bluetooth Button - Press and Hold Down the Bluetooth Button for 2 Seconds - Please keep the speaker close in front of you so you may be heard clearly by the listener. -
Page 20: Oontz Dual Speaker Connect Two Oontz Angle Solo Speakers Together
OontZ Dual Speaker Connect two OontZ Angle solo Speakers Together Bluetooth for playing music for stereo separation Right Channel Left Channel *Placing the speakers on the ground or having walls or obstructions between the speakers will s cantly reduce the distance apart the two speakers can play together... - Page 21 “Right Channel”. The Play Control Speaker speaker light will remain solid Blue and the second speaker light will be solid White. The OontZ Angle solo speakers will be connected together for Left Channel - Right Channel and you are ready to play.
- Page 22 Two OontZ Angle solo Speakers connected for Left Channel - Right Channel Play Control Speaker Second Speaker Lit Blue Lit White – Use the buttons on the Play Control Speaker for play/pause, track back, track forward, answer and end phone calls. These controls are also available on the second speaker when paired together.
- Page 23 Not Recommended to play the audio from a video in OontZ Dual Speaker – It is not recommended to play the audio from a video with two OontZ Angle solo speakers connected in OontZ Dual Speaker. Playing the audio from a video or TV in OontZ Dual Speaker will have a delay in the audio playback from a video and will cause the audio and video to play out of sync with each other.
-
Page 24: Reset Function
Reset Function Remove the Type-C charging cable and 3.5mm Audio cable, if connected Step 2 : Press and hold down the together for one second and then release both buttons Step 3 : The speaker has now been reset and you can turn it on Page 21... -
Page 25: Contacting Customer Support
Customer Support If you have a question about your OontZ Angle solo or experience an issue with the speaker, our Customer Support Team wants to assist you. For online troubleshooting tips please visit: and select the OontZ Angle solo Contact us at: TheOontZ.com/support... -
Page 26: Safety And Precautions
Safety and Precautions risk of electric shock. Read and follow all instructions – All operating and use instructions should be followed. Protect the Type-C Charging Cable from being pinched, particularly at the connectors. Unplug the Type-C Charging Cable during lightning storms or when unused for long periods of time. - Page 27 Safety and Precautions (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 28 Check Out Our Other Best Selling Bluetooth Speakers OontZ Clip OontZ Cylinder Bluetooth Speaker Bluetooth Speaker Sold Separately Sold Separately • Indoor or Outdoor Use • Perfect for Travel & the Outdoors • IPX7 Waterproof • IPX7 Waterproof, with Integrated Carabiner •...
