Summary of Contents for Cambridge SoundWorks Oontz Angle 3

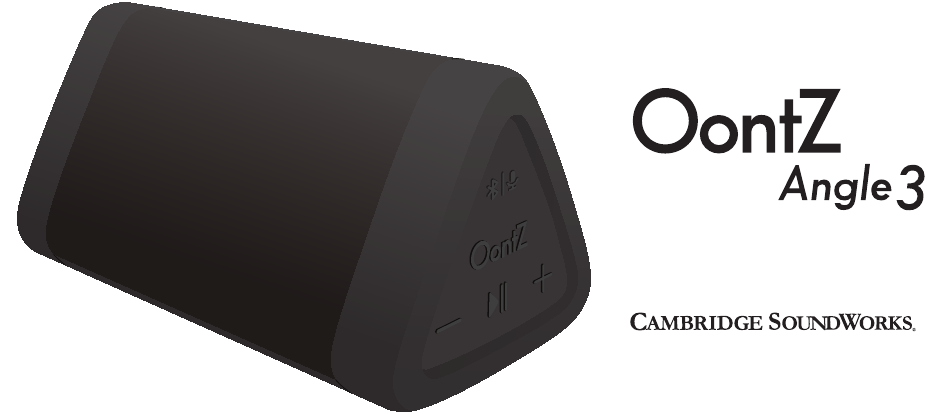

- Page 1 Quick Start Guide Portable Bluetooth Speaker Designed and Engineered By TheOontZ.com...
-
Page 2: Table Of Contents
-- From Your Amazon Echo Device 12 - 13 To Play with Non-Bluetooth Audio Source Devices Use the 3.5mm Audio Cable IPX5 Water Resistance Wireless Hands Free Personal Speakerphone Troubleshooting & Customer Support Resetting Your OontZ Angle 3 Safety and Precautions 19 - 20... -
Page 3: In The Package
In the Package Quick-Start Guide Micro USB Charging Cable Note: The Micro USB Charging Cable is packed below the cardboard insert in the box. Slide out the insert to locate the cable. Speaker Page 1... -
Page 4: Buttons
2 Seconds Important - Make sure the volume level is set high on your audio source device. The volume on the OontZ Angle 3 and your audio source device both need to be set to the highest level for the loudest volume. The volume controls on your audio source device and the speaker work independently of each other. -
Page 5: Lights
Lights Blue Light lit when speaker is on: Red Light lit when charging: - Flashing Blue - Slowly flashing Red speaker is in pairing mode battery is charging - Solid Blue - Solid Red speaker is connected battery is fully charged - Blue Light will turn to Solid Blue when the 3.5mm audio... -
Page 6: Connectors
Connectors Built-in Mic for Speakerphone AUX IN Jack Micro USB Charging Connector Rubber Flap Note: The rubber flap needs - covers connectors to be closed to keep the - pull gently from the bottom to access speaker water resistant connectors, it is a snug fit to provide water resistance Page 4... -
Page 7: Play Horizontally Or Vertically
Play Horizontally or Vertically Play Horizontally Play Vertically Controls on side Controls on top Dual Precision Stereo Drivers Passive Bass Radiator – Has its own grille – Faces bass away from Dual Precision Stereo Drivers – Rich bass does not interfere with Mids and Highs Page 5... -
Page 8: Battery Features
- For maximum playtime, fully charge the battery. - You can play while charging. Power Saving Feature - When playing from battery power the OontZ Angle 3 will turn off after 15 minutes of not playing audio to conserve the battery charge. * Low Charge Remaining... -
Page 9: Charging The Battery
Charging the Battery - Insert the small end of the Micro USB Charging Cable into the Micro Red Light lit USB Charging Connector as shown. when charging: - Slowly flashing Red - Insert the larger end of the Micro battery is charging USB Charging cable into a USB wall charger for a Smartphone or - Solid Red... - Page 10 Insert the larger end of the Micro USB charging cable into a USB wall charger for a Smartphone or iPhone 1.0A up to 5V 2.4A maximum), or a USB port on your laptop/computer to charge the OontZ Angle 3 battery. Page 8...
-
Page 11: Turning On And Off
Turning On and Off Turn ON Press and Release the Power Button Red Light turns on - will turn off after 3 seconds if playing from battery power Blue Light turns on - Flashing Blue The speaker is turned on and is in pairing mode - Solid Blue The speaker is turned on and has connected to an audio source device and is ready to play... - Page 12 Pair & Connect -- Step 1 - Make sure your OontZ Angle 3 battery has a sufficient charge, it is not able to connect when the charge is too low. - Your device needs to be within 100 unobstructed feet of the OontZ Angle 3 to pair and connect. If there is an issue when connecting please move your device closer to the speaker, then pair and connect.
-
Page 13: Pair & Connect -- Step 2
Note: Your Smartphone or Tablet instructions may vary Important: Make sure the volume level is set high on your device. The volume on the OontZ Angle 3 and your device both need to be set to the highest level for the loudest volume. The volume controls on your device and the speaker work independently of each other. -
Page 14: From Your Amazon Echo Device
- Select your Amazon Echo device under 'Devices' by pressing it - Press 'Bluetooth' - Select the 'OontZ Angle 3 xxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available Speakers' - Alexa will announce: "Connected to OontZ Angle 3 xxx"... - Page 15 - or say "Alexa, disconnect my speaker" and the OontZ Angle 3 will automatically turn off after 15 minutes. - When you want to connect and play to the speaker again turn on the OontZ Angle 3 and say "Alexa, connect my speaker"...
-
Page 16: To Play With Non-Bluetooth Audio Source Devices Use The 3.5Mm Audio Cable
- You are now ready to play. Important: The Bluetooth on the OontZ Angle 3 is disabled when a 3.5mm audio cable is connected to the speaker. You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth device. -
Page 17: Ipx5 Water Resistance
IPX5 rating - The OontZ Angle 3 can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet environment for an extended period of time, any of which could cause unrepairable damage to the speaker. -
Page 18: Wireless Hands Free Personal Speakerphone
Wireless Hands Free Personal Speakerphone - The Wireless Hands Free Personal Speakerphone feature works over Bluetooth with Smartphones and iPhones only - This feature is not supported when connected to PCs, laptops, Apple Mac or other types of devices. To answer an Incoming Call / To End a Call - Press and Release the Bluetooth Button To Reject an Incoming Call - Press and Hold Down the Bluetooth Button... -
Page 19: Troubleshooting & Customer Support
For issues with your OontZ Angle 3, please view our troubleshooting tips at: TheOontZ.com/troubleshooting and select the OontZ Angle 3 Customer Support If you have any issues with your OontZ Angle 3, our Customer Support Team wants to assist you. TheOontZ.com/support Please contact us at: and fill in our customer support form. -
Page 20: Resetting Your Oontz Angle 3
Resetting Your OontZ Angle 3 Step 1: Remove the Micro USB charging cable and 3.5mm Audio cable, if connected. Step 2: Press and hold down the Power button button together for 1 second, then release. Step 3: The speaker has now been reset and you can turn it on. -
Page 21: Safety And Precautions
Safety and Precautions When the OontZ Angle 3 speaker is plugged in to a charging source with the Micro USB charging cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock. Read and follow all instructions – All operating and use instructions should be followed. - Page 22 Safety and Precautions (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 OontZ Angle 3 Carry Case Sold separately • Lightweight neoprene rubber with reinforced zipper • Includes a durable aluminum carabiner for easily attaching to backpacks, luggage, laptop bags, coolers, camera bags, purses, belts, and other clippable items Available at TheOontZ.com...
