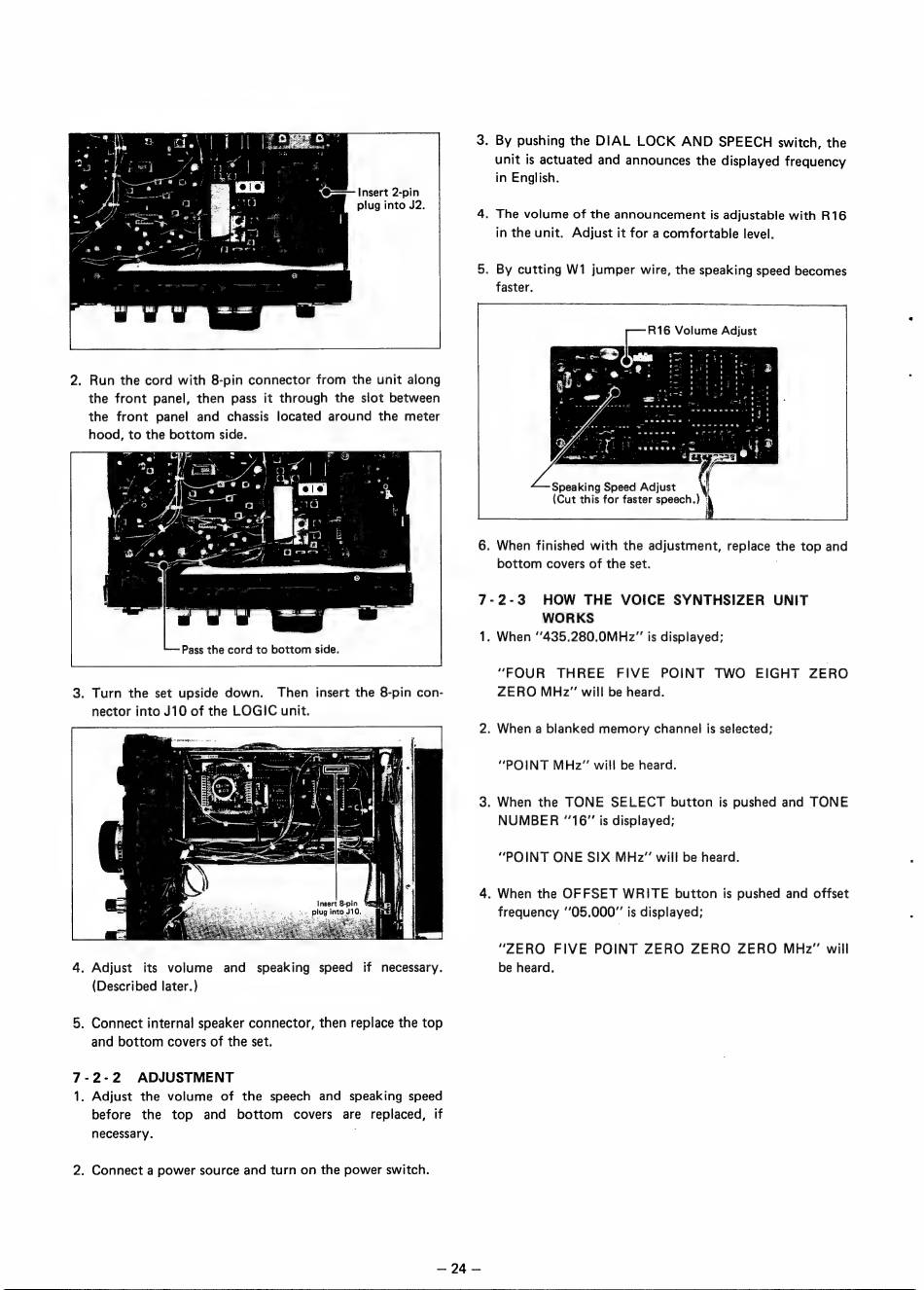

2. Run the cord with 8-pin connector from the unit along
the front panel, then pass it through the slot between
the front panel and chassis located around the meter
hood, to the bottom side.
Pass the cord to bottom side.
3. Turn the set upside down. Then insert the 8-pin con-
nector into J10 of the LOGIC unit.
Insert 8-pin enl
. plug into J10.
4. Adjust its volume and speaking speed if necessary.
(Described later.)
5. Connect internal speaker connector, then replace the top
and bottom covers of the set.
7-2-2 ADJUSTMENT
1. Adjust the volume of the speech and speaking speed
before the top and bottom covers are replaced, if
necessary.
2. Connect a power source and turn on the power switch.
— 24 —
3. Ву pushing the DIAL LOCK AND SPEECH switch, the
unit is actuated and announces the displayed frequency
in English.
4. The volume of the announcement is adjustable with R16
in the unit. Adjust it for a comfortable level.
5. By cutting W1 jumper wire, the speaking speed becomes
faster.
Speaking Speed Adjust |
(Cut this for faster speech.) !
6. When finished with the adjustment, replace the top and
bottom covers of the set. |
7-2-3 HOW THE VOICE SYNTHSIZER UNIT
WORKS
1. When "435.280.0MHz" is displayed;
"FOUR THREE FIVE POINT TWO EIGHT ZERO
ZERO MHz" will be heard.
2. When a blanked memory channel is selected;
"POINT MHz" will be heard.
3. When the TONE SELECT button is pushed and TONE
NUMBER "16" is displayed;
"POINT ONE SIX MHz" will be heard.
4. When the OFFSET WRITE button is pushed and offset
frequency "05.000" is displayed;
"ZERO FIVE POINT ZERO ZERO ZERO MHz' will
be heard.
