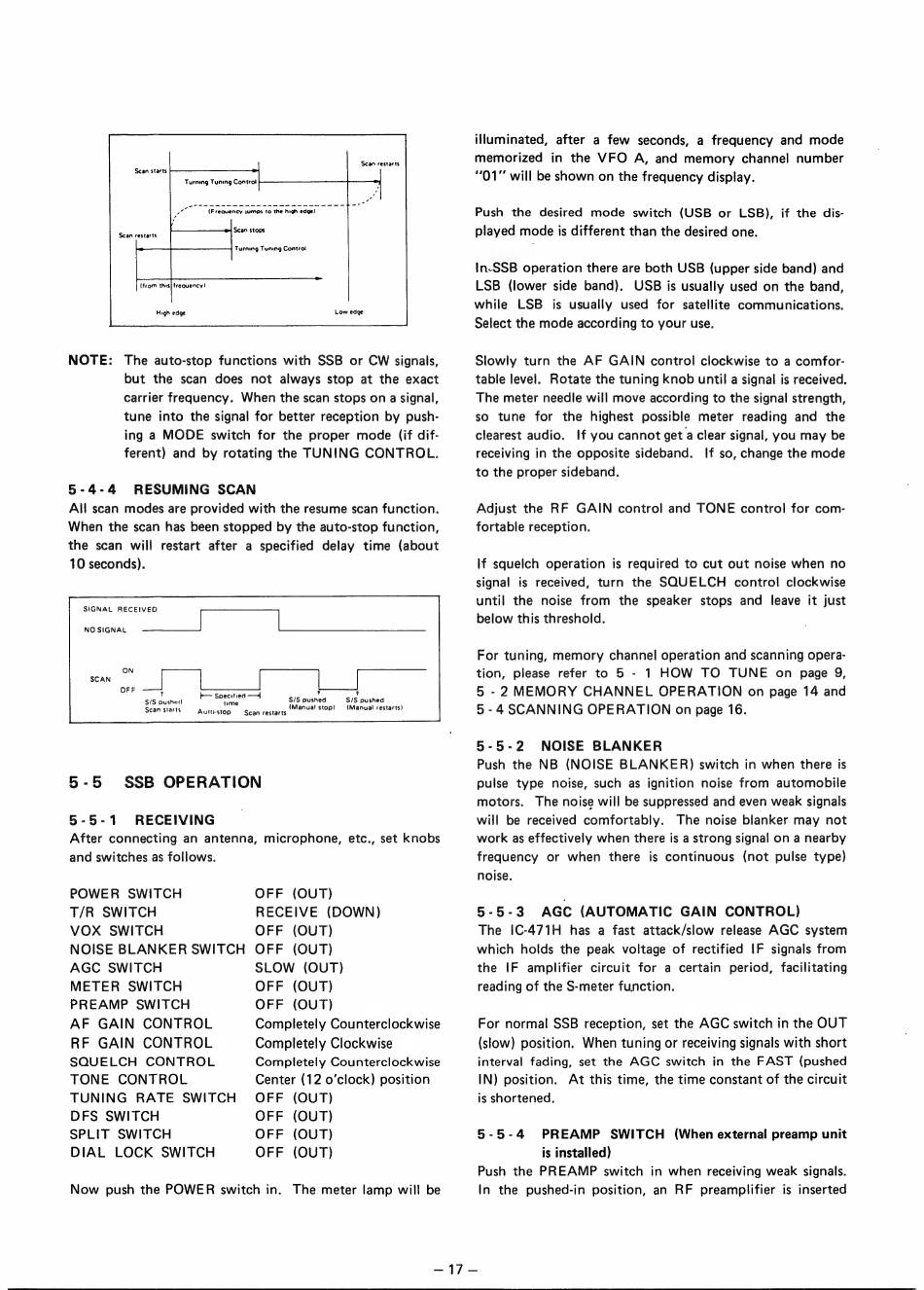

Scan restarts
Scan starts
Turning Tuning Control
(Frequency jumps to the high edge)
Scan stops
Scan restarts
Turning Tuning Control
(from this} frequency)
High edge
Low edge
NOTE:
The auto-stop functions with SSB or CW signals,
but the scan does not always stop at the exact
carrier frequency.
When the scan stops on a signal,
tune into the signal for better reception by push-
ing a MODE
switch for the proper mode
(if dif-
ferent) and by rotating the TUNING
CONTROL.
5-4-4
RESUMING
SCAN
All scan modes are provided with the resume scan function.
When the scan has been stopped by the auto-stop function,
the scan will restart after a specified
delay time (about
10 seconds).
SIGNAL
RECEIVED
NO SIGNAL
пе
Ел
1
L—
fied
—4
t
t
S/S pushed
Specie
S/S pushed
S/S pushed
M
|
|
Scan starts
Autostop
— Scan restarts {Manual
stop)
(Manual
restarts)
5-5
558 OPERATION
5-5-1
RECEIVING
After connecting an antenna,
microphone,
etc., set knobs
and switches as follows.
POWER
SWITCH
OFF
(OUT)
T/R SWITCH
RECEIVE
(DOWN)
VOX
SWITCH
OFF
(OUT)
NOISE BLANKER SWITCH
OFF
(OUT)
AGC
SWITCH
SLOW
(OUT)
METER
SWITCH
OFF
(OUT)
PREAMP
SWITCH
OFF
(OUT)
AF GAIN CONTROL
RF GAIN CONTROL
SQUELCH
CONTROL
TONE
CONTROL
Completely Counterclockwise
Completely Clockwise
Completely Counterclockwise
Center (12 o'clock) position
TUNING
RATE
SWITCH
OFF
(OUT)
DFS SWITCH
OFF
(OUT)
SPLIT SWITCH
OFF
(OUT)
DIAL
LOCK
SWITCH
OFF
(OUT)
Now
push the POWER
switch in.
The meter lamp will be
– 17 –
illuminated,
after a few seconds, a frequency and mode
memorized
in the VFO
A, and memory
channel
number
"01" will be shown on the frequency display.
Push
the
desired
mode
switch
(USB or LSB),
if the dis-
played mode is different than the desired one.
In-SSB operation there are both USB (upper side band) and
LSB (lower side band).
USB is usually used on the band,
while
LSB
is usually
used
for satellite communications.
Select the mode according to your use.
Slowly turn the AF GAIN control clockwise to a comfor-
table level. Rotate the tuning knob until a signal is received.
The meter needle will move according to the signal strength,
so tune
for the highest possible meter
reading and the
clearest audio.
If you cannot get a clear signal, you may be
receiving in the opposite sideband.
If so, change the mode
to the proper sideband.
Adjust the RF GAIN
control and TONE control for com-
fortable reception.
If squelch operation is required to cut out noise when no
signal is received,
turn
the SQUELCH
control clockwise
until the noise from
the speaker stops and leave it just
below this threshold.
For tuning, memory channel operation and scanning opera-
tion, please
refer to
5 -
1 HOW
TO
TUNE
on
page 9,
5 - 2 MEMORY
CHANNEL
OPERATION
on page 14 and
5-4 SCANNING OPERATION on раде 16.
5-5-2
NOISE
BLANKER
Push the NB (NOISE BLANKER)
switch in when there is
pulse type
noise, such as ignition noise from
automobile
motors.
The noise will be suppressed and even weak signals
will be received comfortably.
The noise blanker may not
work as effectively when there is a strong signal on a nearby
frequency
or when
there is continuous
(not pulse type)
noise.
5-5-3
AGC
(AUTOMATIC
GAIN
CONTROL)
The
1C-471H
has a fast attack/slow release AGC system
which holds the peak voltage of rectified IF signals from
the
IF amplifier
circuit
for a certain
period,
facilitating
reading of the S-meter function.
For normal SSB reception, set the AGC switch in the OUT
(slow) position. When tuning or receiving signals with short
interval fading, set the AGC
switch
in the FAST
(pushed
IN) position.
At this time, the time constant of the circuit
is shortened.
5-5-4
PREAMP
SWITCH
(When external preamp unit
is installed)
Push the PREAMP
switch in when receiving weak signals.
In the pushed-in
position, an RF preamplifier
is inserted
