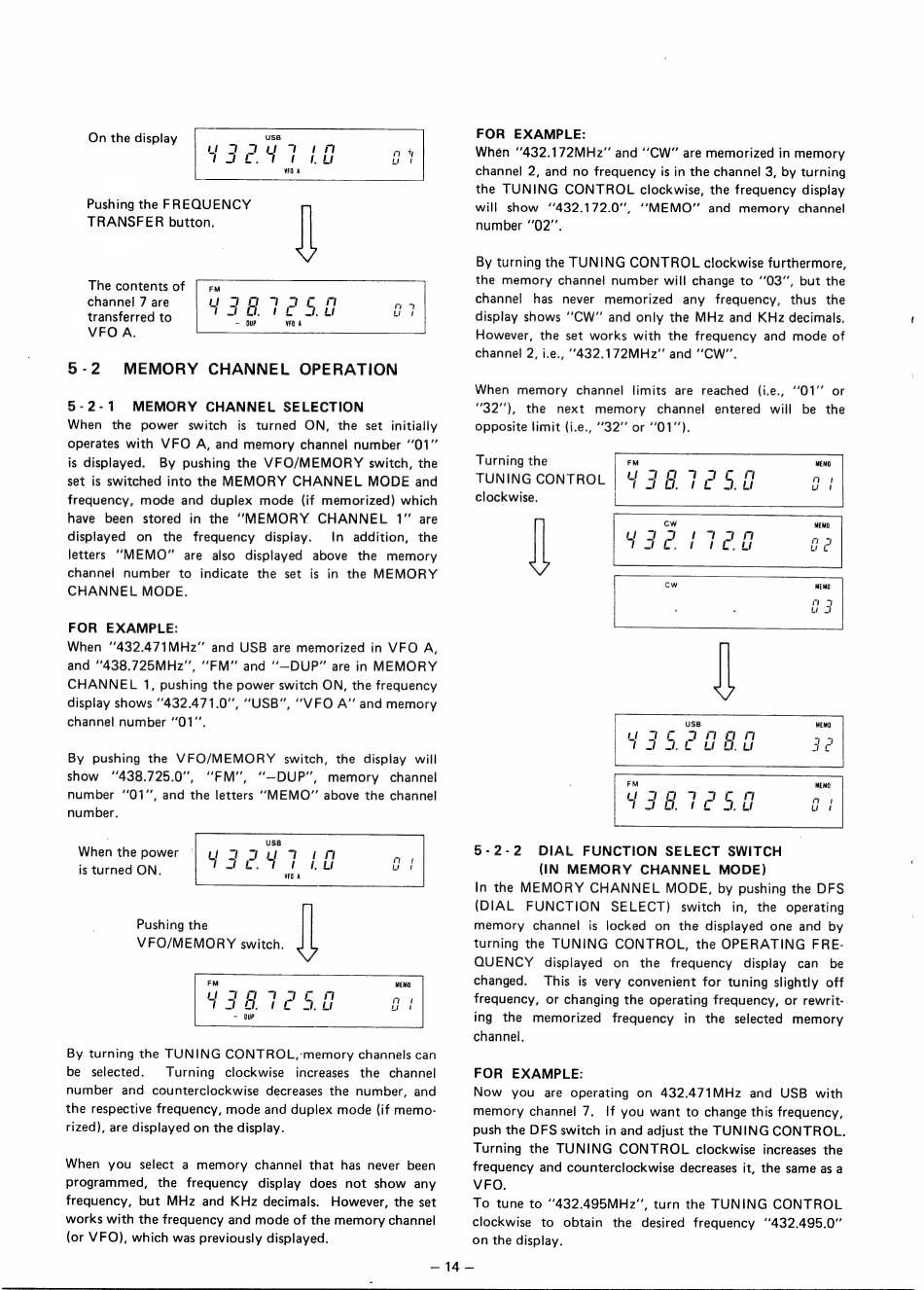

Icom IC-471H Instruction Manual page 16

On the display
Pushing the FREQUENCY
TRANSFER button.
The contents of
channel 7 are
transferred to
VFO A.
5-2 MEMORY CHANNEL OPERATION
5-2-1 MEMORY CHANNEL SELECTION
When the power switch is turned ON, the set initially
operates with VFO A, and memory channel number "01"
is displayed. By pushing the VFO/MEMORY switch, the
set is switched into the MEMORY CHANNEL MODE and
frequency, mode and duplex mode (if memorized) which
have been stored in the "MEMORY CHANNEL 1" are
displayed on the frequency display. In addition, the
letters "MEMO" are also displayed above the memory
channel number to indicate the set is in the MEMORY
CHANNEL MODE.
FOR EXAMPLE:
When '432.471MHz" and USB are memorized in VFO A,
and "438.725MHz", "FM" and "—DUP" are in MEMORY
CHANNEL 1, pushing the power switch ON, the frequency
display shows "432.471.0", "USB", "VFO A" and memory
channel number "01".
By pushing the VFO/MEMORY switch, the display will
show "438.725.0", "FM", "—DUP", memory channel
number "01", and the letters "MEMO" above the channel
number.
When the power
is turned ON.
Pushing the
VFO/MEMORY switch.
By turning the TUNING CONTROL, memory channels can
be selected. Turning clockwise increases the channel
number and counterclockwise decreases the number, and
the respective frequency, mode and duplex mode (if memo-
rized), are displayed on the display.
When you select a memory channel that has never been
programmed, the frequency display does not show any
frequency, but MHz and KHz decimals. However, the set
works with the frequency and mode of the memory channel
(or МЕО), which was previously displayed.
FOR EXAMPLE:
Whén "432.172MHz" and "СУМ" are memorized in memory
channel 2, and no frequency is in the channel 3, by turning
the TUNING CONTROL clockwise, the frequency display
will show ''432.172.0", "MEMO" and memory channel
number "02".
By turning the TUNING CONTROL clockwise furthermore,
the memory channel number will change to ''03", but the
channel has never memorized any frequency, thus the
display shows "СМ" and only the MHz and KHz decimals.
However, the set works with the frequency and mode of
channel 2, i.e., ''432.172MHz"'' and "CW".
When memory channel limits are reached (i.e., "01" or
"32"), the next memory channel entered will be the
opposite limit (i.e., "32" or "О1"),
Turning the
TUNING CONTROL
clockwise.
4
Li
3
Un
|,
1
афи
Џ
= ma!
t
ч
(~ ~
5-2-2 DIAL FUNCTION SELECT SWITCH
(IN MEMORY CHANNEL MODE)
In the MEMORY CHANNEL MODE, by pushing the DFS
(DIAL FUNCTION SELECT) switch in, the operating
memory channel is locked on the displayed one and by
turning the TUNING CONTROL, the OPERATING FRE-
QUENCY displayed on the frequency display can be
changed. This is very convenient for tuning slightly off
frequency, or changing the operating frequency, or rewrit-
ing the memorized frequency in the selected memory
channel.
FOR EXAMPLE:
Now you are operating on 432.471MHz and USB with
memory channel 7. |f you want to change this frequency,
push the DFS switch in and adjust the TUNING CONTROL.
Turning the TUNING CONTROL clockwise increases the
frequency and counterclockwise decreases it, the same as a
VFO.
To tune to '"432.495MHz'', turn the TUNING CONTROL
clockwise to obtain the desired frequency "432.495.0"
on the display.
— 14 —
